Plan 62585DJ

3-Bed House Plan with Great Vaulted Master Suite - 1658 Sq Ft

Heated S.F.
1,658
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 62585DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62585DJ

M-F 9am-5pm EST |

1-203-761-8500

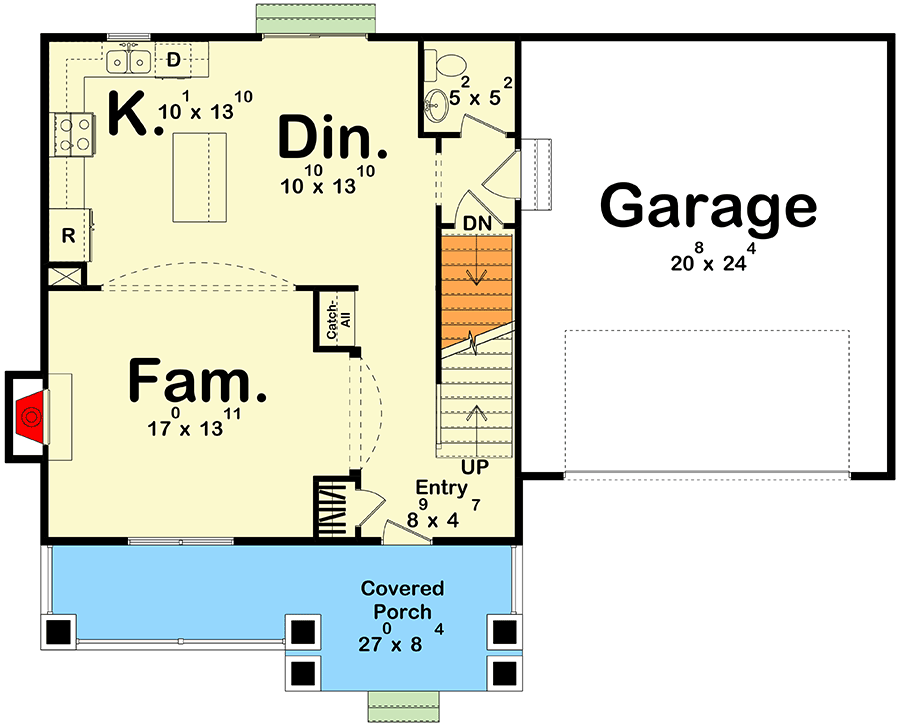

Main Level

Plan 62585DJ: 3-Bed House Plan with Great Vaulted Master Suite - 1658 Sq Ft - Floor Plan - Main Level - Bungalow, Cottage, Craftsman, Traditional

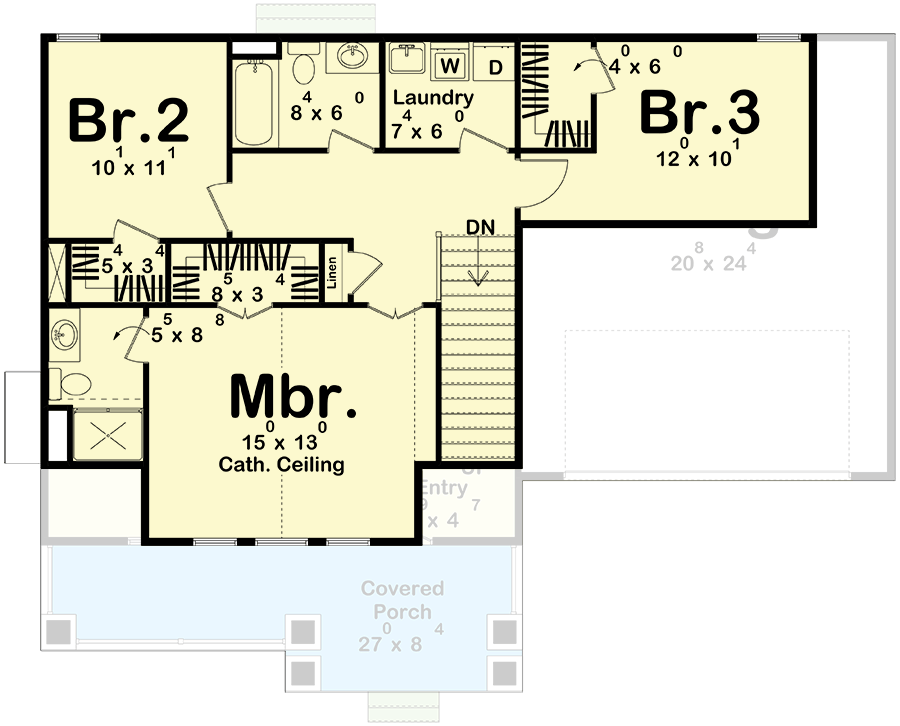

2nd Floor

Plan 62585DJ: 3-Bed House Plan with Great Vaulted Master Suite - 1658 Sq Ft - Floor Plan - 2nd Floor - Bungalow, Cottage, Craftsman, Traditional

Plan Details

  • Get one huge open space for your main living area in this 3-bed house plan with vaulted master suite.
  • A fireplace warms the great room and there's a built-in hutch in the hallway.

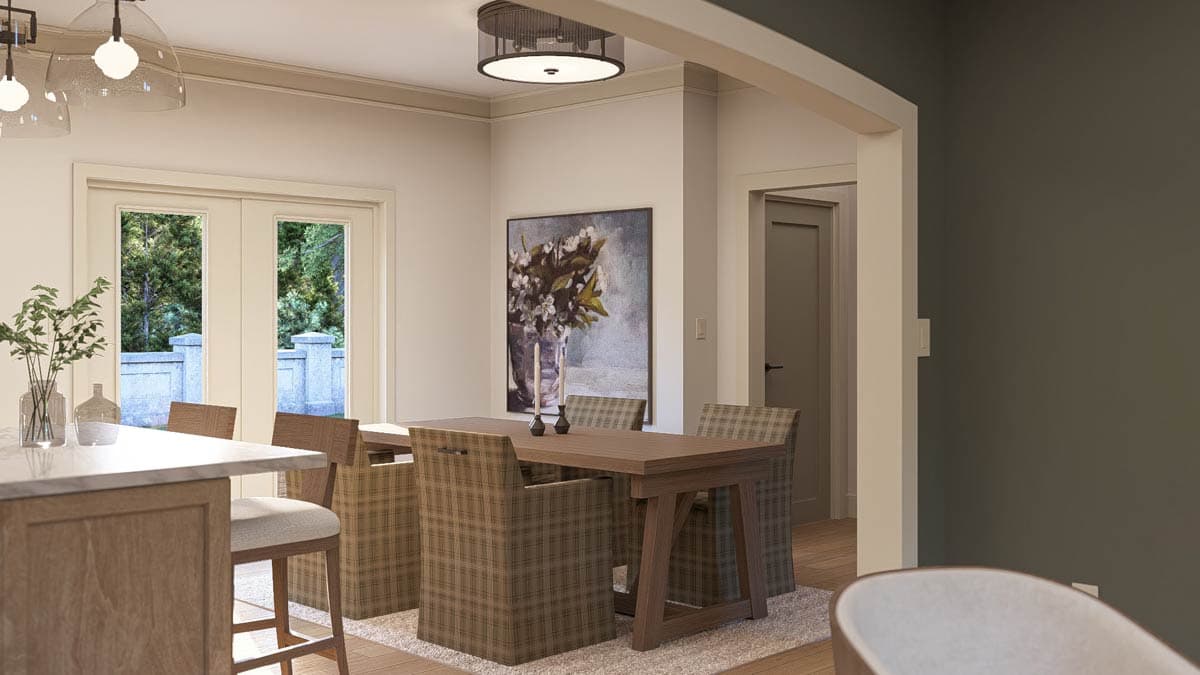

  • From the kitchen island, you have views of the eating area and the great room.
  • All three bedrooms are up on the second floor where they are just steps away from the laundry room.
  • Every bedroom gets a walk-in closet and the master suite has a lovely vaulted ceiling.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,658 sq. ft.

1st Floor

774 sq. ft.

2nd Floor

884 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

29' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

531 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Architectural Style

Bungalow

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,658 sq. ft.

1st Floor

774 sq. ft.

2nd Floor

884 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

29' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

531 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Architectural Style

Bungalow

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
