Plan 135010GRA

3-Bed House Plan with Loft Beneath Gabled Roof - 1343 Sq Ft

Heated S.F.
1,343
Beds
3
Baths
3.5
Stories
2
Client Photos

Floor Plan

Plan 135010GRA

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 135010GRA

M-F 9am-5pm EST |

1-203-761-8500

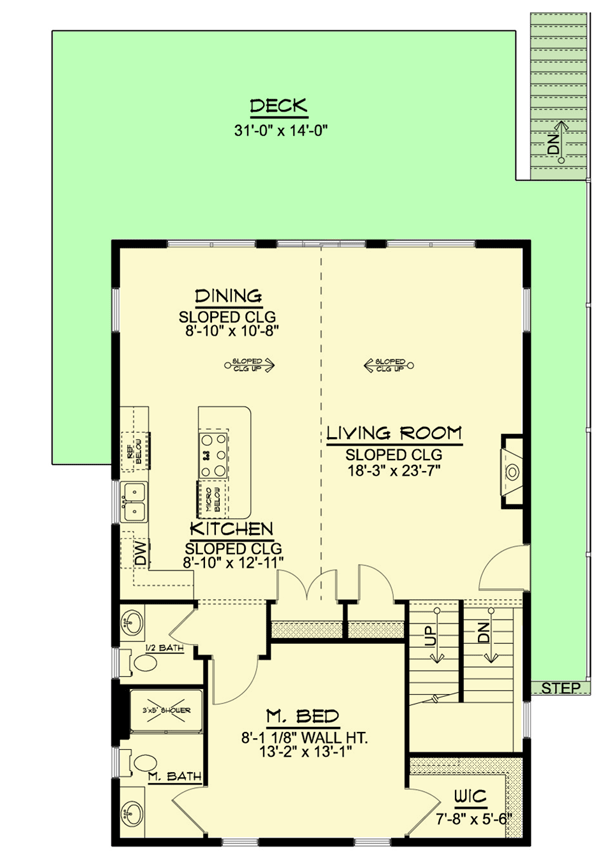

Main Level

Plan 135010GRA: 3-Bed House Plan with Loft Beneath Gabled Roof - 1343 Sq Ft - Floor Plan - Main Level - Coastal, Mountain, Vacation

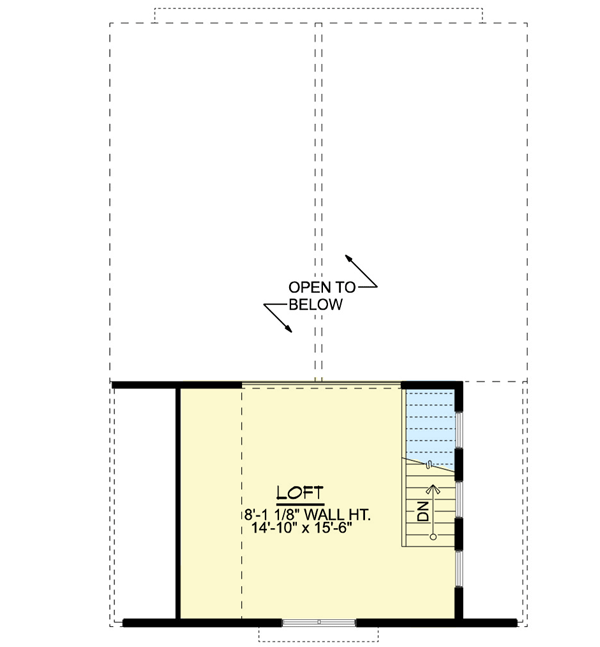

2nd Floor

Plan 135010GRA: 3-Bed House Plan with Loft Beneath Gabled Roof - 1343 Sq Ft - Floor Plan - 2nd Floor - Coastal, Mountain, Vacation

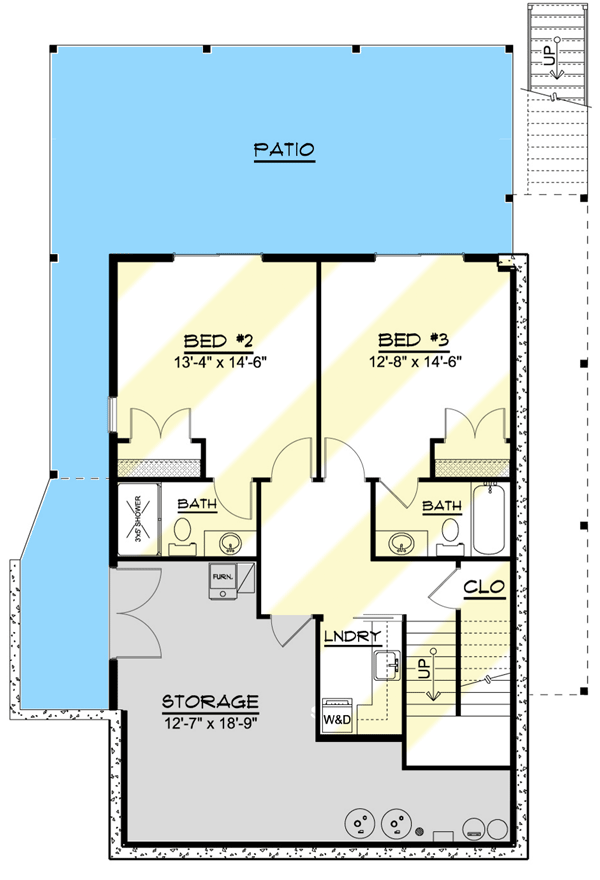

Optional Lower Level

Plan 135010GRA: 3-Bed House Plan with Loft Beneath Gabled Roof - 1343 Sq Ft - Floor Plan - Optional Lower Level - Coastal, Mountain, Vacation

Plan Details

  • The rectangular footprint capped by a gabled roof keeps this 3-bedroom house plan's budget a priority.
  • Inside, an open-concept living space shares the main level with the master bedroom for a comfortable and functional layout. Tall, arched windows consume the rear wall in order to take advantage of the surrounding views.
  • The cooktop island in the kitchen boosts workspace and provides clean sightlines that overlook the massive back deck.
  • Discover a versatile, 251 square foot loft upstairs.
  • The optional lower level nearly doubles the living space, and includes two bedroom suites that extend onto a covered patio, the laundry room, and plenty of storage.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 135010GRA Comes to Life in Mississippi

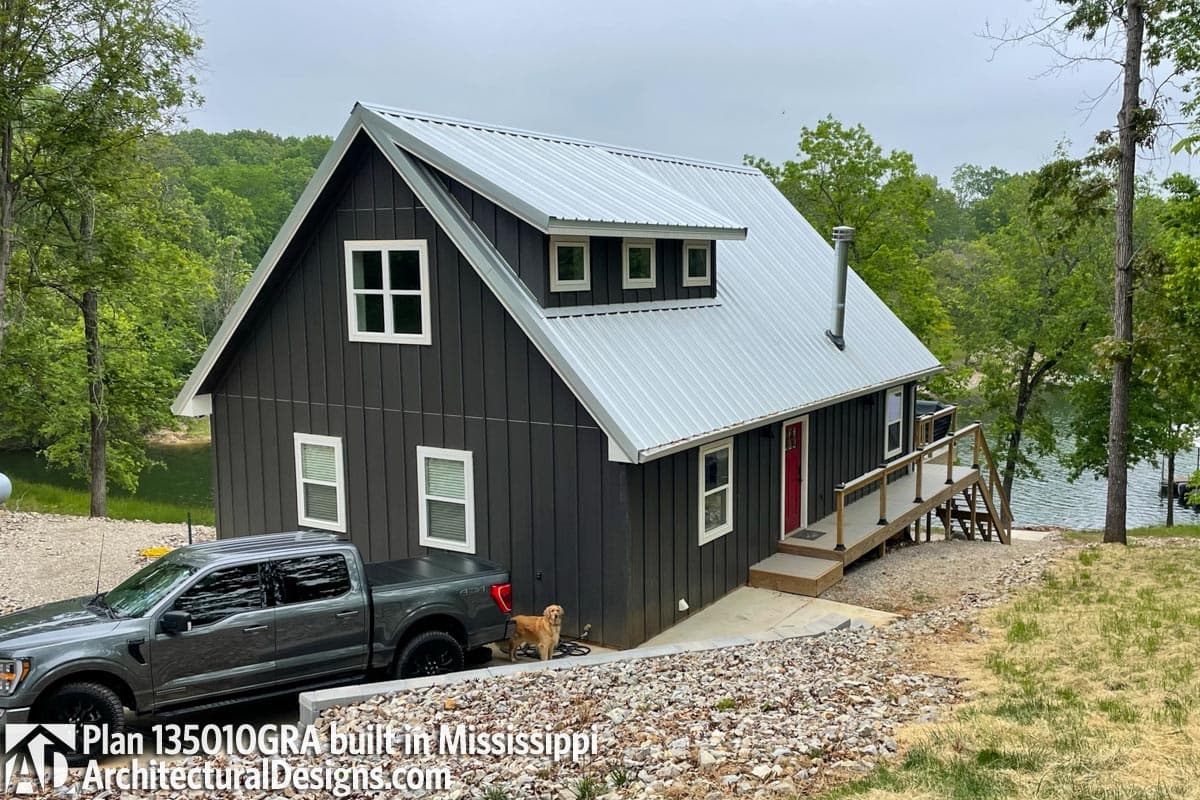

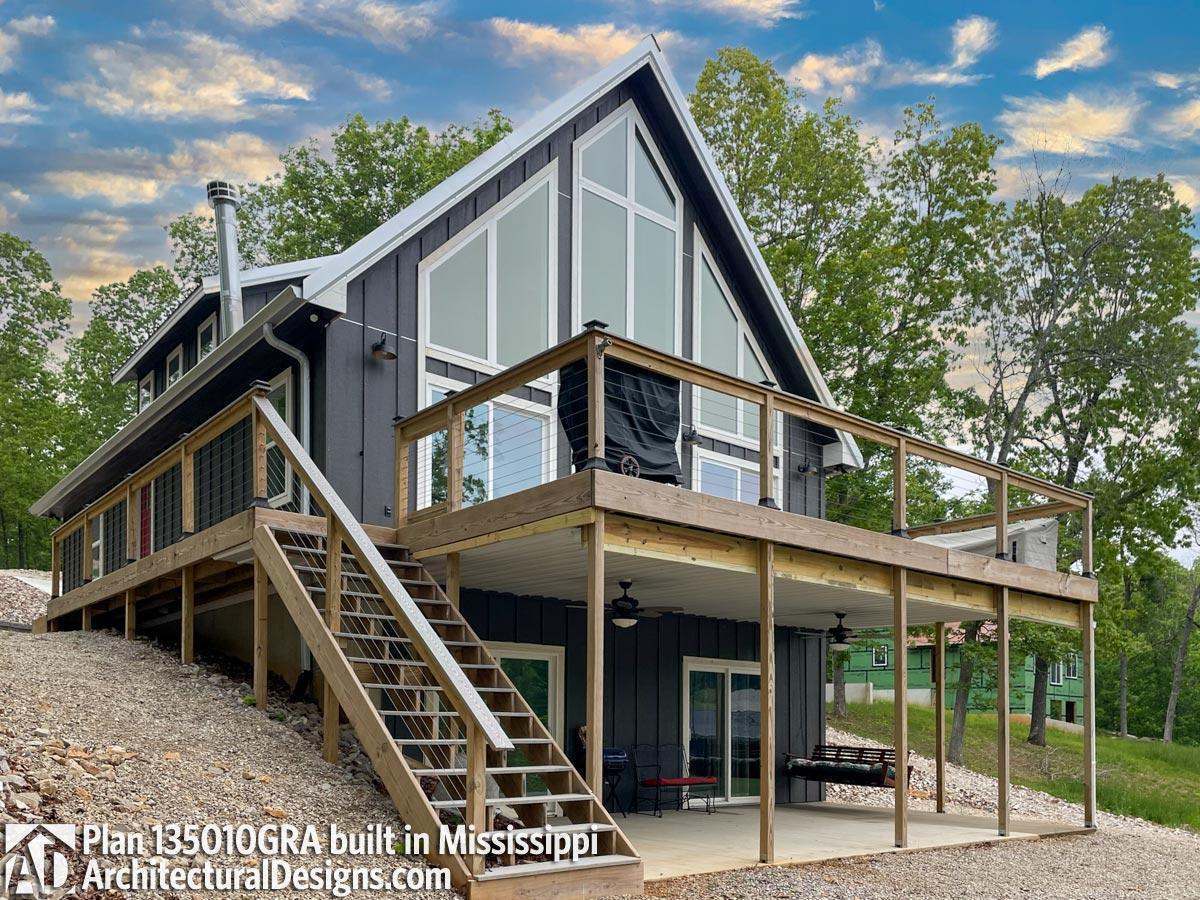

House Plan 135010GRA Comes to Life in Mississippi

25

Photos

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,343 sq. ft.

1st Floor

1,092 sq. ft.

2nd Floor

251 sq. ft.

Optional Lower Level

1,092 sq. ft.

Deck

671 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

53' 0"

Max Ridge Height

34' 5"

Ceiling Heights

Lower Level

9'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

7.5 on 12

Framing Type

Truss

Architectural Style

Coastal

Mountain

Vacation

Special Features

Laundry - Lower Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Lake House Plans

Photo Gallery

Sloping Lot
