Plan 62828DJ
3-Bed House Plan with Old-World Looks and 21st Century Floor Plan
Heated S.F.
1,990
Beds
3
Baths
2.5
Stories
2
Cars
1-2
Videos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

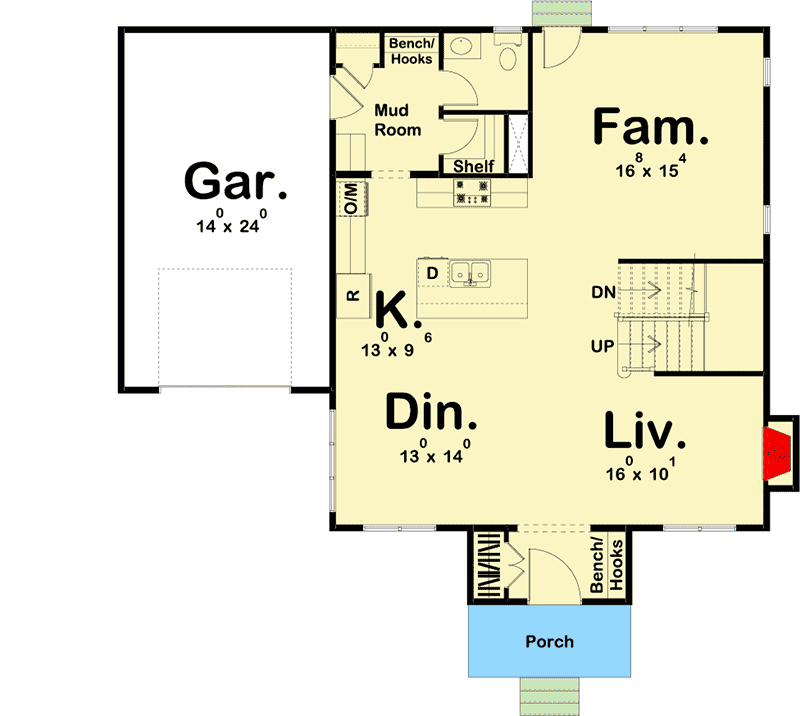

3-Bed House Plan with Old-World Looks and 21st Century Floor Plan - 62828DJ floor plan - Main Level
2nd Floor
Reverse Floor Plan

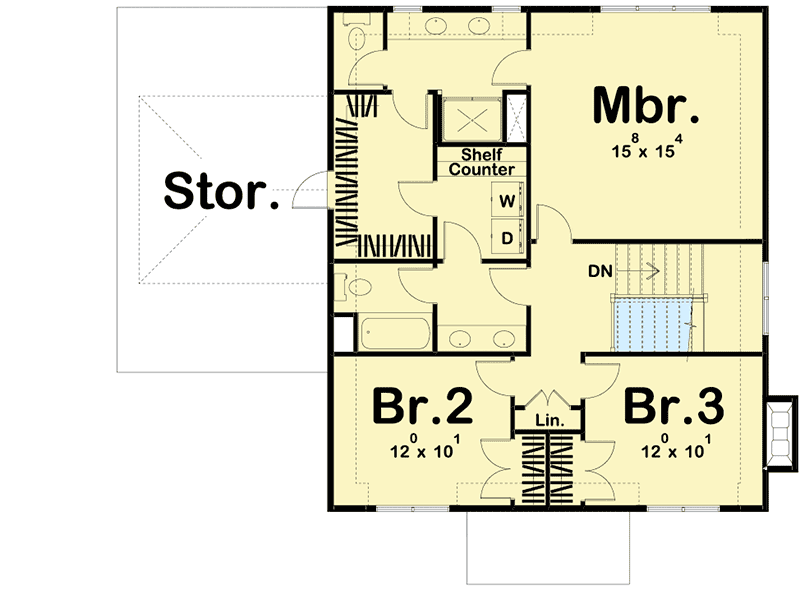

3-Bed House Plan with Old-World Looks and 21st Century Floor Plan - 62828DJ floor plan - 2nd Floor
Main Floor - 2-Car Garage Option
Reverse Floor Plan

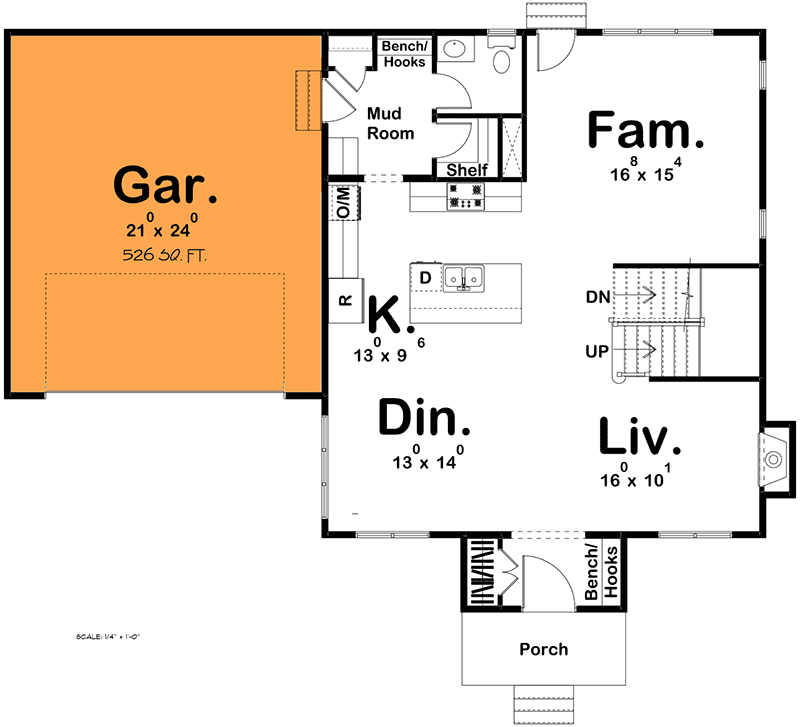

3-Bed House Plan with Old-World Looks and 21st Century Floor Plan - 62828DJ floor plan - Main Floor - 2-Car Garage Option
Plan Details
  • A steeply pitched roof and stucco give this 3-bed house plan an Old-World look while the floor plan brings it into the 21st century. As you step into the home, you'll find yourself in an entryway with built-in bench and coat closet, two features that help eliminate clutter from flowing into the home.
  • Just off the entryway is a living room that is warmed by a fireplace and flows seamlessly to the kitchen and dining room. The kitchen has a wonderful walk-in pantry and an island with a snack bar.
  • Upstairs, you will find master suite with direct laundry access from the large walk-in closet. Note the door leading to extra storage from the closet as well. Bedrooms 2 and 3 share a centrally located hall bathroom that also has access to the laundry room.
  • Back on the main floor, the 1-car garage accesses the home through a convenient mudroom with a bench and lockers. Select the 2-car garage option and get 526 sq. ft. of garage space.
  • NOTE: Expect a 3 to 5 day delay if selecting the 2-car garage option
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed House Plan with Old-World Looks and 21st Century Floor Plan

  • 1,990

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1 - 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Main Floor - 2-Car Garage Option

Plan Details

Square Footage Breakdown

  • Total: 1,990 sq. ft.
  • 1st Floor: 1,058 sq. ft.
  • 2nd Floor: 932 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 39' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 353 sq. ft.
  • Count: 1 or 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 16 on 12
