Plan 42534DB

3-Bed House Plan with Stone and Stucco Exterior

Pageloader

3-Bed House Plan with Stone and Stucco Exterior

Plan 42534DB

  • 4,140

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • With a fabulous master suite, a flex room and an unusual curved kitchen island, this European house plan has much to commend it.
  • The foyer is huge and wide open to the formal dining room and great room beyond.
  • The wall of windows in the huge bow of the Great room gives you wonderful views and lots of light. A wet bar and fireplace add to the comforts.
  • In the informal area of the home, the big island is shaped like a question mark with an eating area on one side.
  • From here you can see into the eating nook set in a bay and the large family room that has windows on three sides.
  • The sumptuous master suite enjoys a large sitting area and two walk-in closets, one of which has a built-in stack washer/dryer for the ultimate in convenience.
  • Use the flex space as a study or playroom or any way you want.
  • Upstairs, three huge bedrooms all have walk-in closets and vaulted ceilings that add interest.
  • Related Plan: Get a finished basement with house plan 42587DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

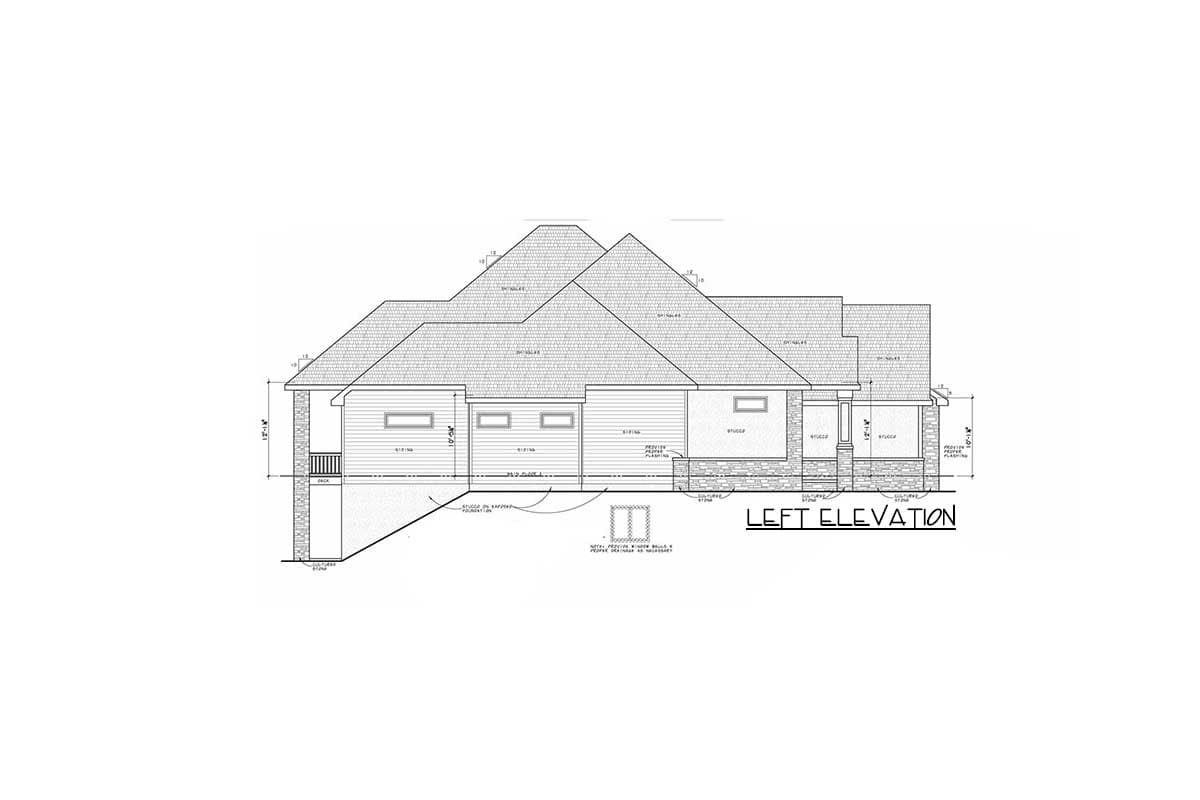

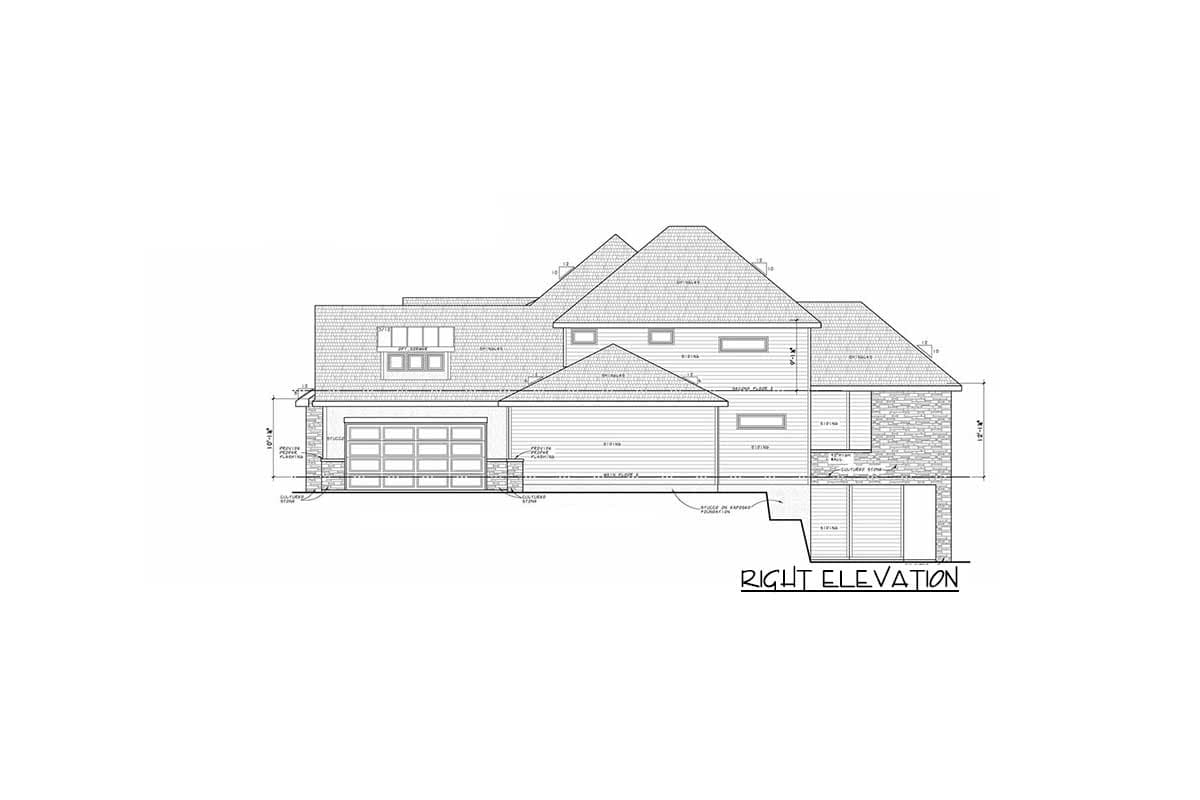

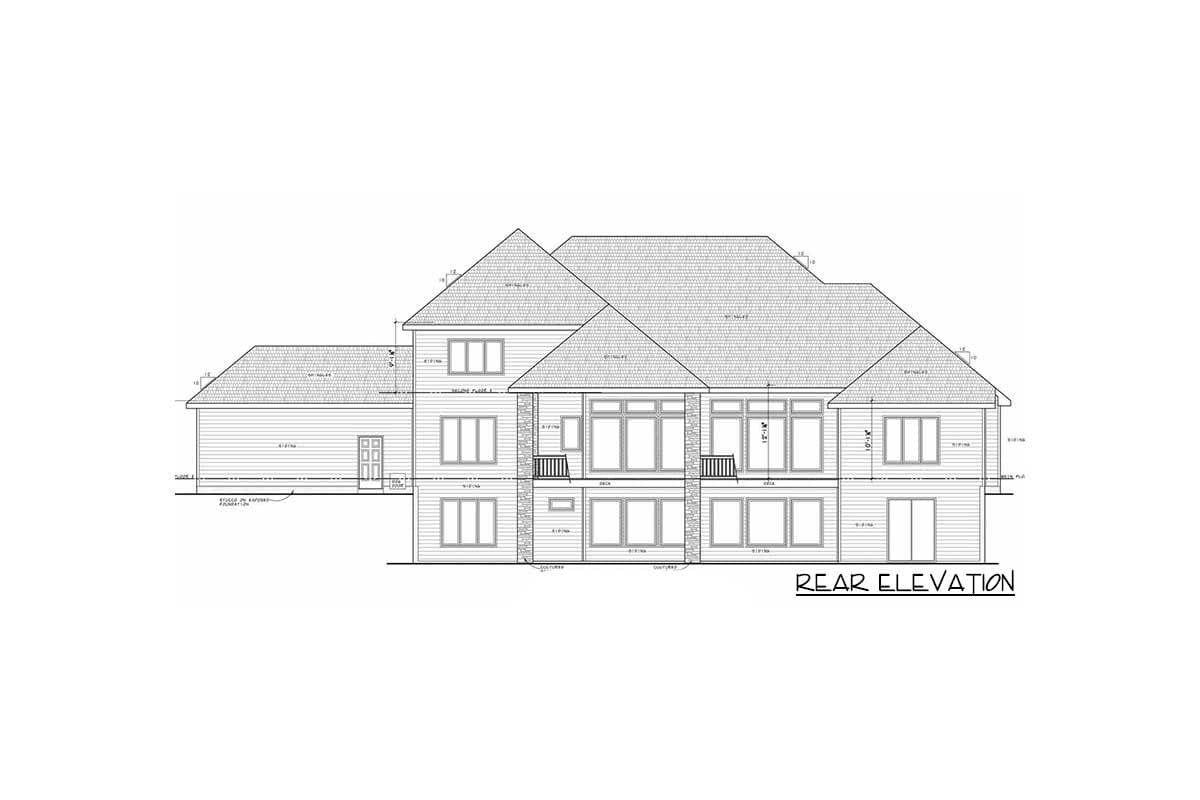

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

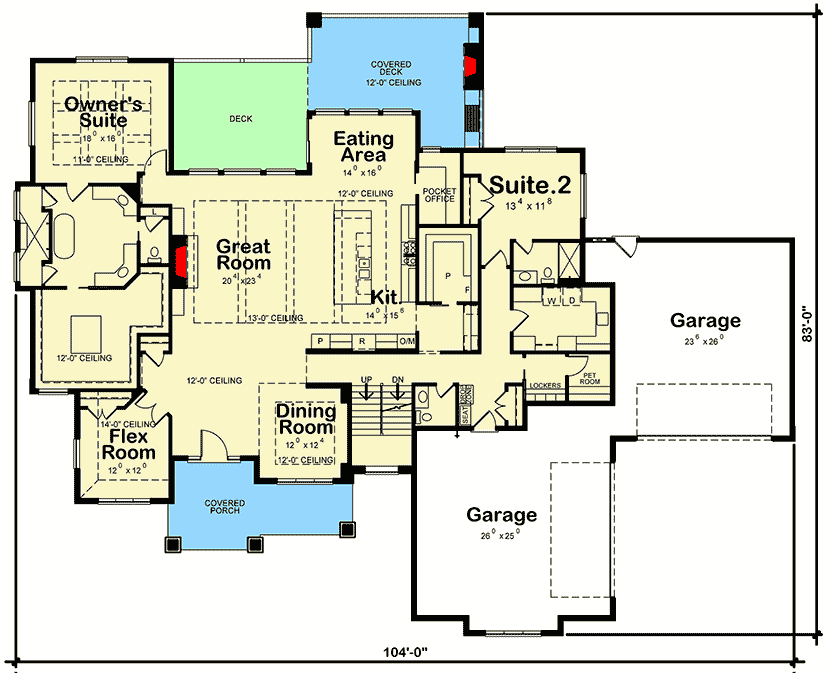

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

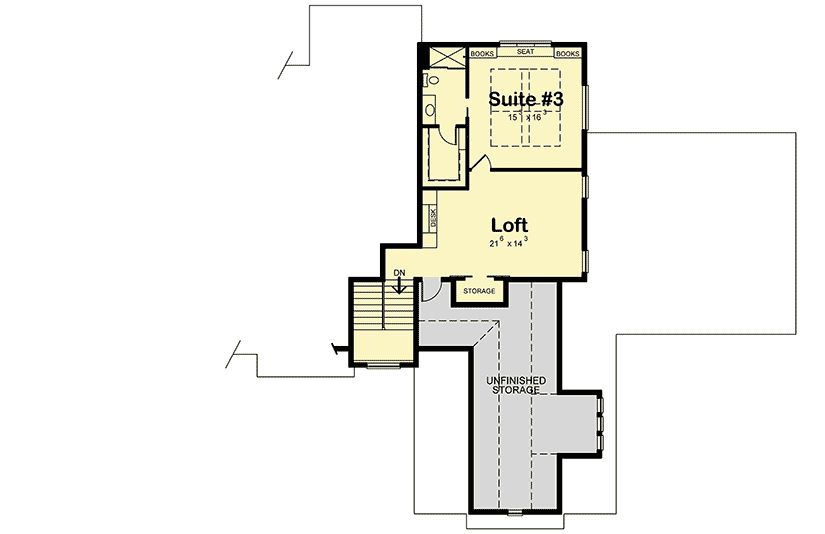

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



3-Bed House Plan with Stone and Stucco Exterior

  • 4,140

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Digital Study Set $1,170
  • PDF - single-use $1,705
  • 5 Sets $1,855
  • 5 Sets PLUS $1,900
  • 8 Sets $1,980
  • PDF - multi-use $2,205
  • CAD $2,558
  • CAD - multi-use $3,058
  • View all purchase option online

About This Plan

  • With a fabulous master suite, a flex room and an unusual curved kitchen island, this European house plan has much to commend it.
  • The foyer is huge and wide open to the formal dining room and great room beyond.
  • The wall of windows in the huge bow of the Great room gives you wonderful views and lots of light. A wet bar and fireplace add to the comforts.
  • In the informal area of the home, the big island is shaped like a question mark with an eating area on one side.
  • From here you can see into the eating nook set in a bay and the large family room that has windows on three sides.
  • The sumptuous master suite enjoys a large sitting area and two walk-in closets, one of which has a built-in stack washer/dryer for the ultimate in convenience.
  • Use the flex space as a study or playroom or any way you want.
  • Upstairs, three huge bedrooms all have walk-in closets and vaulted ceilings that add interest.
  • Related Plan: Get a finished basement with house plan 42587DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,140 sq. ft.
  • 1st Floor: 3,384 sq. ft.
  • 2nd Floor: 756 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 104' 0"
  • Depth: 83' 0"
  • Max ridge height: 34' 5"

Garage

  • Type: Attached
  • Area: 1419 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
