Plan 41031DB 3-Bed House Plan with Swooping Roofline

3-Bed House Plan with Swooping Roofline

Plan 41031DB

  • 2,051

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A swooping roofline adds to the curb appeal to this 3 bed house plan. Convert the den to a bedroom and you can get 4 beds.
  • Inside, evidences of thoughtful design abound: a front entry seat, front and rear coat closets, a planning area that’s out of the traffic pattern, a kitchen island and a walk-in pantry and more.
  • The master suite is on the main floor and the bathroom has a soaking tub, separate shower, two lavs, two linen storage areas and private toilet area.
  • Upstairs, two more bedrooms and an expansive unfinished storage area accommodate growing households.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

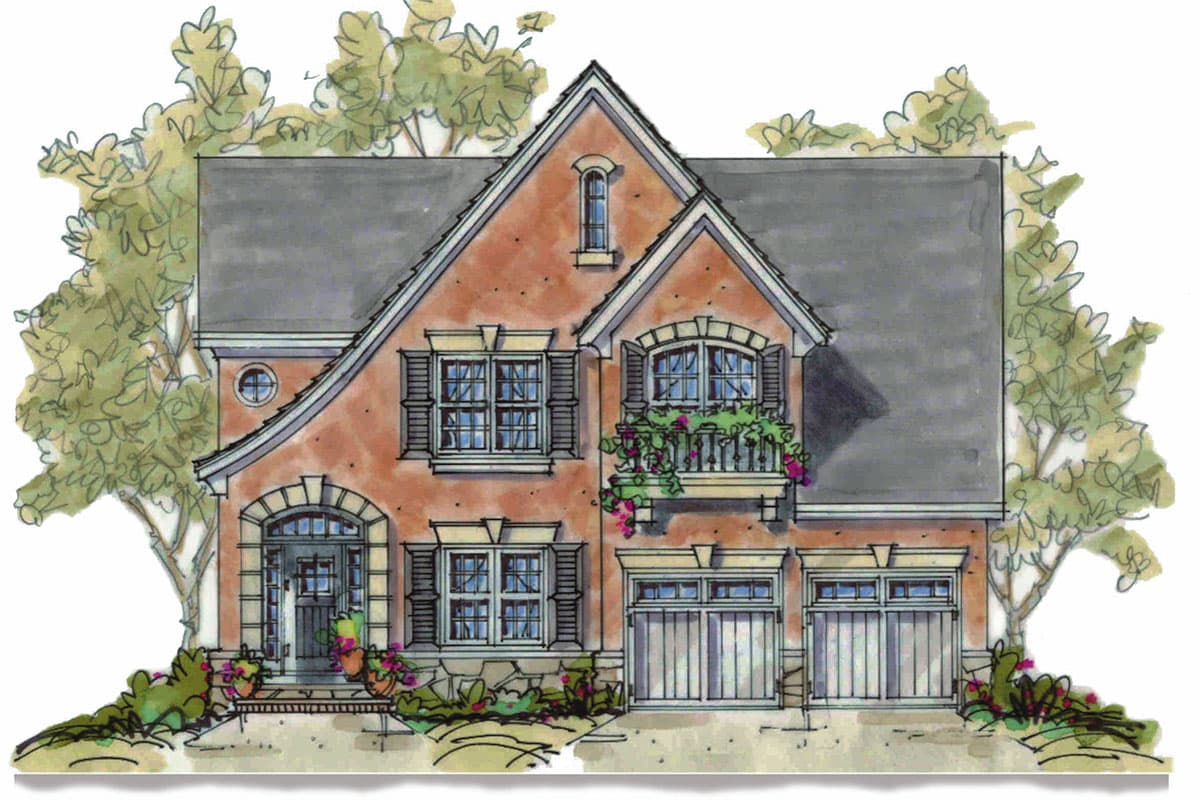

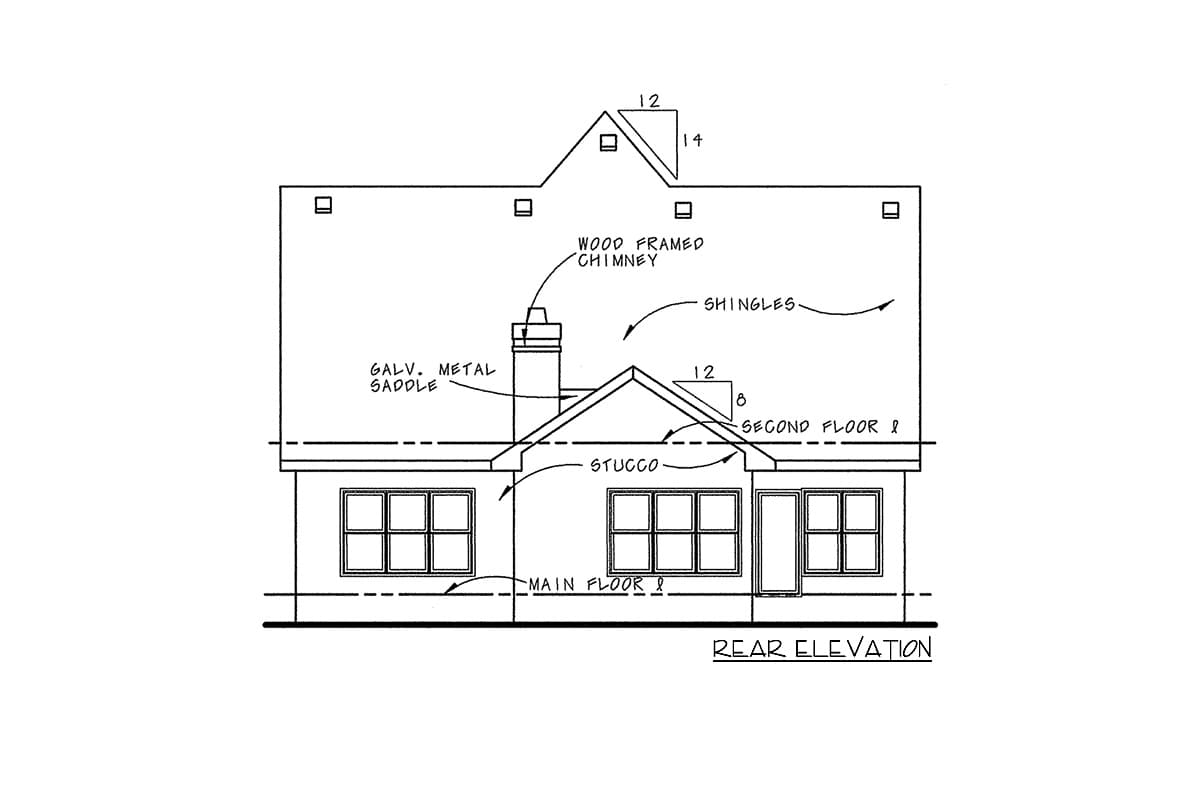

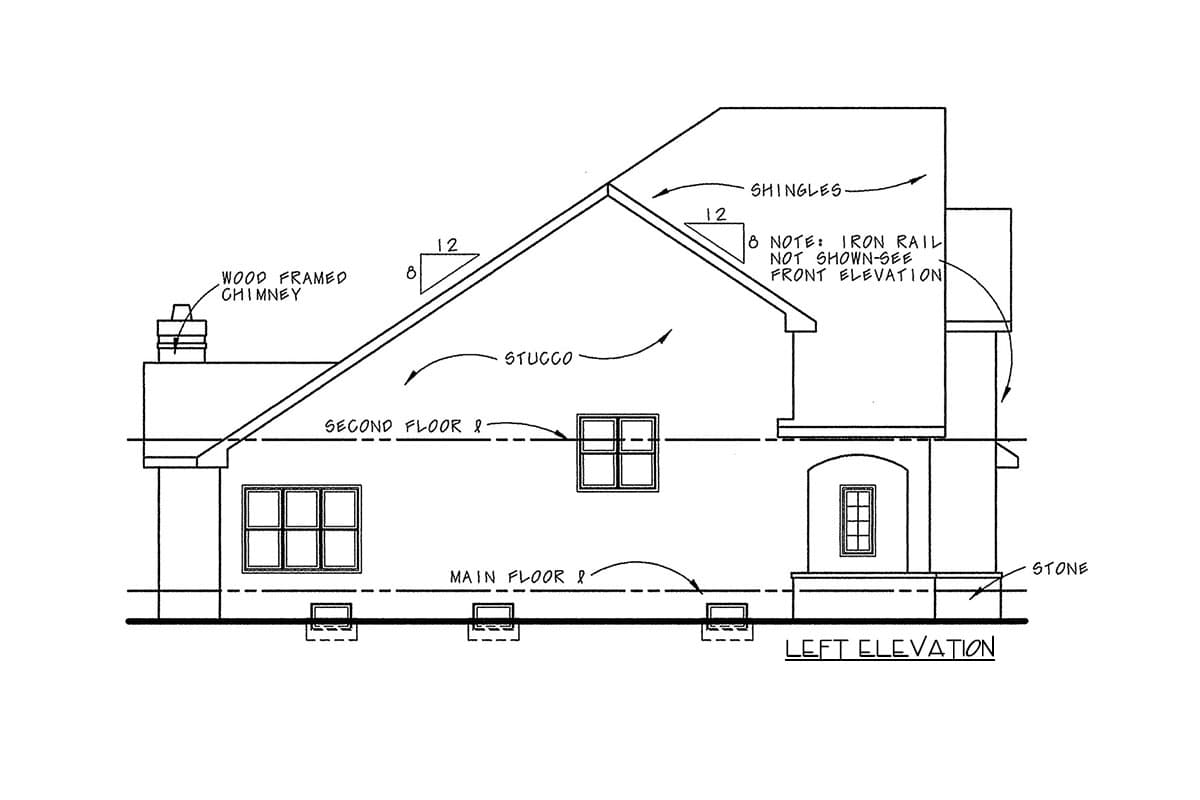

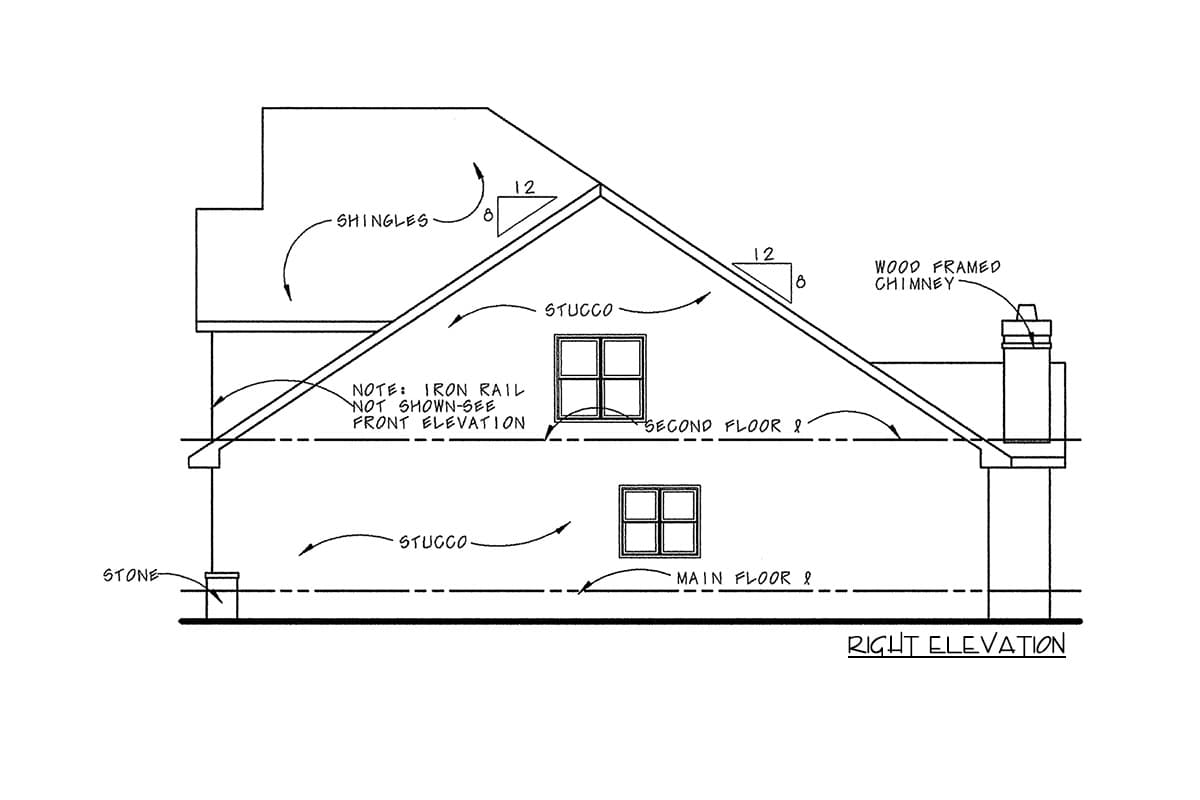

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

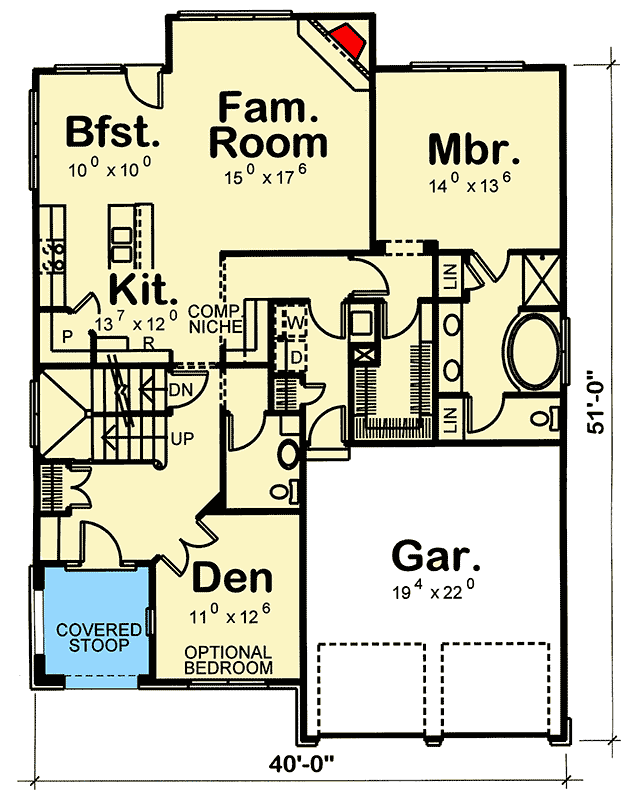

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

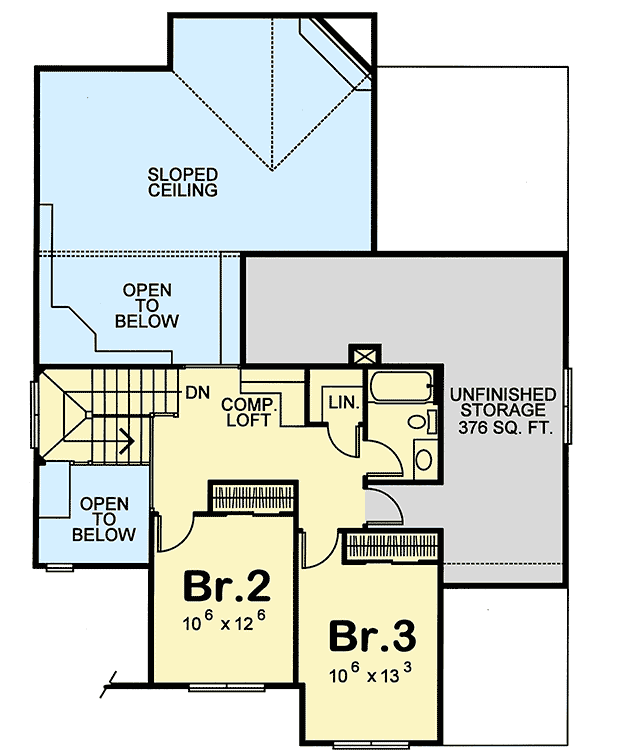

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



3-Bed House Plan with Swooping Roofline

  • 2,051

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $650
  • PDF - Single-Build $985
  • PDF - Unlimited Build $1,485
  • CAD - Single-Build $1,724
  • CAD - Unlimited Build $2,224
  • View all purchase option online

About This Plan

  • A swooping roofline adds to the curb appeal to this 3 bed house plan. Convert the den to a bedroom and you can get 4 beds.
  • Inside, evidences of thoughtful design abound: a front entry seat, front and rear coat closets, a planning area that’s out of the traffic pattern, a kitchen island and a walk-in pantry and more.
  • The master suite is on the main floor and the bathroom has a soaking tub, separate shower, two lavs, two linen storage areas and private toilet area.
  • Upstairs, two more bedrooms and an expansive unfinished storage area accommodate growing households.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,051 sq. ft.
  • 1st Floor: 1,497 sq. ft.
  • 2nd Floor: 554 sq. ft.
  • Porch, Front: 78 sq. ft.
  • Bonus: 376 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 51' 0"
  • Max ridge height: 33' 9"

Garage

  • Type: Attached
  • Area: 441 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
