3-Bed House Plan with Vaulted Living Room and 2 Garages

Pageloader

3-Bed House Plan with Vaulted Living Room and 2 Garages

Plan 68535VR

  • 2,090

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

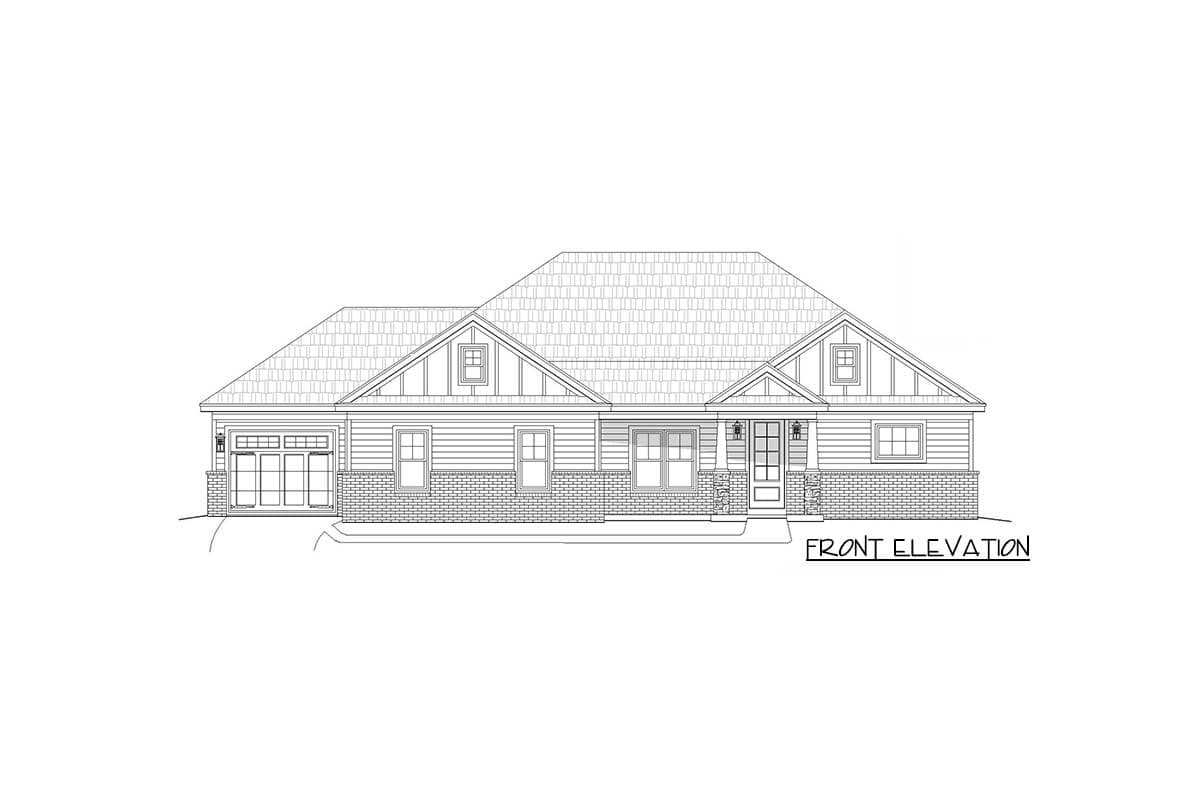

  • The exterior of the 3-bed, 1-story house plan has a combination of clapboard, board and batten and brick. Two supports set on stone bases supports a pedimented covered entry.
  • The open concept core is great for entertaining friends and family. The dining room is semi-private and has wide openings to the vaulted family room and the foyer.
  • A large island in the kitchen has seating on two sides and a double-sink. The kitchen's location is central to serving meals in the dining room, the breakfast area and even out back on the covered rear porch.
  • A split bedroom layout maximizes your privacy. The roomy master suite has a double tray vaulted ceiling. Across the home, two bedrooms enjoy a Jack-and-Jill bath arrangement.
  • The 2-car garage has access directly into the home. The 1-car garage is set

Cover Page

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

Floor Plan

Plan details



3-Bed House Plan with Vaulted Living Room and 2 Garages

  • 2,090

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $795
  • PDF - single-use $895
  • 5 Sets $925
  • CAD $1,445
  • View all purchase option online

About This Plan

  • The exterior of the 3-bed, 1-story house plan has a combination of clapboard, board and batten and brick. Two supports set on stone bases supports a pedimented covered entry.
  • The open concept core is great for entertaining friends and family. The dining room is semi-private and has wide openings to the vaulted family room and the foyer.
  • A large island in the kitchen has seating on two sides and a double-sink. The kitchen's location is central to serving meals in the dining room, the breakfast area and even out back on the covered rear porch.
  • A split bedroom layout maximizes your privacy. The roomy master suite has a double tray vaulted ceiling. Across the home, two bedrooms enjoy a Jack-and-Jill bath arrangement.
  • The 2-car garage has access directly into the home. The 1-car garage is set

Floor Plans

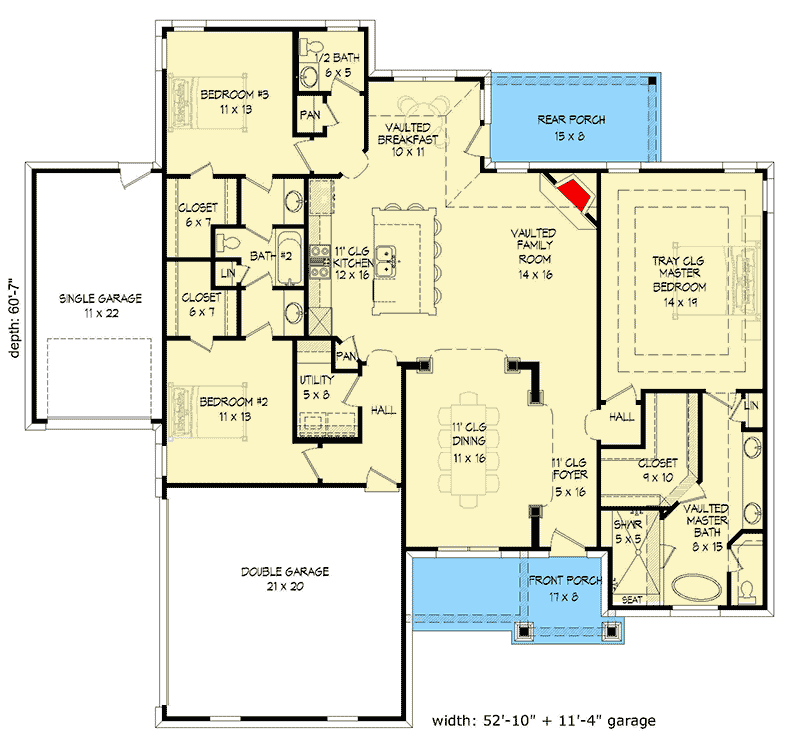

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,090 sq. ft.
  • 1st Floor: 2,090 sq. ft.
  • Porch, Combined: 244 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 61' 6"
  • Max ridge height: 22' 2"

Garage

  • Type: Attached
  • Area: 727 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
