Plan 777050MTL 3-Bed Metal Ranch Plan with Split Bedroom Layout

2,185 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Metal Ranch Plan with Split Bedroom Layout

Plan 777050MTL

  • 2,185

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3-bedroom Metal Ranch house plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • A 10'-deep front porch welcomes family and friends, while the central and open living space lends additional privacy to the surrounding bedrooms.
  • The master bedroom occupies the left side of the home, along with a home office with glass sliders to the porch.
  • Bedrooms 2 and 3 are nestled near the service areas that eventually lead to the double garage.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

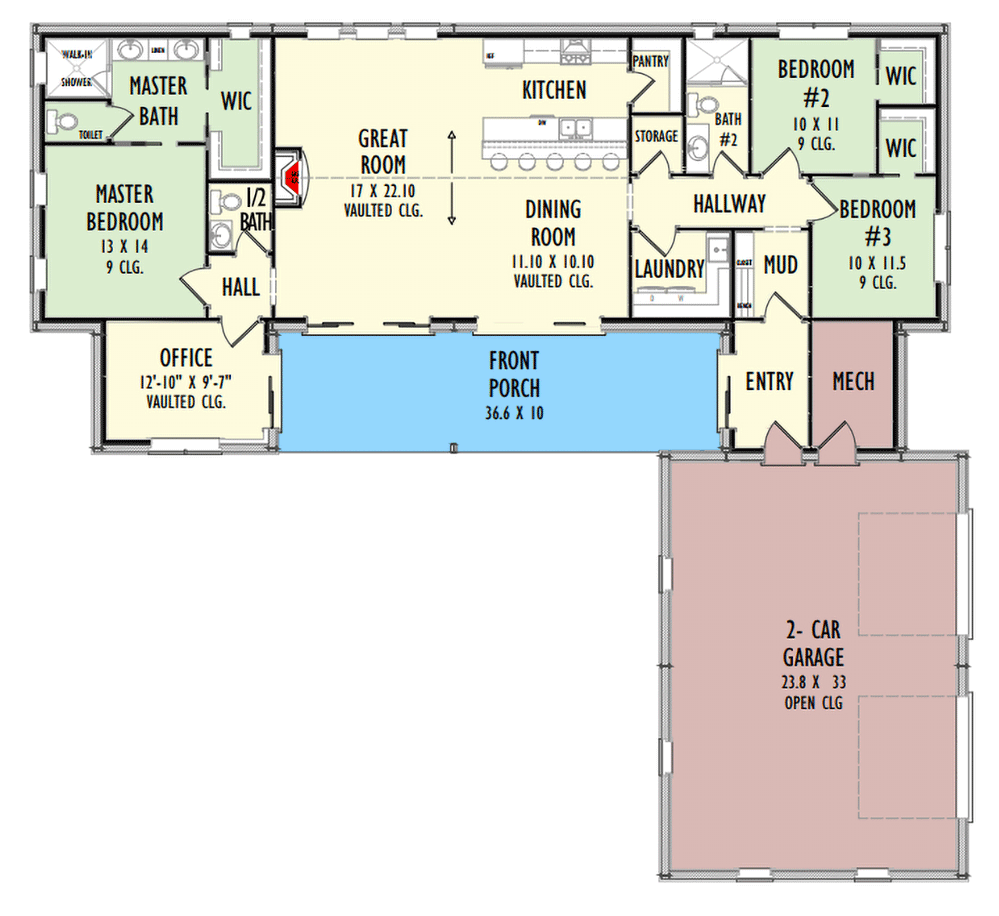

3-Bed Metal Ranch Plan with Split Bedroom Layout - 777050MTL floor plan - Main Level

Wall Framing Section

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Metal Ranch Plan with Split Bedroom Layout - 777050MTL floor plan - Wall Framing Section

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,185 sq. ft.
  • 1st Floor: 2,185 sq. ft.
  • Porch, Front: 365 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 6"
  • Depth: 70' 0"
  • Max ridge height: 17' 7"

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: PEMB and Stick

Architectural Style

Special features

Plan Collections

3-Bed Metal Ranch Plan with Split Bedroom Layout

  • 2,185

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • PDF - Unlimited Build $1,995
  • View all purchase option online

About This Plan

  • This 3-bedroom Metal Ranch house plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • A 10'-deep front porch welcomes family and friends, while the central and open living space lends additional privacy to the surrounding bedrooms.
  • The master bedroom occupies the left side of the home, along with a home office with glass sliders to the porch.
  • Bedrooms 2 and 3 are nestled near the service areas that eventually lead to the double garage.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

Floor Plans

  • Main Level

  • Wall Framing Section

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,185 sq. ft.
  • 1st Floor: 2,185 sq. ft.
  • Porch, Front: 365 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 6"
  • Depth: 70' 0"
  • Max ridge height: 17' 7"

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: PEMB and Stick
Plan 777050MTL
