Plan 270037AF
3-Bed Modern Cottage Designed for Mountain or Water Views
Heated S.F.
1,378
Beds
3
Baths
2
Stories
1
Floor Plan
Main Level - Basement Version
Reverse Floor Plan

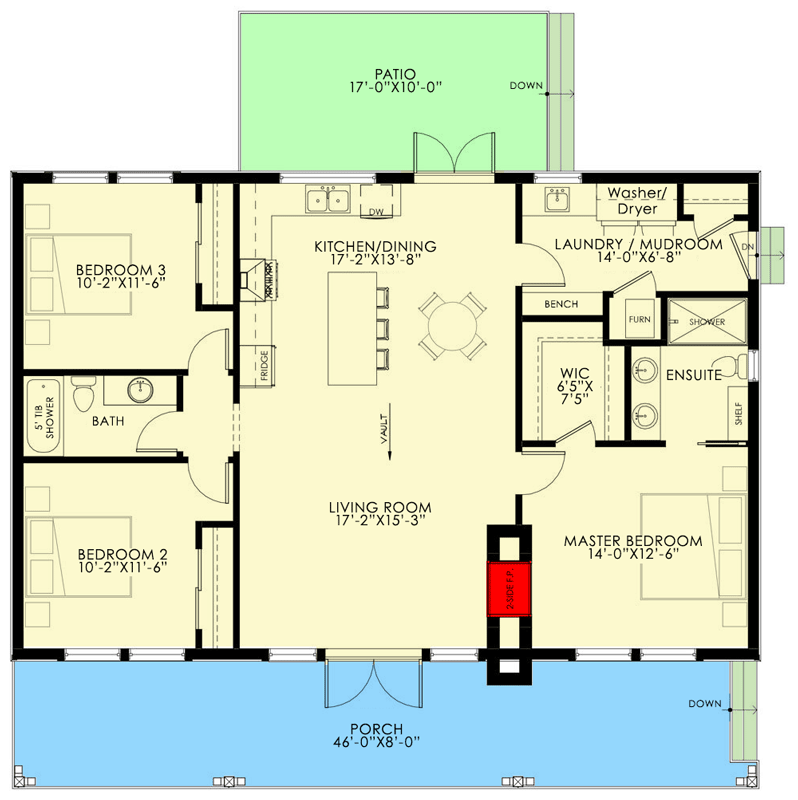

3-Bed Modern Cottage Designed for Mountain or Water Views - 270037AF floor plan - Main Level - Basement Version

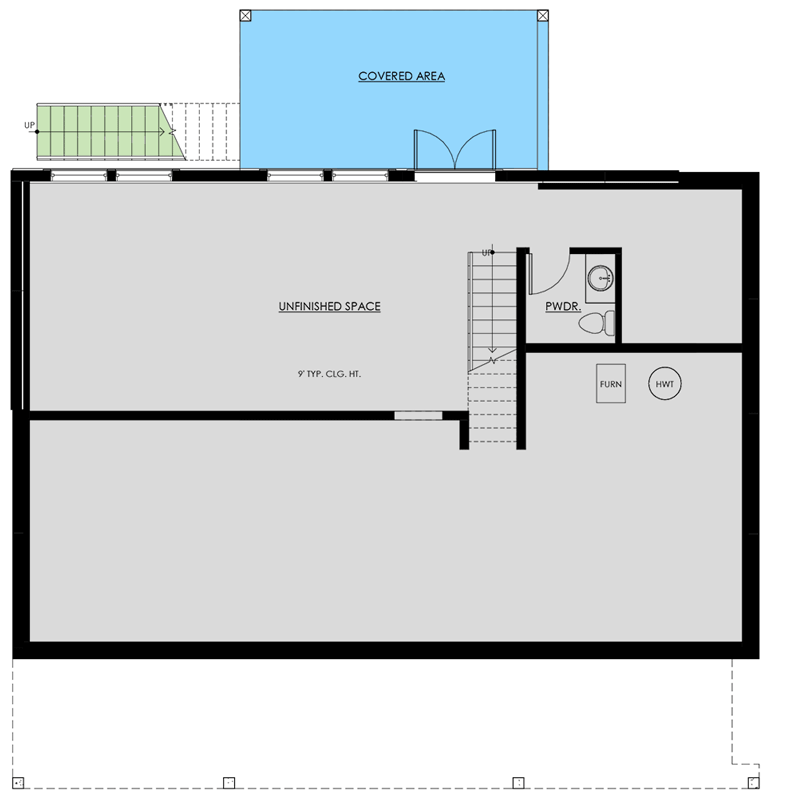

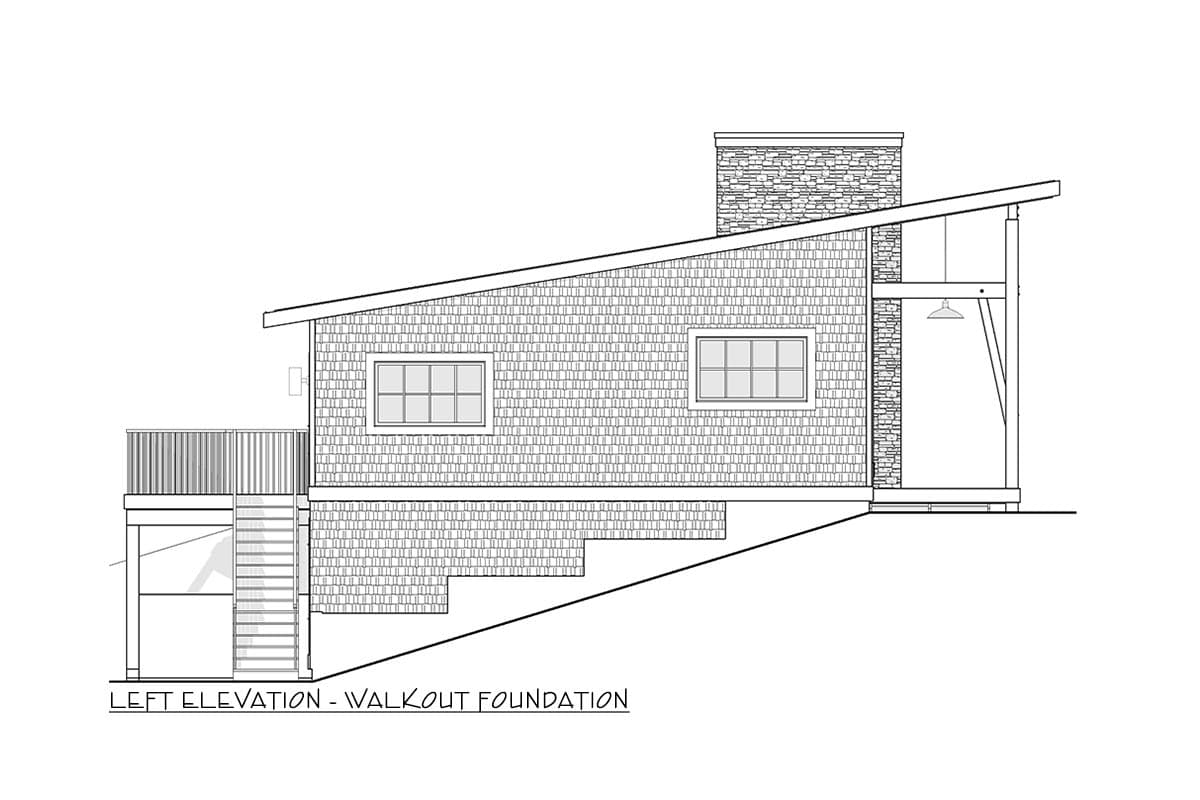

Optional Walkout Foundation
Reverse Floor Plan

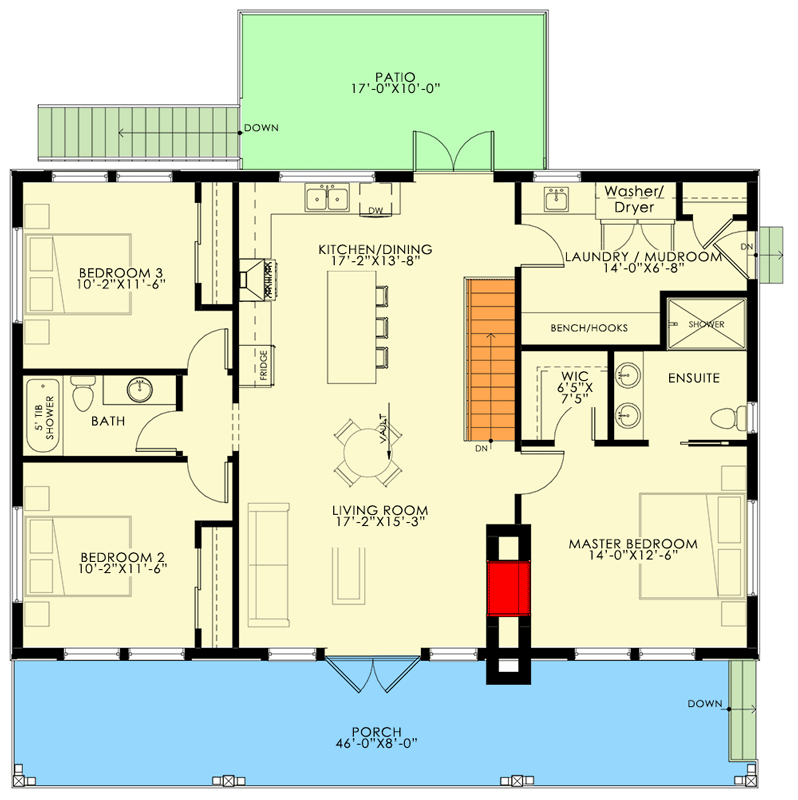

3-Bed Modern Cottage Designed for Mountain or Water Views - 270037AF floor plan - Optional Walkout Foundation
Plan Details
  • The front of this 3-bed modern Rustic cottage house plan gives you a 46'-wide (and 8'-deep) porch to enjoy the views of the water or the mountains.
  • The interior slopes from 8'4" along the kitchen end to 13'4" along the porch end.
  • All the rooms on the front have windows designed to capture the views.
  • A split bedrooms layout maximizes your privacy and leaves the middle of the home open concept.
  • Related Plan: Get a finished walkout basement with house plan 270086AF (2,760 sq. ft.) and get a 2-car garage with house plan 270085AF (1,642 sq. ft.). Get an alternate exterior with house plan 270059AF (1,378 sq. ft.). Get a modern farmhouse exterior with a slightly altered layout with house plan 270092AF (1,378 sq. ft)
What's Included
Each plan set includes the following:
  • General notes
  • Foundation plan
  • Detailed floor plan

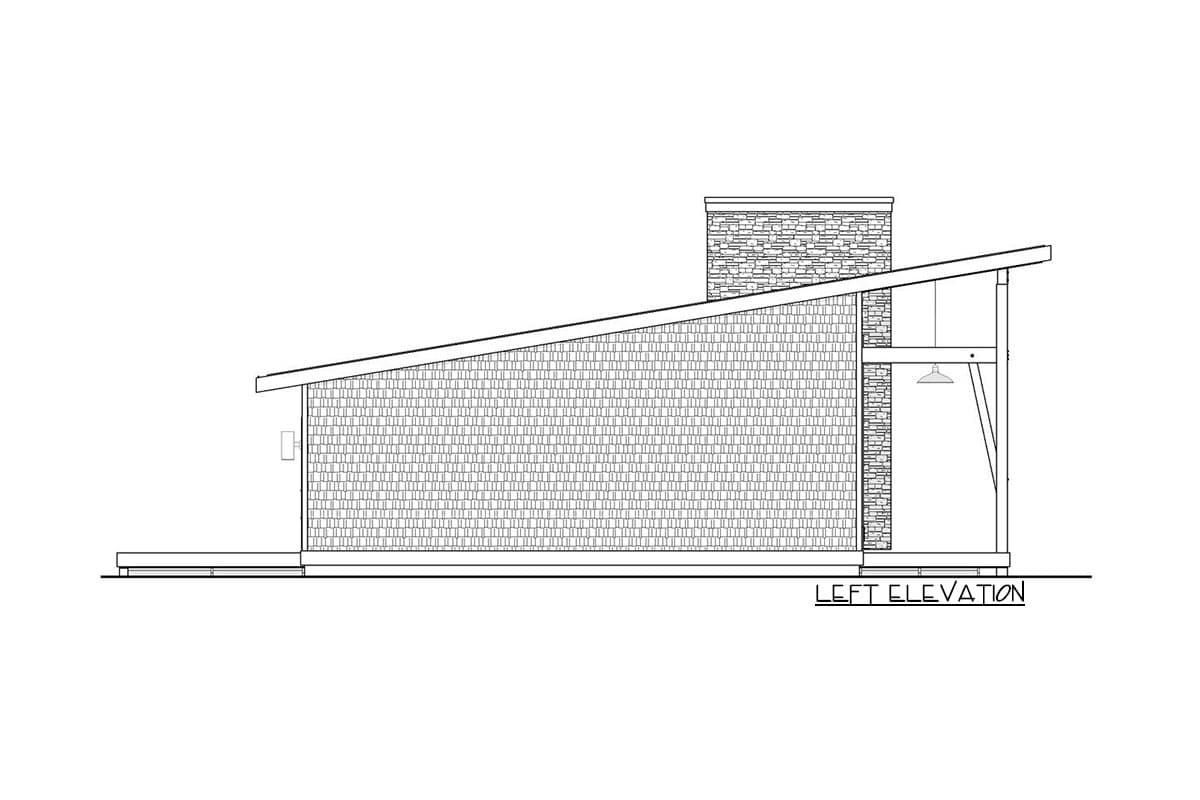

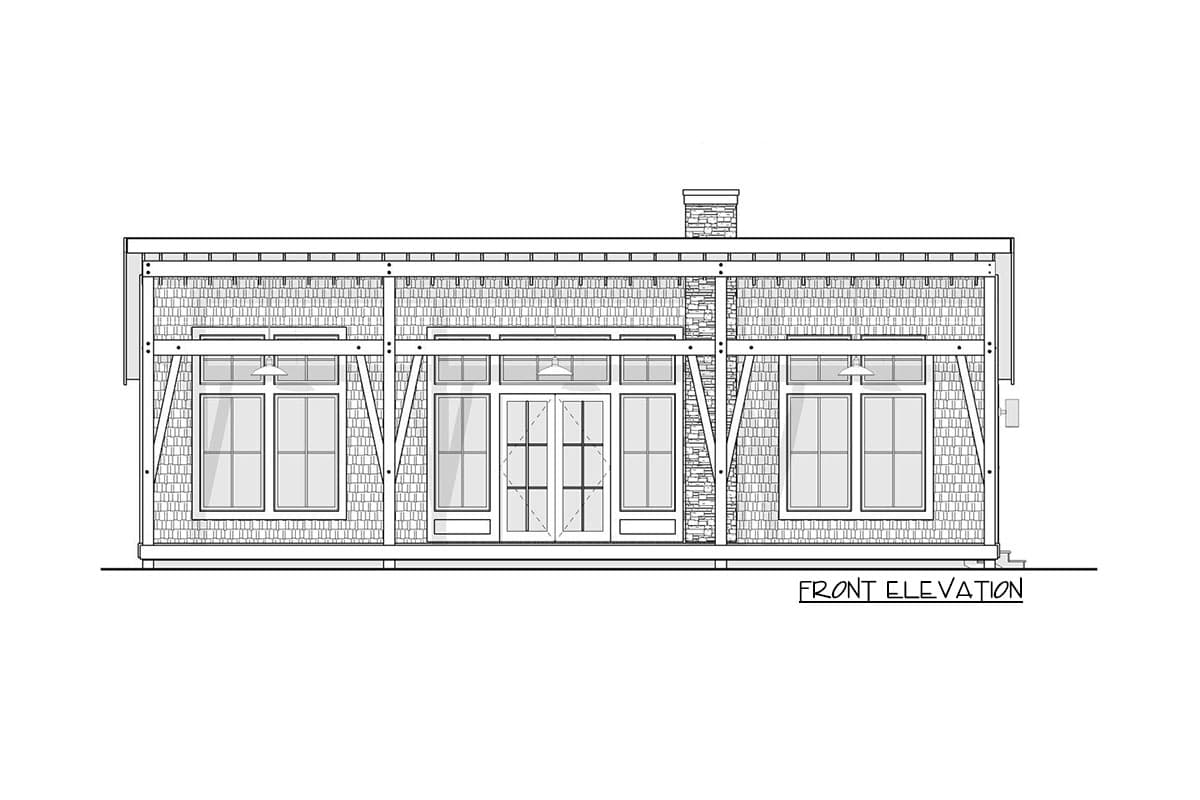

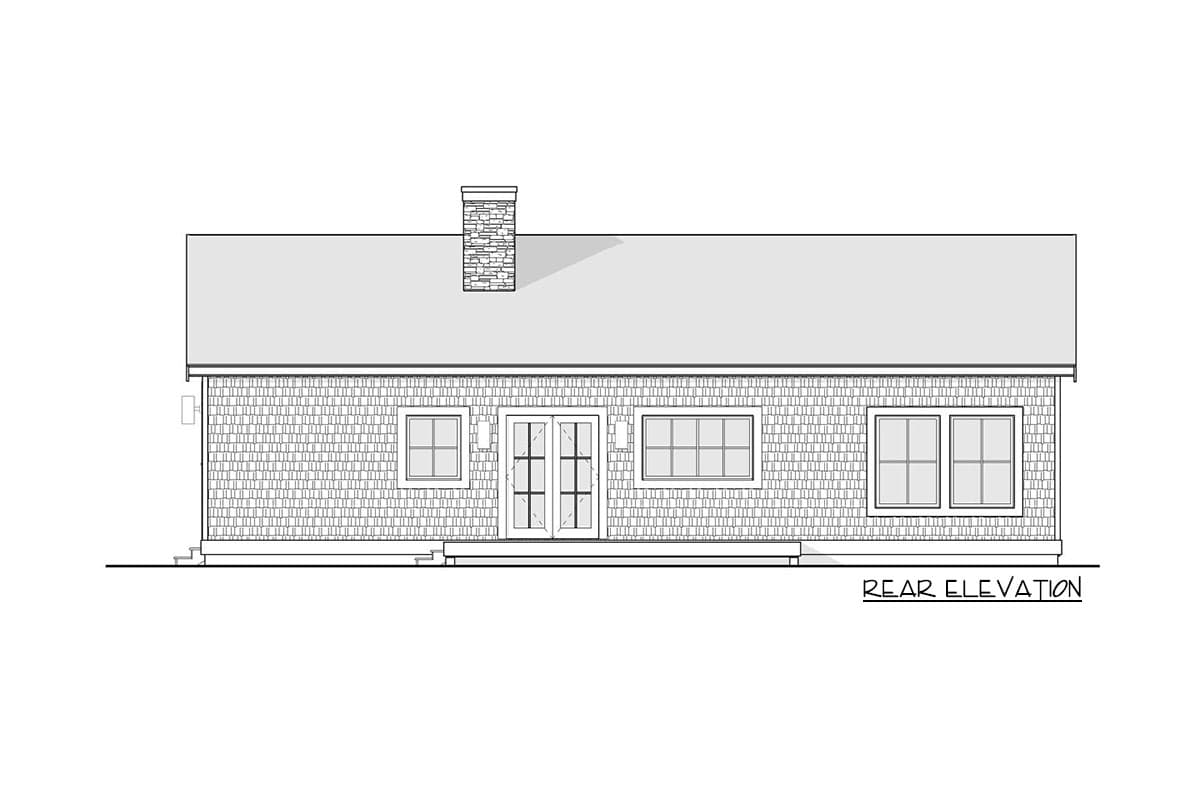

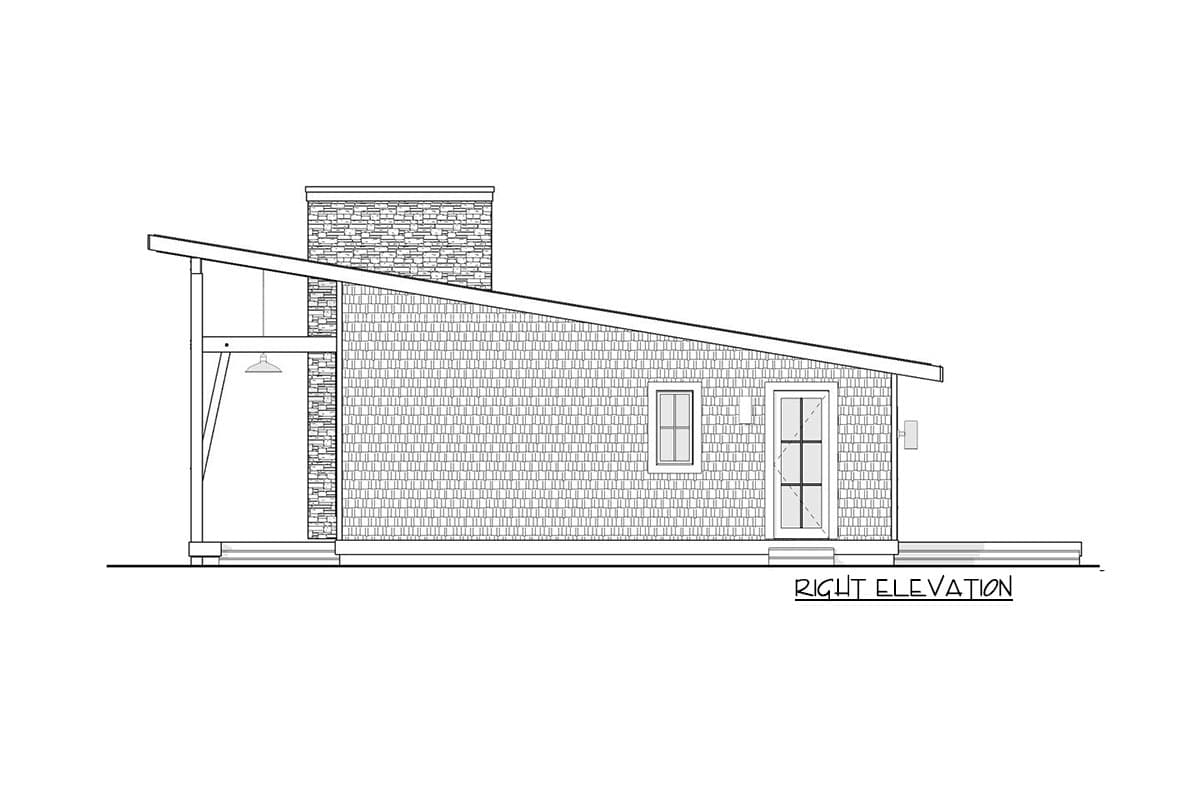

  • Elevations: front, left, rear, right
  • Cross section
  • General details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Electrical plan
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Modern Cottage Designed for Mountain or Water Views

  • 1,378

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Main Level - Basement Version

  • Optional Walkout Foundation

Plan Details

Square Footage Breakdown

  • Total: 1,378 sq. ft.
  • 1st Floor: 1,378 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 48' 0"
  • Max ridge height: 18' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 6"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
