3-Bed Modern Cottage House Plan with 2-Story Foyer and Family Room

Plan 62964DJ

  • 1,812

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 3-bed house plan gives puts a modern twist on the traditional cottage style. The exterior features a stone chimney combined with brick and lap siding, abundant windows and a broad shed dormer over the shed dormered entry porch.
  • Just inside the home, a stunning family room is adjacent to a 2-story entry. The family room lies under a soaring cathedral ceiling with exposed beams. The home's dining and kitchen flow beautifully in an open layout. The kitchen includes a large island and a walk-in pantry.
  • The second level features 3 bedrooms. The master bedroom lies under a decorative trayed ceiling and features a stunning Juliet balcony that overlooks the family room. The master bathroom features a dual vanity, an enclosed toilet area, and a walk-in closet. Bedrooms 2 and 3 share a centrally located hall bathroom.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

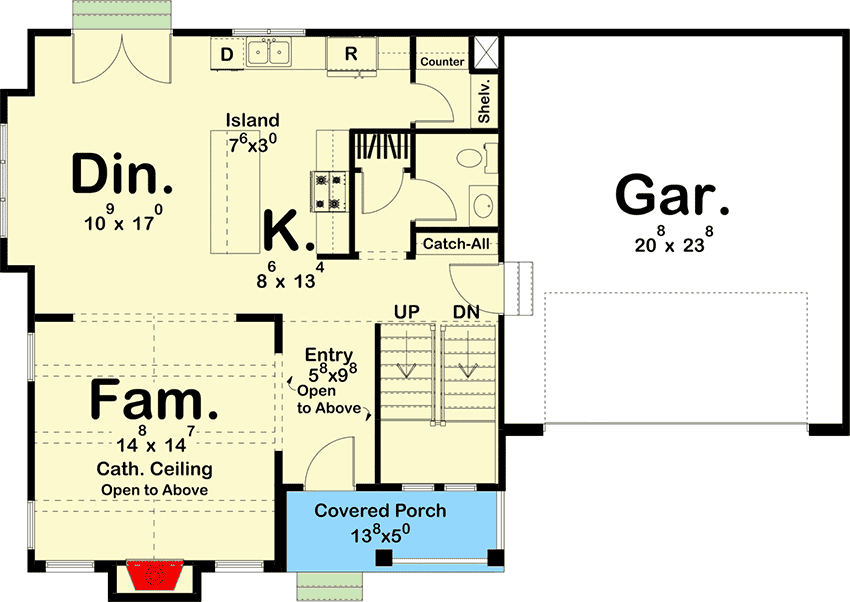

3-Bed Modern Cottage House Plan with 2-Story Foyer and Family Room - 62964DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

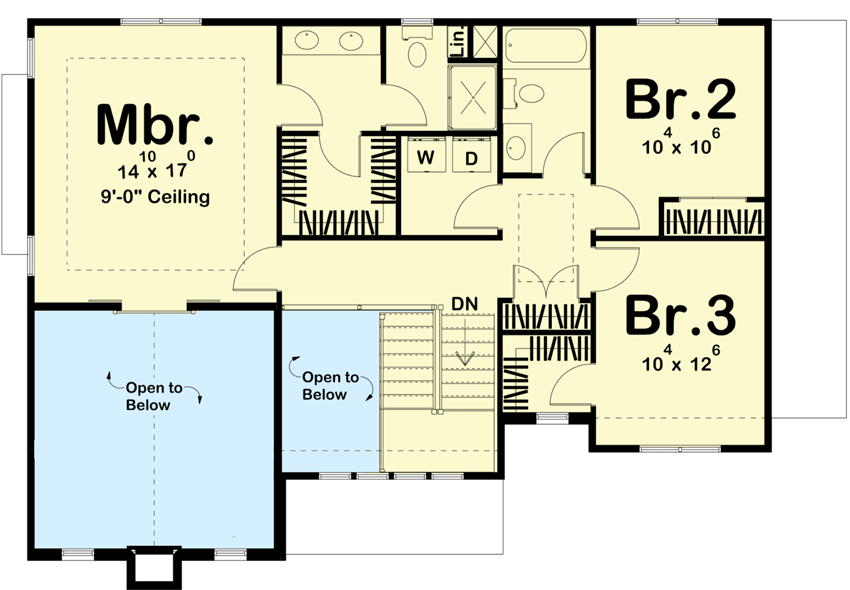

3-Bed Modern Cottage House Plan with 2-Story Foyer and Family Room - 62964DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,812 sq. ft.
  • 1st Floor: 894 sq. ft.
  • 2nd Floor: 918 sq. ft.
  • Porch, Front: 64 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 35' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 511 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

3-Bed Modern Cottage House Plan with 2-Story Foyer and Family Room

  • 1,812

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,800
  • CAD + PDF - Single-Build $1,800
  • CAD Unlimited + PDF $2,300
  • View all purchase option online

About This Plan

  • This 3-bed house plan gives puts a modern twist on the traditional cottage style. The exterior features a stone chimney combined with brick and lap siding, abundant windows and a broad shed dormer over the shed dormered entry porch.
  • Just inside the home, a stunning family room is adjacent to a 2-story entry. The family room lies under a soaring cathedral ceiling with exposed beams. The home's dining and kitchen flow beautifully in an open layout. The kitchen includes a large island and a walk-in pantry.
  • The second level features 3 bedrooms. The master bedroom lies under a decorative trayed ceiling and features a stunning Juliet balcony that overlooks the family room. The master bathroom features a dual vanity, an enclosed toilet area, and a walk-in closet. Bedrooms 2 and 3 share a centrally located hall bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,812 sq. ft.
  • 1st Floor: 894 sq. ft.
  • 2nd Floor: 918 sq. ft.
  • Porch, Front: 64 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 35' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 511 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
Plan 62964DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62964DJ
|
