  • A shed dormer is balanced over the four-columned front porch and the 2-car garage is angled off the left on this 3-bed modern farmhouse plan with an open concept layout.
  • The foyer has a vaulted ceiling and opens to the vaulted lodge room and dining room. French doors open to the study to your right.
  • The kitchen has a large island and has seating on two sides. A walk-in pantry is located steps away from your cooking and from the garage, making unloading groceries a breeze.
  • A door in the breakfast area opens to your vaulted covered porch accessible from the lodge room as well by French doors.
  • The bedrooms are in a split layout to maximize your privacy. The master suite has two walk-in closets, a spa tub and a walk-in shower with two doors.
  • The bedrooms share a Jack-and-Jill bathroom.
  • Stairs go down to the unfinished basement which gives you great expansion space.
  • Related Plans: Get an alternate exterior with house plans 25675GE and 25641GE.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.

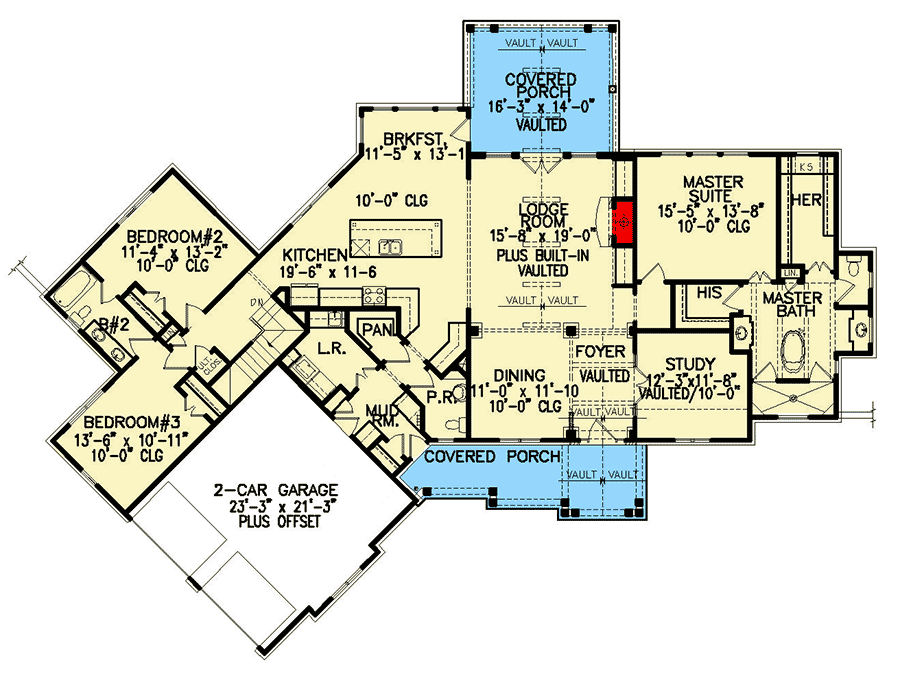

Floor Plan

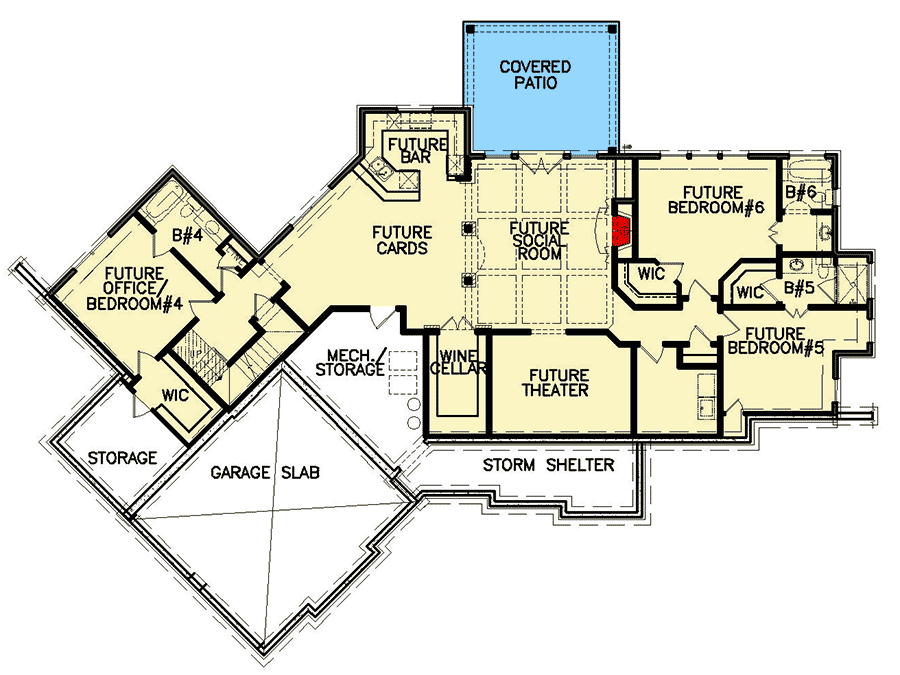

Optional Lower Level

Pinit white
3-Bed Modern Craftsman House Plan with Angled Garage - 25640GE floor plan - Optional Lower Level

Plan details



3-Bed Modern Craftsman House Plan with Angled Garage

  • 2,510

    Heated s.f.

  • 3 - 5

    Beds

  • 2 +

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,295
  • CAD $3,145
  • View all purchase option online

About This Plan

  • A shed dormer is balanced over the four-columned front porch and the 2-car garage is angled off the left on this 3-bed modern farmhouse plan with an open concept layout.
  • The foyer has a vaulted ceiling and opens to the vaulted lodge room and dining room. French doors open to the study to your right.
  • The kitchen has a large island and has seating on two sides. A walk-in pantry is located steps away from your cooking and from the garage, making unloading groceries a breeze.
  • A door in the breakfast area opens to your vaulted covered porch accessible from the lodge room as well by French doors.
  • The bedrooms are in a split layout to maximize your privacy. The master suite has two walk-in closets, a spa tub and a walk-in shower with two doors.
  • The bedrooms share a Jack-and-Jill bathroom.
  • Stairs go down to the unfinished basement which gives you great expansion space.
  • Related Plans: Get an alternate exterior with house plans 25675GE and 25641GE.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,510 sq. ft.
  • 1st Floor: 2,510 sq. ft.
  • Porch, Rear: 228 sq. ft.
  • Optional Lower Level: 2,172 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 2, 3, 4, & 5

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 90' 7"
  • Depth: 69' 3"
  • Max ridge height: 25' 9"

Garage

  • Type: Attached
  • Area: 516 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Framing Type: Stick
