3-Bed Modern Farmhouse Plan with Bonus Room Above the Garage

Plan 70634MK

  • 2,031

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

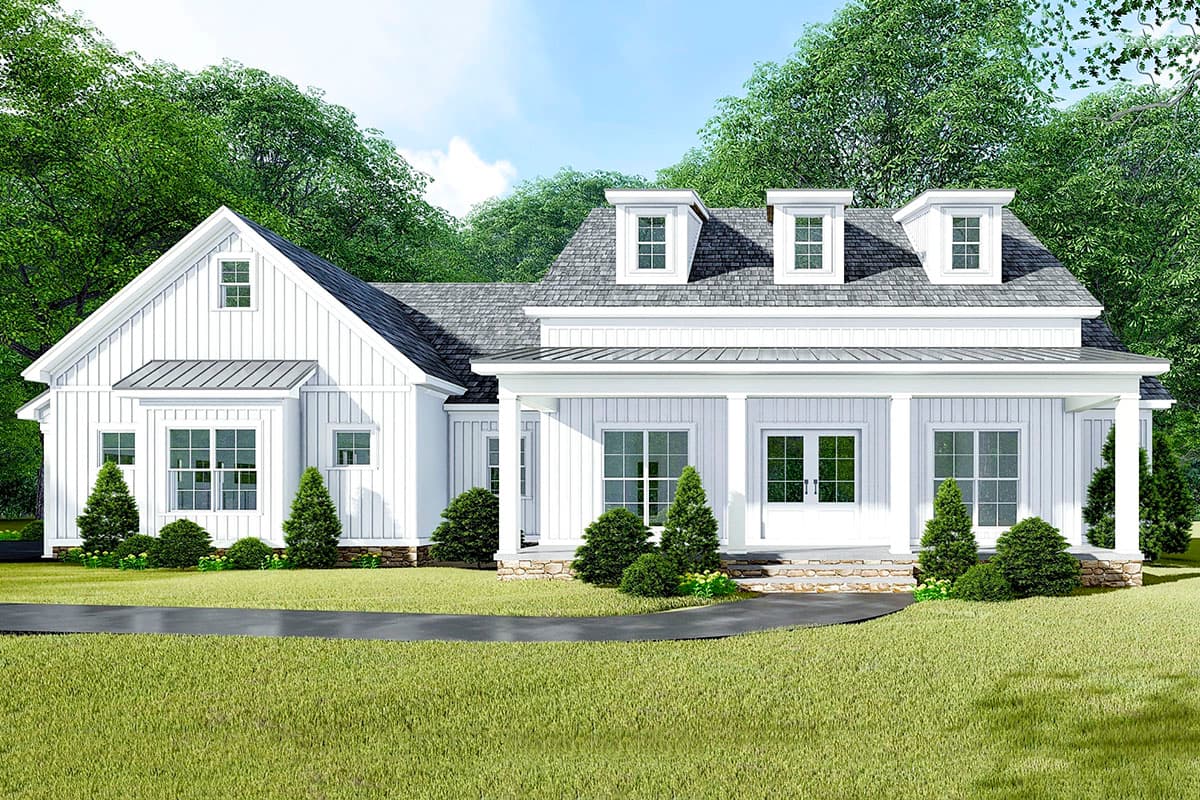

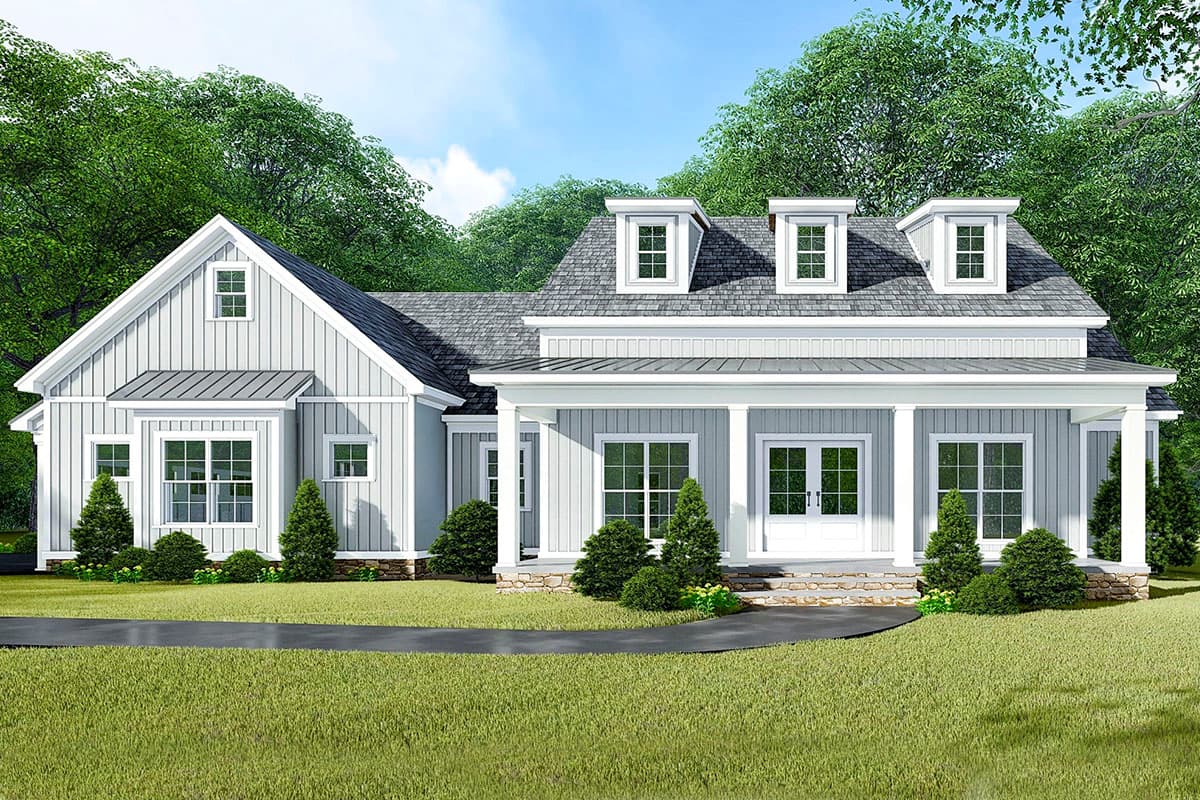

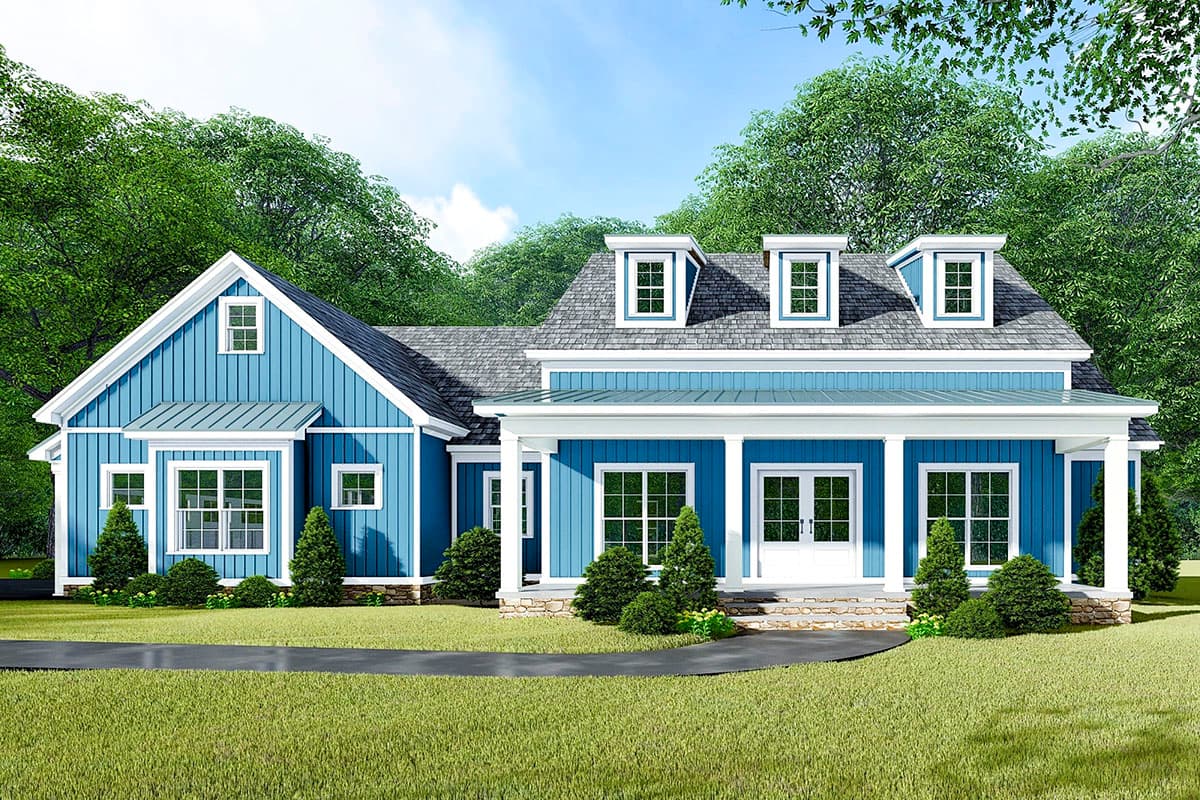

  • This modern farmhouse plan bends traditional farmhouse and country design with modern elements to create the perfect 2 or 3 bed home plan. The use of siding with a brick skirt enhances the curb appeal. The welcoming front porch is complemented by dormers and large windows, enter the home through the double door.
  • The foyer has lofty 10’ ceilings. To the right, you'll find a den or guest room. This room has a 10’ ceiling, a private ensuite bathroom and a walk-in closet. To the left of the foyer is the formal dining room which also has a 10’ ceiling and opens to the great room/kitchen.
  • The great room with fireplace and the kitchen flow together to create a great living space with a 16'-high vaulted ceiling with exposed timber beams. The kitchen gives you a large island with bar seating, a huge walk-in pantry and a connected breakfast room.
  • The master suite with boxed ceilings is on the left side of the home. The master bathroom has a free-standing tub, glass shower, dual sink vanity, private toilet room, linen closet and a large walk-in closet. Laundry is close by for your convenience.
  • Across the home, two spacious bedrooms each have walk-in closets and share a jack and jill bath with a separated vanity area from the toilet and bath.
  • Additional space is provided over the garage. If finished, it gives you 432 square feet of usable space.

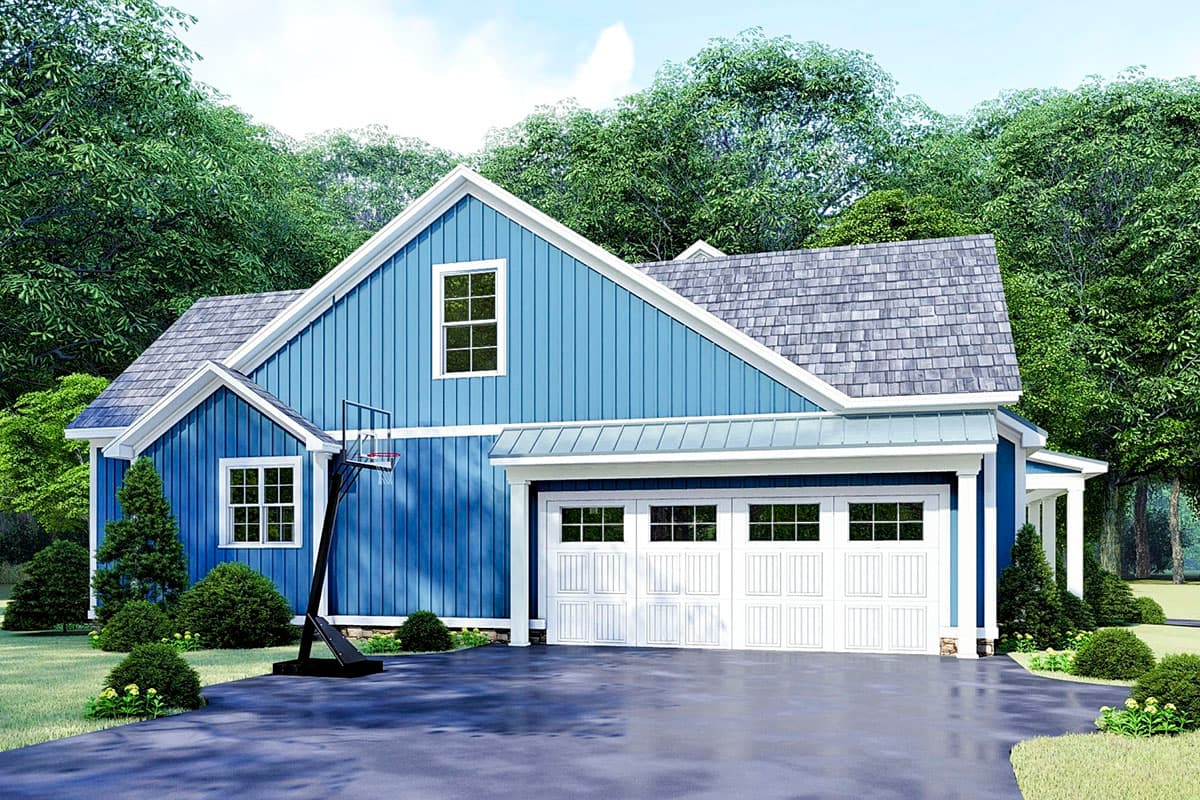

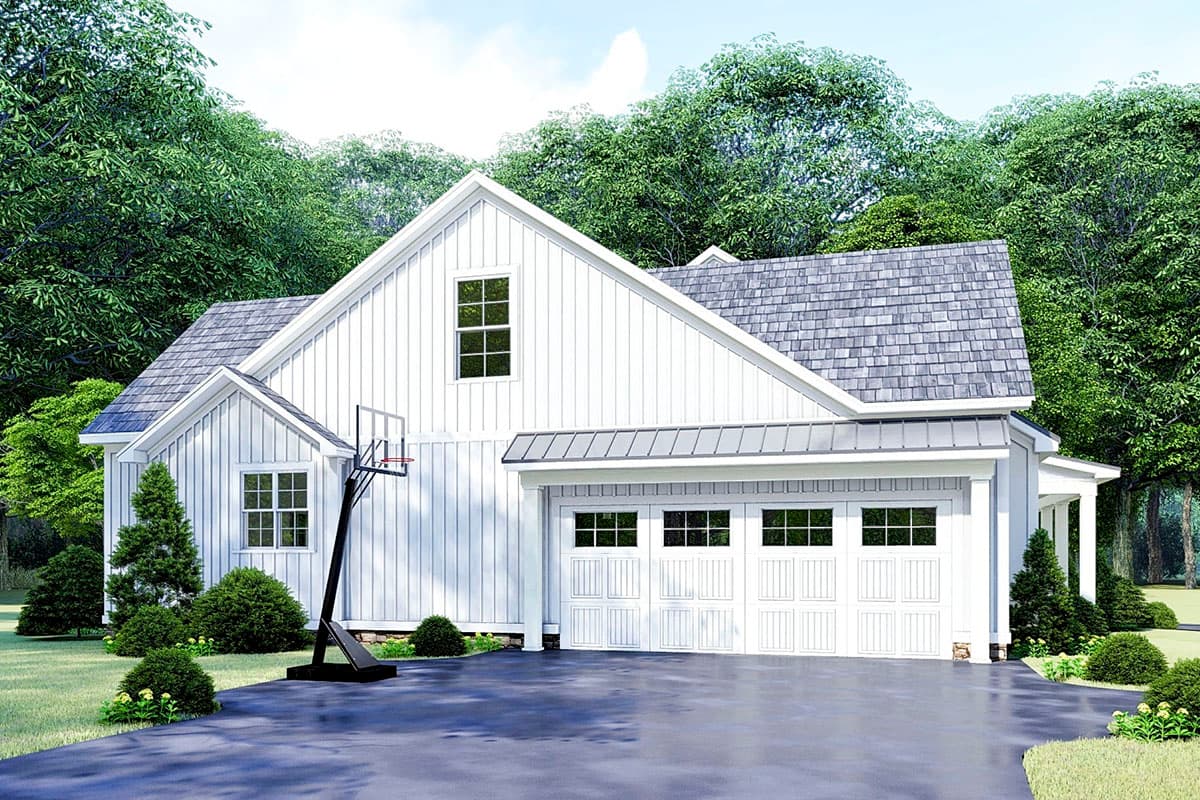

  • An additional 3rd car garage bay adds 5' to the overall depth of the home.
  • Related Plans: Get an alternate exterior with house plan 70643MK (2,031 sq. ft.) and get an extra bedroom and more space with house plans 70628MK (2,220 sq. ft) and 70678MK (2,343 sq, ft.).

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

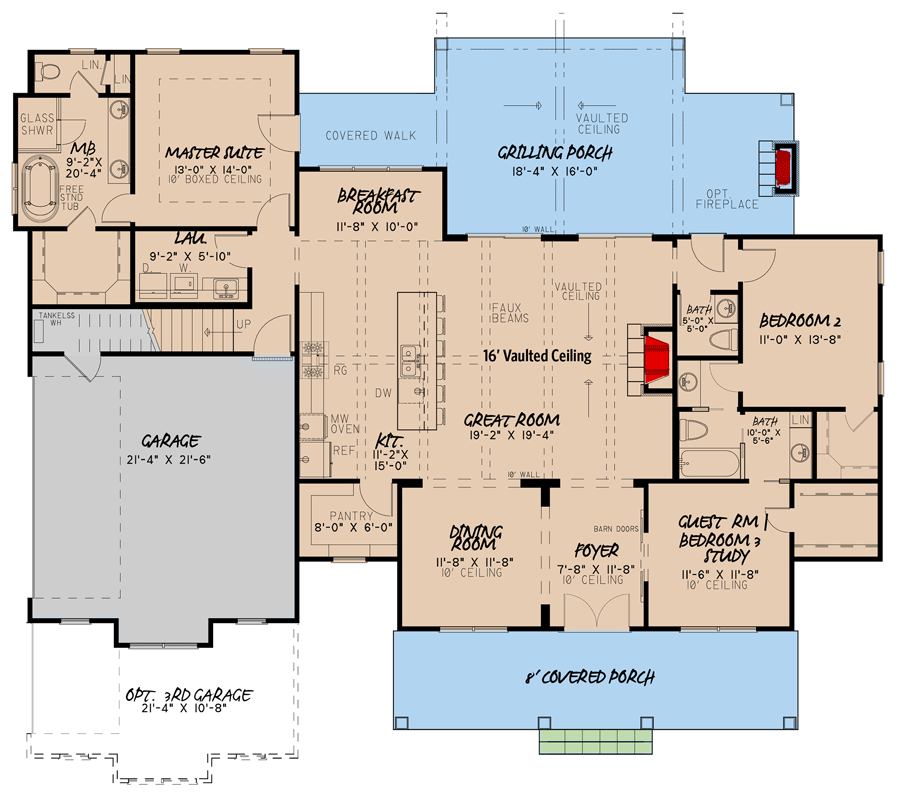

3-Bed Modern Farmhouse Plan with Bonus Room Above the Garage - 70634MK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

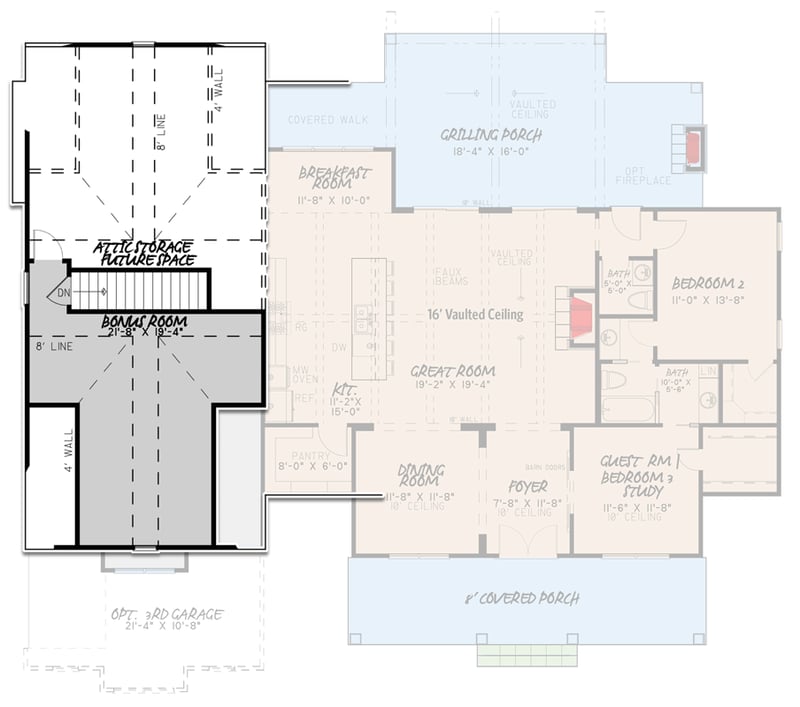

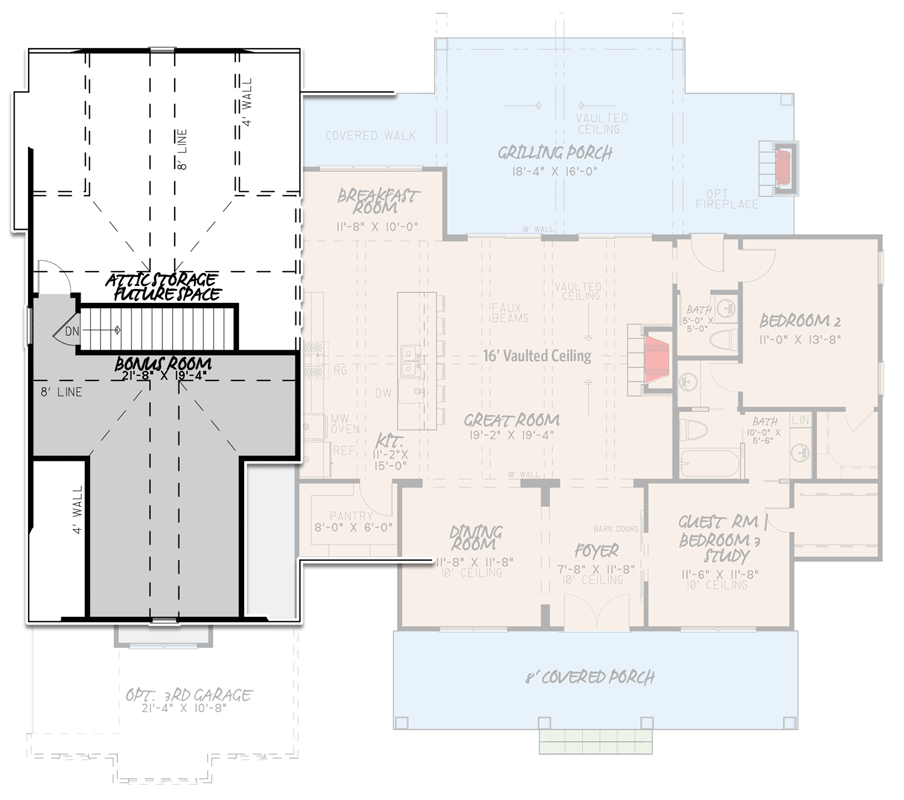

3-Bed Modern Farmhouse Plan with Bonus Room Above the Garage - 70634MK floor plan - Bonus

3-Bed Modern Farmhouse Plan with Bonus Room Above the Garage

  • 2,031

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,031 sq. ft.
  • 1st Floor: 2,031 sq. ft.

Dimensions

  • Width: 70' 6"
  • Depth: 56' 2"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
