Plan 720004DA 3-Bed Modern House Plan with Upstairs Loft

3-Bed Modern House Plan with Upstairs Loft

Plan 720004DA

  • 2,448

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Shed roofs and lap siding with alternating reveals combined with panel siding give this modern house plan great curb appeal. Tall, 12' ceilings through the covered porch and foyer give a grand feeling as you walk inside.
  • Immediately to the left, French doors open to the den which could be outfitted as a home office. To the right, is the mud hall with coat closet, drop zone and access to the attached 2-car garage.
  • At the end of the foyer, the floor plan opens up to the great room. Living, dining, and kitchen are all open to each other. A cozy fireplace is centered in the living space and can be enjoyed from the kitchen. An island with cooktop and eating bar provide some visual separation of the kitchen.
  • The owners' suite is accessed off the great room and boasts a private bathroom with dual vanities and a walk-in closet.
  • On the second floor is a spacious loft which could be furnished as a second living area, space for games, or a study area.
  • The two additional bedrooms share a compartmentalized bathroom with twin sinks.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

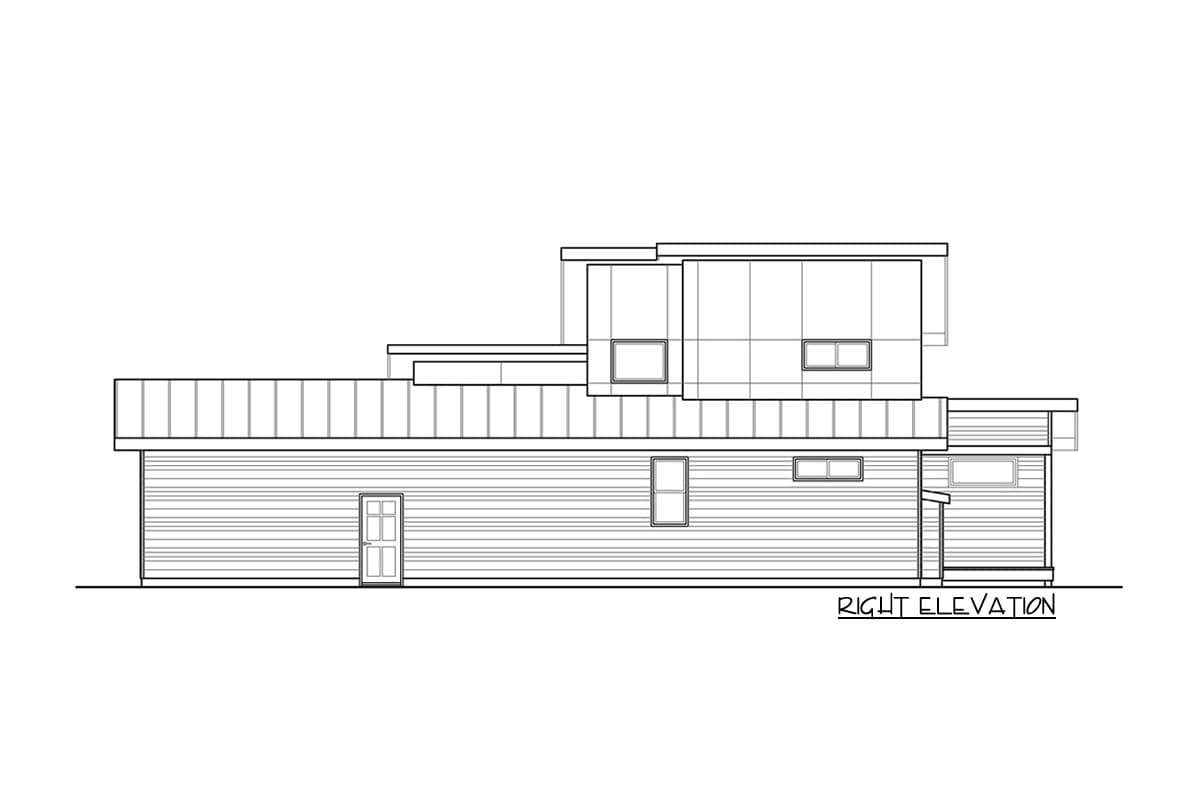

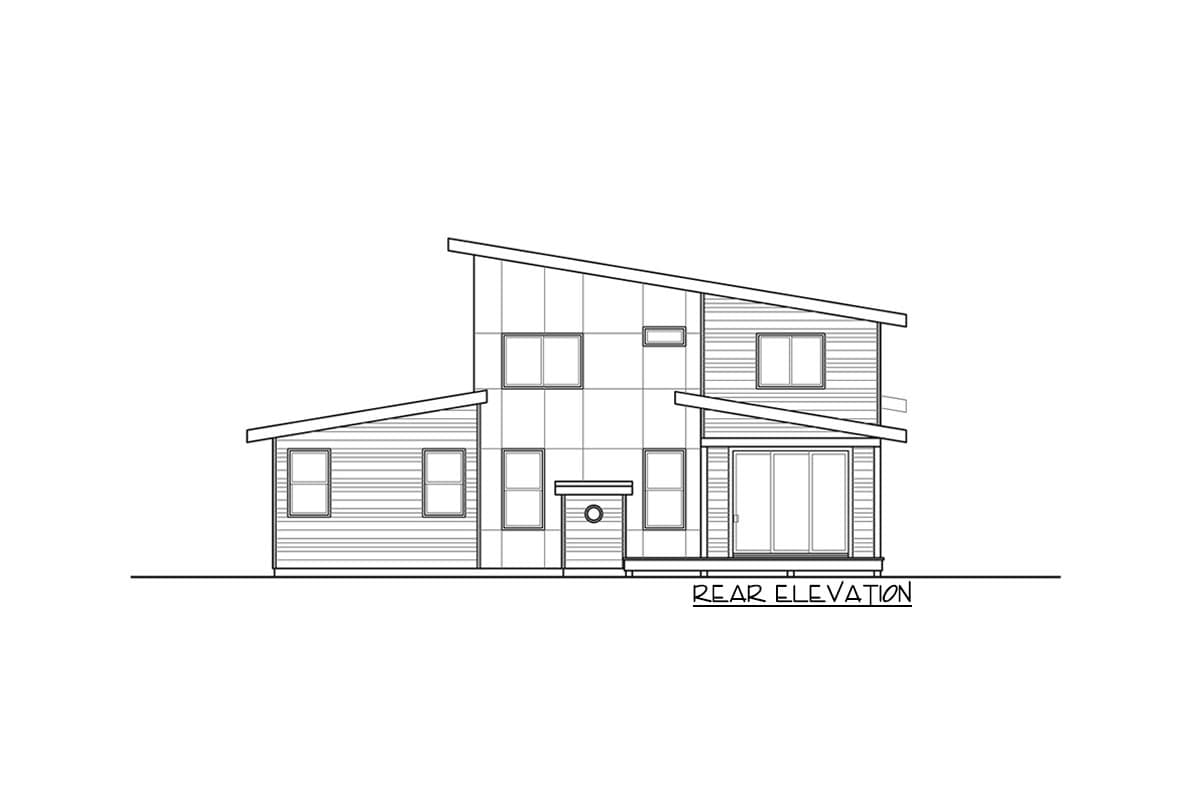

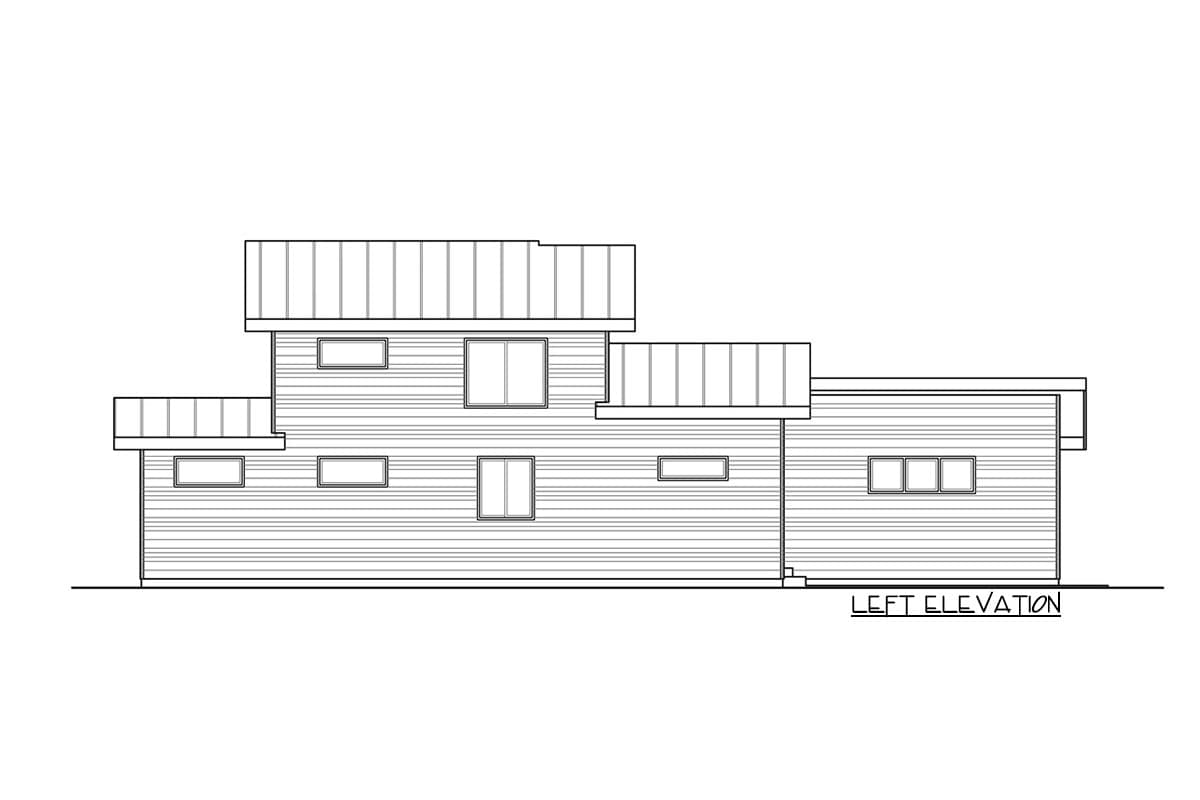

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

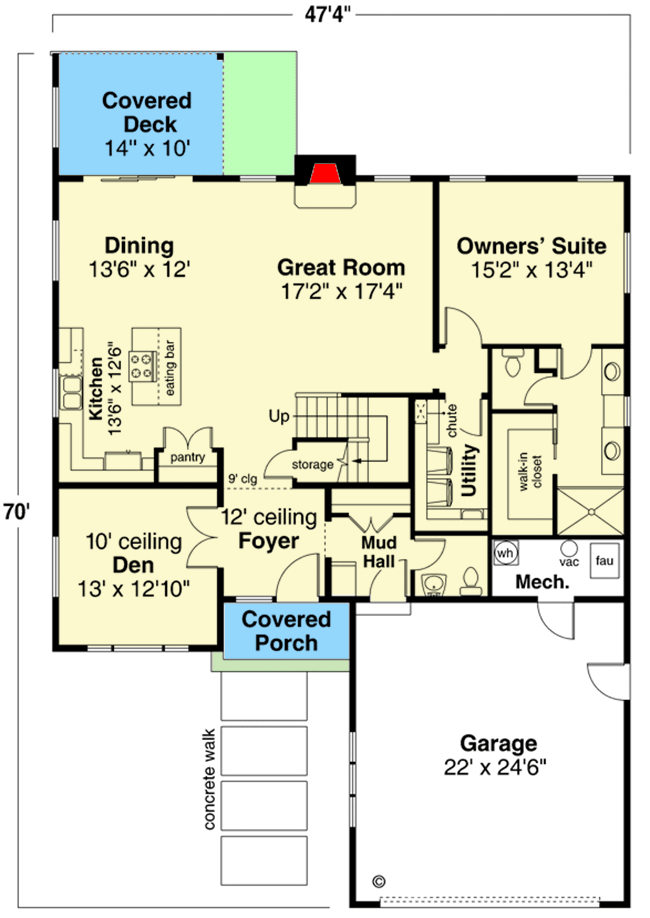

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

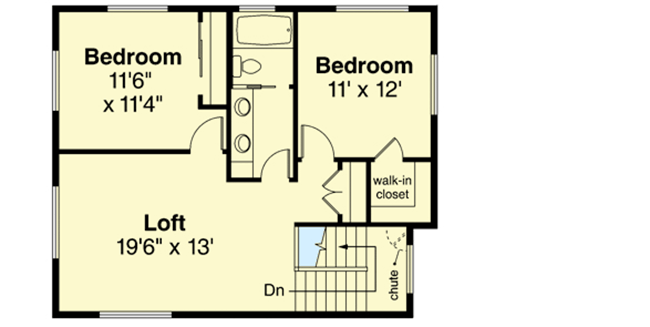

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



3-Bed Modern House Plan with Upstairs Loft

  • 2,448

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Printed $745
  • PDF Light $975
  • 5 Sets + PDF $1,085
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • Shed roofs and lap siding with alternating reveals combined with panel siding give this modern house plan great curb appeal. Tall, 12' ceilings through the covered porch and foyer give a grand feeling as you walk inside.
  • Immediately to the left, French doors open to the den which could be outfitted as a home office. To the right, is the mud hall with coat closet, drop zone and access to the attached 2-car garage.
  • At the end of the foyer, the floor plan opens up to the great room. Living, dining, and kitchen are all open to each other. A cozy fireplace is centered in the living space and can be enjoyed from the kitchen. An island with cooktop and eating bar provide some visual separation of the kitchen.
  • The owners' suite is accessed off the great room and boasts a private bathroom with dual vanities and a walk-in closet.
  • On the second floor is a spacious loft which could be furnished as a second living area, space for games, or a study area.
  • The two additional bedrooms share a compartmentalized bathroom with twin sinks.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,448 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 727 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 47' 4"
  • Depth: 70' 0"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 575 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Truss
