3-Bed Modern Mountain Home Plan for Sloped Lot

Plan 80968PM

  • 1,600

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Vertical siding outlines the exterior of this 3-bedroom, modern mountain home plan. The walk-out lower level makes this design perfect for a sloped lot.
  • The formal entry leads to an enclosed foyer with a coat closet, next to a 4-fixture bath and laundry closet.
  • The combined living / dining area and kitchen hosts a grand fireplace surrounded by oversized windows to provide the best views. Indulge in culinary creativity in this kitchen, which features a multi-use island with seating for three.
  • A bedroom filled with natural light completes the main level.
  • Two bedrooms share the downstairs with a sizable game room for all to enjoy.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

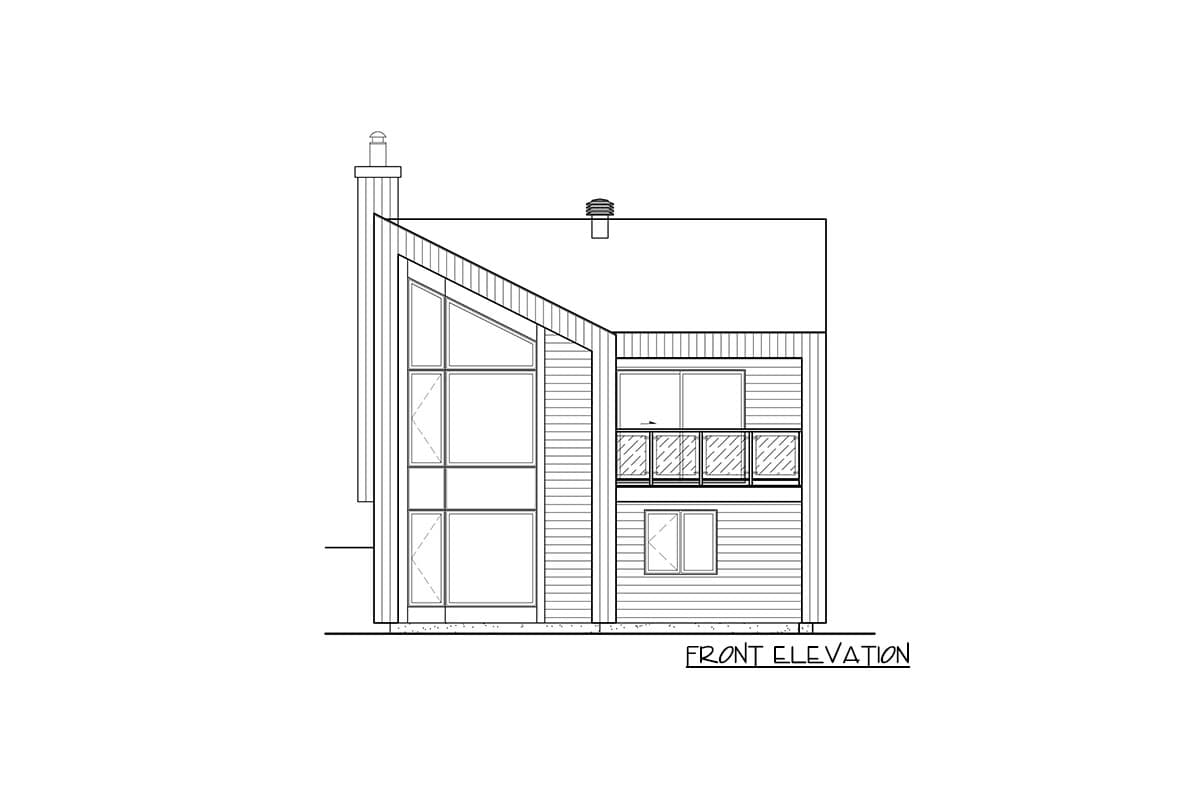

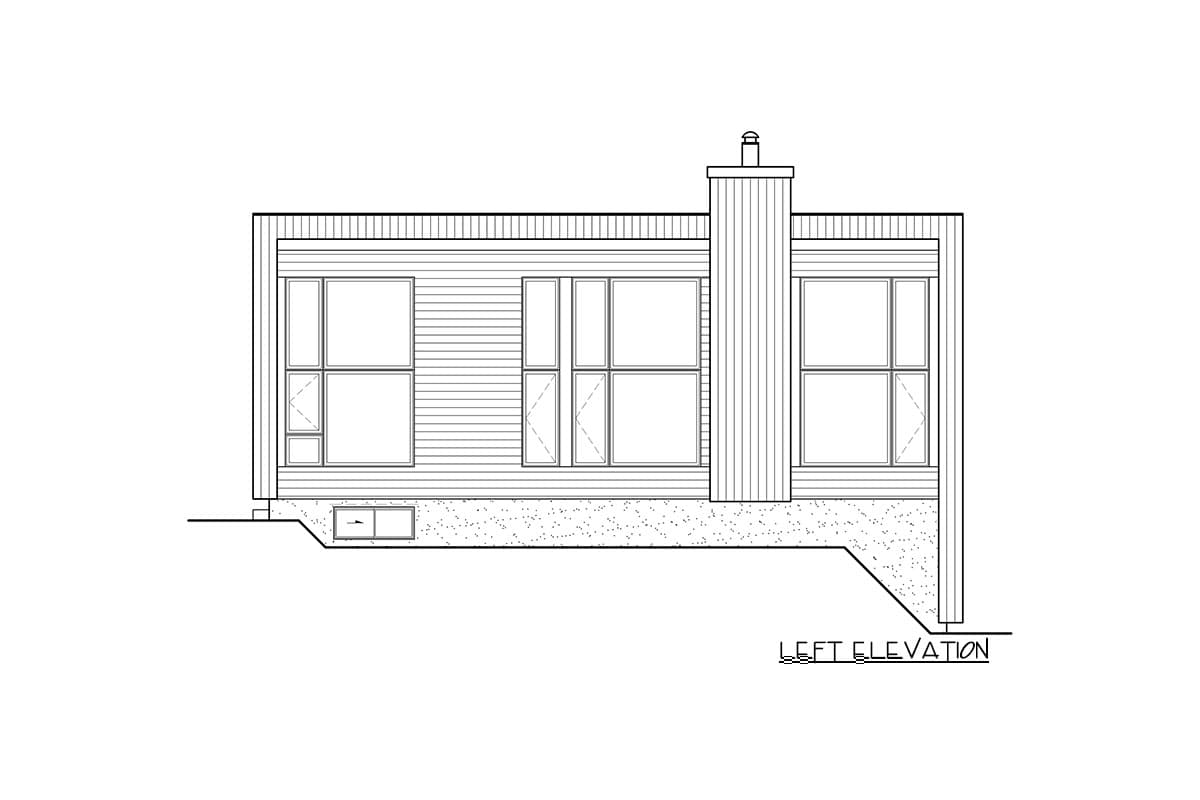

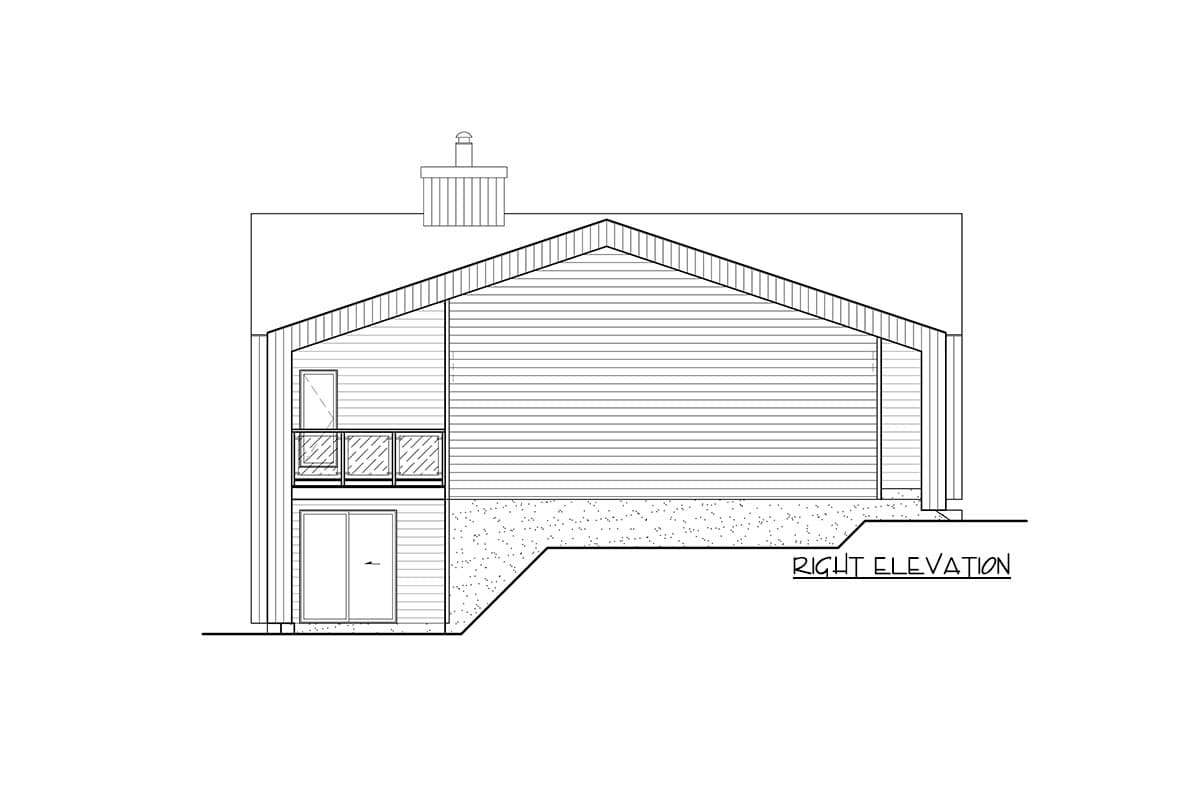

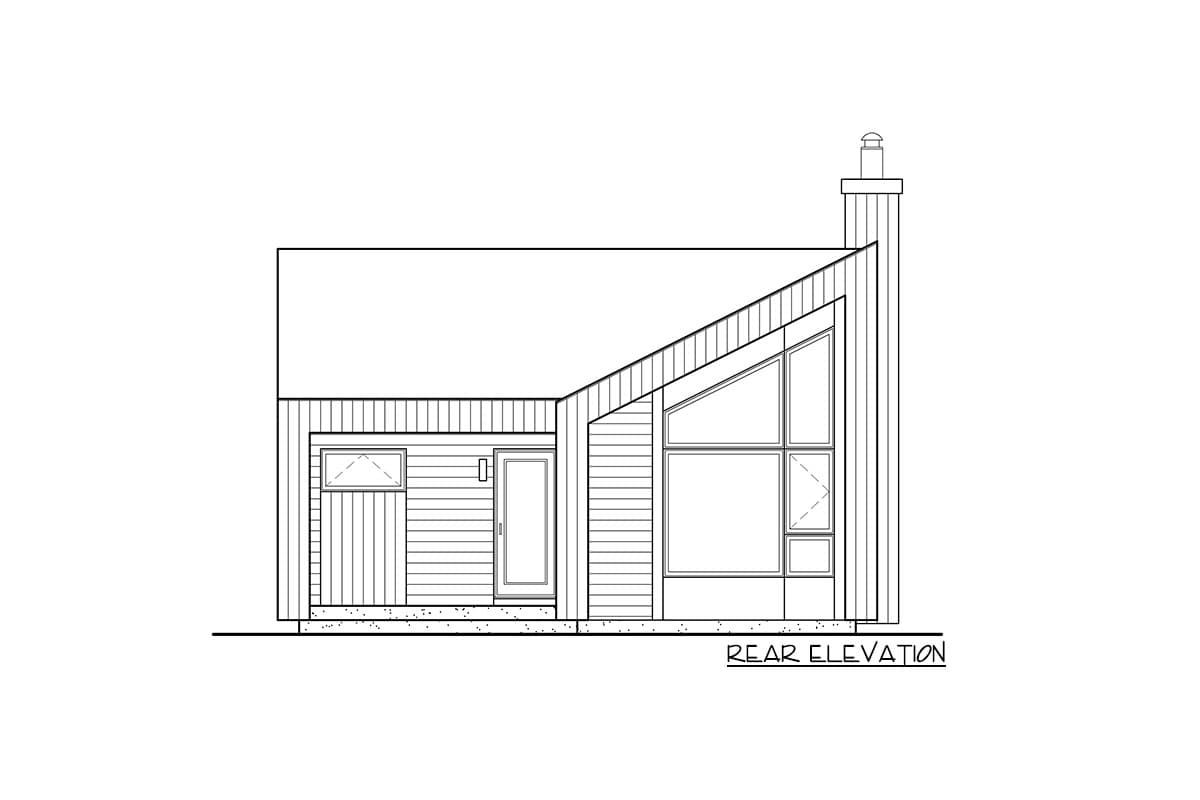

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

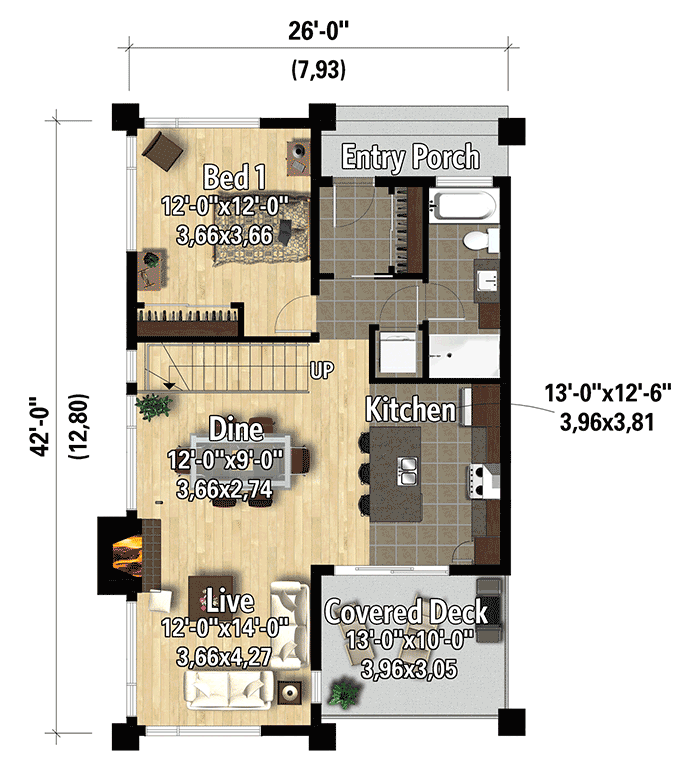

3-Bed Modern Mountain Home Plan for Sloped Lot  - 80968PM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

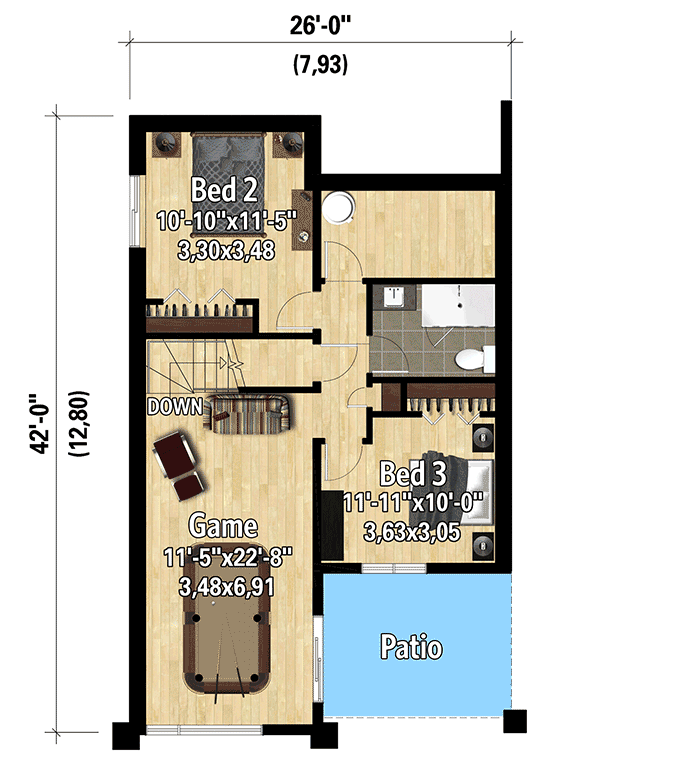

3-Bed Modern Mountain Home Plan for Sloped Lot  - 80968PM floor plan - Lower Level

3-Bed Modern Mountain Home Plan for Sloped Lot

  • 1,600

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,600 sq. ft.
  • Lower Level: 703 sq. ft.
  • 1st Floor: 897 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 42' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
