Plan 623467DJ

3-Bed Modern Mountain House Plan with Two-Story Great Room - 3097 Sq Ft

Heated S.F.
3,097
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 623467DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623467DJ

M-F 9am-5pm EST |

1-203-761-8500

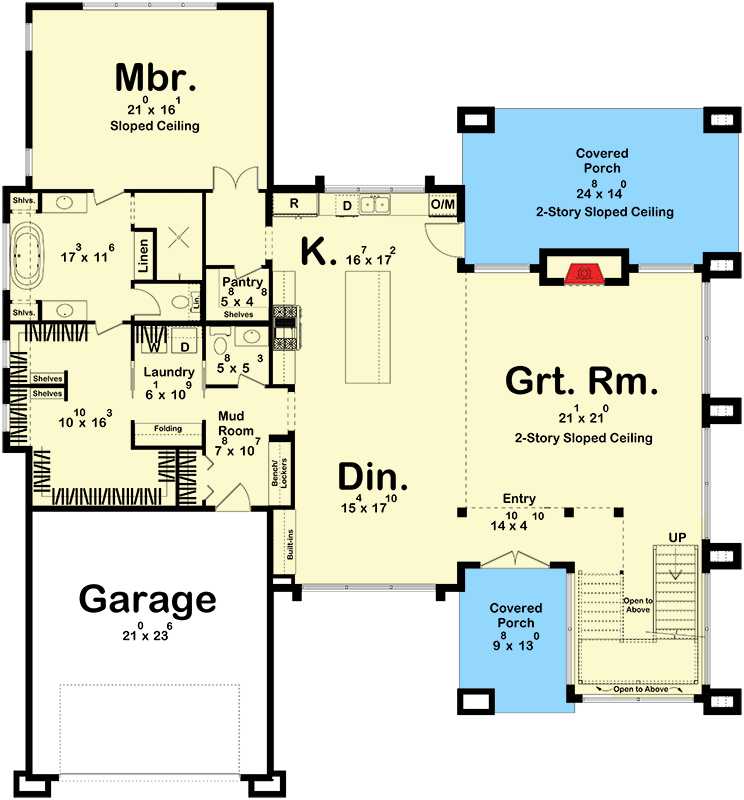

Main Level

Plan 623467DJ: 3-Bed Modern Mountain House Plan with Two-Story Great Room - 3097 Sq Ft - Floor Plan - Main Level - Modern, Mountain, Northwest

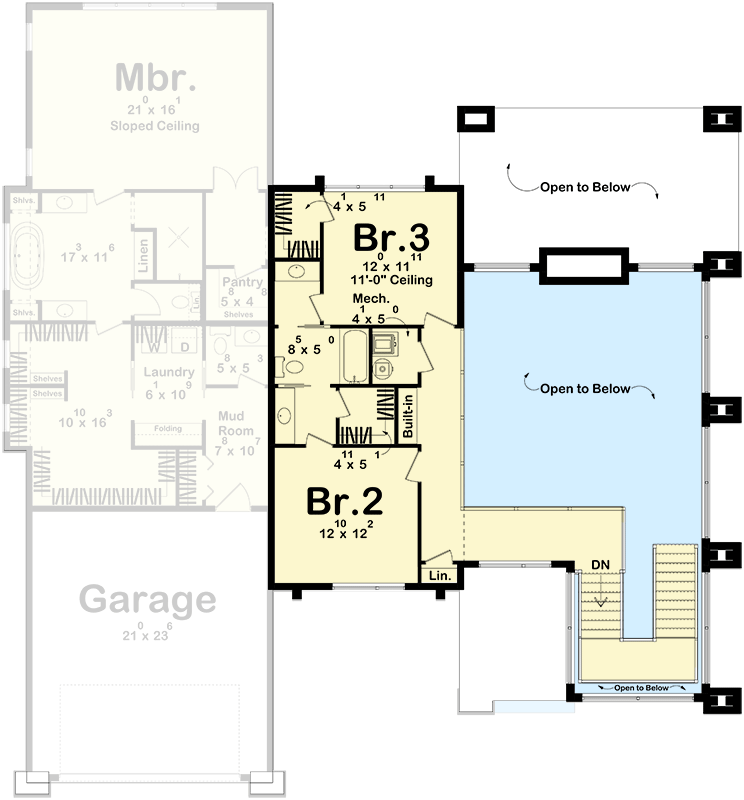

2nd Floor

Plan 623467DJ: 3-Bed Modern Mountain House Plan with Two-Story Great Room - 3097 Sq Ft - Floor Plan - 2nd Floor - Modern, Mountain, Northwest

Plan Details

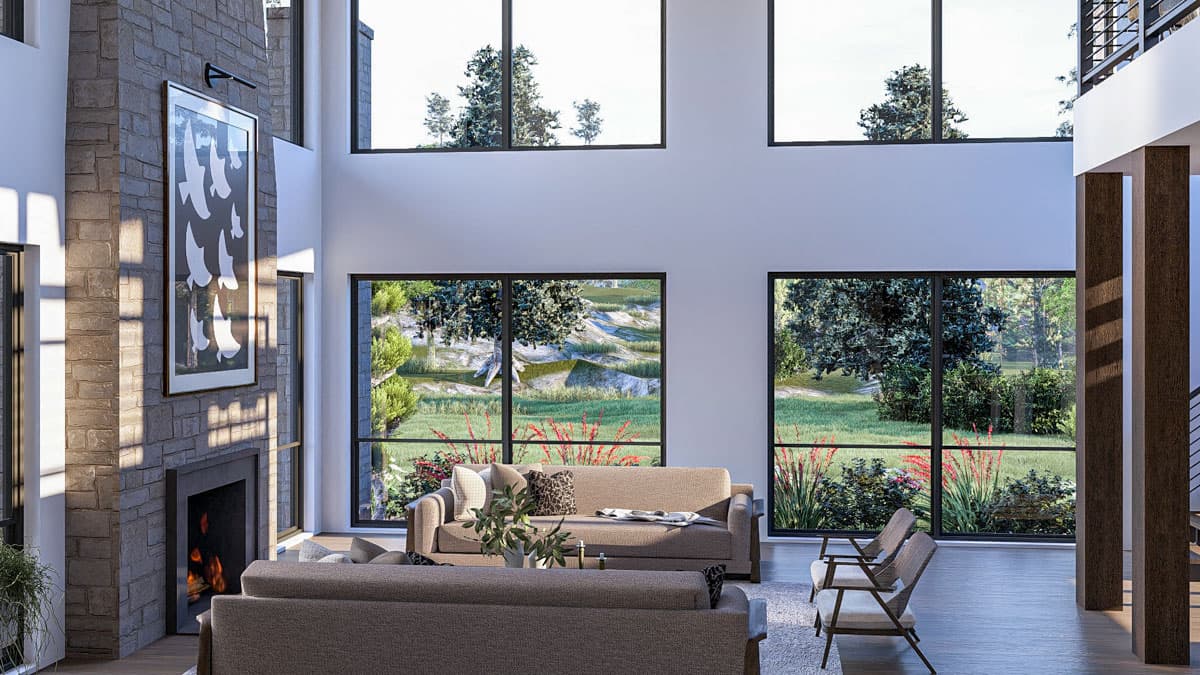

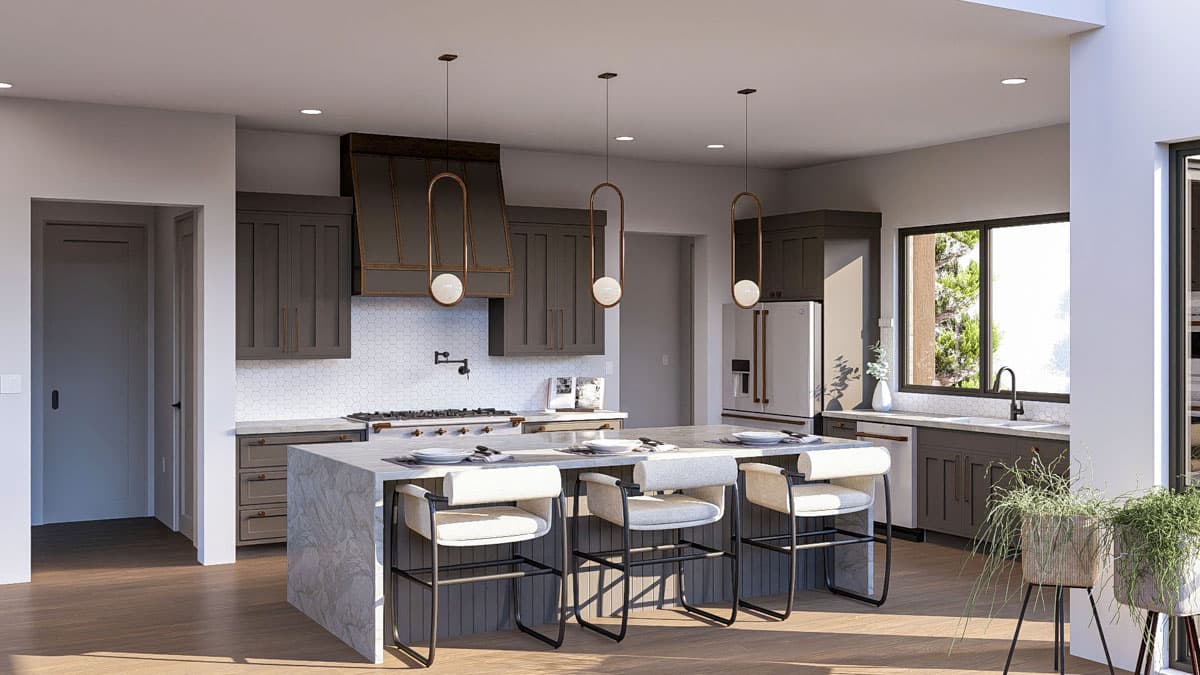

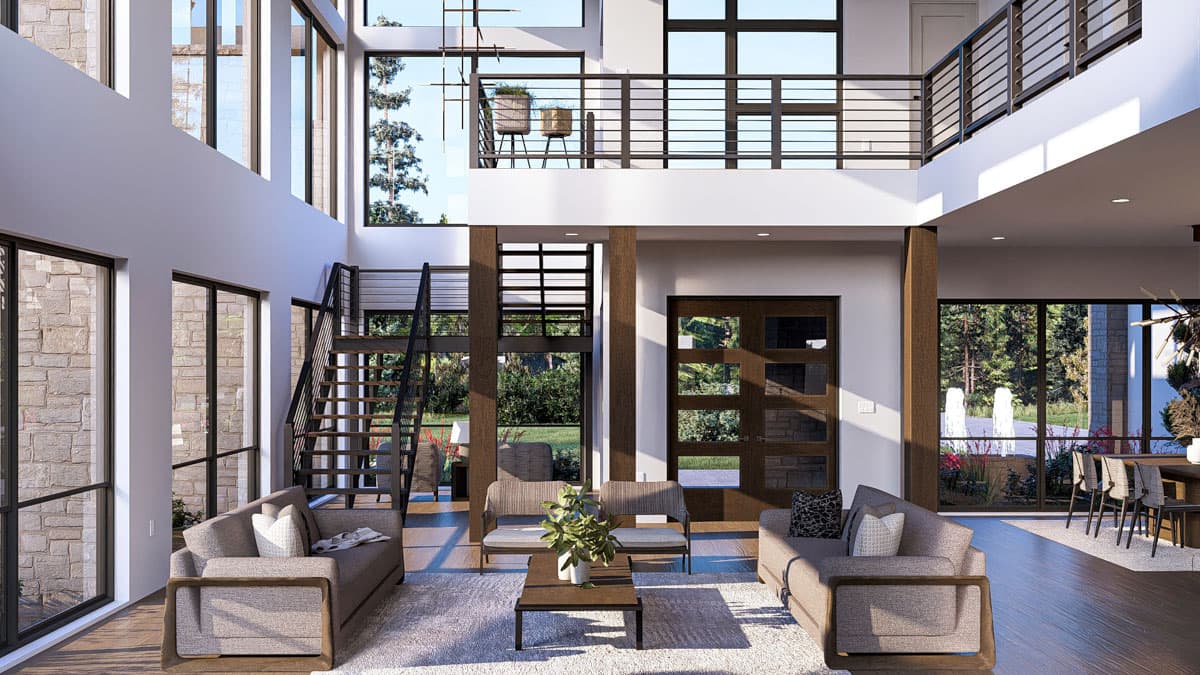

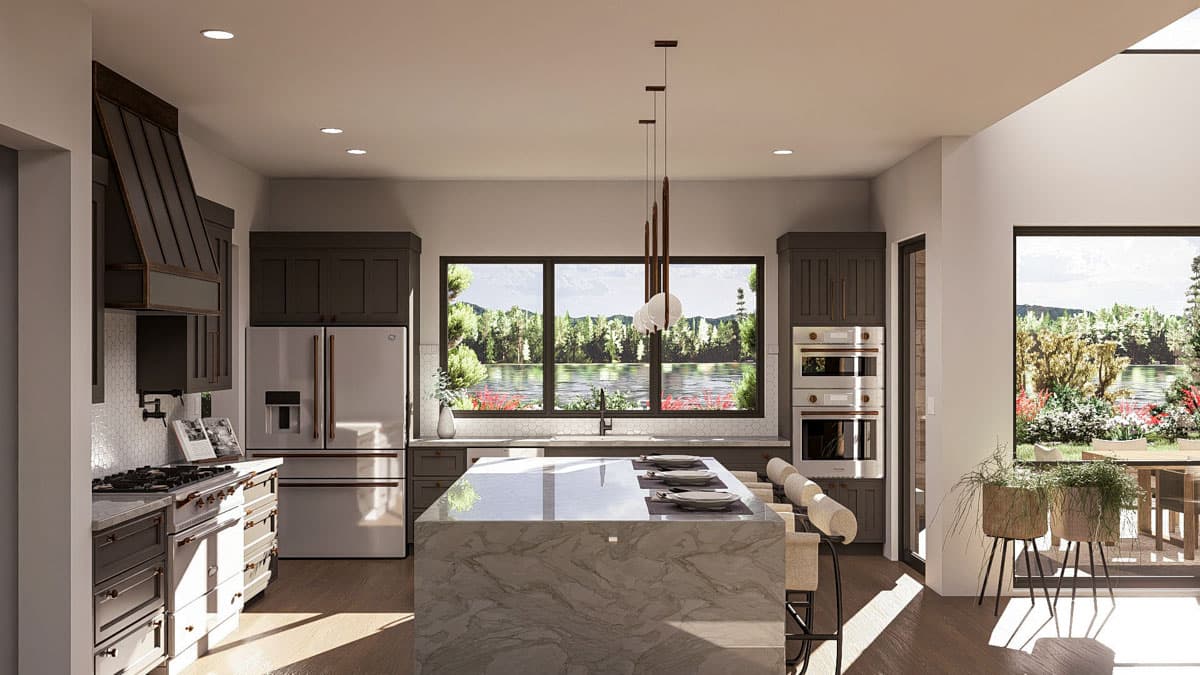

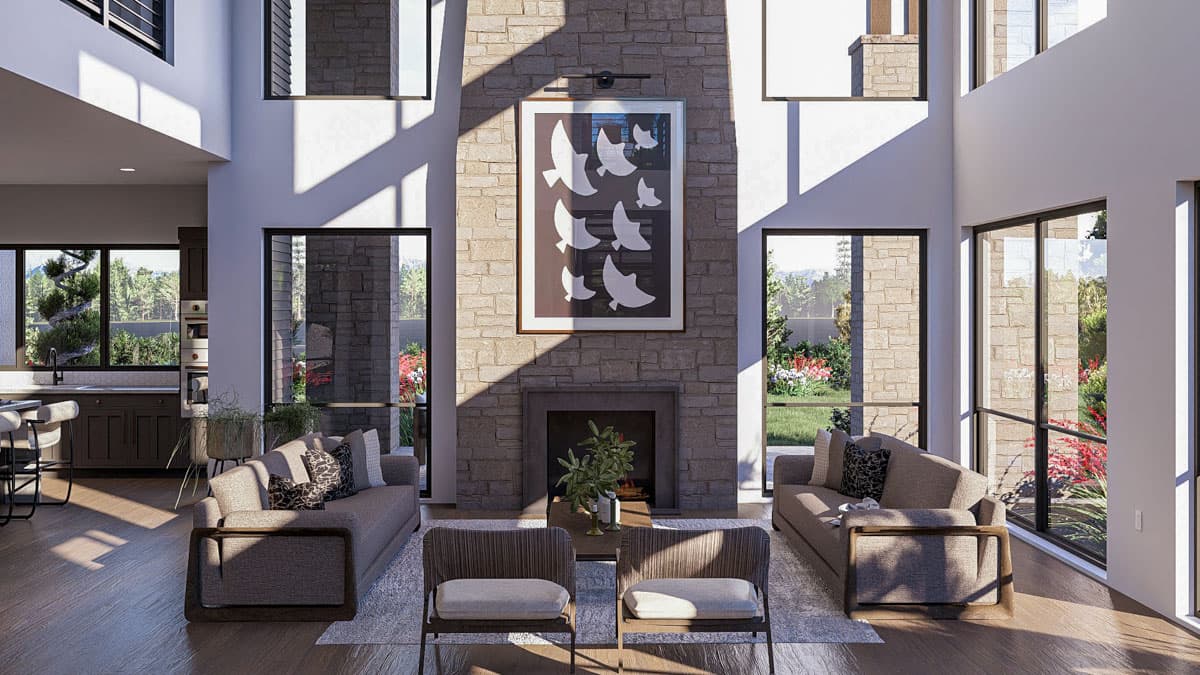

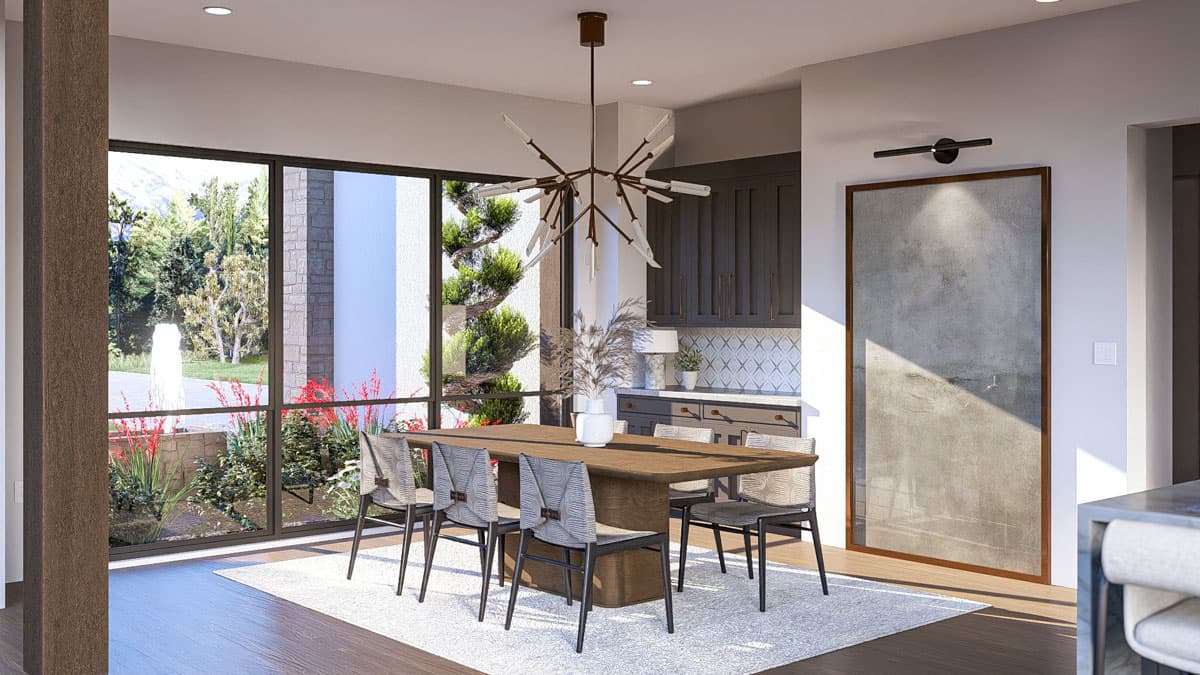

  • The mountain modern 3-bedroom, 3-bath home featuring a two-story great room with a fireplace and floor-to-ceiling windows. The kitchen includes a large island, and the dining room offers built-in storage.

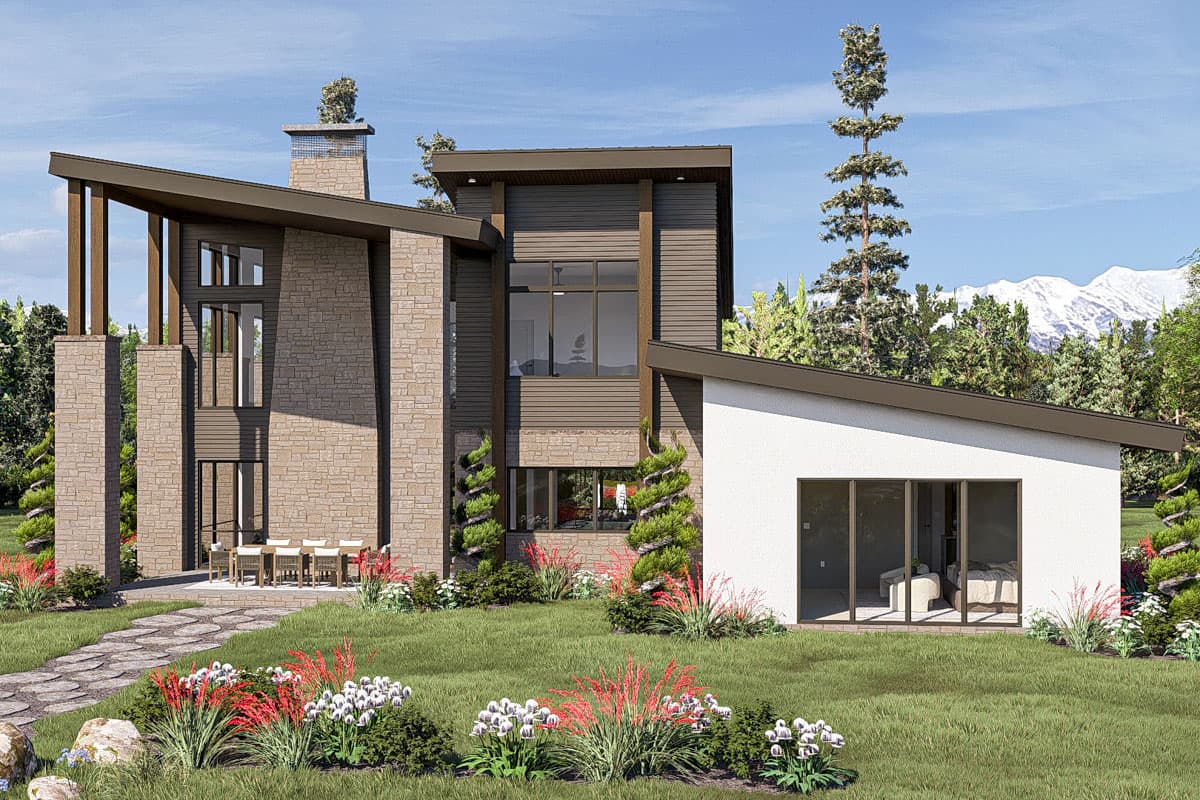

  • A spacious rear patio extends the living area outdoors, blending style and functionality.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a similar three story house plan that has a finished lower level in reverse orientation with 62965DJ (4,718 sq. ft.).

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,097 sq. ft.

1st Floor

2,415 sq. ft.

2nd Floor

682 sq. ft.

Porch, Combined

430 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 8"

Depth

70' 8"

Max Ridge Height

56' 8"

Garage

Type

Attached

Area

525 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Modern

Mountain

Northwest

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,097 sq. ft.

1st Floor

2,415 sq. ft.

2nd Floor

682 sq. ft.

Porch, Combined

430 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 8"

Depth

70' 8"

Max Ridge Height

56' 8"

Garage

Type

Attached

Area

525 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Modern

Mountain

Northwest

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
