Plan 490049NAH
3 Bed Modern Ranch Home Plan with Flex Room
Heated S.F.
2,425
Beds
3-5
Baths
2.5 - 3.5
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

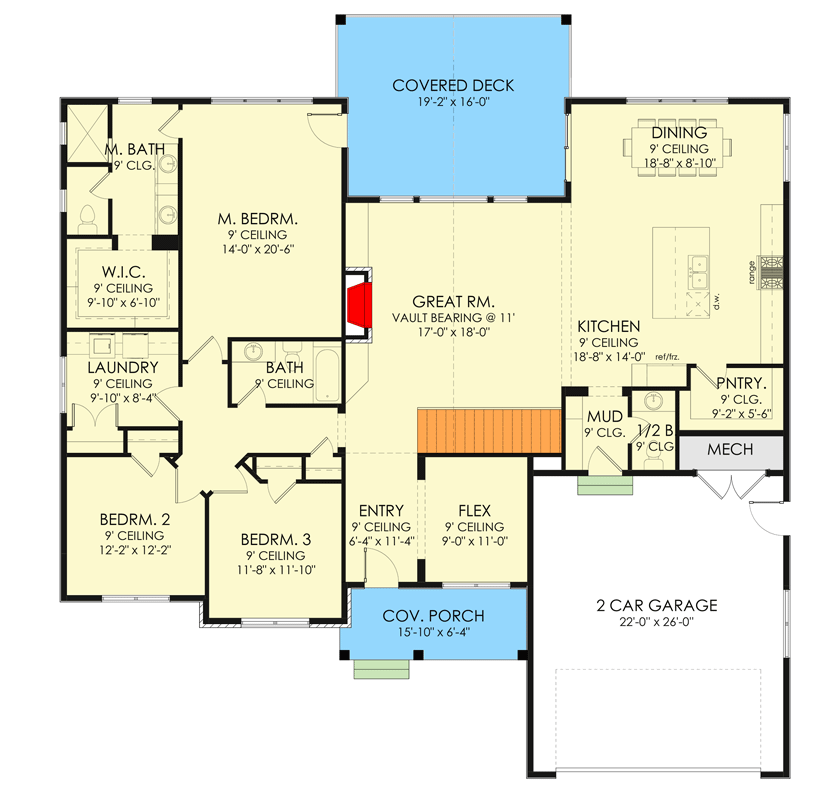

3 Bed Modern Ranch Home Plan with Flex Room - 490049NAH floor plan - Main Level
Optionally Finished Walkout Basement
Reverse Floor Plan

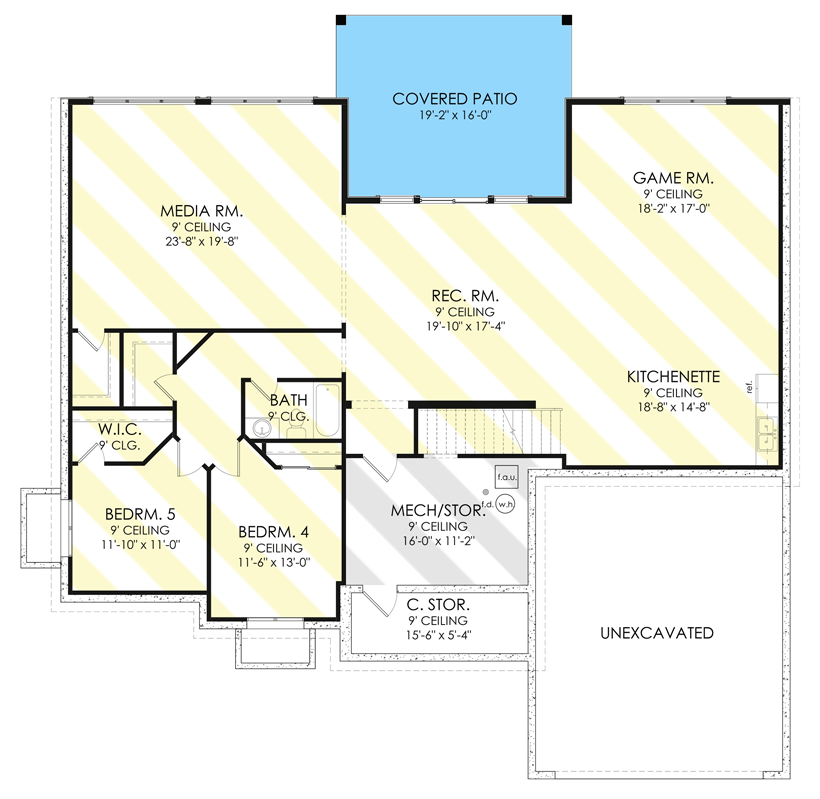

3 Bed Modern Ranch Home Plan with Flex Room - 490049NAH floor plan - Optionally Finished Walkout Basement
Optionally Finished Basement
Reverse Floor Plan

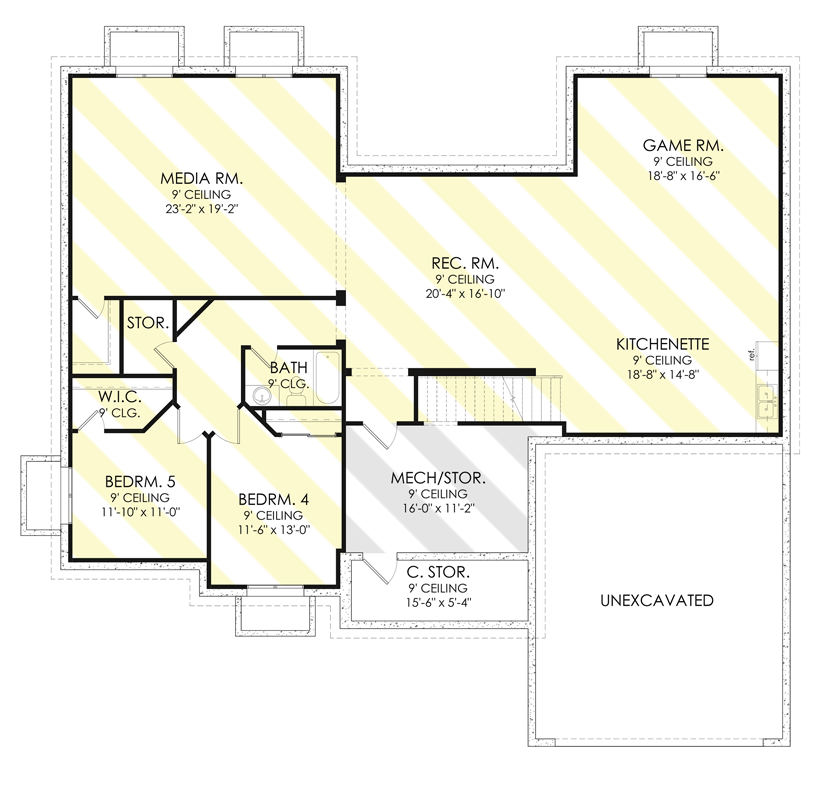

3 Bed Modern Ranch Home Plan with Flex Room - 490049NAH floor plan - Optionally Finished Basement
Plan Details
  • This modern ranch home plan offers a covered porch in the front and a covered patio in the back (the one in back converts to a deck when finished with a walkout basement). A beautiful combination of shake siding, board and batten, and brick help this plan stand out from the rest.
  • With the open concept design, the kitchen is centered across from the great room's fireplace and the dining area is just off the kitchen. A modest island, pantry, and convenient garage access make this a comfortable kitchen for all cooks.
  • Off the entry is a flex room, that can be turned into a living room or office space.
  • Further in the home, you'll find the master bedroom with access to the covered patio, and accompanying bathroom with a standing shower and walk-in closet. Along the way, there is 2 bedrooms with the laundry nearby.
  • This home plan offers basement expansion (2,482 square feet when finished as shown) with a media room, recreation room, game room, kitchenette, two more bedrooms, and plenty of storage.
  • Related Plan: Get an alternate exterior with house plan 490025NAH.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
