Plan 68770VR
3-Bed Mountain Craftsman Plan with Extra-Deep Garage - 2547 Sq Ft
Heated S.F.
2,547
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 68770VR

Main Level
slide image 0
2nd Floor
slide image 1
Unfinished Basement
slide image 2

Plan 68770VR

1-800-854-7852

1-262-521-4596

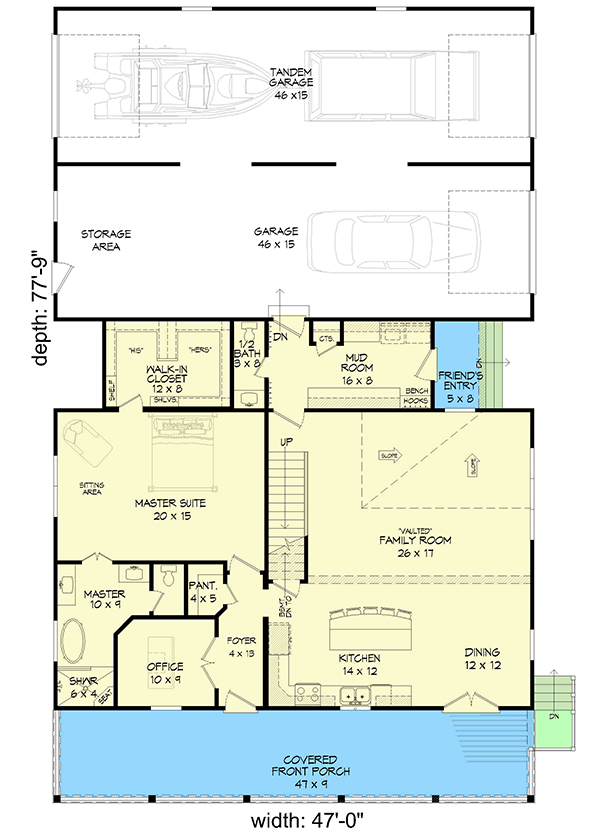

Main Level
floor plan image Main Level

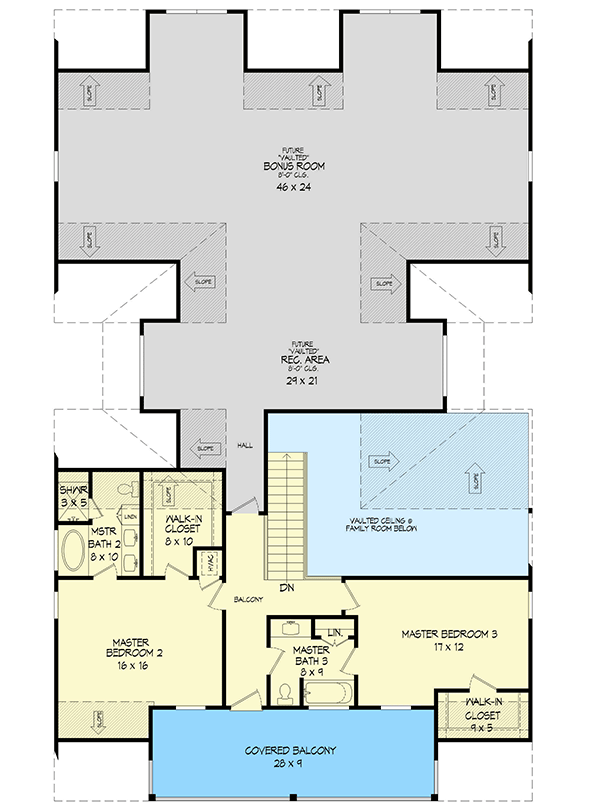

2nd Floor
floor plan image 2nd Floor

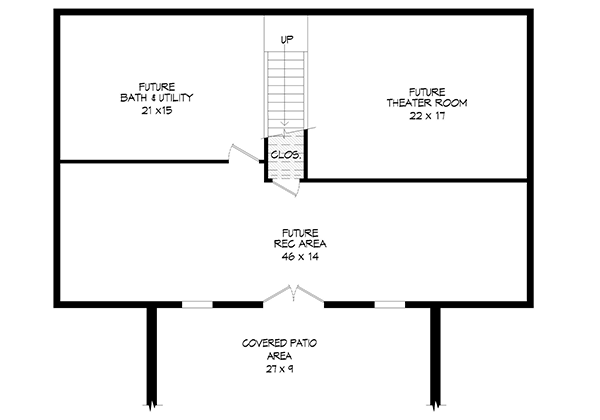

Unfinished Basement
floor plan image Unfinished Basement
Plan Details
  • This 3-bedroom, Mountain Craftsman plan presents a 3-tiered deck, along with an extra-deep garage that allows for plenty of storage space.
  • The 9'-deep covered porch welcomes you inside, where a home office can be found to the left of the foyer.
  • The combined family room, kitchen, and dining areas share the main level with the master suite and provide ample space for family and friends to gather.
  • Two additional bedroom suites are located upstairs, along with a massive 1,487 sq ft bonus room over the garage.
  • Finish the lower level (1,663 sq ft) and gain a recreation and theater room that walks out to the covered patio.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,547 sq. ft.

1st Floor

1,663 sq. ft.

2nd Floor

884 sq. ft.

Basement Unfinished

1,663 sq. ft.

Bonus

1,487 sq. ft.

Porch, Front

423 sq. ft.

Balcony / Veranda

253 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 0"

Depth

77' 9"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

1445 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Home Theater

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Mudroom

Two Master Suites

Two Story Great Room

Plan Collections

Lake House Plans
