Plan 680425VR

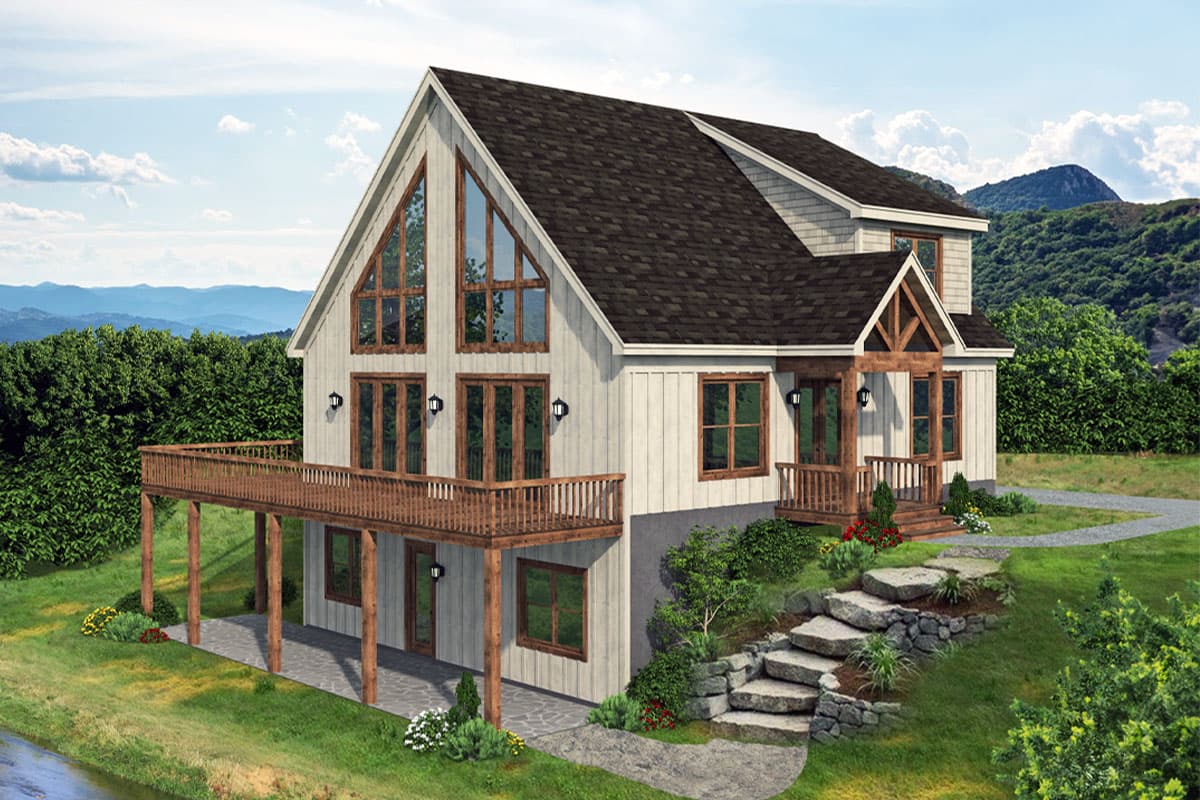

3-Bed Mountain Craftsman with Two-Story Great Room - 1991 Sq Ft
Heated S.F.
1,991
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 680425VR

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 680425VR

1-800-854-7852

1-262-521-4596

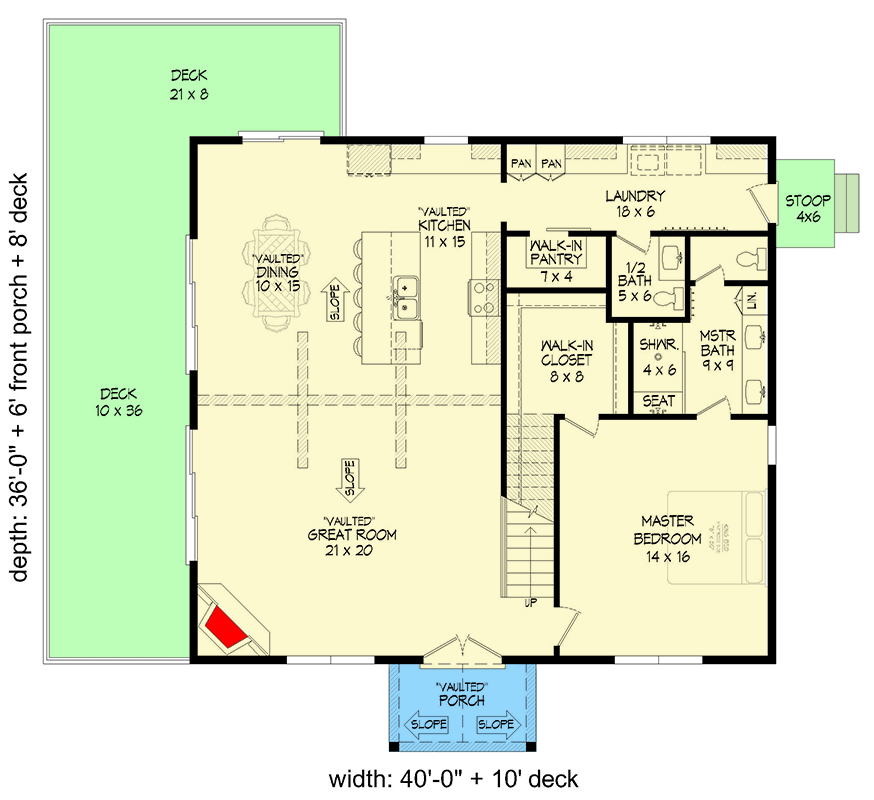

Main Level
floor plan image Main Level

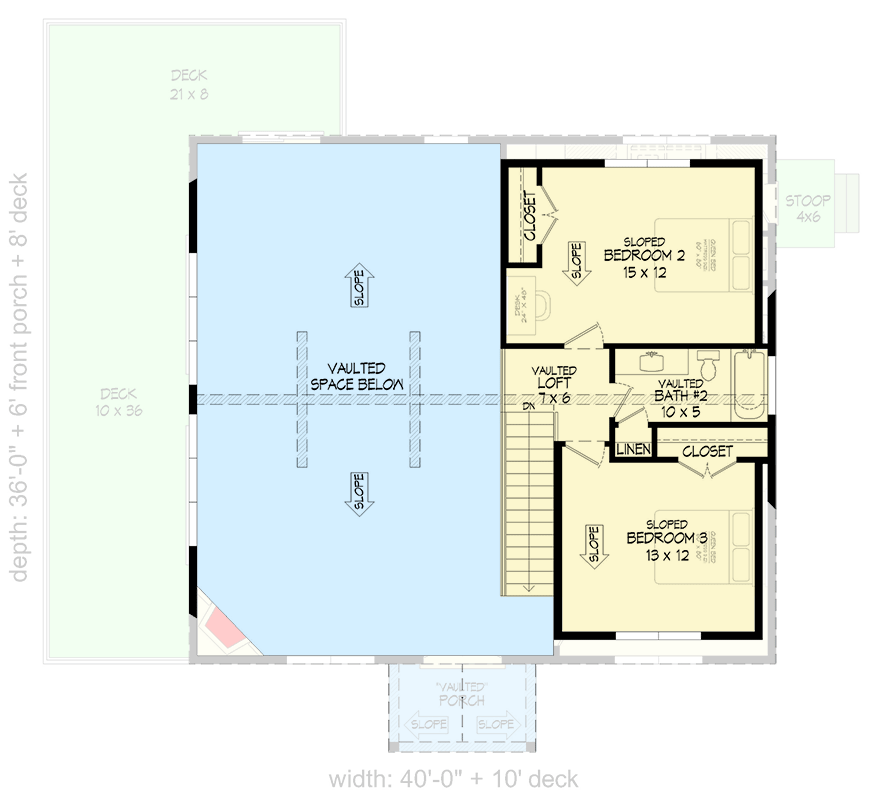

2nd Floor
floor plan image 2nd Floor

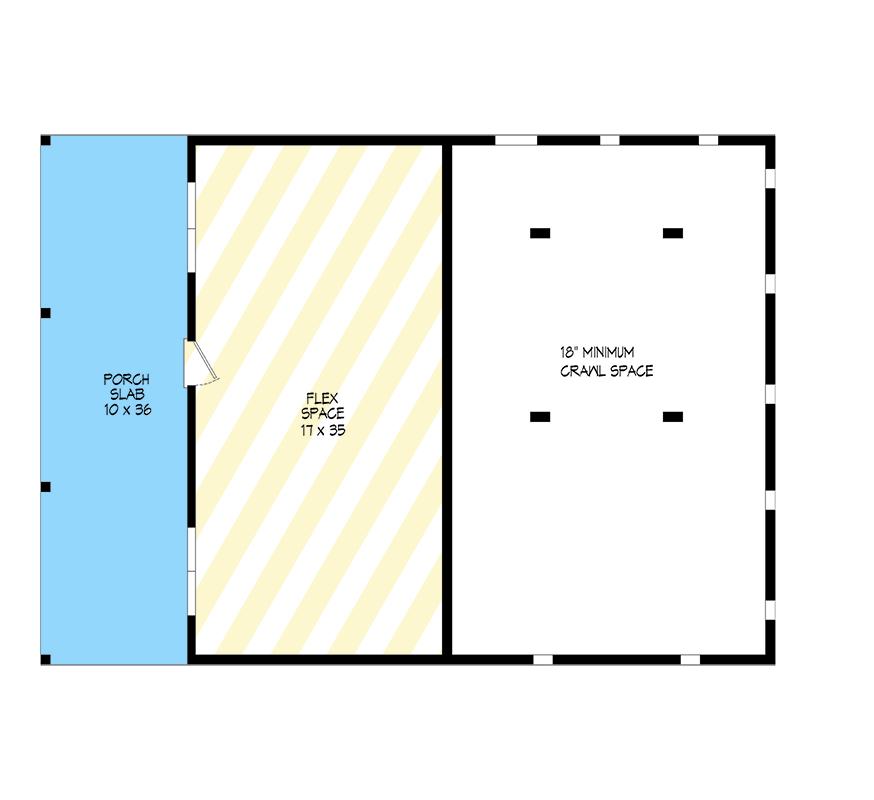

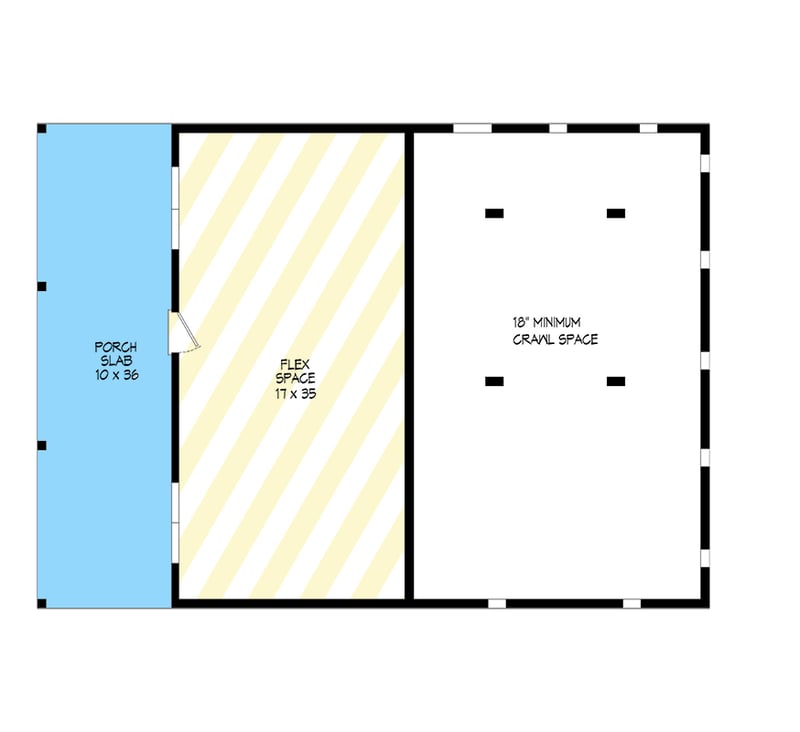

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This mountain house plan gives you 1,991 square feet of heated living space, 3 beds and 2.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate version with house plan 680304VR (1,991 sq. ft.) and 680357VR (2,037 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

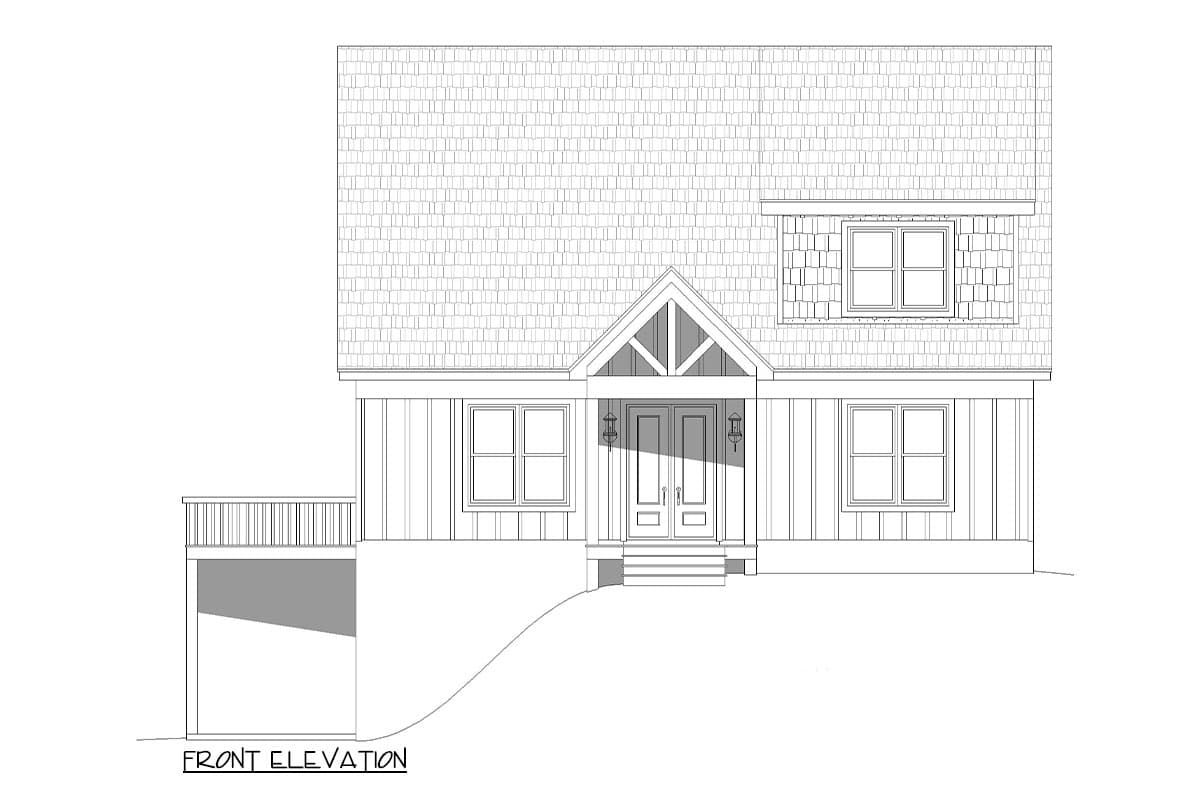

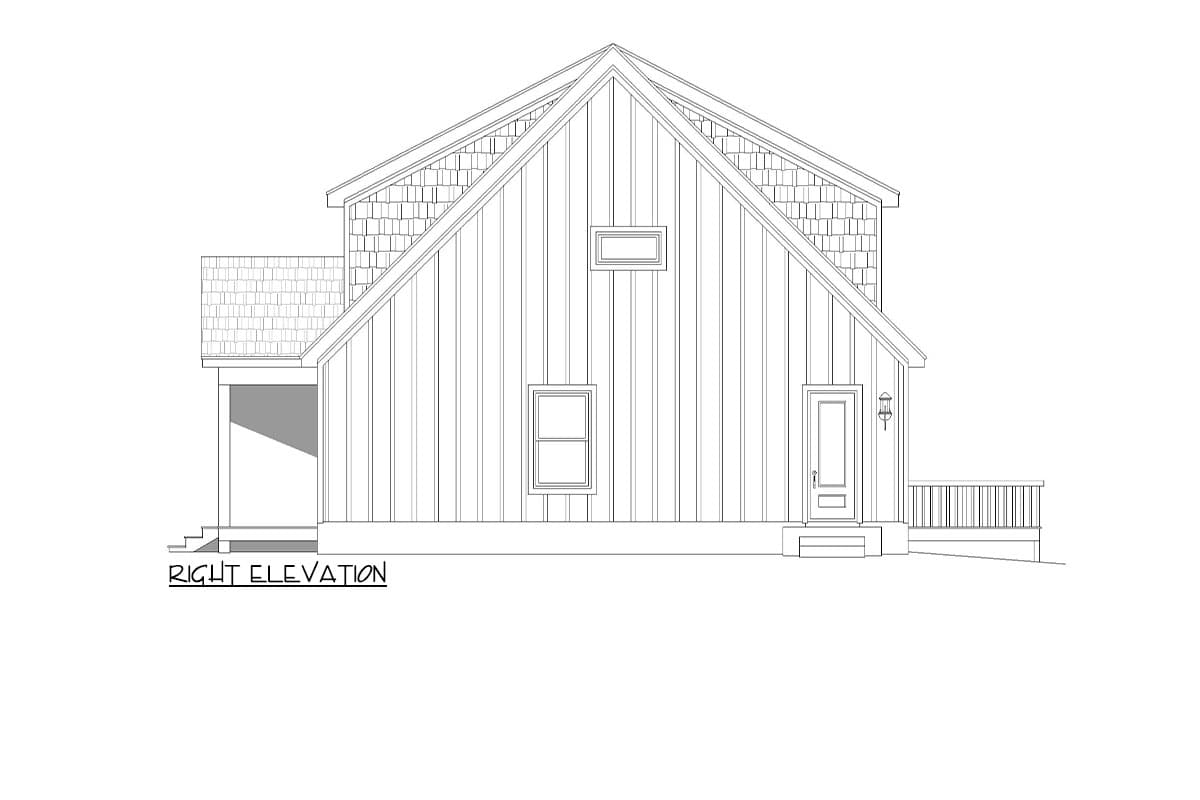

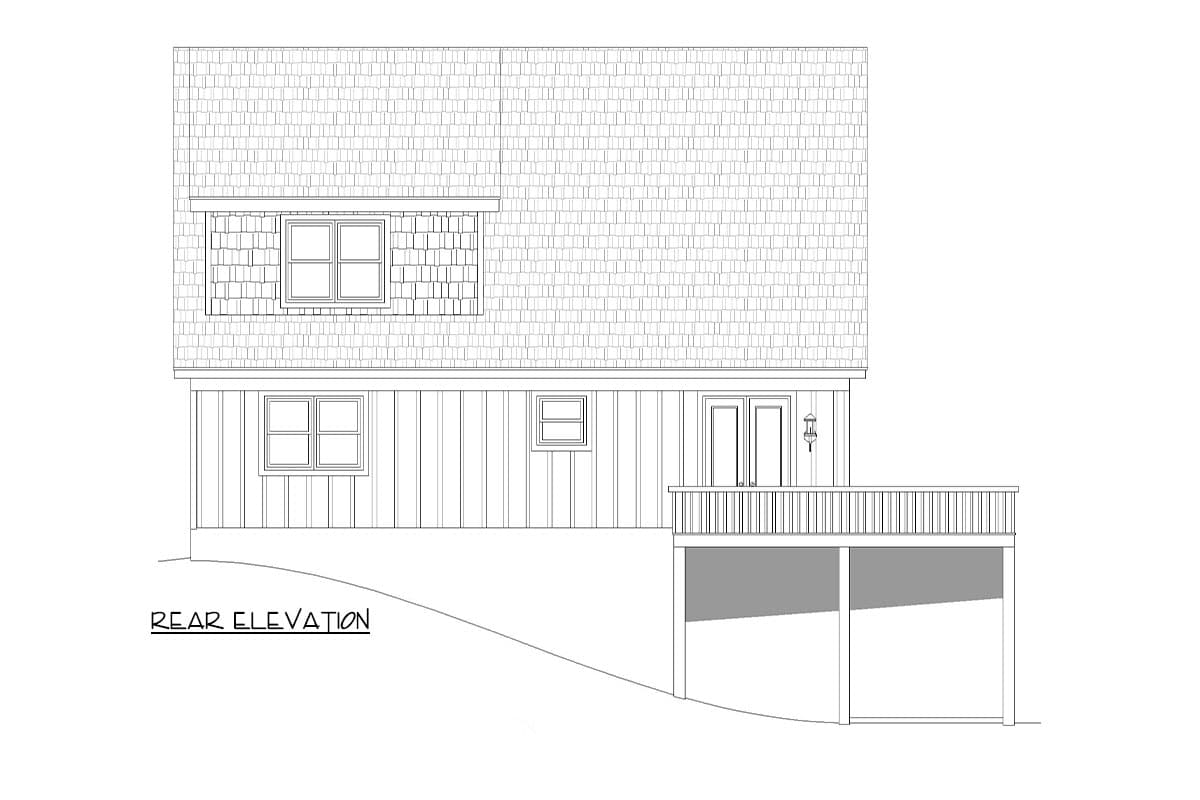

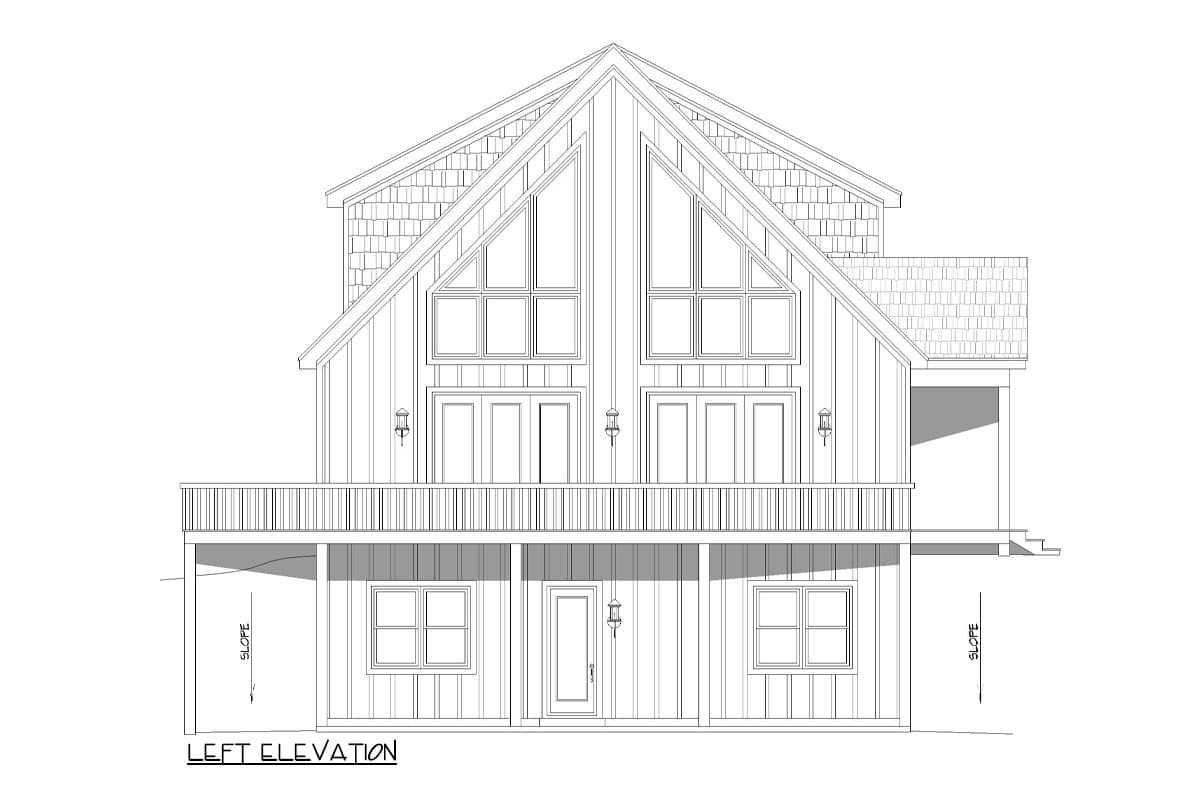

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,991 sq. ft.

1st Floor

1,440 sq. ft.

2nd Floor

551 sq. ft.

Optional Lower Level

648 sq. ft.

Porch, Combined

945 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

50' 0"

Max Ridge Height

29' 2"

Ceiling Heights

Lower Level

10'

First Floor

9'

Second Floor

9' 6"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Lake House

Mountain

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans
