3 Bed Narrow Lot Cottage Home Plan

Heated S.F.
1,550
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 11762HZ

Main Level
Main Level

Plan 11762HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

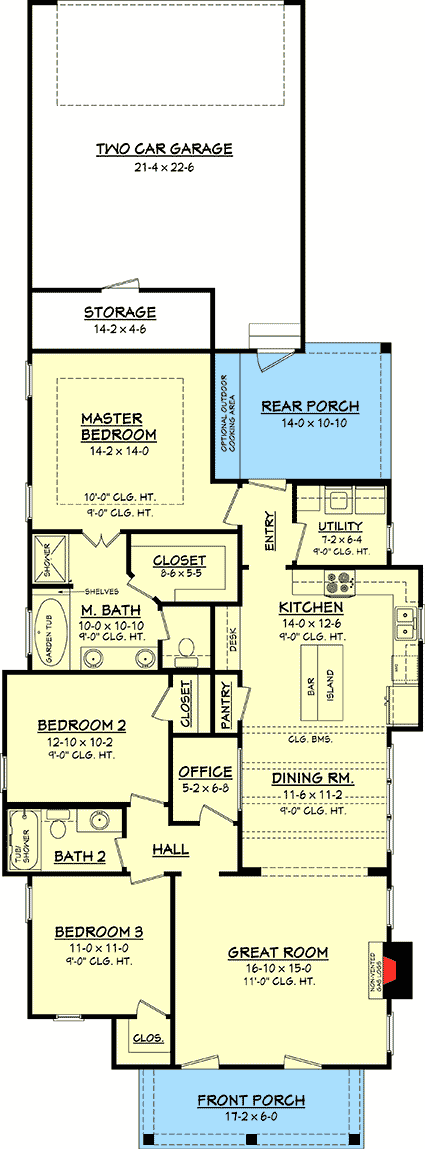

Plan 11762HZ: 3 Bed Narrow Lot Cottage Home Plan - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • This Cottage home plan was designed for a narrow lot and has surpsing amounts of space inside.
  • Two doors lead into the spacious great room with fireplace.
  • Beamed ceilings top the dining room that is open to both the great room and the kitchen.
  • Space for a pocket home office has been carved out of the left side bedroom wing.
  • The master suite is in the rear with a tray ceiling, walk-in closet and five piece bathroom.
  • Related Plan: Get more room and a second floor with narrow cottage house plan 11775HZ (2,185 sq. ft.).

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

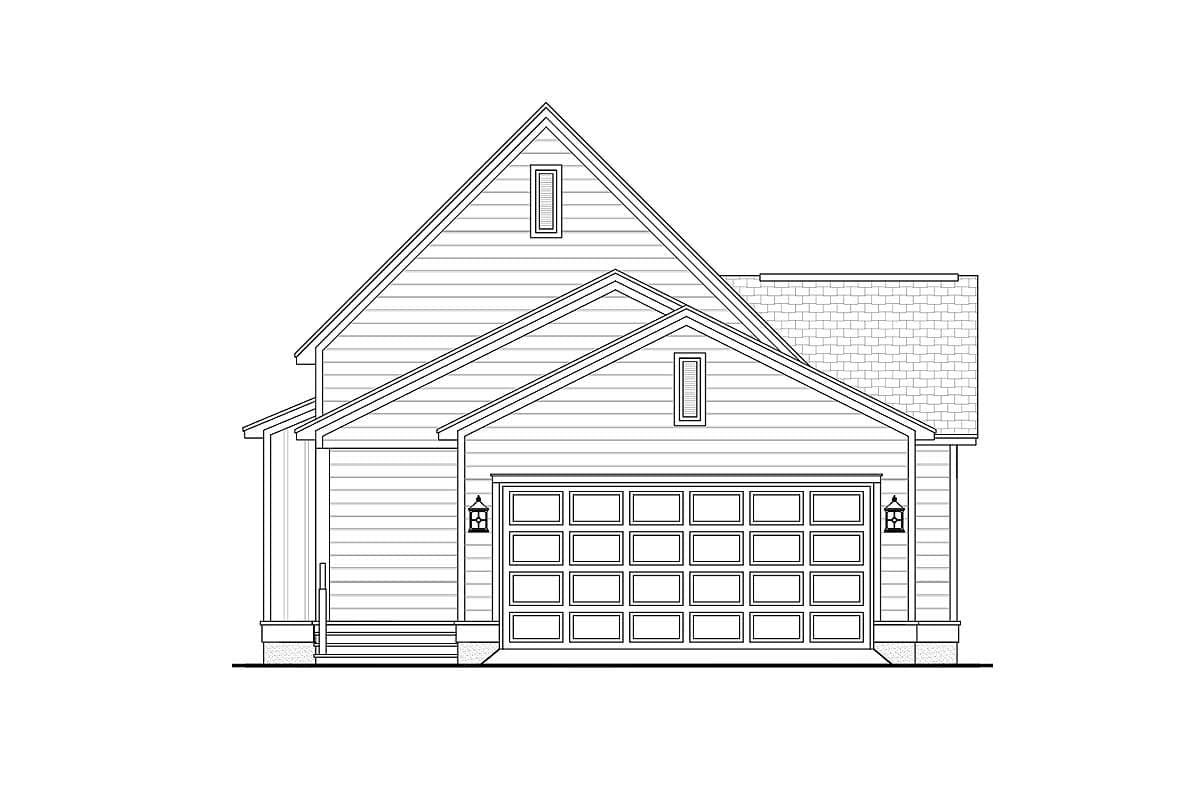

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,550 sq. ft.

1st Floor

1,550 sq. ft.

Porch, Combined

248 sq. ft.

Storage

65 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 4"

Depth

90' 10"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

546 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,550 sq. ft.

1st Floor

1,550 sq. ft.

Porch, Combined

248 sq. ft.

Storage

65 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 4"

Depth

90' 10"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

546 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office

Photo Gallery

USDA Approved
