Plan 11775HZ
3 Bedroom Narrow Lot House Plan
Heated S.F.
2,185
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

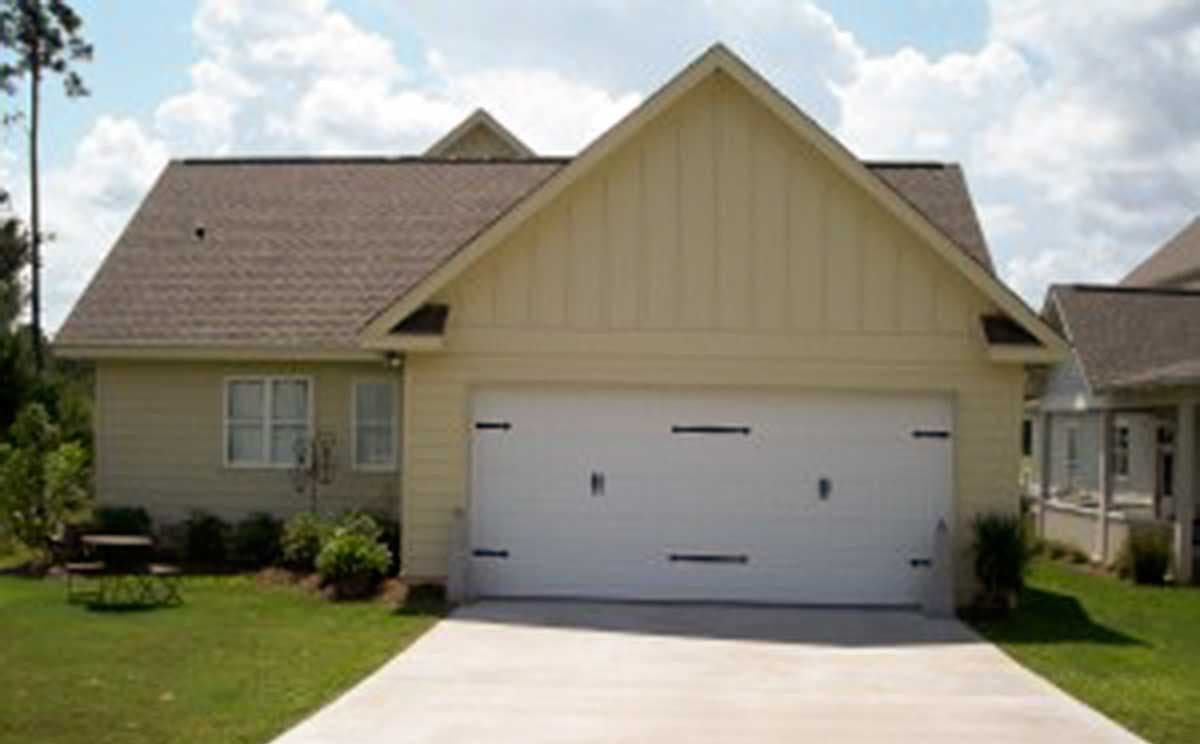

  • This house plan was designed for a narrow or in-fill lot and features a garage in back which is perfect for alley access.

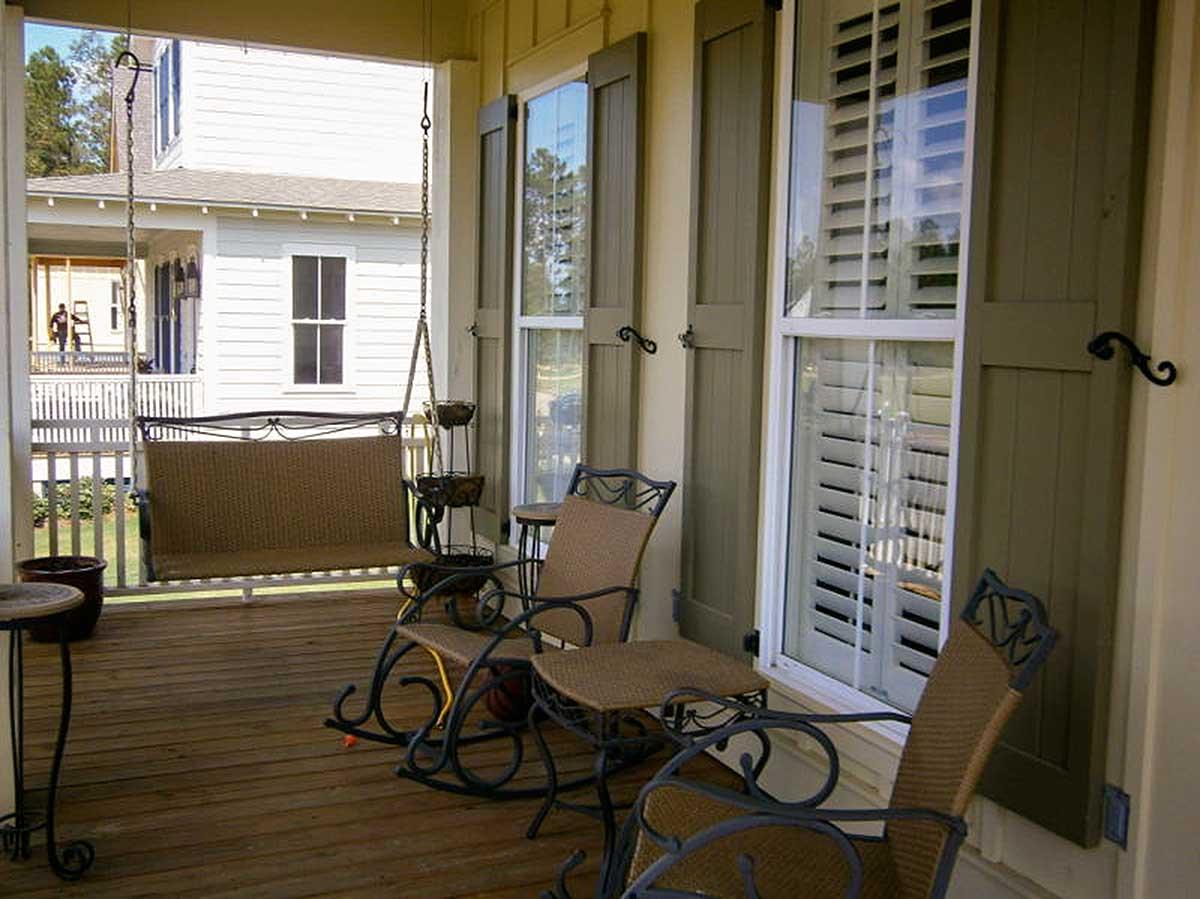

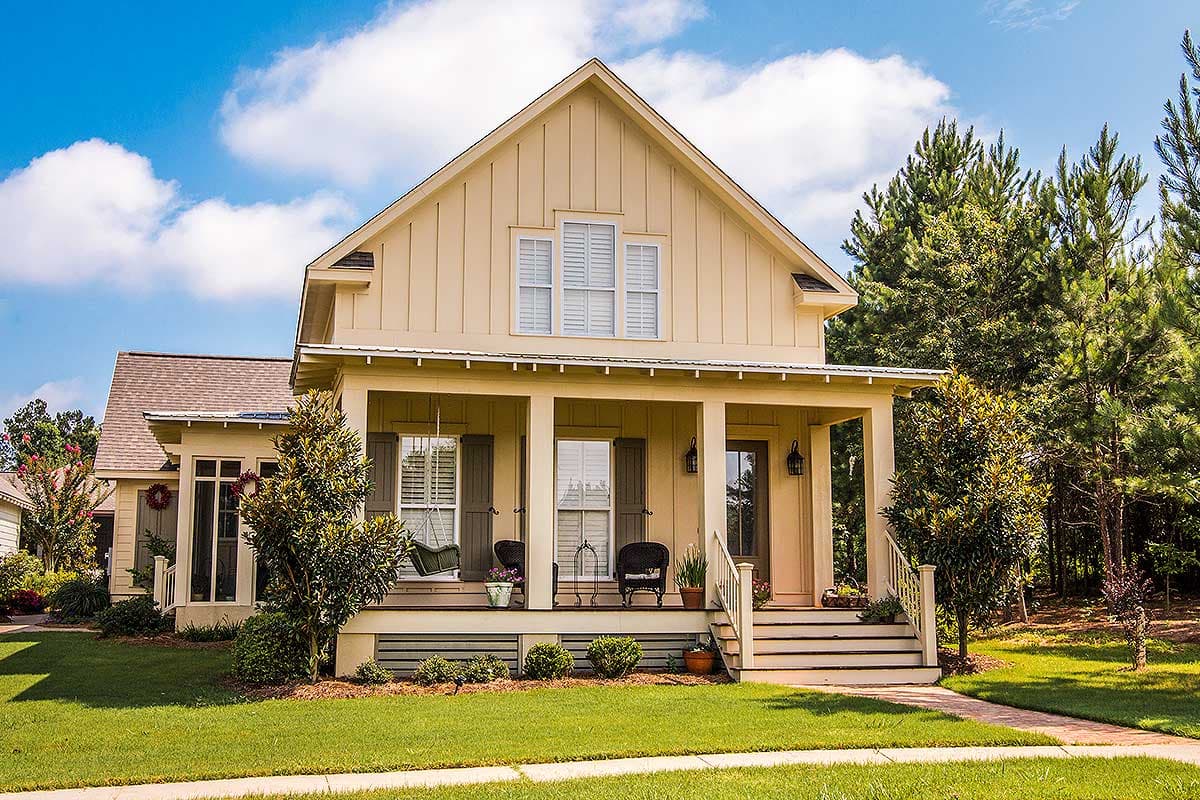

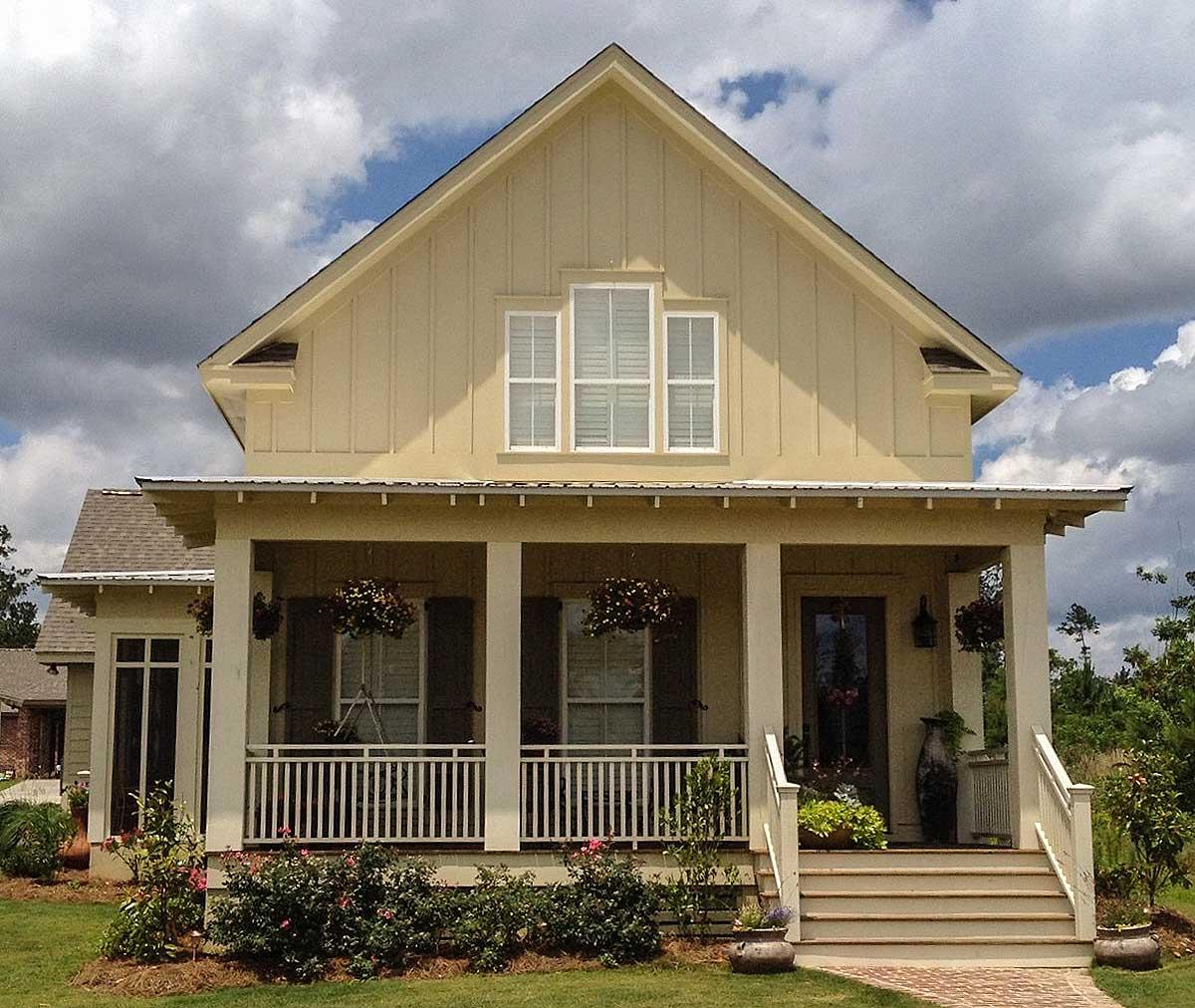

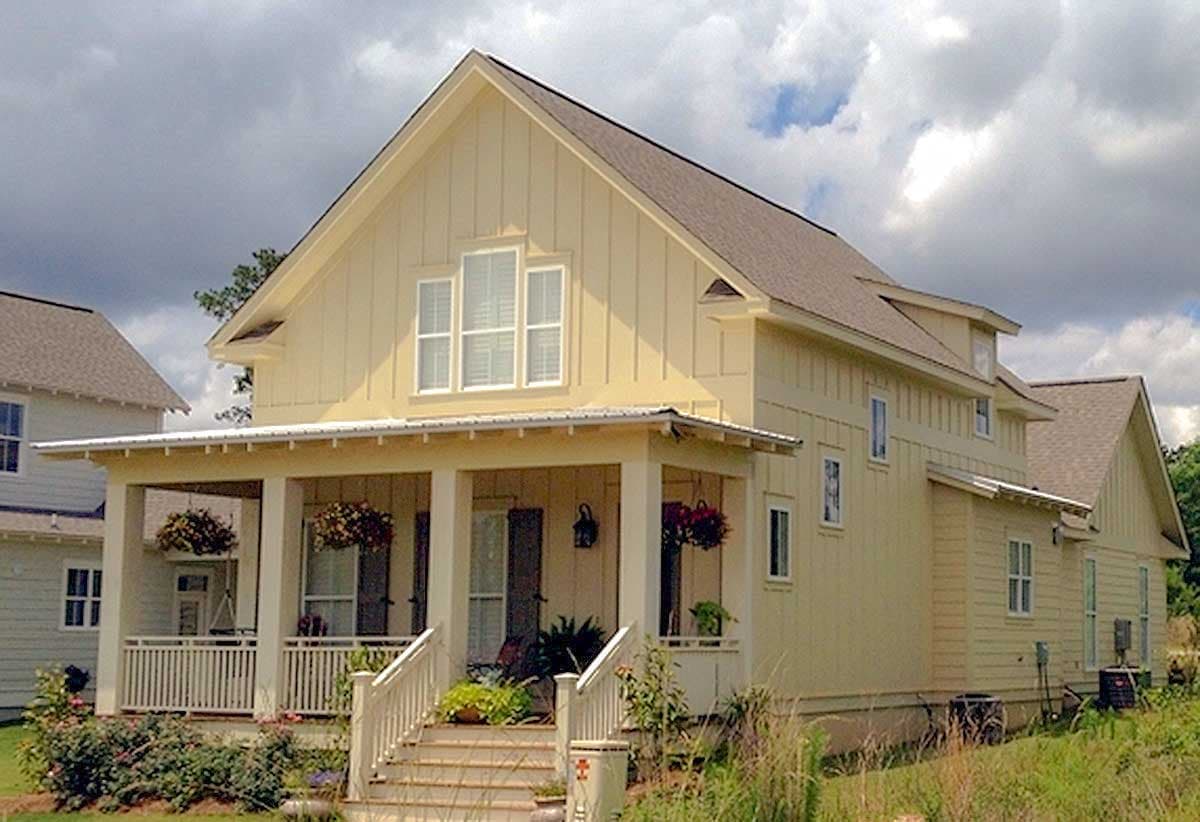

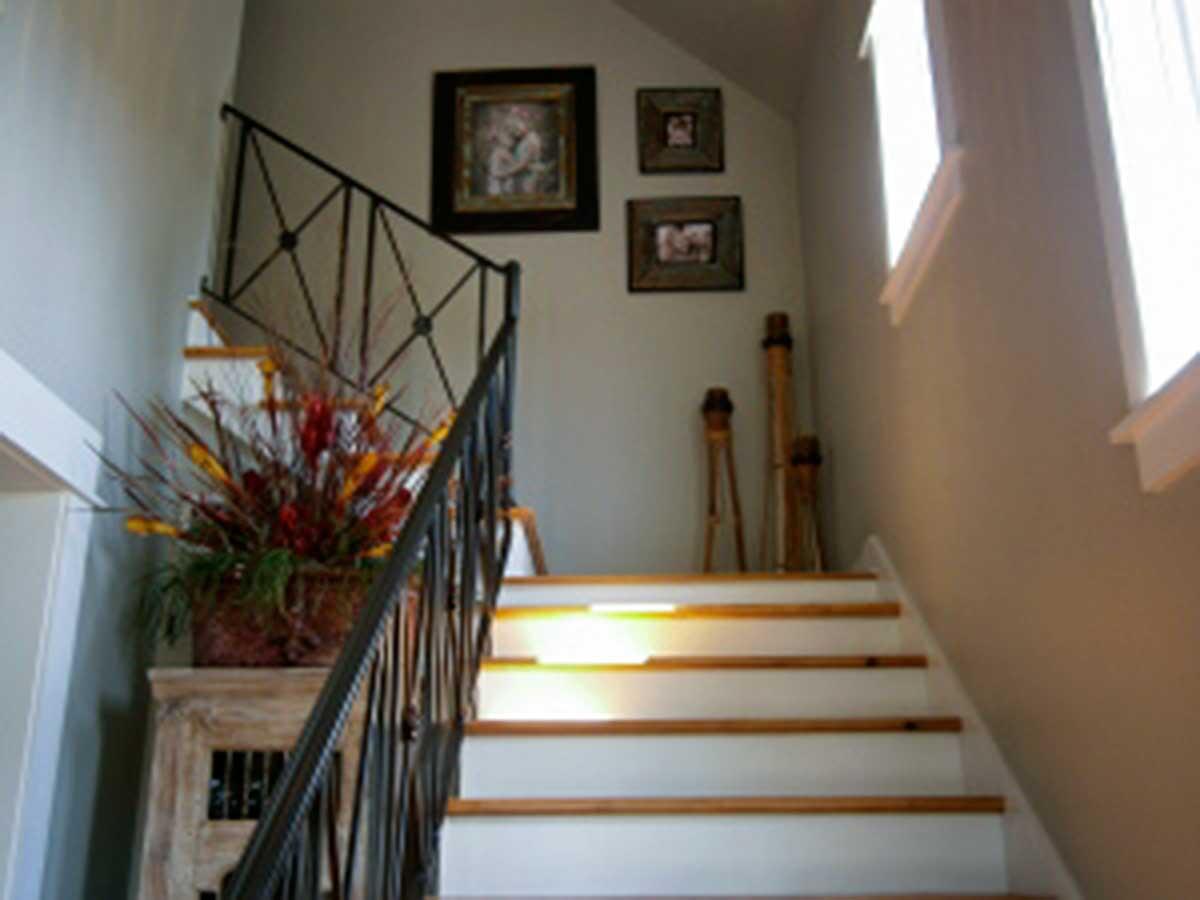

  • Four columns support the front porch with a 4:12 pitch. Step inside and you'll find a 2-story foyer and a furniture area where a bench or chair would fit in nicely.
  • The great room has a 2-sided gas fireplace, volume ceilings, and views into the kitchen and dining area.

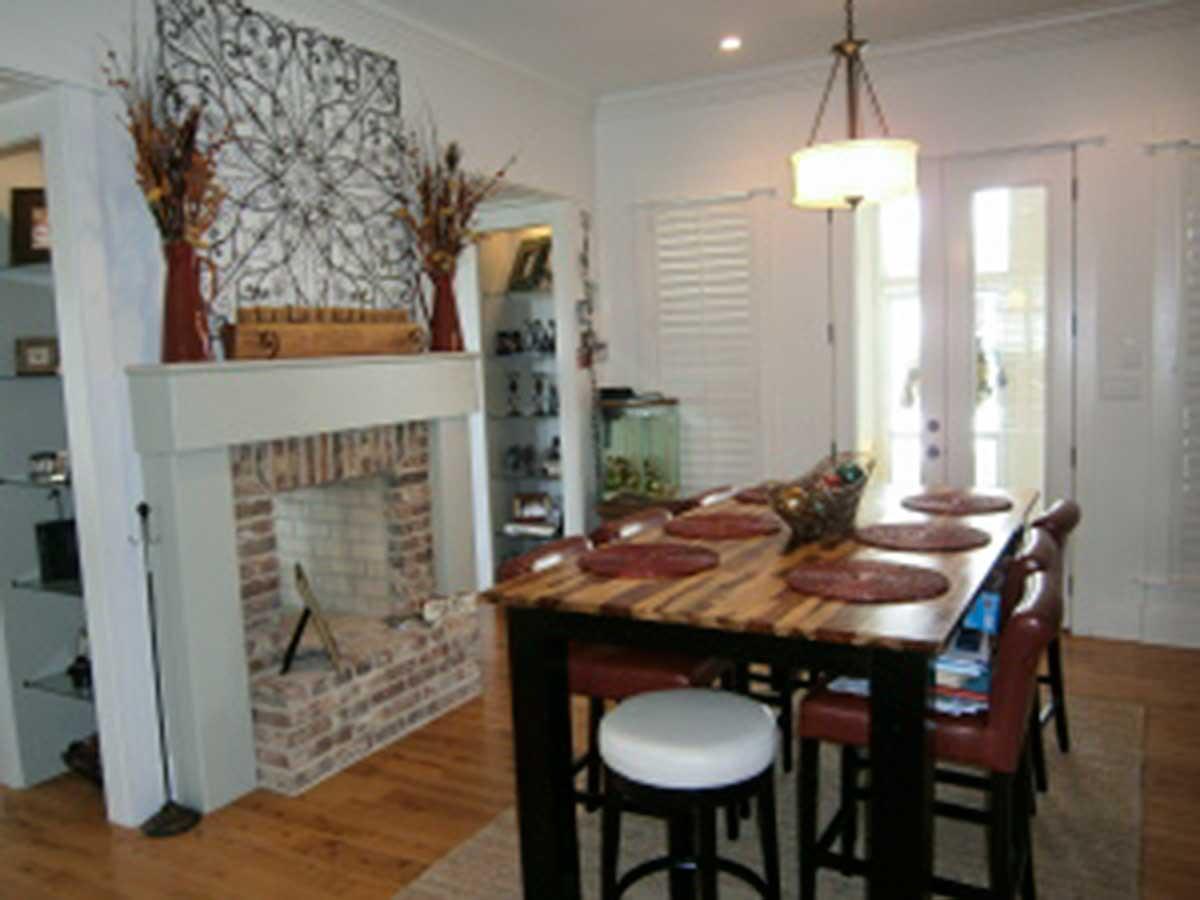

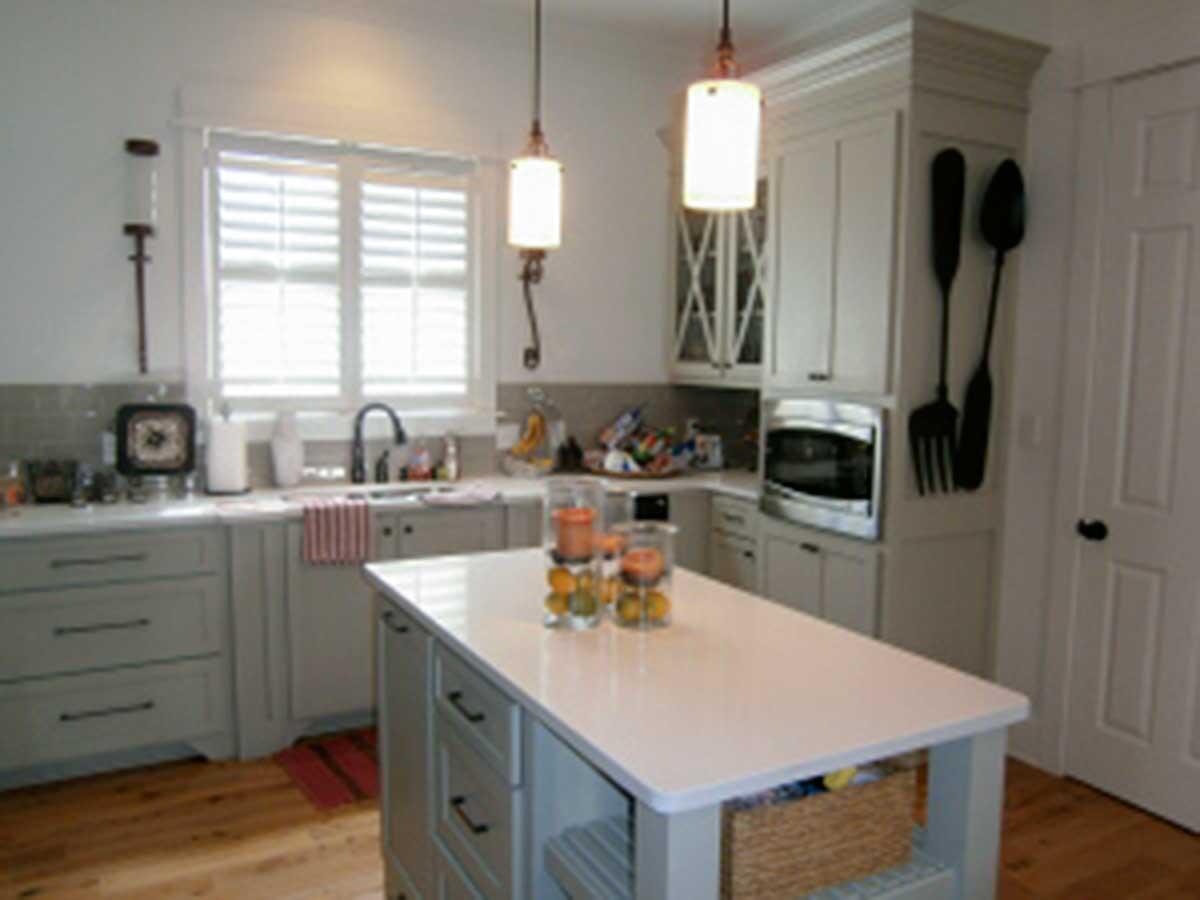

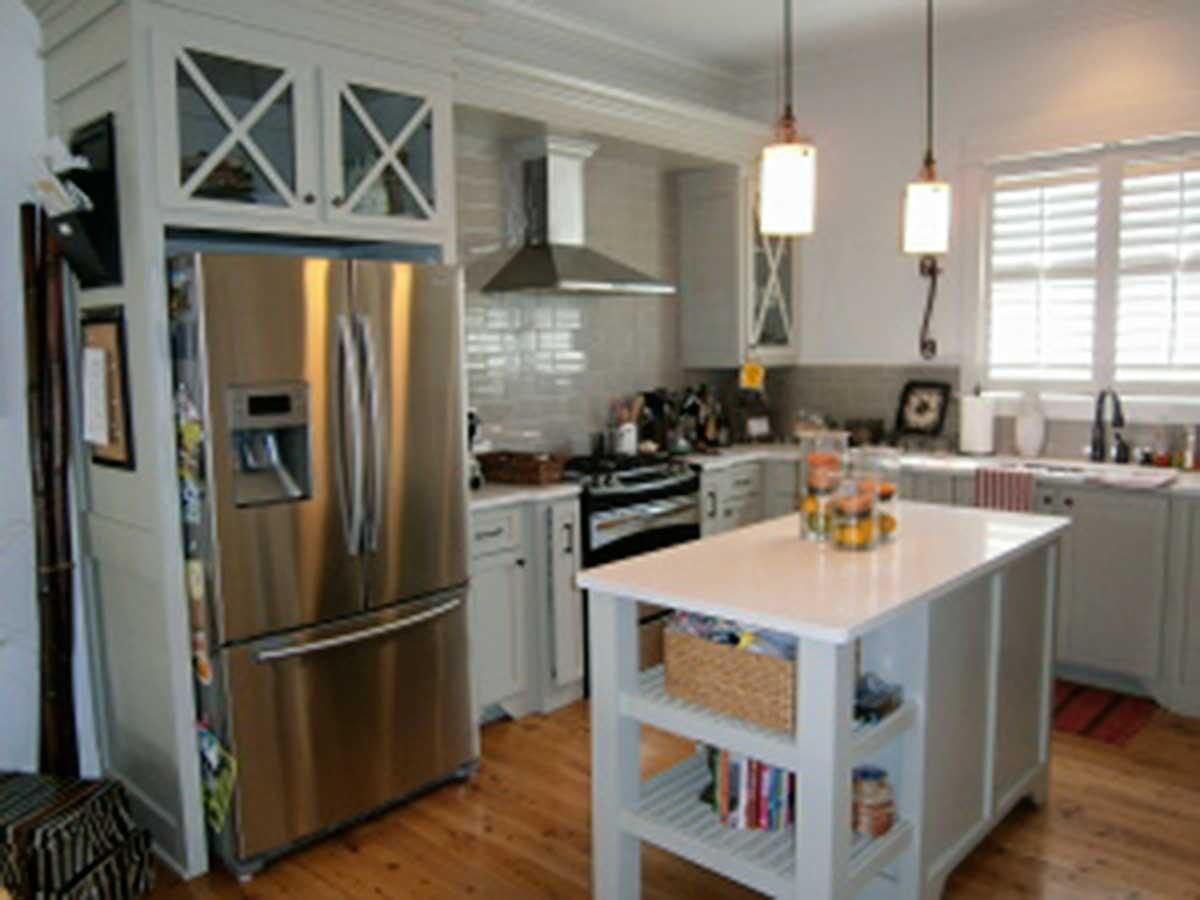

  • The kitchen is large and inviting with a built-in refrigerator, large range, lots of cabinets for storage, and a walk-in pantry. It is open to the dining room which has access to the screened porch.
  • The master suite features his and her sinks, enclosed toilet room, large jet tub, separate glass shower, and a large his and hers walk-in closets.
  • With all the amenities and many more, this plan is sure to be perfect
  • Upstairs, two bedrooms share a bath.
  • The roof is stick framed and has a 10:12 primary pitch and a 12:12 secondary pitch.
  • Related Plan: Downsize with one-story narrow lot house plan 11762HZ.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bedroom Narrow Lot House Plan

  • 2,185

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

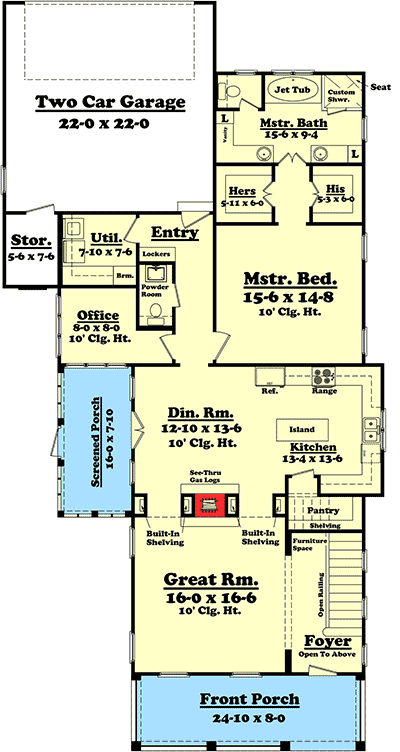

  • Main Level

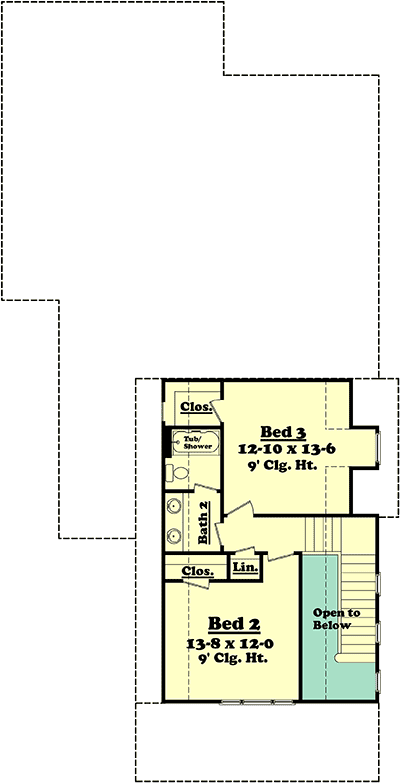

  • 2nd Floor

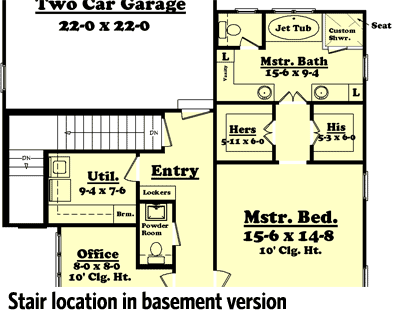

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 2,185 sq. ft.
  • 1st Floor: 1,623 sq. ft.
  • 2nd Floor: 562 sq. ft.

Dimensions

  • Width: 40' 6"
  • Depth: 79' 8"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 501 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
