3-Bed New American Contemporary House Plan with 2-Story Windows In Back

Heated S.F.
1,511
Beds
3
Baths
2
Stories
2

Floor Plan

Plan 80970PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80970PM

M-F 9am-5pm EST |

1-203-761-8500

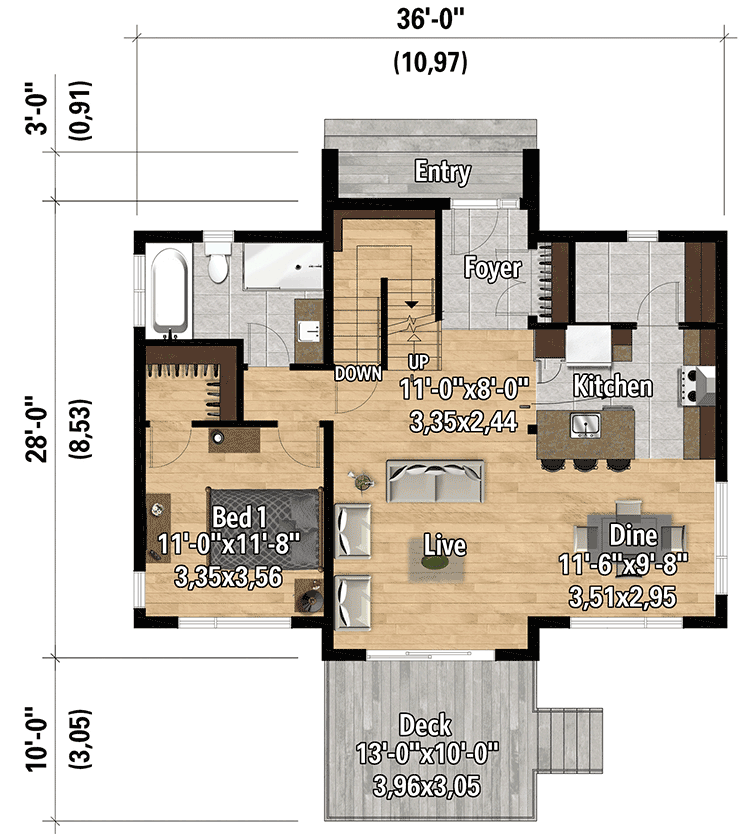

Main Level

Plan 80970PM: 3-Bed New American Contemporary House Plan with 2-Story Windows In Back - Floor Plan - Main Level - Contemporary, New American, Northwest

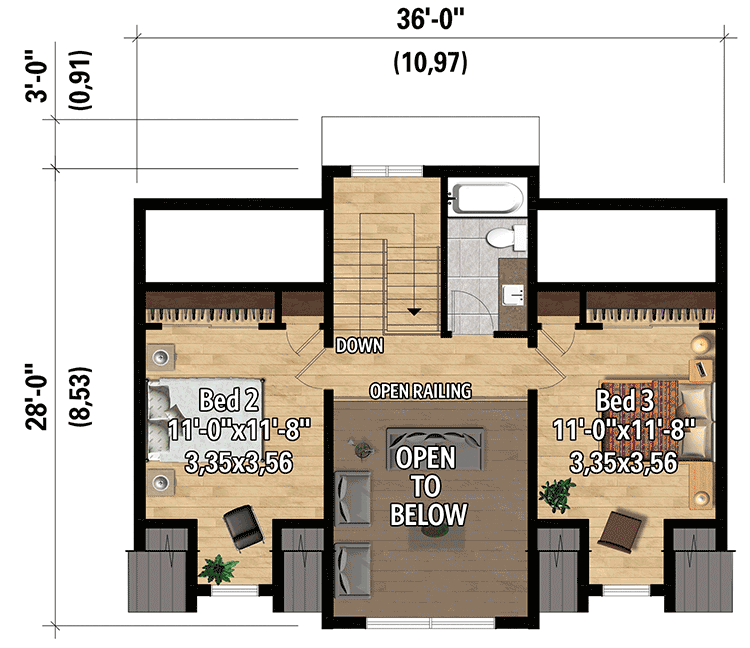

2nd Floor

Plan 80970PM: 3-Bed New American Contemporary House Plan with 2-Story Windows In Back - Floor Plan - 2nd Floor - Contemporary, New American, Northwest

Plan Details

  • This contemporary 2-story house plan is designed to take advantage of property with stellar views to the back. That side of the home is the focus, and the 2-story windows in the living room take full advantage of your special views.
  • There are 3 bedrooms, one on the main floor with a walk-in closet and views to the back and 2 upstairs bedrooms that also have windows looking to the back. An open rail overlook gives you views below and to the back as well.
  • An open floor plan on the main floor is great for entertaining. The kitchen has casual seating at the island and a large walk-in pantry.
  • NOTE: This plan requires extra time for delivery. Contact us for a timeline before ordering if time is an issue.

What's Included

Please note this plan is designed to the National Building Code of Canada.

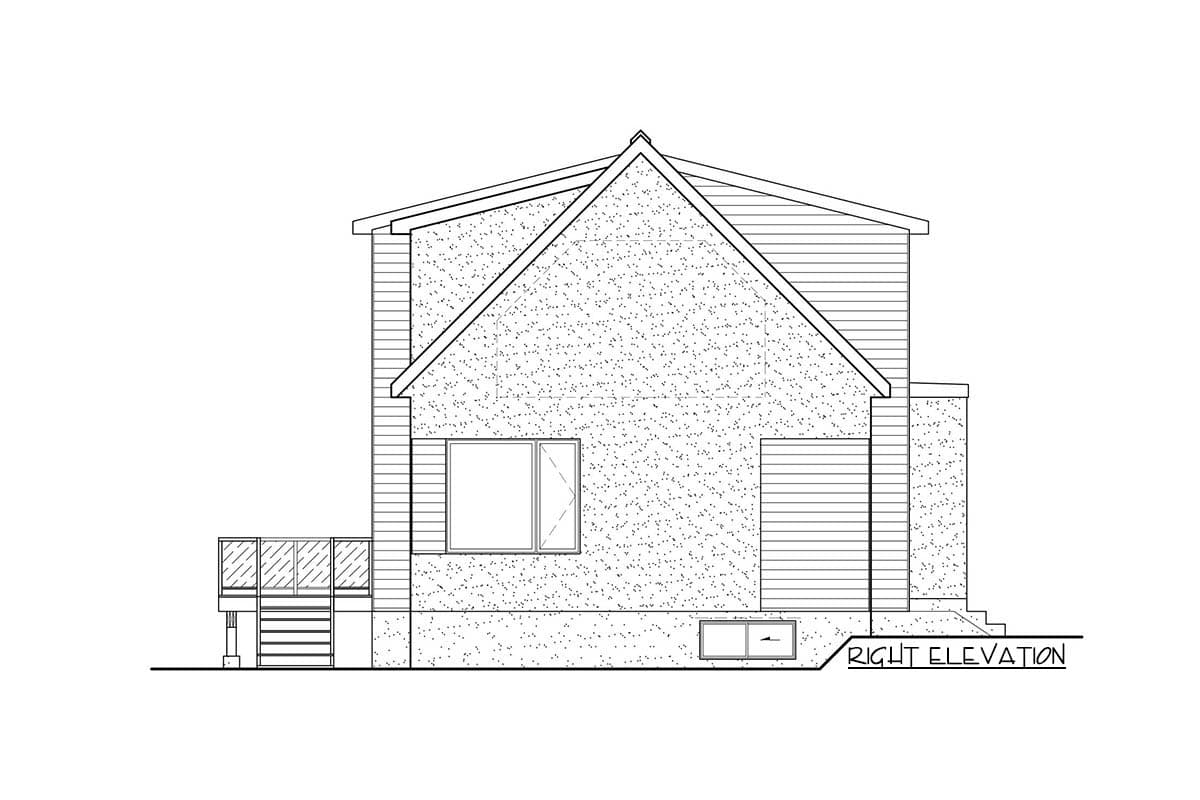

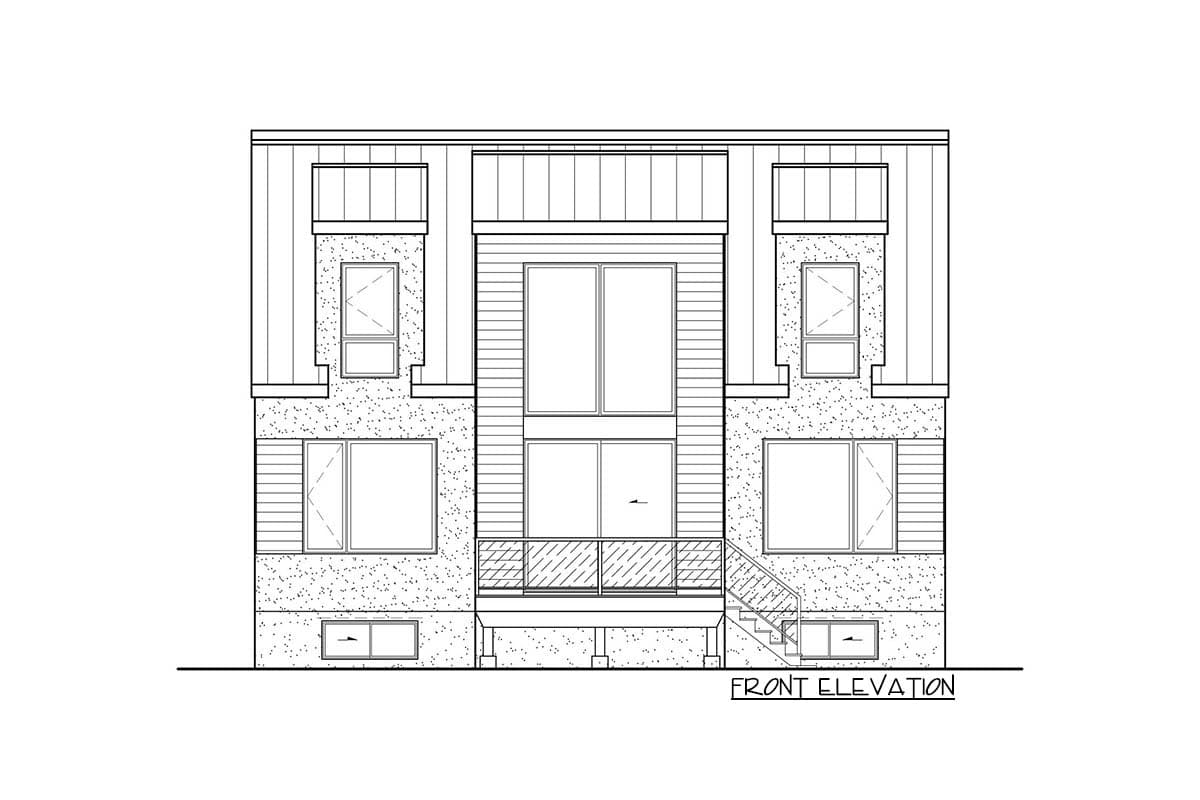

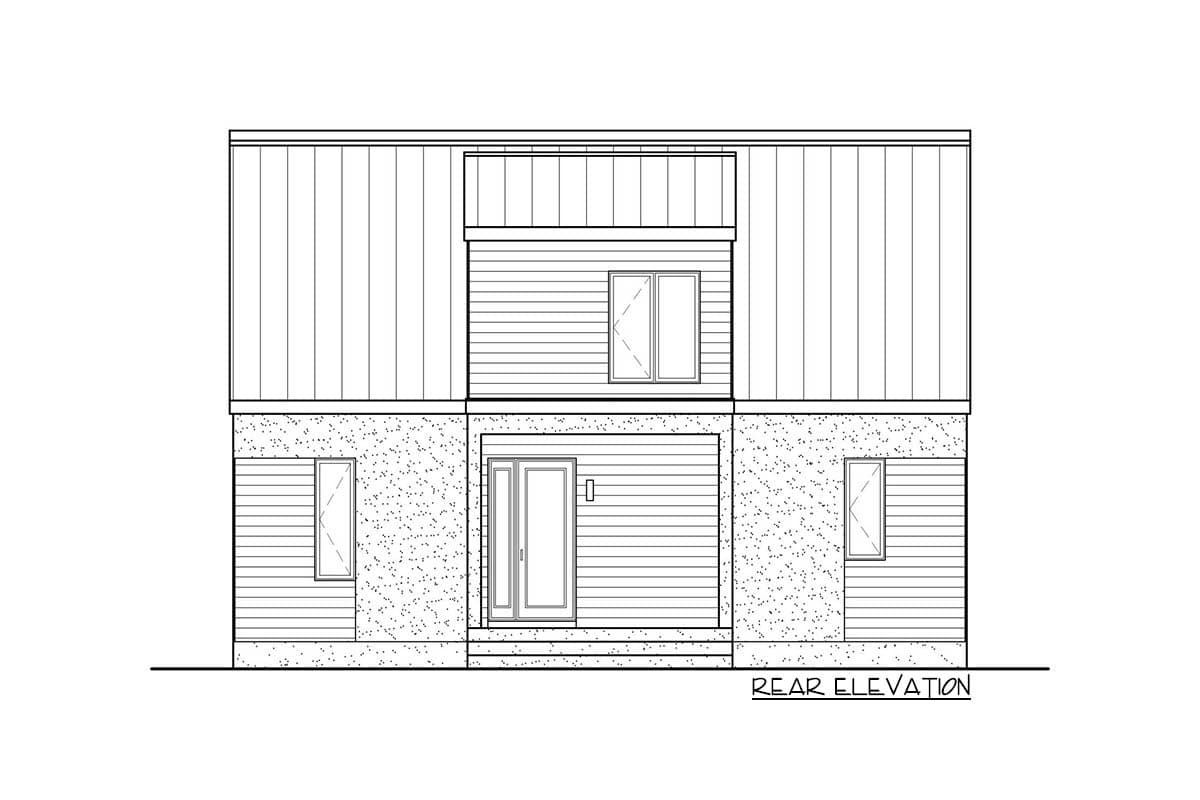

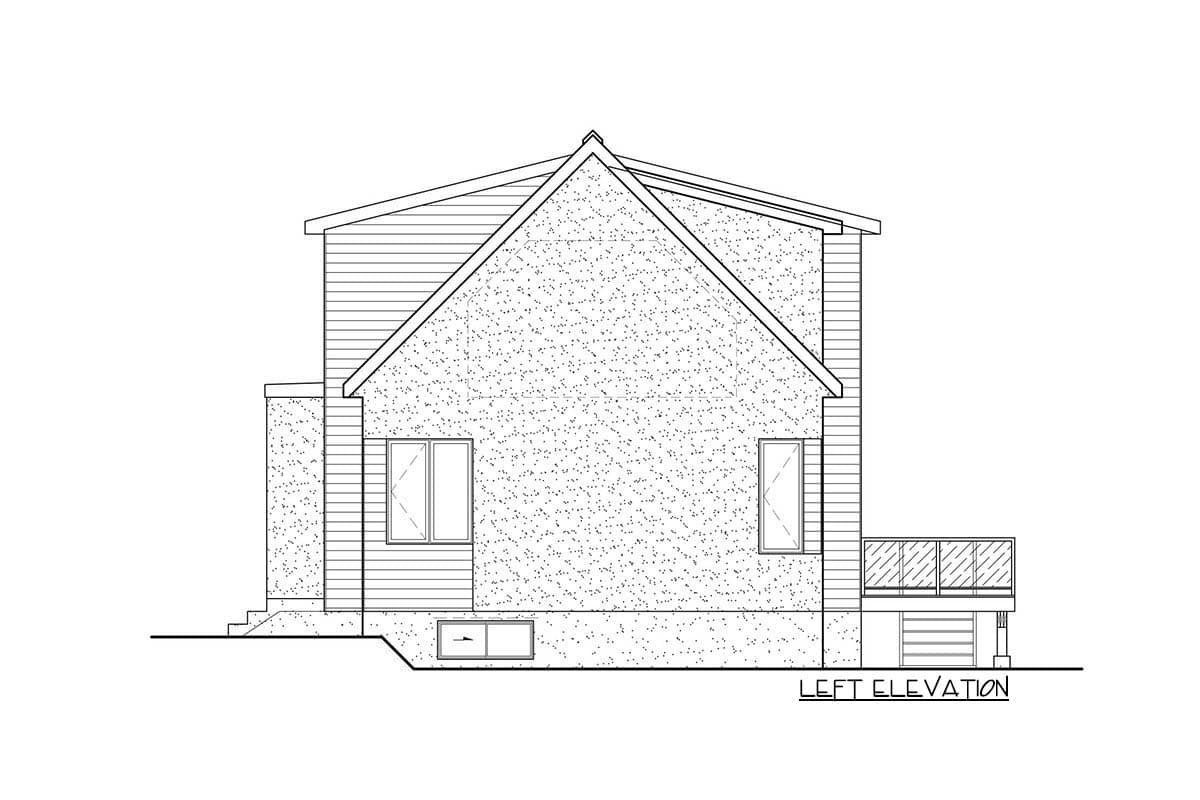

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,511 sq. ft.

1st Floor

916 sq. ft.

2nd Floor

595 sq. ft.

Deck

130 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

28' 0"

Max Ridge Height

28' 0"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

New American

Northwest

Special Features

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,511 sq. ft.

1st Floor

916 sq. ft.

2nd Floor

595 sq. ft.

Deck

130 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

28' 0"

Max Ridge Height

28' 0"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

New American

Northwest

Special Features

Master Suite - 1st Floor

Two Story Great Room
