3-Bed New American Home Plan with Optional Lower Level

Plan 95066RW

  • 2,442

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

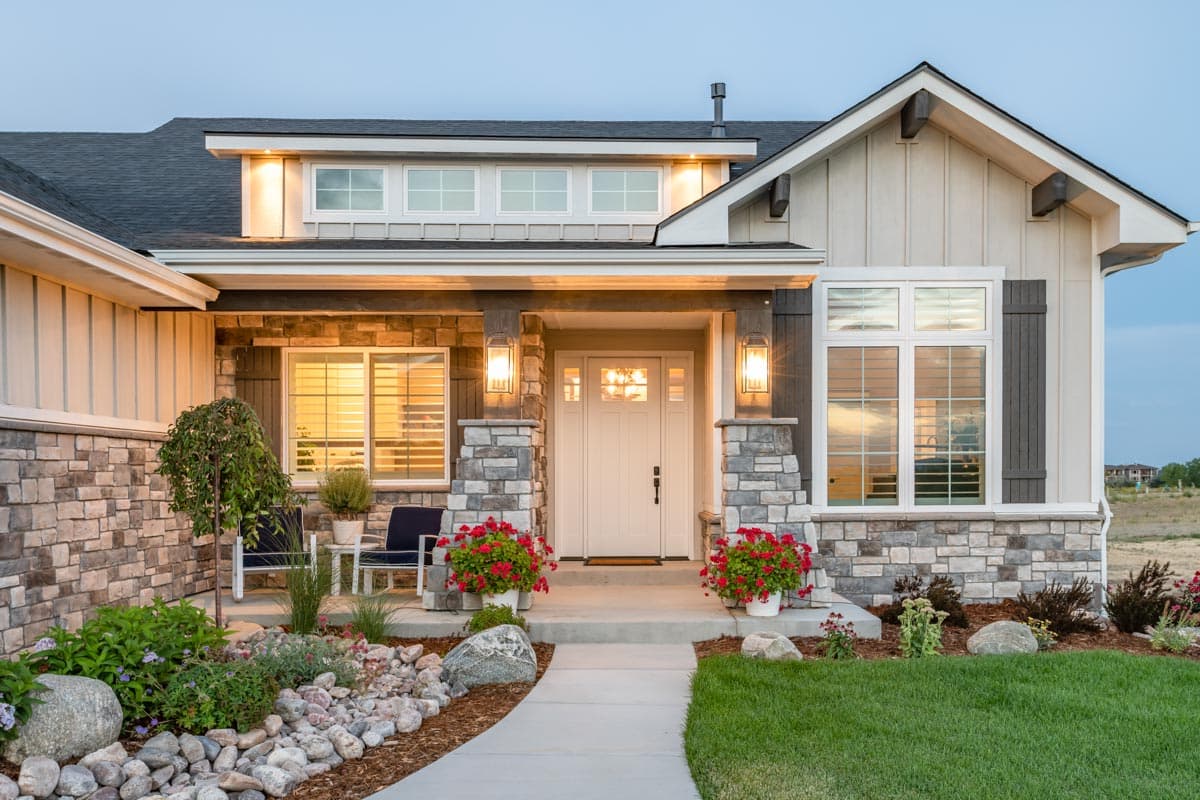

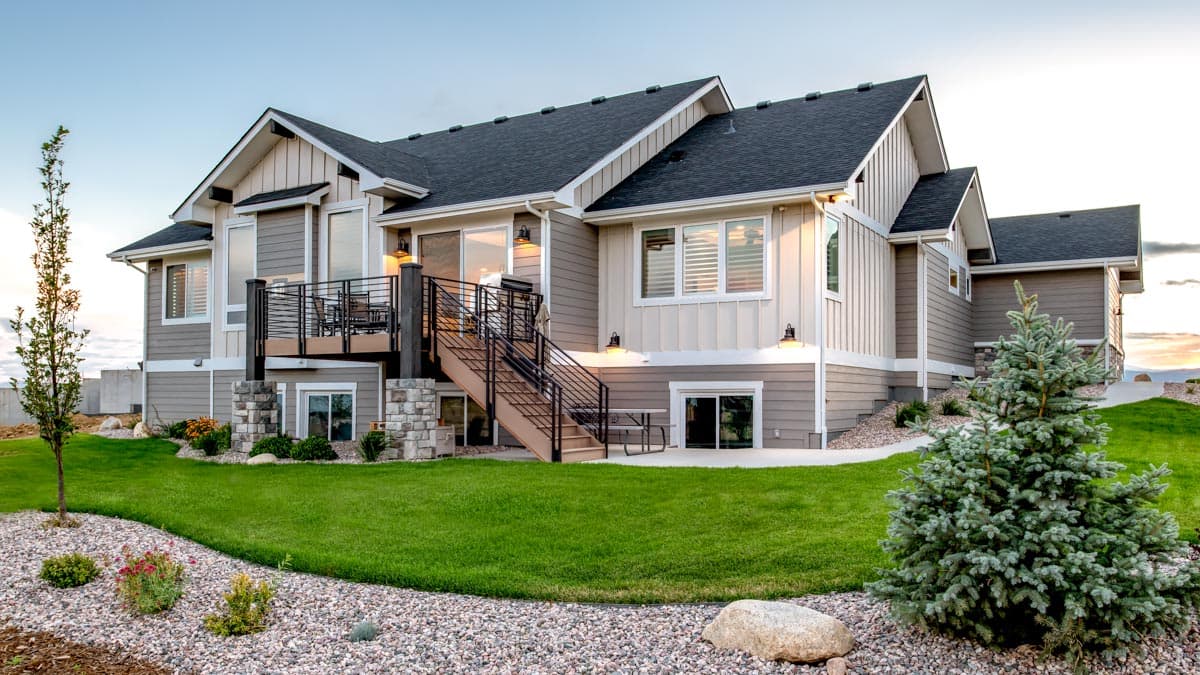

  • Forward-facing, gable roofs include deep overhangs supported by timber beams on this 3-bedroom, New American house plan. A single shed dormer completes the design.

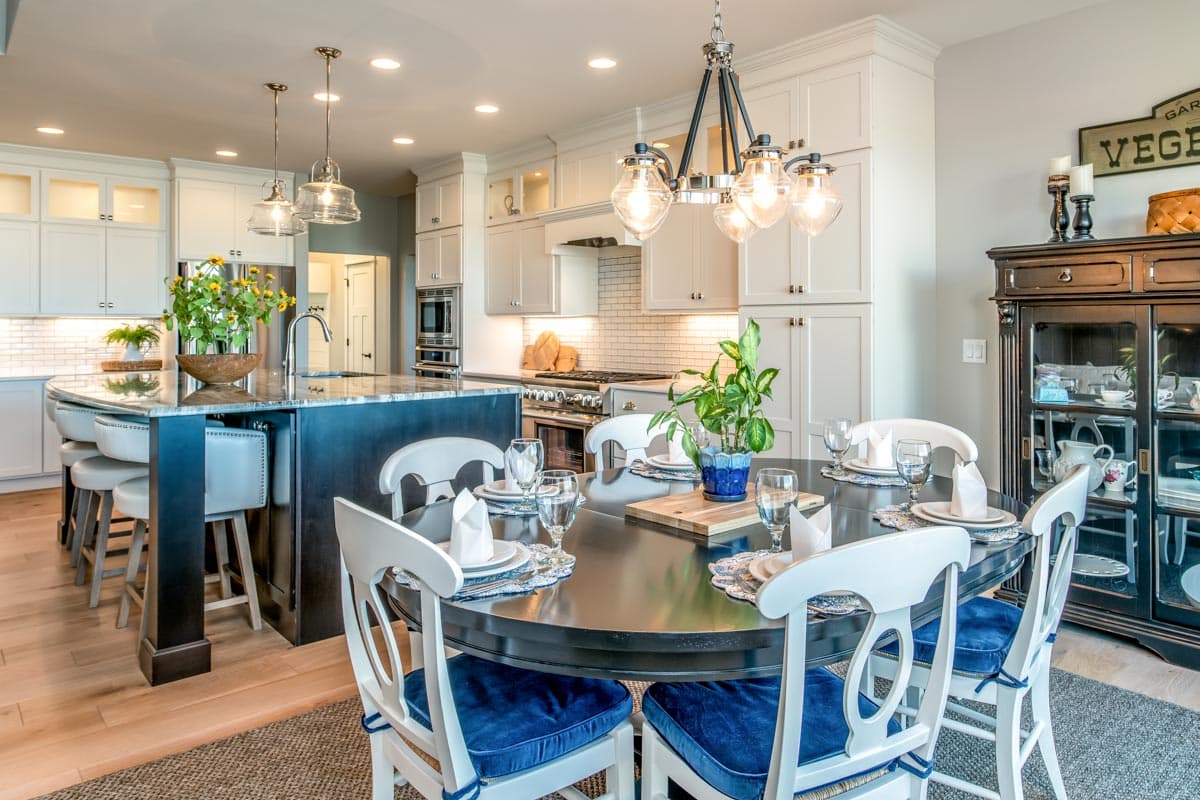

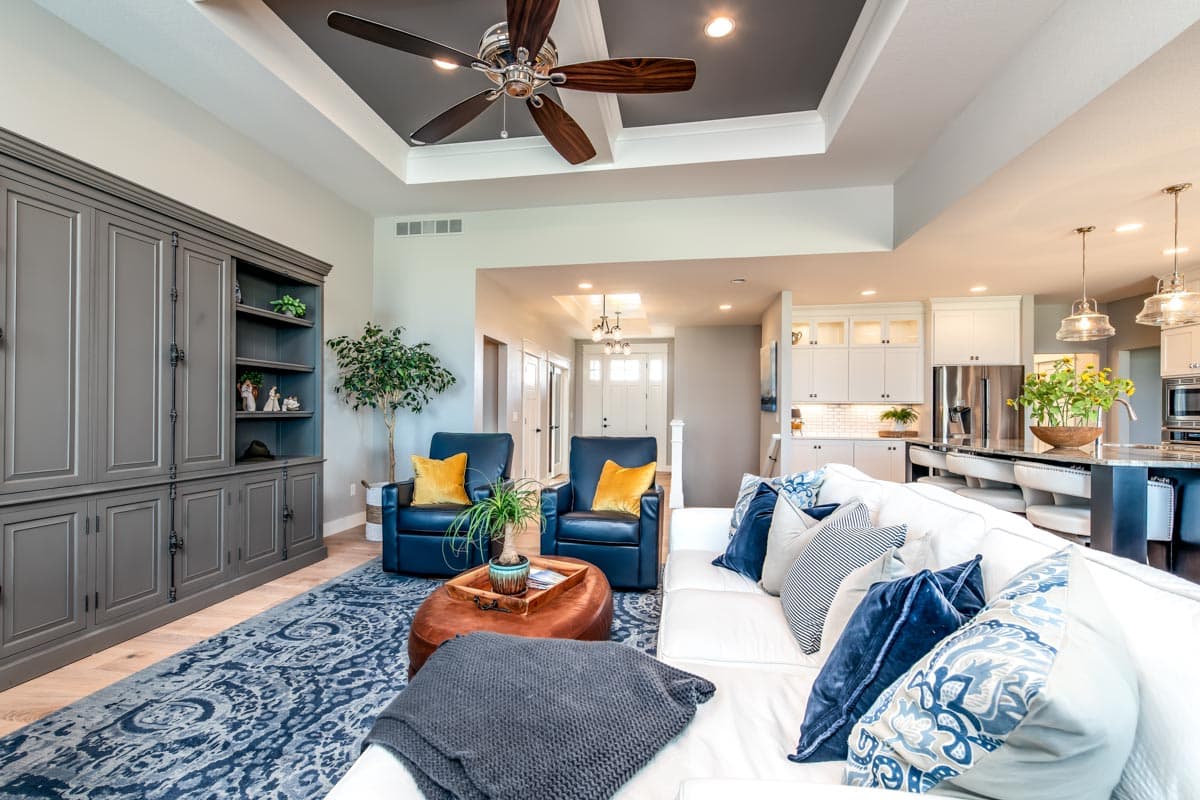

  • An intricate, coffered ceiling rests above the great room with a centered fireplace situated between two windows. The kitchen and adjoining dining room are open to the great room, making conversation flow easily within the space.

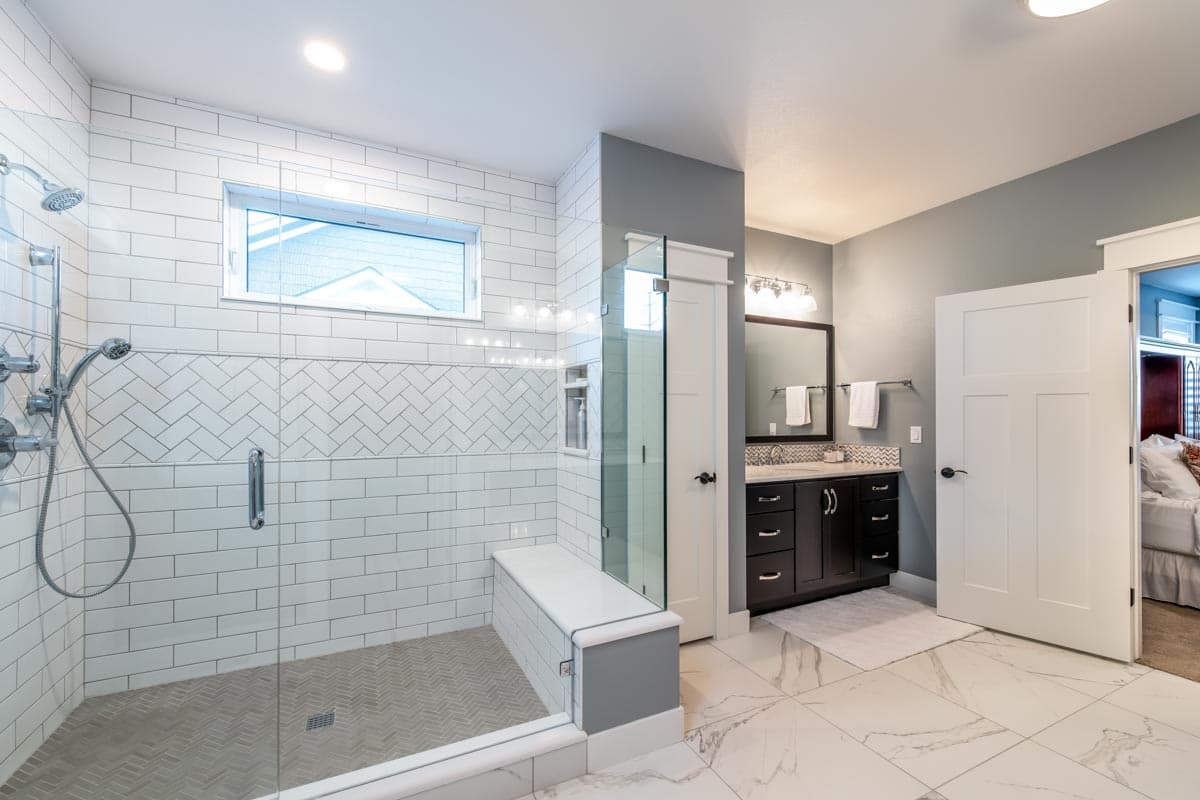

  • The master bedroom sits to the left of the home, and boasts a tray ceiling, light and airy walk-in closet, and a spacious ensuite with a double-headed shower.
  • Two secondary rooms share a Jack-and-Jill bath on the right side of the home, and could serve as a bedroom, guest suite, or office space.
  • Should you need additional living space, the optional lower level includes a large rec room with a wet bar, exercise room, walk-out patio, and two bedrooms with a Jack-and-Jill bath.

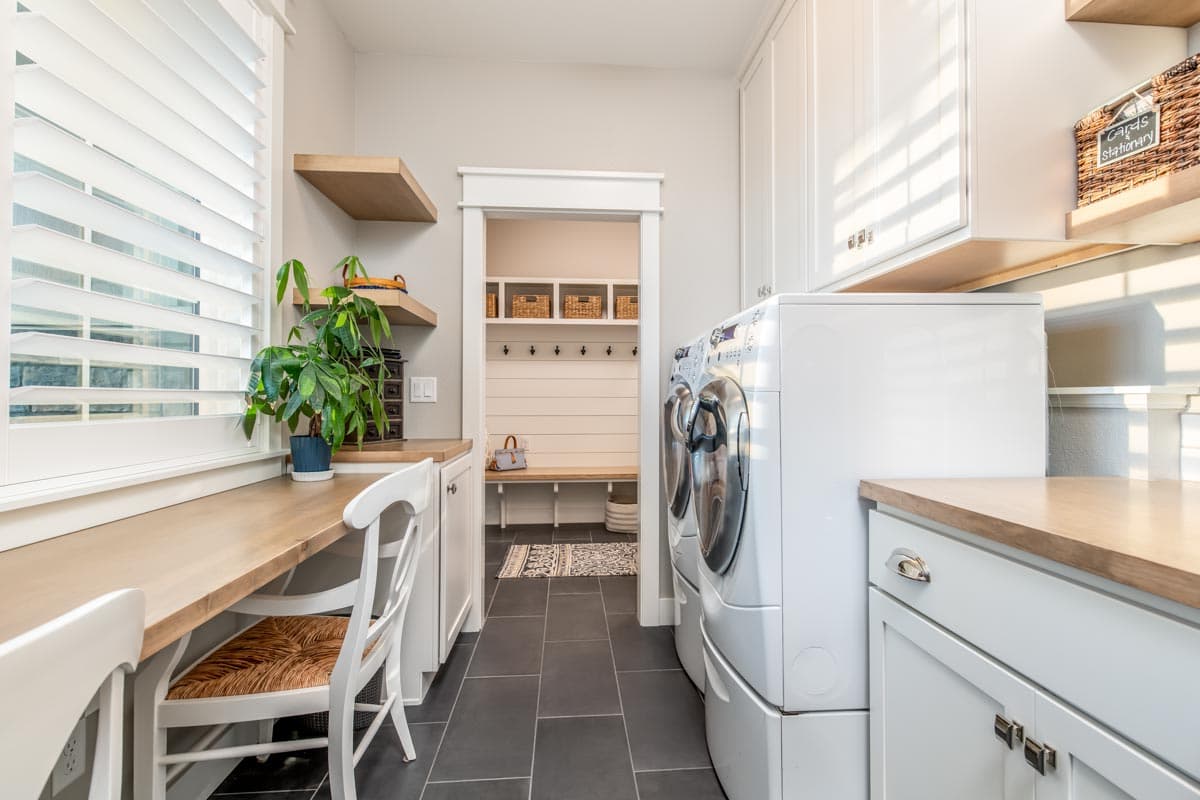

  • Entering from the 3-car garage, a mudroom with built-ins greets you and is bordered by the laundry room and walk-in pantry.

  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

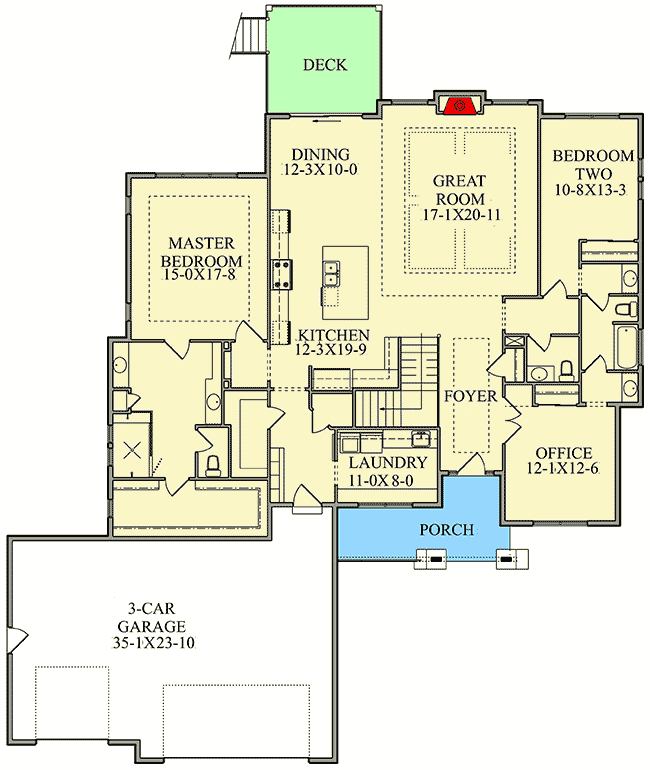

3-Bed New American Home Plan with Optional Lower Level - 95066RW floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

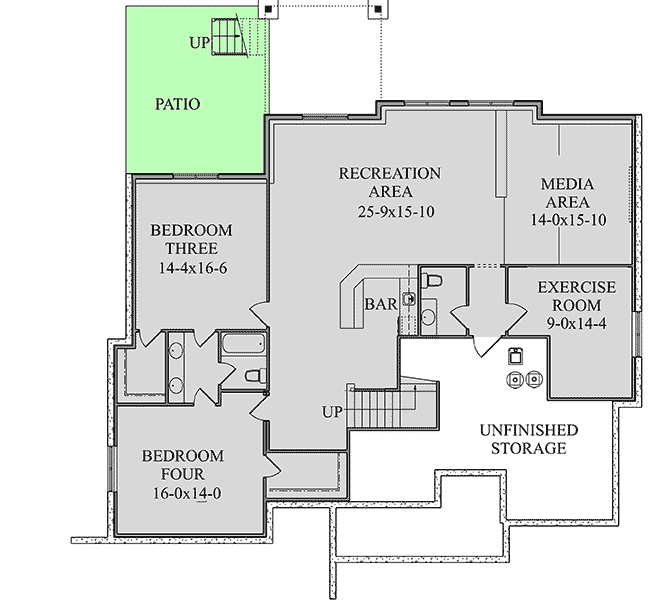

3-Bed New American Home Plan with Optional Lower Level - 95066RW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,442 sq. ft.
  • 1st Floor: 2,442 sq. ft.
  • Porch, Combined: 570 sq. ft.
  • Optional Lower Level: 1,977 sq. ft.
  • Basement Unfinished: 465 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 69' 6"
  • Depth: 83' 0"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12

Architectural Style

Special features

Plan Collections

3-Bed New American Home Plan with Optional Lower Level

  • 2,442

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • CAD - Single-Build $2,950
  • View all purchase option online

About This Plan

  • Forward-facing, gable roofs include deep overhangs supported by timber beams on this 3-bedroom, New American house plan. A single shed dormer completes the design.
  • An intricate, coffered ceiling rests above the great room with a centered fireplace situated between two windows. The kitchen and adjoining dining room are open to the great room, making conversation flow easily within the space.
  • The master bedroom sits to the left of the home, and boasts a tray ceiling, light and airy walk-in closet, and a spacious ensuite with a double-headed shower.
  • Two secondary rooms share a Jack-and-Jill bath on the right side of the home, and could serve as a bedroom, guest suite, or office space.
  • Should you need additional living space, the optional lower level includes a large rec room with a wet bar, exercise room, walk-out patio, and two bedrooms with a Jack-and-Jill bath.
  • Entering from the 3-car garage, a mudroom with built-ins greets you and is bordered by the laundry room and walk-in pantry.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,442 sq. ft.
  • 1st Floor: 2,442 sq. ft.
  • Porch, Combined: 570 sq. ft.
  • Optional Lower Level: 1,977 sq. ft.
  • Basement Unfinished: 465 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 69' 6"
  • Depth: 83' 0"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
Plan 95066RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95066RW
|
