Plan 95198RW 3-Bed New American House Plan with 4-Car Garage and Lower Level Expansion

2,876 3-6 3.5 - 5.5 2 4
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed New American House Plan with 4-Car Garage and Lower Level Expansion

Plan 95198RW

  • 2,876

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

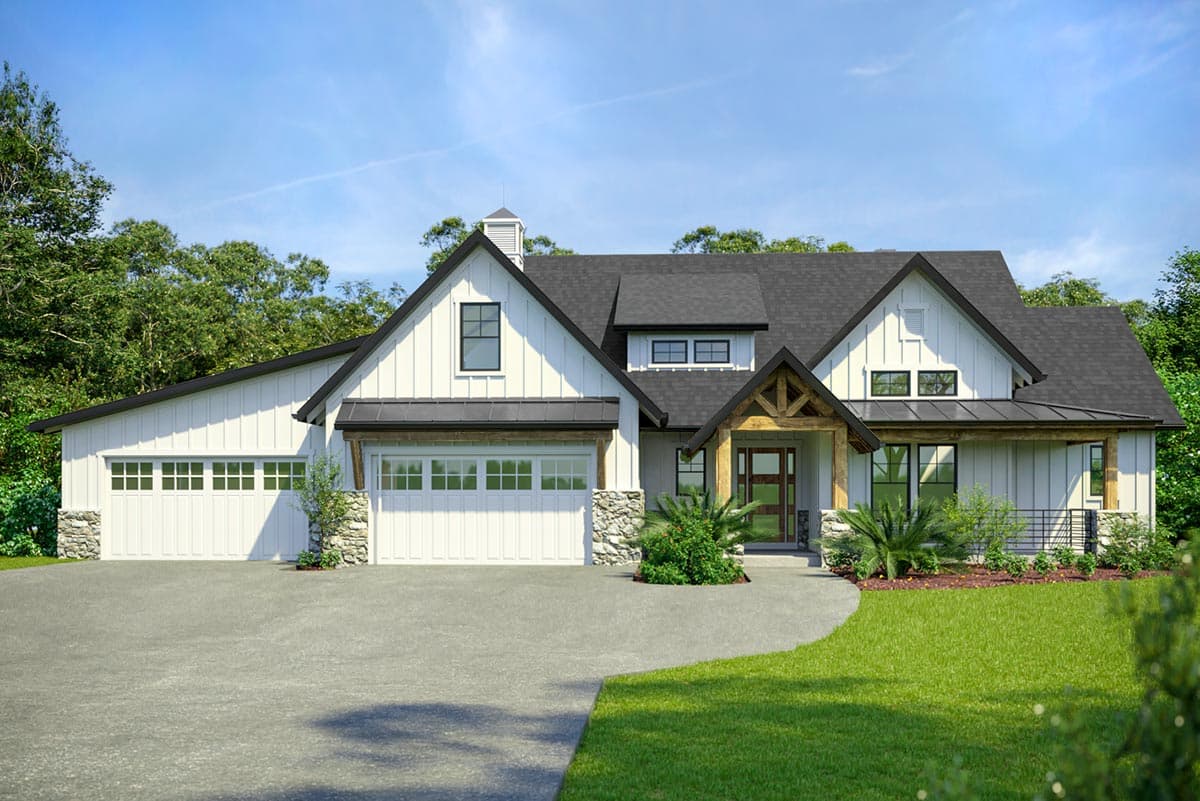

  • This New American house plan gives you 2,876 square feet of heated living space with expansion available in the optional finished basement. An attractive mix of board and batten, stone and timbers gives this home plan great curb appeal.

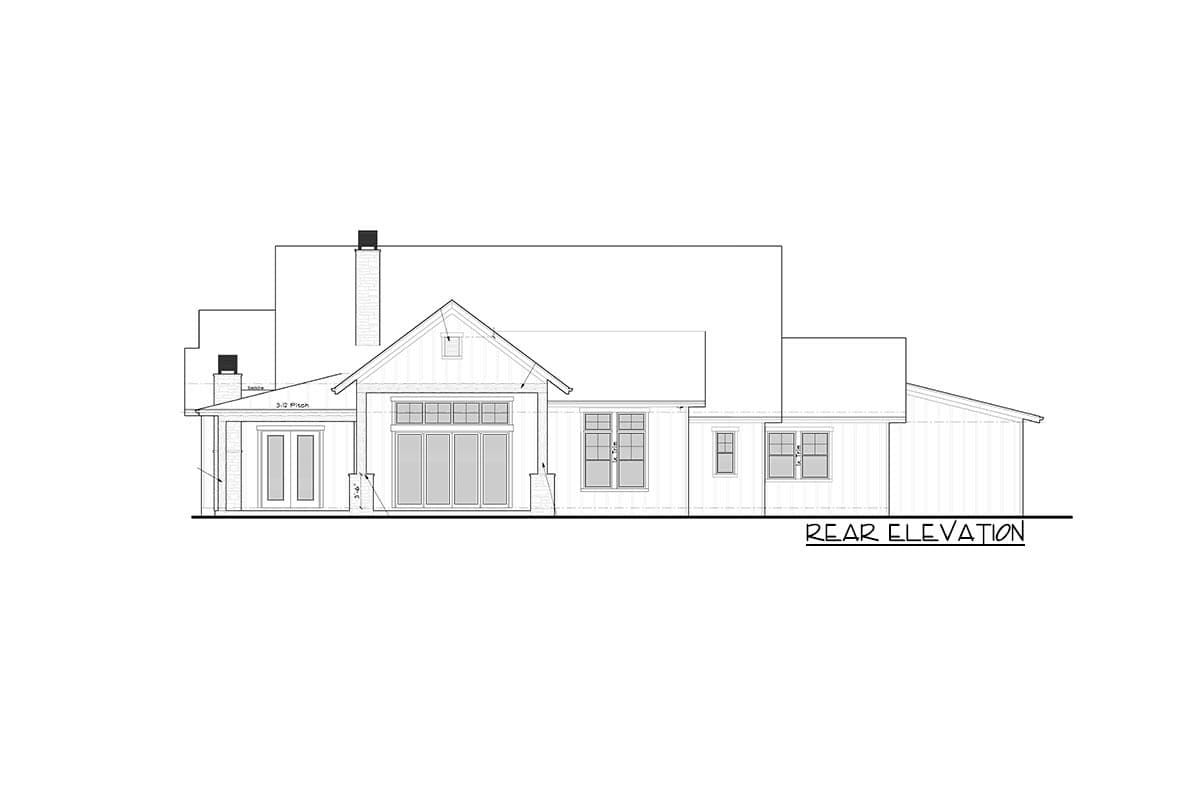

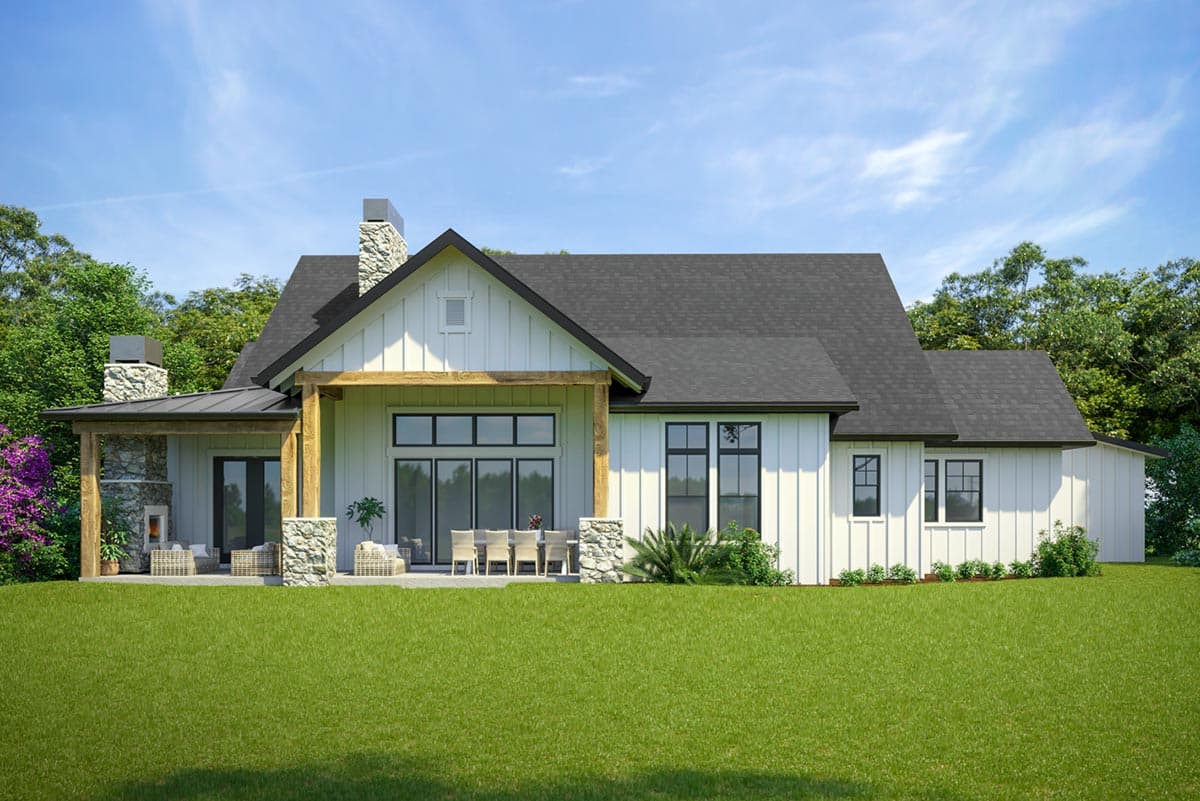

  • Rear decks are accessible from the great room and master bedroom that give you great fresh air spaces to enjoy in addition to the front porch.
  • The great room is open to the kitchen and dining area where elegant ceiling treatments help to define the rooms. The kitchen hosts a large 6' by 7' island and built-in cabinetry in the dining room offers the perfect serving bar.
  • A den located off the foyer makes a great spot for a home office or a quiet space to get reading done. The master suite completes the right side of the home. Bed 2 is located across the home and has its own private bathroom. Upstairs, Bed 3 has its own bath as well as a walk-in closet.
  • Future expansion is available in the optional lower level that boost the bedroom count from 3 to 6.
  • The 4-car garage has two 2-car bays, each with a 16' by 8' overhead door.
  • Related Plan: Get a side-entry garage with house plan 95159RW.

The following details are included with this house plan:
  • Cover Page

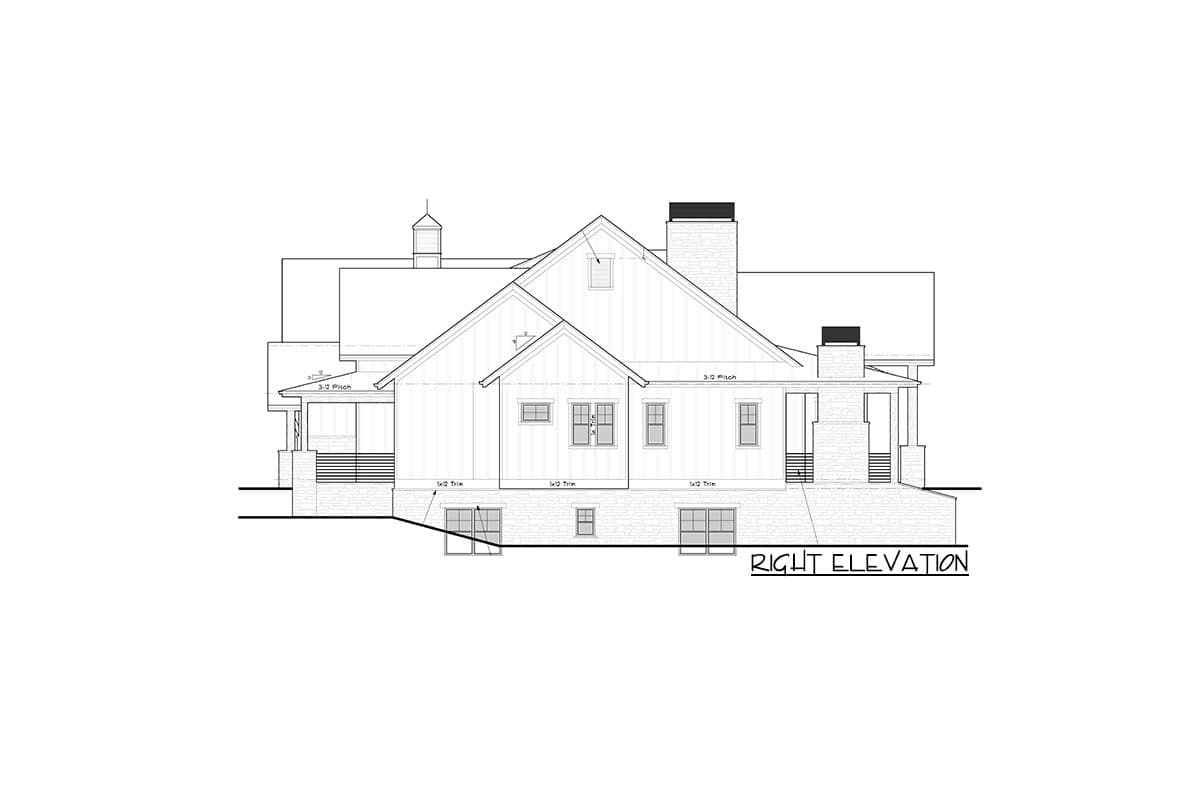

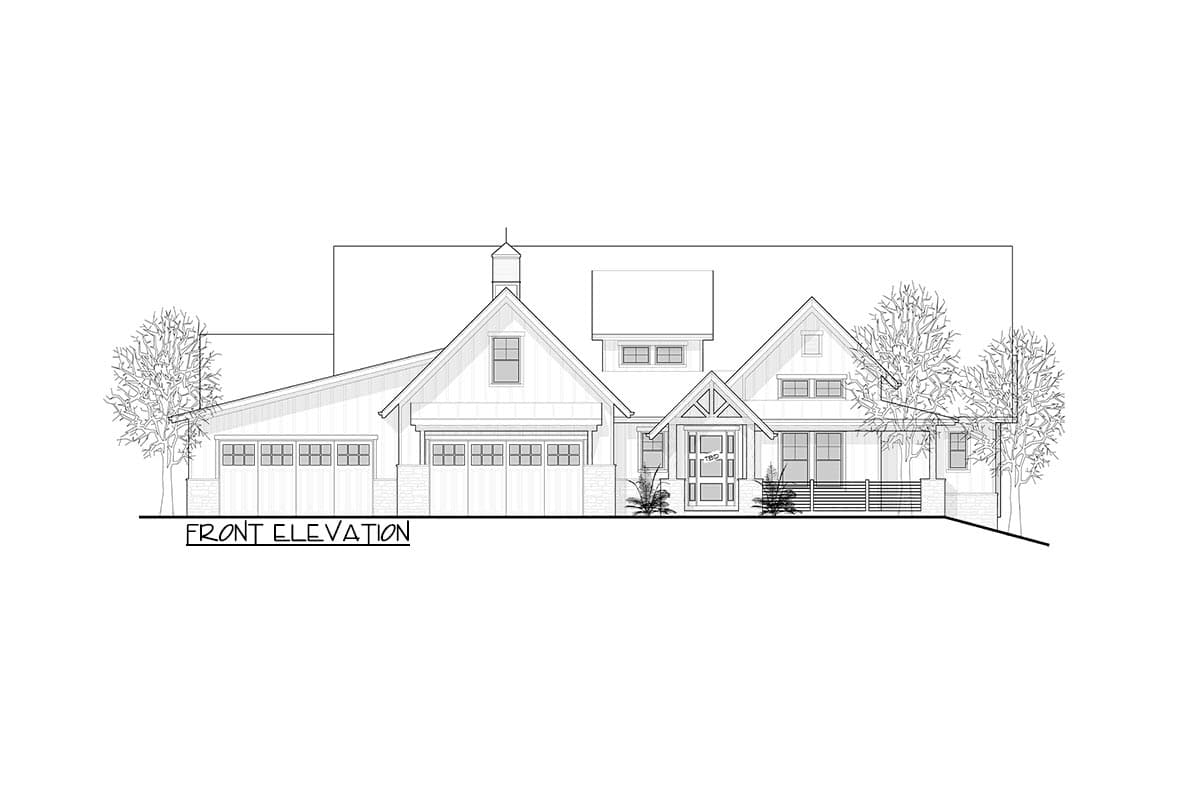

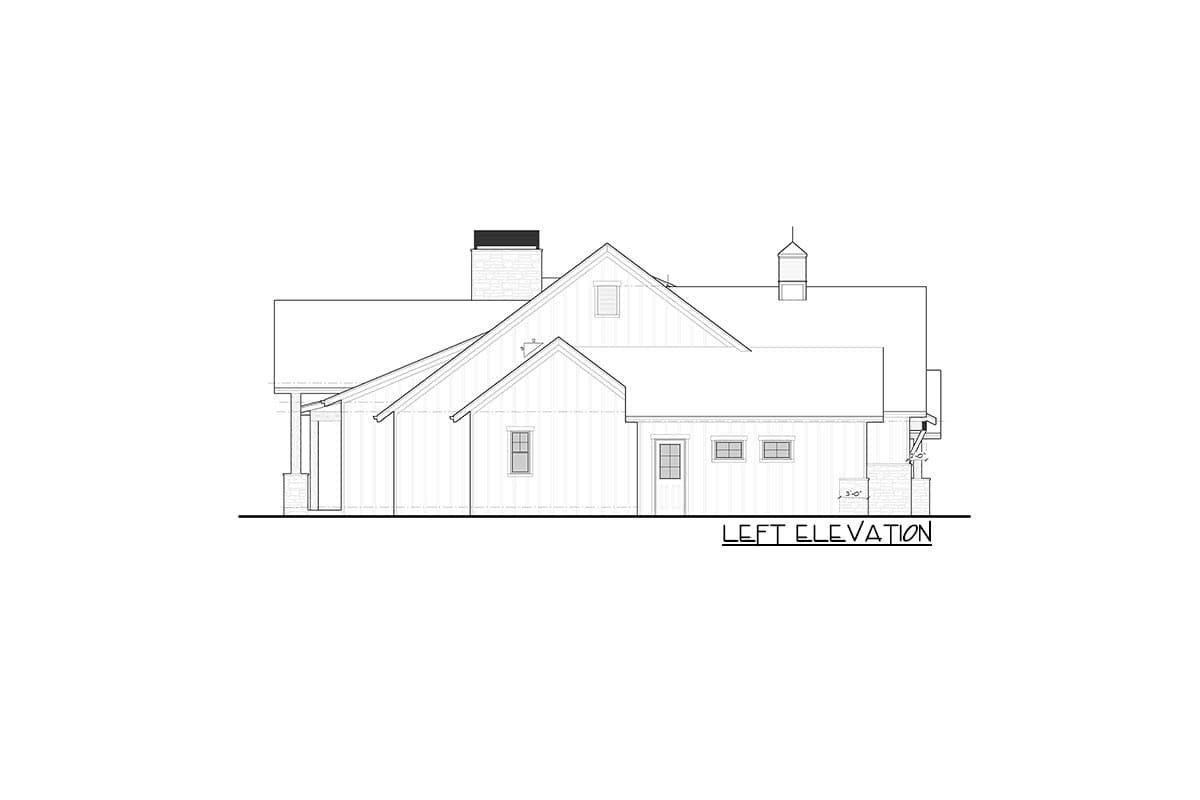

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

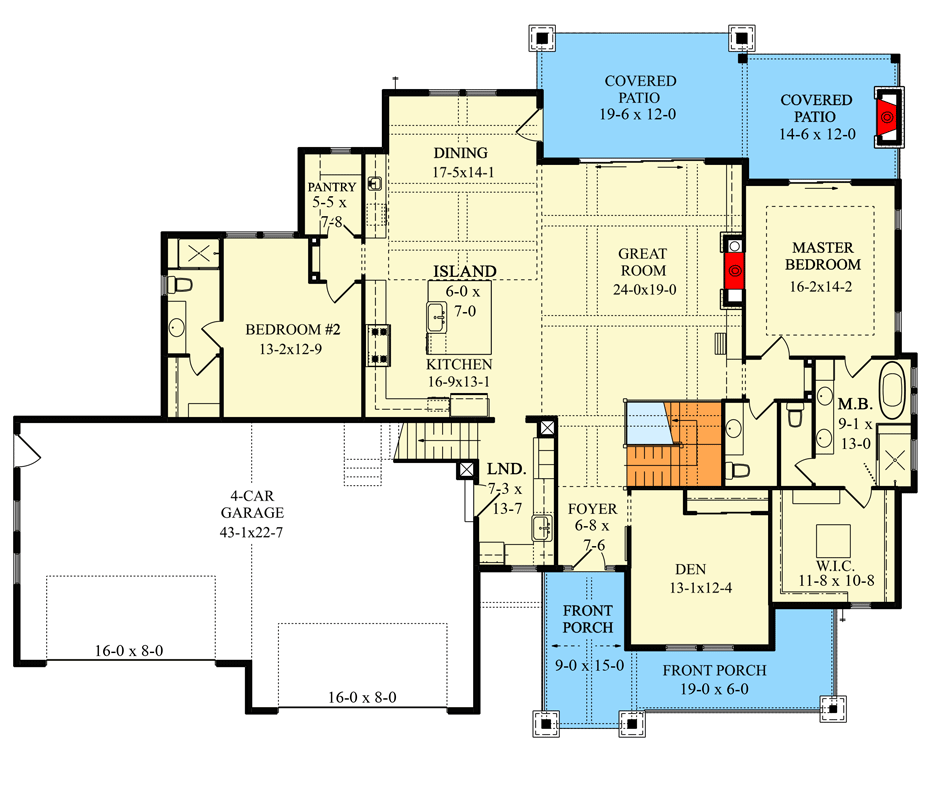

3-Bed New American House Plan with 4-Car Garage and Lower Level Expansion - 95198RW floor plan - Main Level

Upper Level Bedroom

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

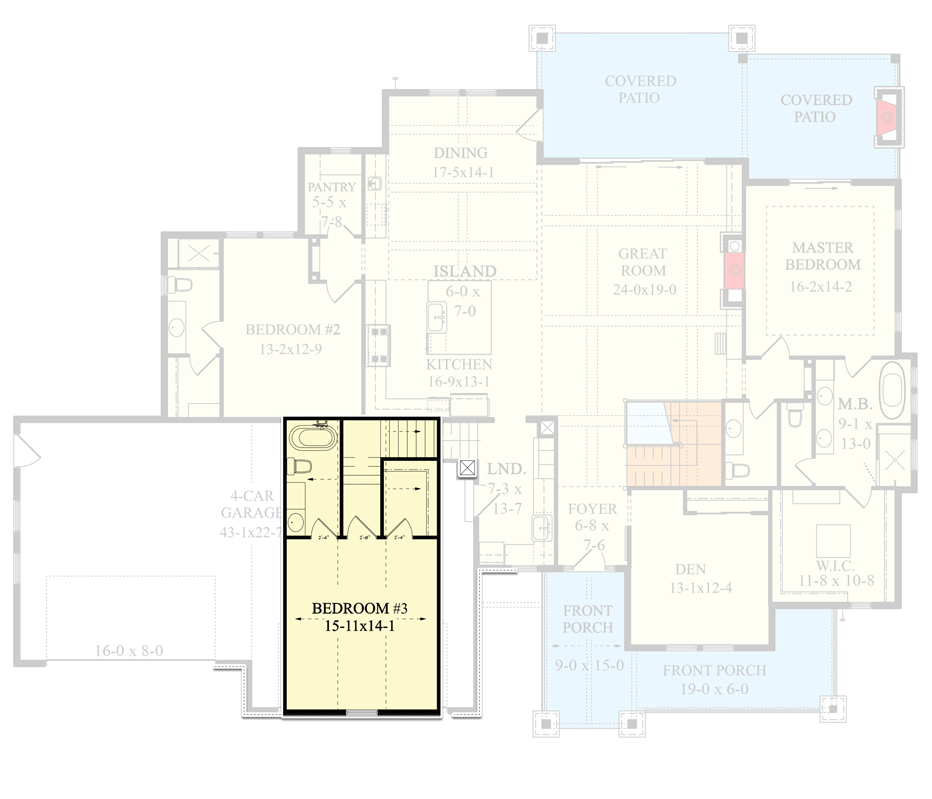

3-Bed New American House Plan with 4-Car Garage and Lower Level Expansion - 95198RW floor plan - Upper Level Bedroom

Optionally Finished Daylight Foundation

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

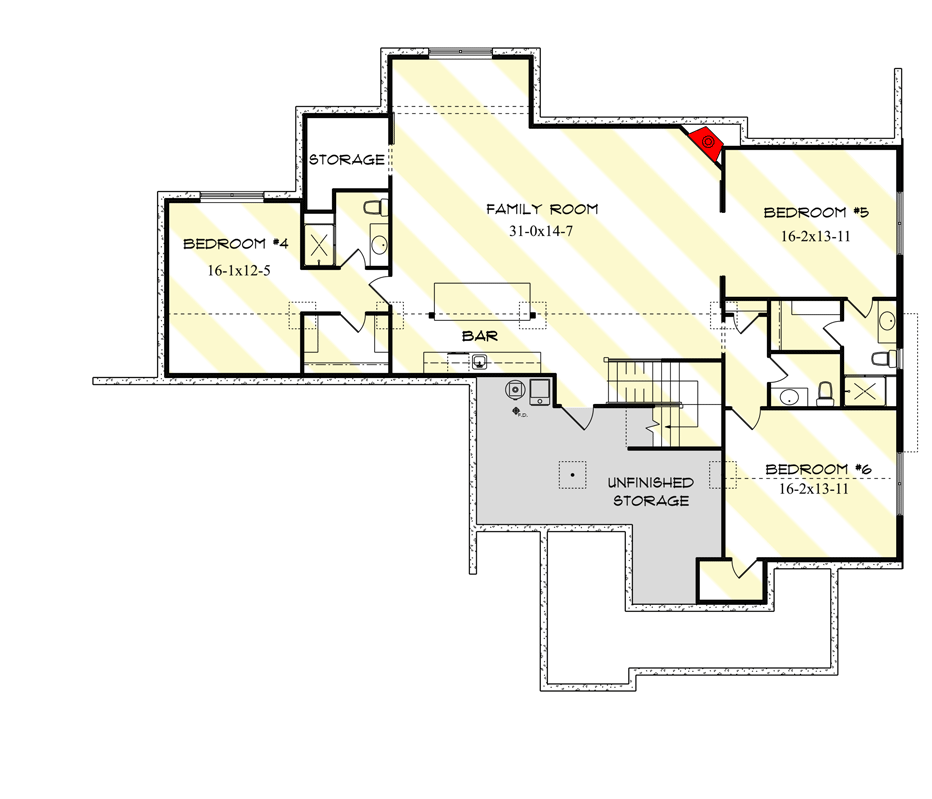

3-Bed New American House Plan with 4-Car Garage and Lower Level Expansion - 95198RW floor plan - Optionally Finished Daylight Foundation

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,876 sq. ft.
  • 1st Floor: 2,468 sq. ft.
  • 2nd Floor: 408 sq. ft.
  • Porch, Combined: 679 sq. ft.
  • Optional Lower Level: 2,063 sq. ft.
  • Basement Unfinished: 394 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 6"
  • Depth: 66' 0"
  • Max ridge height: 27' 5"

Garage

  • Type: Attached
  • Area: 1113 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

3-Bed New American House Plan with 4-Car Garage and Lower Level Expansion

  • 2,876

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,850
  • PDF - Unlimited Build $2,775
  • CAD + PDF - Single Build $3,350
  • CAD - Unlimited Build $5,025
  • View all purchase option online

About This Plan

  • This New American house plan gives you 2,876 square feet of heated living space with expansion available in the optional finished basement. An attractive mix of board and batten, stone and timbers gives this home plan great curb appeal.
  • Rear decks are accessible from the great room and master bedroom that give you great fresh air spaces to enjoy in addition to the front porch.
  • The great room is open to the kitchen and dining area where elegant ceiling treatments help to define the rooms. The kitchen hosts a large 6' by 7' island and built-in cabinetry in the dining room offers the perfect serving bar.
  • A den located off the foyer makes a great spot for a home office or a quiet space to get reading done. The master suite completes the right side of the home. Bed 2 is located across the home and has its own private bathroom. Upstairs, Bed 3 has its own bath as well as a walk-in closet.
  • Future expansion is available in the optional lower level that boost the bedroom count from 3 to 6.
  • The 4-car garage has two 2-car bays, each with a 16' by 8' overhead door.
  • Related Plan: Get a side-entry garage with house plan 95159RW.

Floor Plans

  • Main Level

  • Upper Level Bedroom

  • Optionally Finished Daylight Foundation

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,876 sq. ft.
  • 1st Floor: 2,468 sq. ft.
  • 2nd Floor: 408 sq. ft.
  • Porch, Combined: 679 sq. ft.
  • Optional Lower Level: 2,063 sq. ft.
  • Basement Unfinished: 394 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 6"
  • Depth: 66' 0"
  • Max ridge height: 27' 5"

Garage

  • Type: Attached
  • Area: 1113 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
