3-Bed New American House Plan with Bonus Room with Full Bath
Heated S.F.
2,588
Beds
3
Baths
2.5 - 3.5
Stories
1-2
Cars
2
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

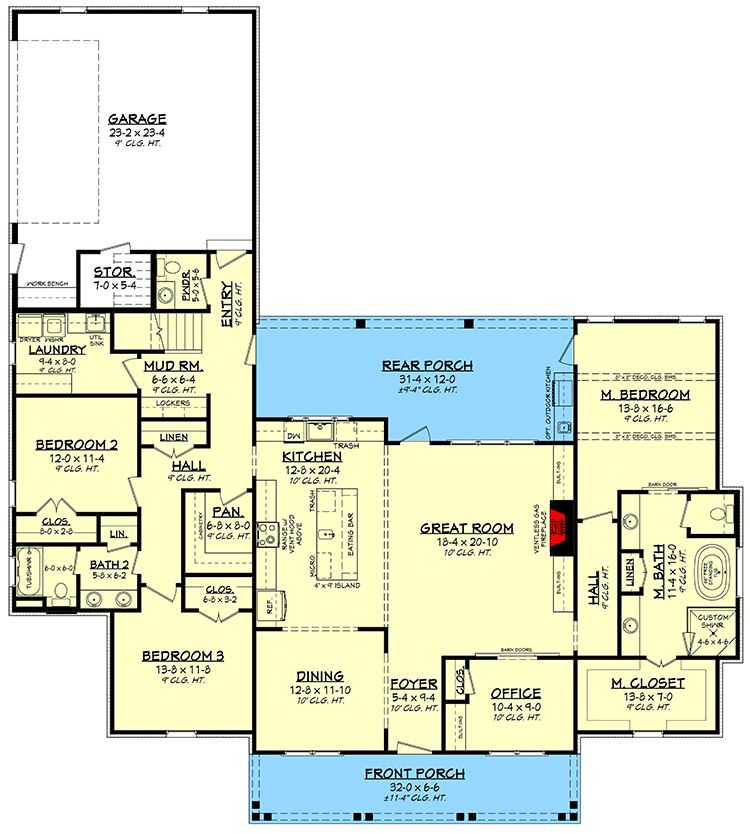

3-Bed New American House Plan with Bonus Room with Full Bath - 51825HZ floor plan - Main Level
Bonus - Add 377 Sq. Ft.
Reverse Floor Plan

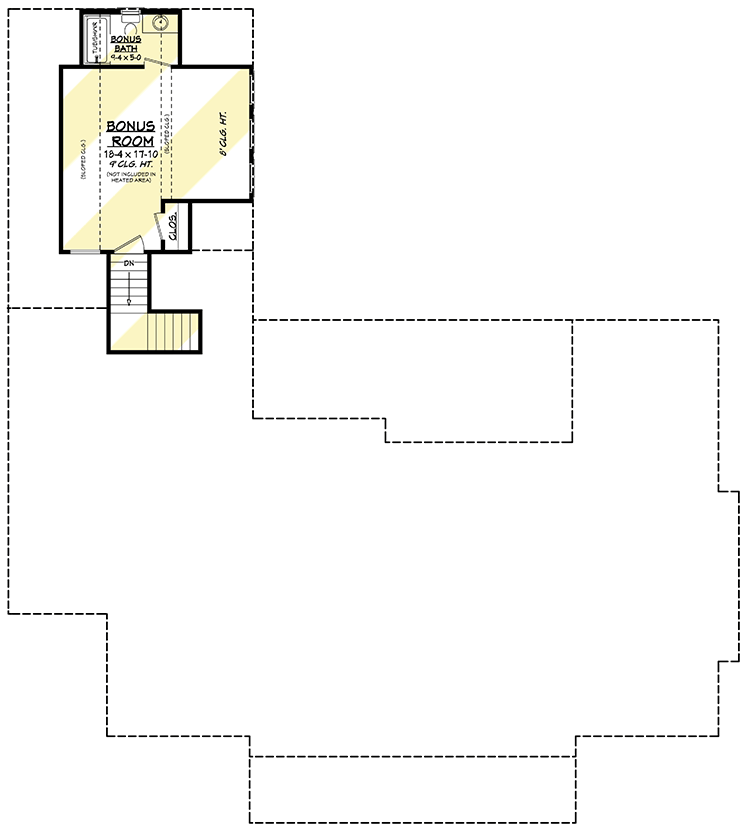

3-Bed New American House Plan with Bonus Room with Full Bath - 51825HZ floor plan - Bonus - Add 377 Sq. Ft.
Basement Stairs Location
Reverse Floor Plan

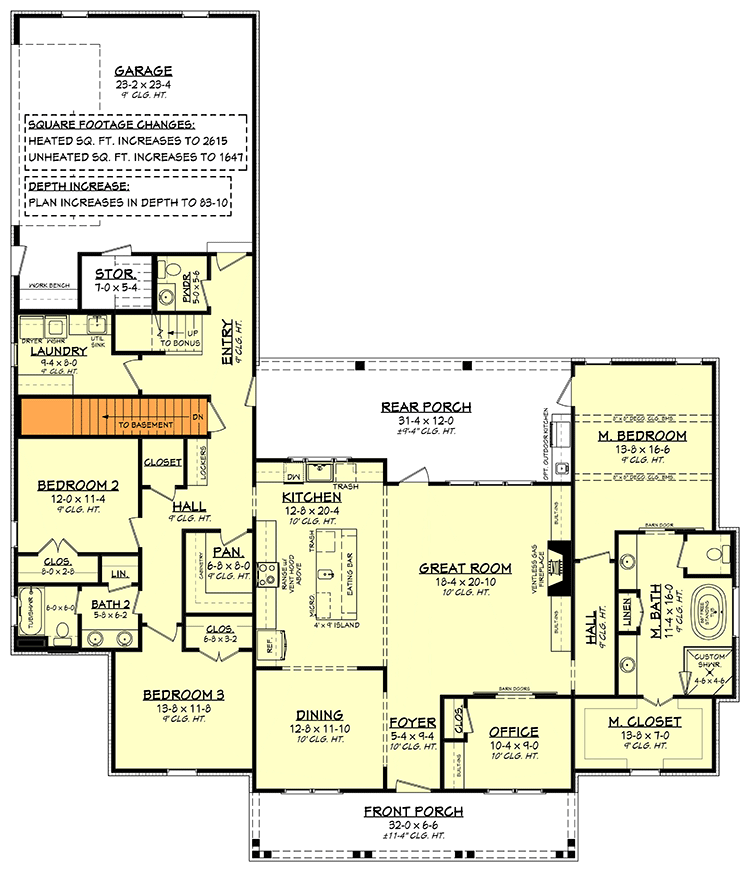

3-Bed New American House Plan with Bonus Room with Full Bath - 51825HZ floor plan - Basement Stairs Location
Plan Details

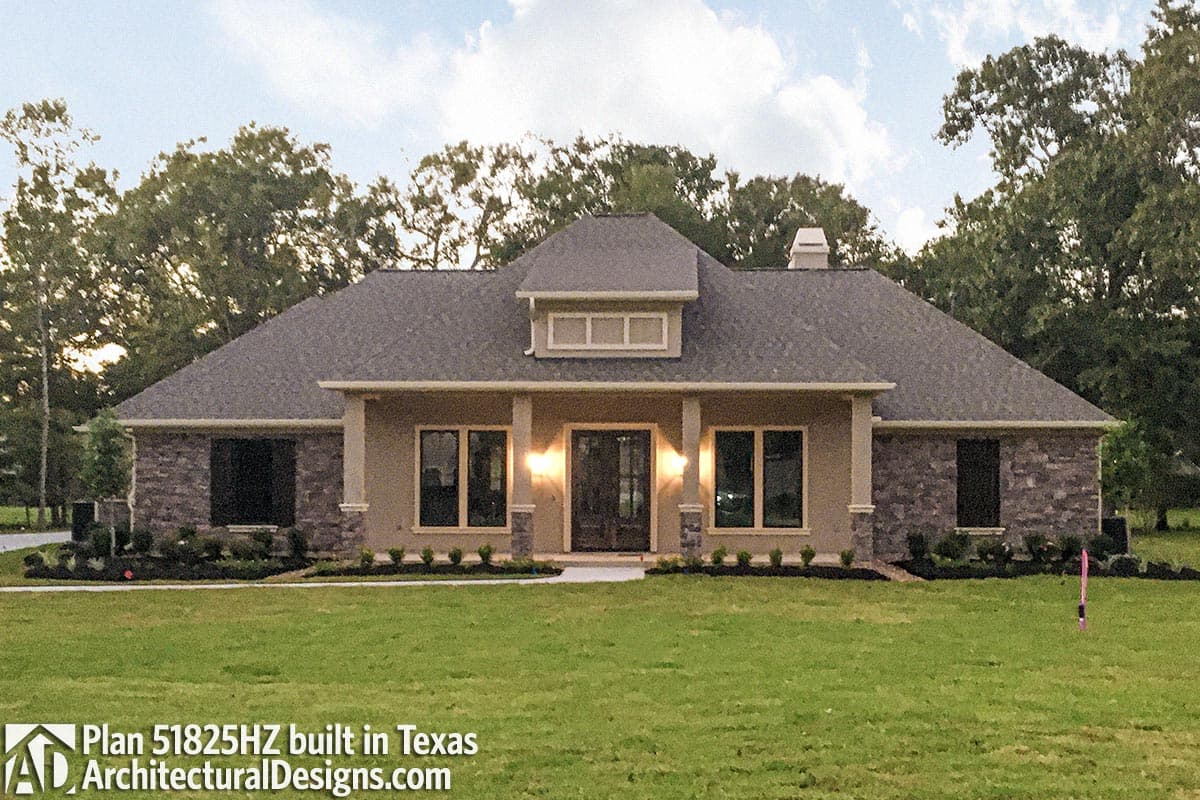

  • A decorative shed dormer sits above the front porch with four pairs of matching columns of this 3-bed New American house plan. Board and batten and a hipped roof give the home a touch of class.
  • The front door is centered on the porch and opens to the foyer with views straight ahead into the great room with a fireplace. Barn doors close off the office so you can get work done. The great room is open to the kitchen with a large eating bar (4' by 9') and a large walk-in pantry. A single doors takes you to the rear porch with an optional outdoor kitchen.
  • A split bedroom layout maximizes your privacy with the master bedroom occupying the entire right side of the home. Across the home, two bedrooms share a bathroom and laundry is tucked away by the mud room.
  • Stairs by the family entry take you to bonus space over the garage that comes with a full bathroom, making this useful as a fourth bedroom or as a kids' retreat.
  • Related Plans: Get alternate versions with house plans 51824HZ and 51885HZ.
What's Included
This house plan set has 8 pages as follows:
  1. Cover Sheet with abbreviations, rendering, sheet index
  2. Foundation Plan and Details
  3. Detailed main floor and bonus plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

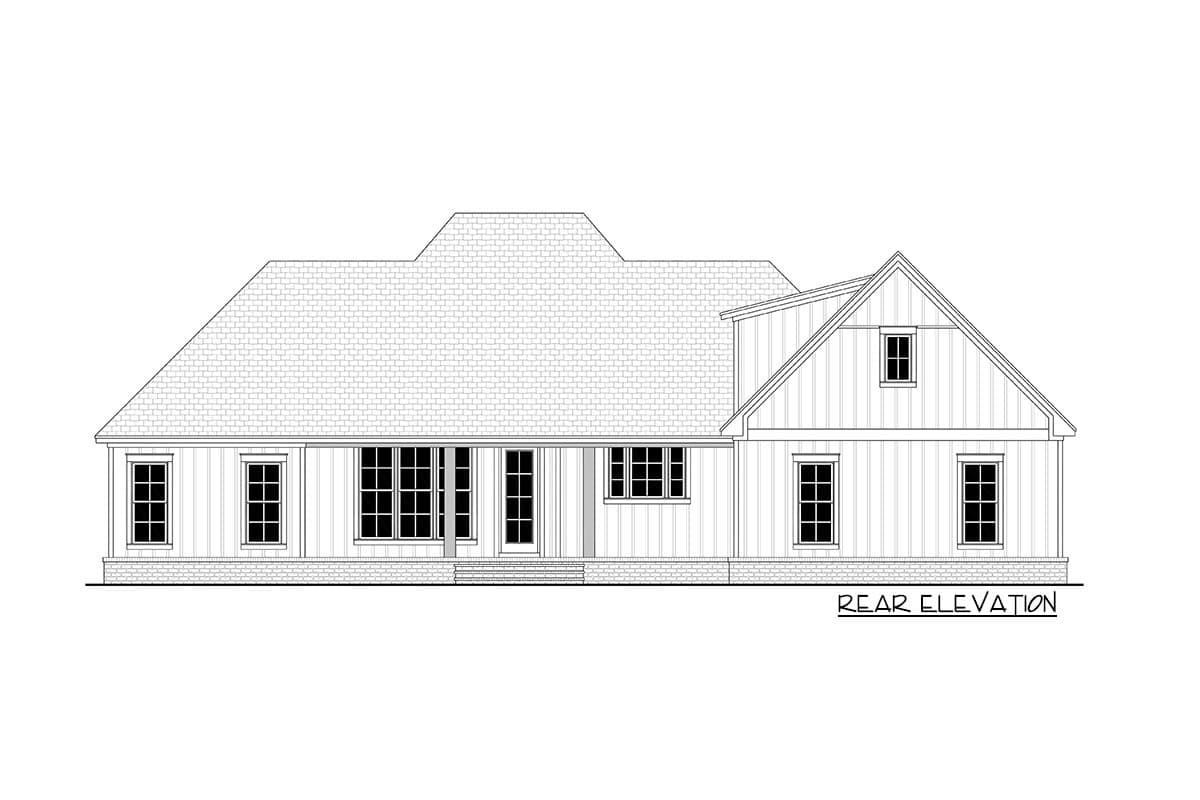

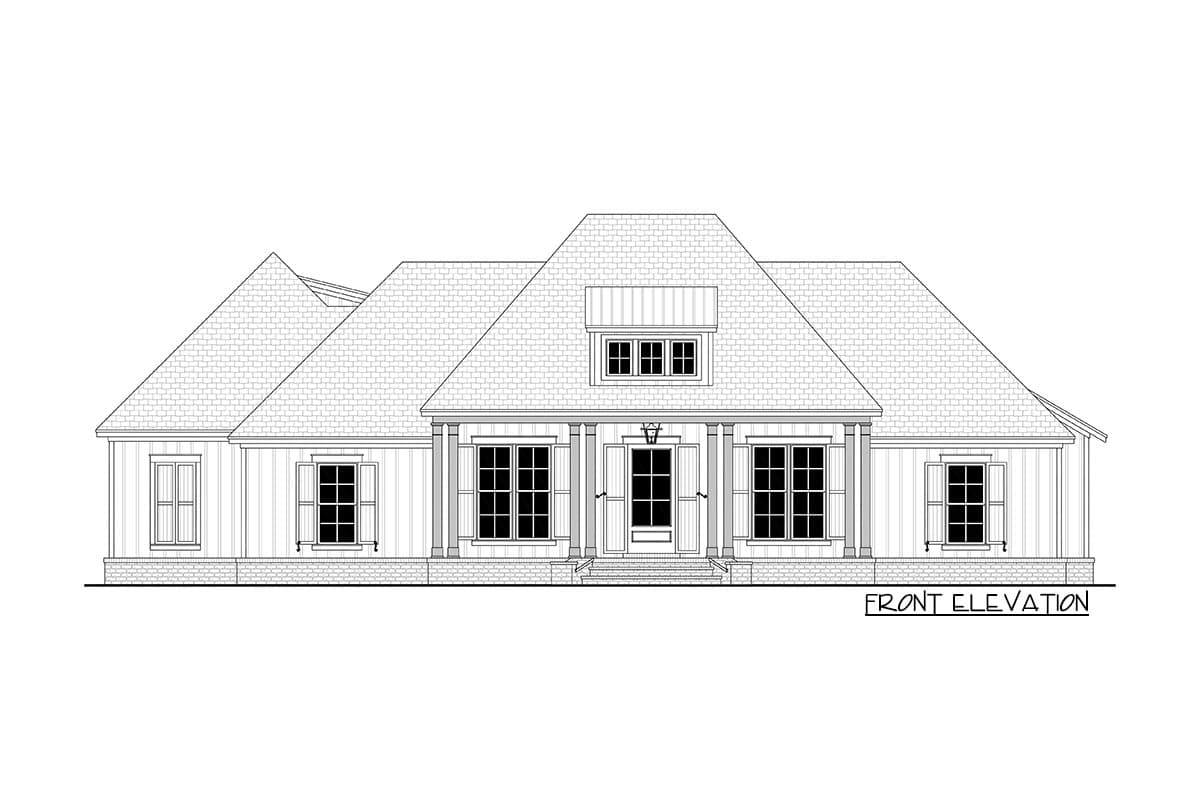

  4. Front and rear exterior views with additional details

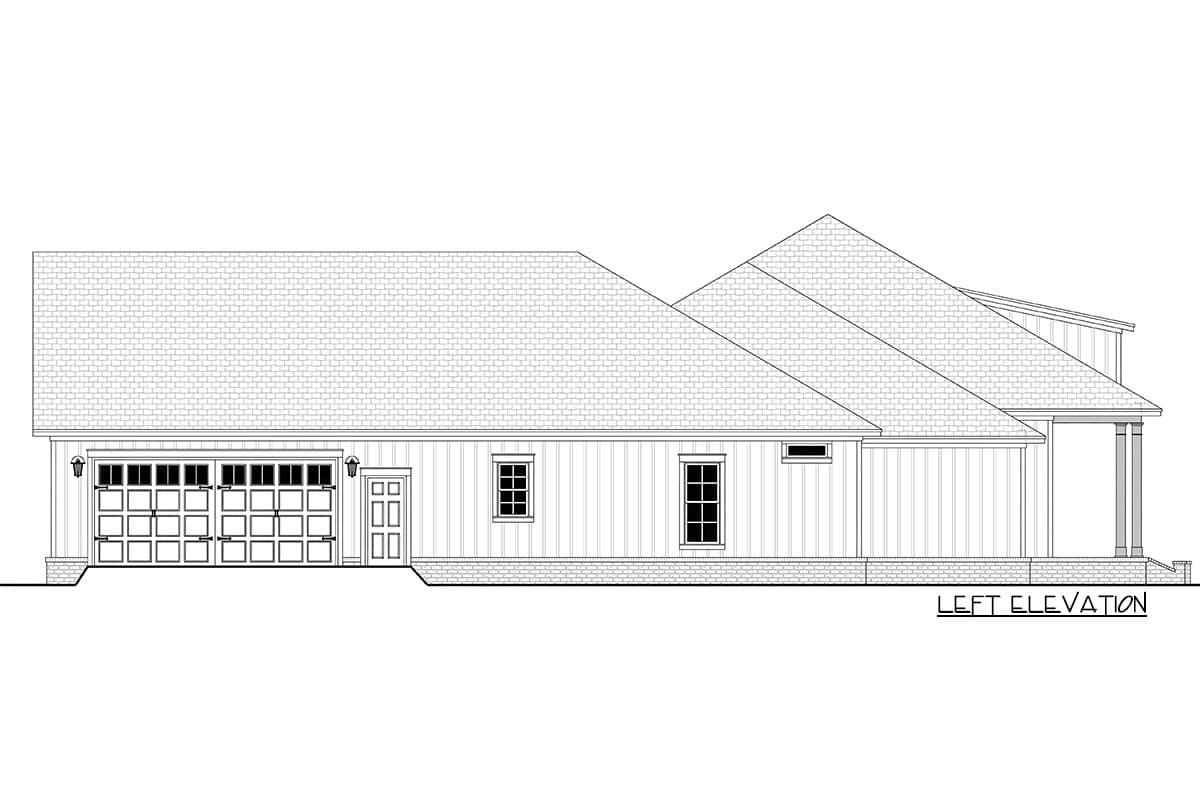

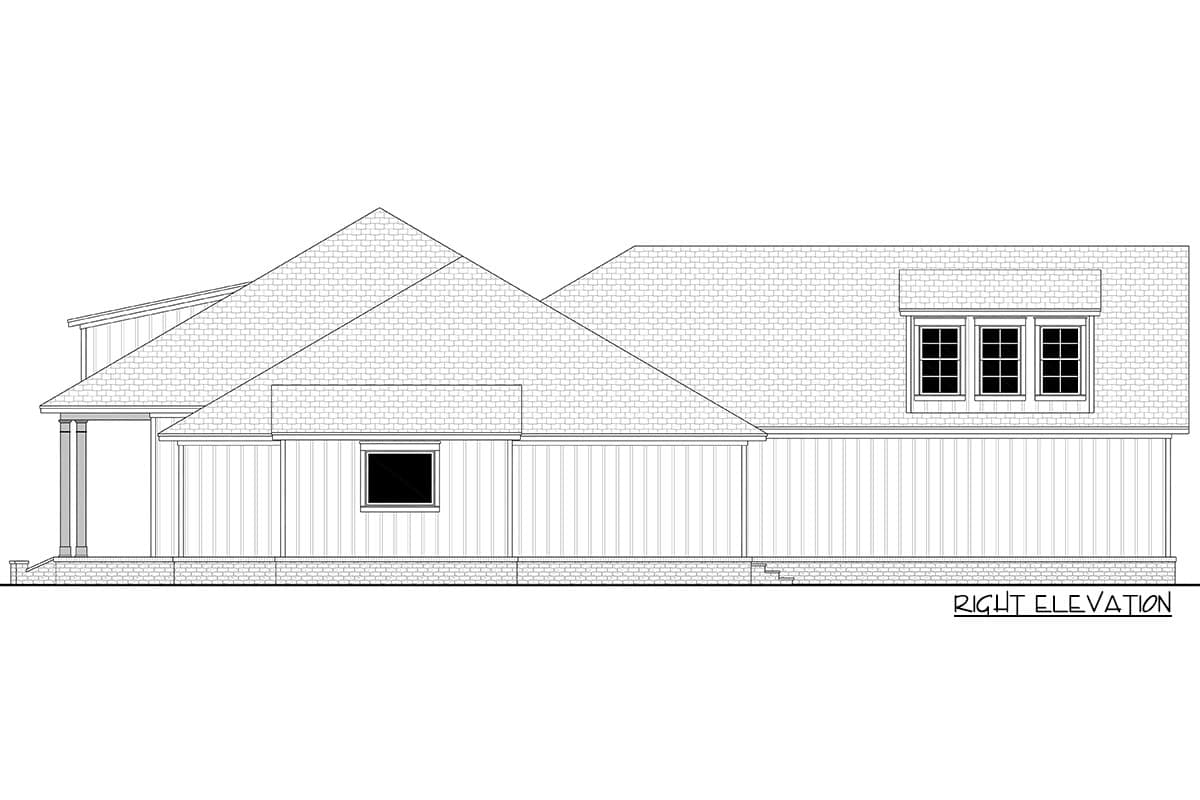

  5. Right and left exterior views with additional details
  6. Cross Section & kitchen cabinet views
  7. Roof plan and span charts with additional details
  8. Electrical plans & notes/ legend
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
