Plan 520015RKY

3-Bed New American House Plan with Optional Lower Level - 2298 Sq Ft

Heated S.F.
2,298
Beds
3 - 6
Baths
2.5 - 3.5
Stories
1
Cars
2

Floor Plan

Plan 520015RKY

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 520015RKY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 520015RKY: 3-Bed New American House Plan with Optional Lower Level - 2298 Sq Ft - Floor Plan - Main Level - New American, Ranch

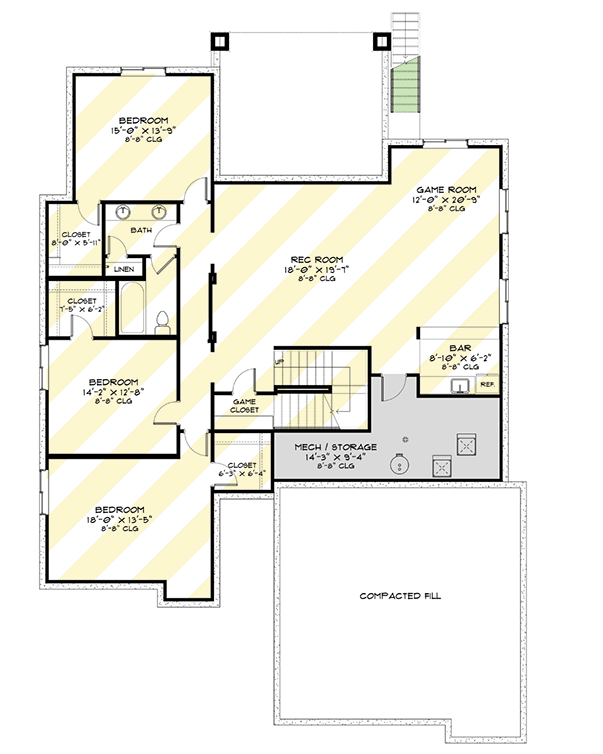

Optional Lower Level

Plan 520015RKY: 3-Bed New American House Plan with Optional Lower Level - 2298 Sq Ft - Floor Plan - Optional Lower Level - New American, Ranch

Plan Details

  • A front courtyard invites relaxation, and the welcoming front porch leads you inside. The main level features three bedrooms, ideal for family, guests, or office and hobby spaces.
  • The primary suite, located at the rear for privacy, includes a spacious closet, a luxurious walk-in shower, and access to the rear covered deck for morning coffee or evening wine.
  • The great room boasts raised coffered ceilings and a corner fireplace, adding elegance. The open kitchen, with an oversized island, connects to the living and dining areas. The dining room offers views, while the covered deck provides a flexible space for outdoor meals.
  • The mudroom, with cubbies and full laundry, greets you from the garage, which accommodates two cars plus a golf cart or workshop area.
  • An optional lower level adds a rec room, game room, bar, full bathroom, and three more bedrooms with walk-in closets.

What's Included

  • Cover Sheet
  • Specifications
  • Foundation Layout Plan
  • Floor Plans
  • Sections
  • Elevations
  • Roof Ridge Plan
  • Details sheet(s)
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,298 sq. ft.

1st Floor

2,298 sq. ft.

Optional Lower Level

2,072 sq. ft.

Courtyard

380 sq. ft.

Covered Deck

301 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, or 6

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

79' 0"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

759 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8' 8"

First Floor

10'

Room

Ceiling Type

Height

Great Room

Coffered

12' 0''

Primary Bedroom

Flat

10' 0''

Bedroom 2

Flat

10' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

5 on 12

Architectural Style

New American

Ranch

Special Features

Bedrooms - Clustered

Courtyard

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Workshop
