Plan 493026GNT

Exclusive

3-Bed New American House Plan with Split-Bedrooms - 2166 Sq Ft

Heated S.F.
2,166
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 493026GNT

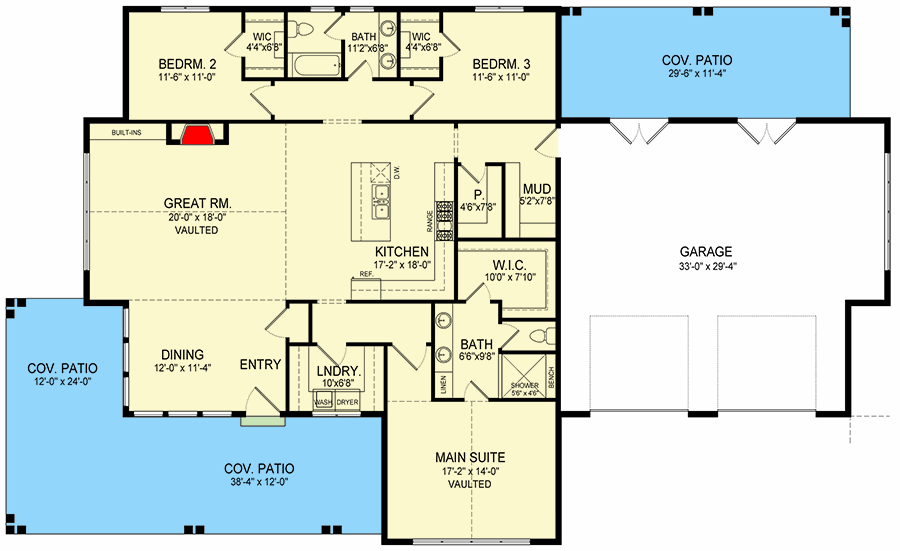

Main Level
Main Level

Plan 493026GNT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

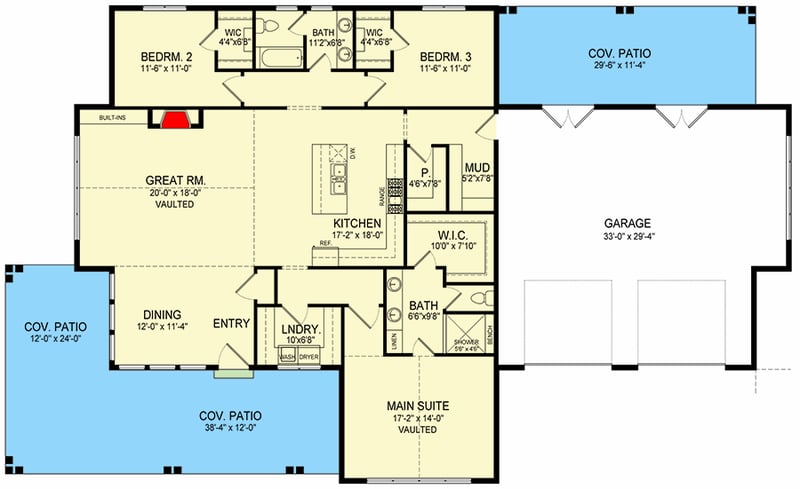

Plan 493026GNT: 3-Bed New American House Plan with Split-Bedrooms - 2166 Sq Ft - Floor Plan - Main Level - Farmhouse, New American, Ranch

Plan Details

  • This New American house plan offers you 2,166 square feet of heated living space with 3 beds, 2 baths and a 971 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,166 sq. ft.

1st Floor

2,166 sq. ft.

Porch, Front

601 sq. ft.

Porch, Rear

334 sq. ft.

Porch, Combined

935 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

54' 8"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

971 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wraparound Porch

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,166 sq. ft.

1st Floor

2,166 sq. ft.

Porch, Front

601 sq. ft.

Porch, Rear

334 sq. ft.

Porch, Combined

935 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

54' 8"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

971 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wraparound Porch

Plan Collections

Exclusive
