Plan 42565DB 3-Bed New American House Plan with Upstairs Laundry

2,540 3 3.5 2 3
Print
Compare
...

3-Bed New American House Plan with Upstairs Laundry

Plan 42565DB

  • 2,540

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

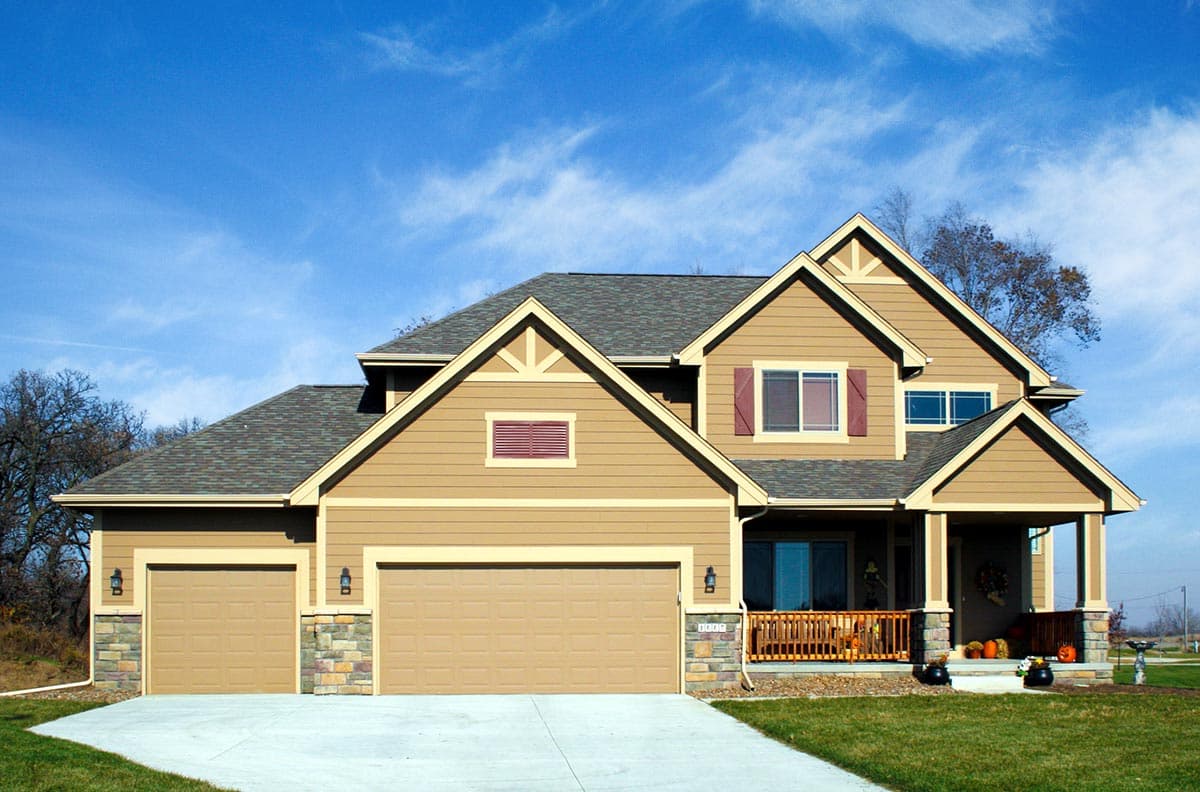

  • A board and batten, stone an clapboard exterior greet you to this 4-bed New American house plan with upstairs laundry.
  • Walk in and put your heavy load down. This plan’s convenient lockers and drop zone for keys, wallet, backpacks, books and more, ensure that your things stay organized in the rear foyer and don’t clutter the rest of the home. An extra nook in the back of the garage provides storage for tools, gardening supplies or even room for a craft area.
  • For rest and relaxation, go out to the covered porch and enjoy the warm weather. On colder days, enjoy the fireplace in the great room or the large master bath upstairs.
  • Two vanities in the maser bathroom create room for his-and-her toiletries. The five sinks and mirrors upstairs mean the whole family has room to get ready and out the door on time on a busy morning.
  • Related Plan: Get downstairs laundry and a larger mud room with house plan 40892DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

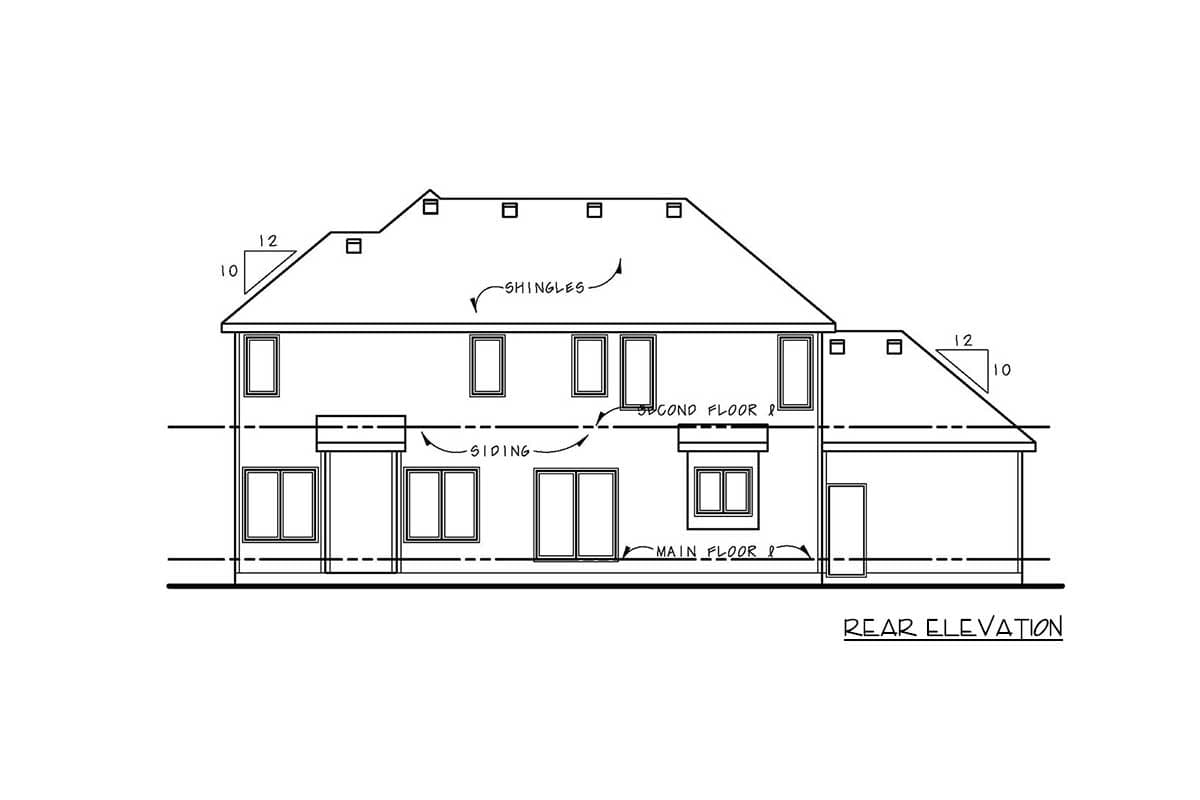

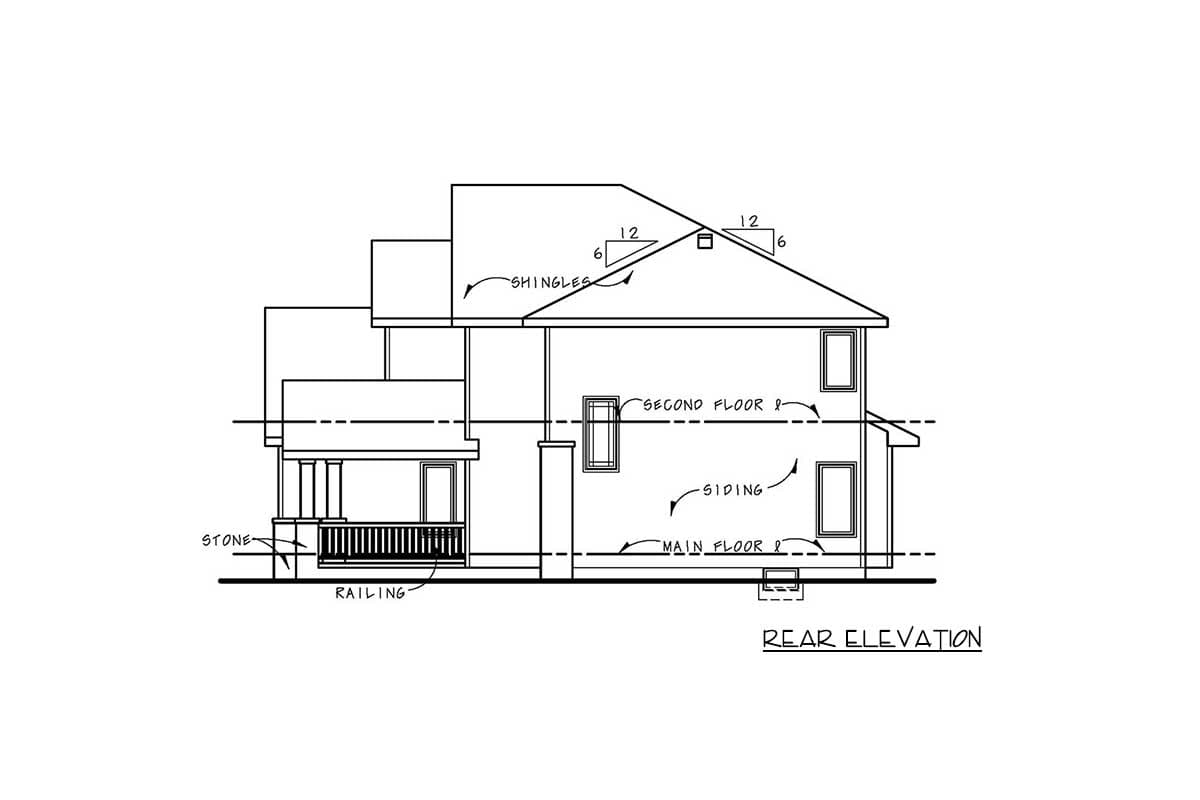

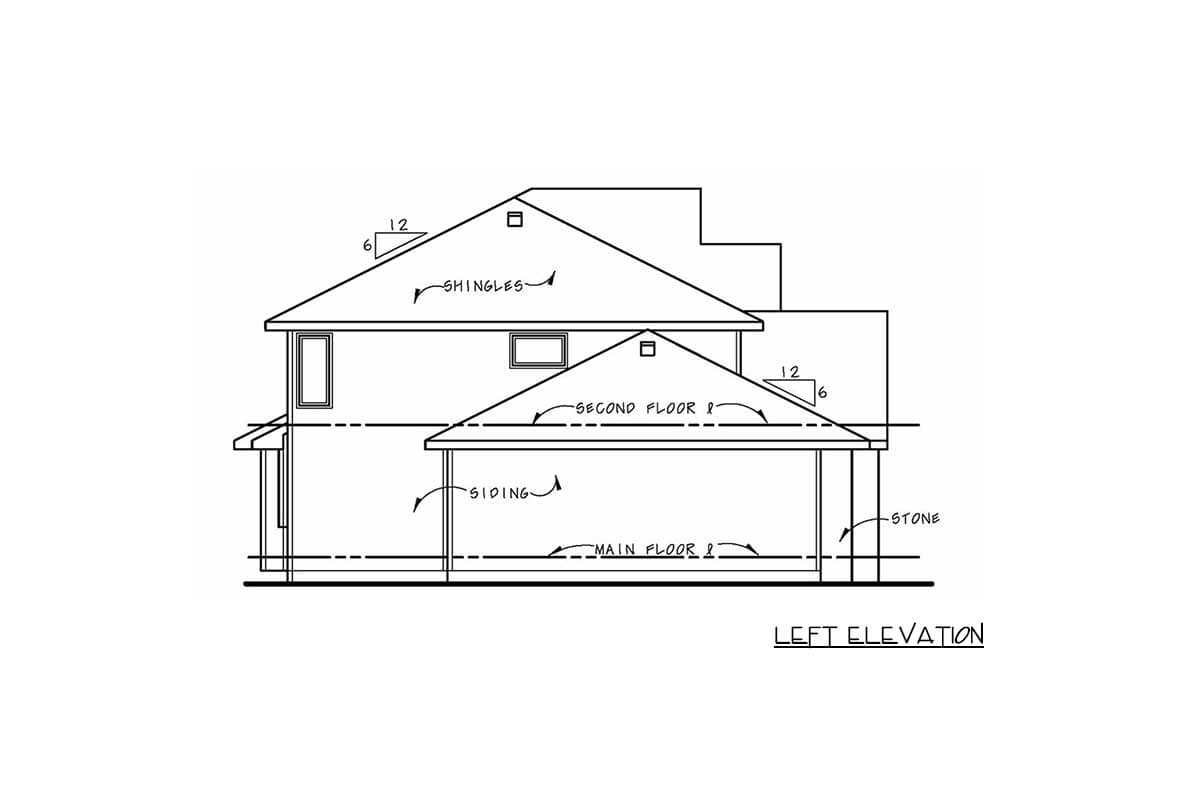

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

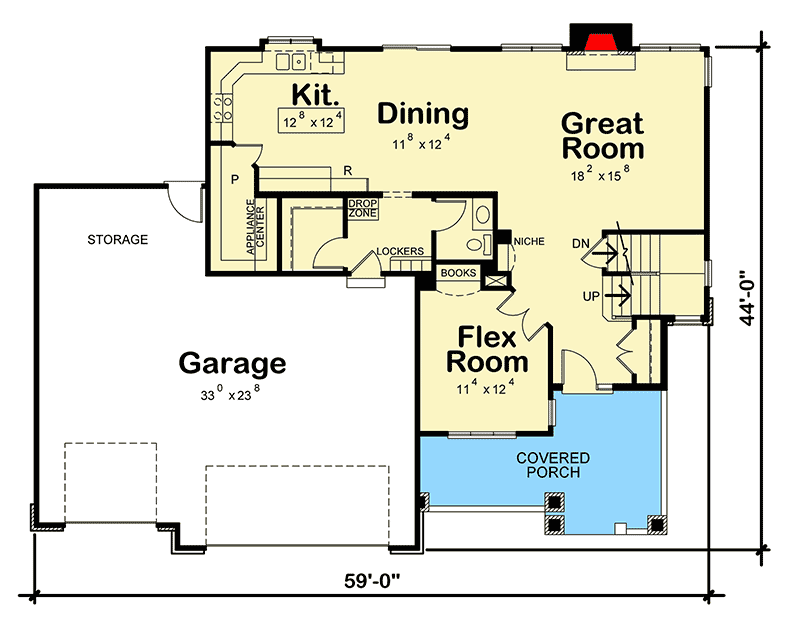

3-Bed New American House Plan with Upstairs Laundry - 42565DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

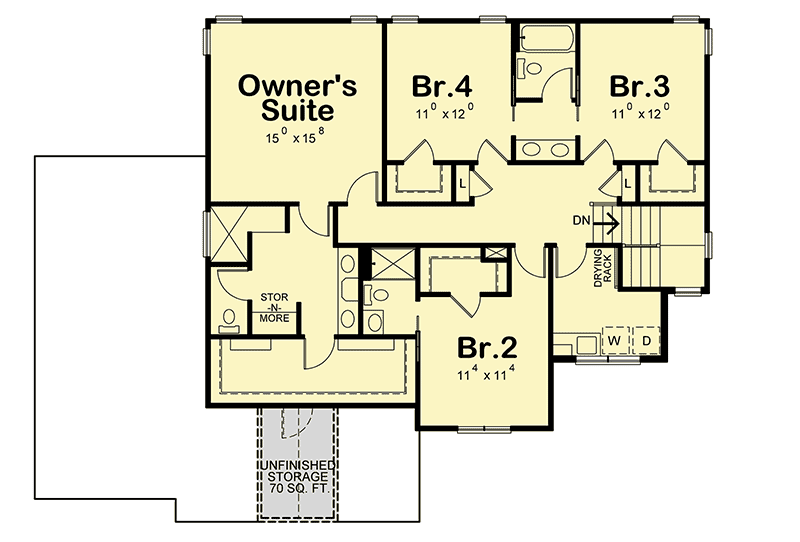

3-Bed New American House Plan with Upstairs Laundry - 42565DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,540 sq. ft.
  • 1st Floor: 1,161 sq. ft.
  • 2nd Floor: 1,379 sq. ft.
  • Porch, Front: 206 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 44' 0"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 899 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features



3-Bed New American House Plan with Upstairs Laundry

  • 2,540

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $715
  • PDF - Single-Build $1,105
  • PDF - Unlimited Build $1,605
  • CAD - Single-Build $1,920
  • CAD - Unlimited Build $2,420
  • View all purchase option online

About This Plan

  • A board and batten, stone an clapboard exterior greet you to this 4-bed New American house plan with upstairs laundry.
  • Walk in and put your heavy load down. This plan’s convenient lockers and drop zone for keys, wallet, backpacks, books and more, ensure that your things stay organized in the rear foyer and don’t clutter the rest of the home. An extra nook in the back of the garage provides storage for tools, gardening supplies or even room for a craft area.
  • For rest and relaxation, go out to the covered porch and enjoy the warm weather. On colder days, enjoy the fireplace in the great room or the large master bath upstairs.
  • Two vanities in the maser bathroom create room for his-and-her toiletries. The five sinks and mirrors upstairs mean the whole family has room to get ready and out the door on time on a busy morning.
  • Related Plan: Get downstairs laundry and a larger mud room with house plan 40892DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,540 sq. ft.
  • 1st Floor: 1,161 sq. ft.
  • 2nd Floor: 1,379 sq. ft.
  • Porch, Front: 206 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 44' 0"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 899 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
