3-Bed New American Ranch Home Plan with Vaulted Great Room - 1600 Sq Ft

Heated S.F.
1,600
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51013MM

Main Level
Main Level

Plan 51013MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

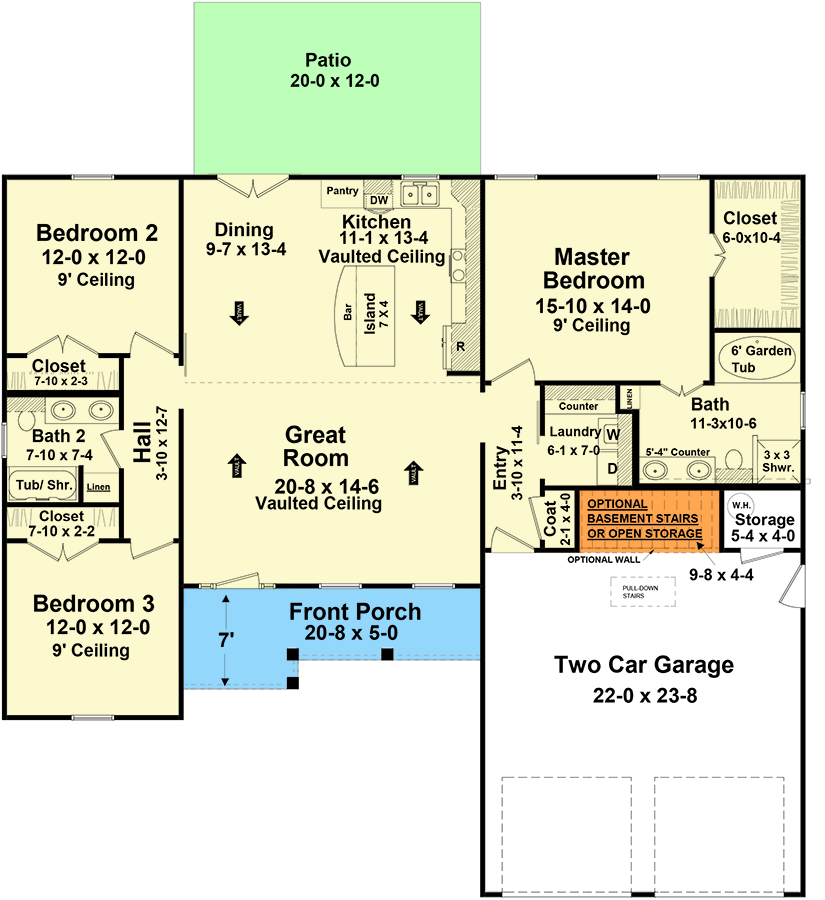

Plan 51013MM: 3-Bed New American Ranch Home Plan with Vaulted Great Room - 1600 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Ranch

Plan Details

  • This New American features a split-bedroom layout designed for comfort and efficiency. A wood-accented front porch creates a welcoming entrance, leading to an open-concept kitchen and great room with a vaulted ceiling.
  • The master suite includes a luxurious bath and oversized walk-in closet. Additional highlights include a dedicated laundry room and a covered rear porch.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate house with plan with 51189MM (1,600 sq. ft.).

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

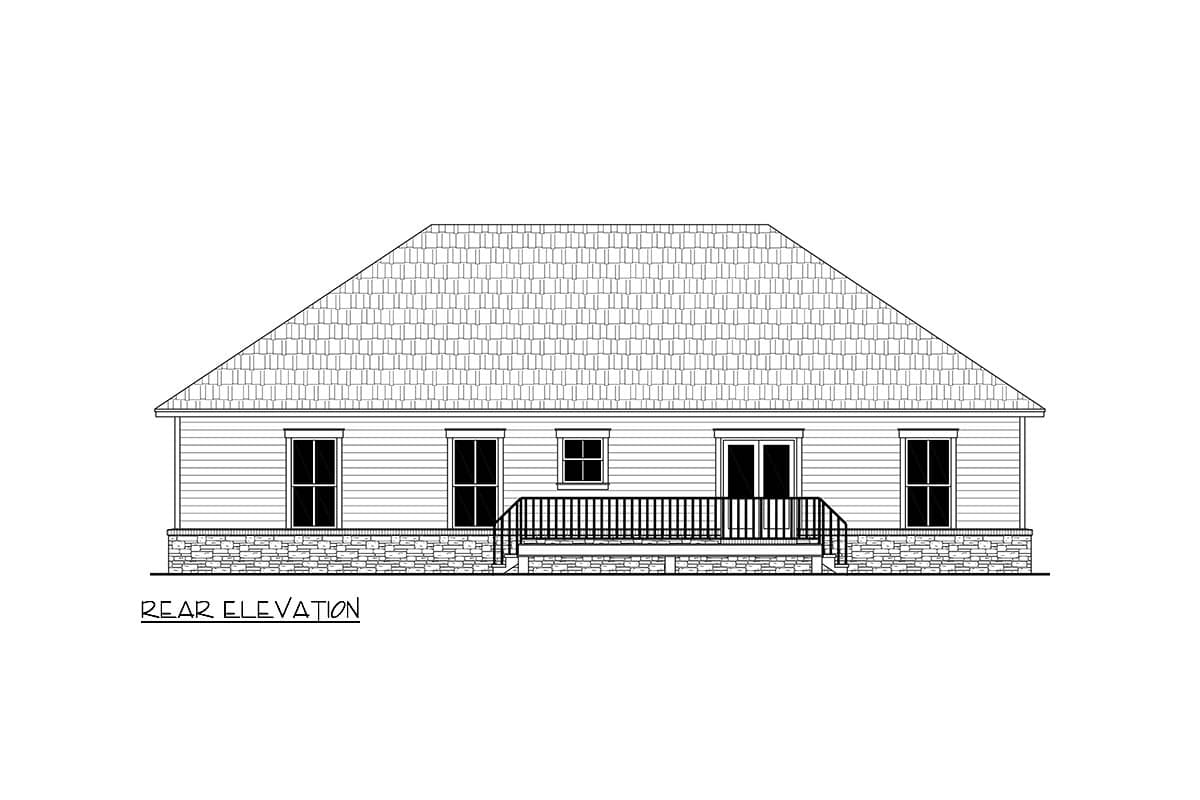

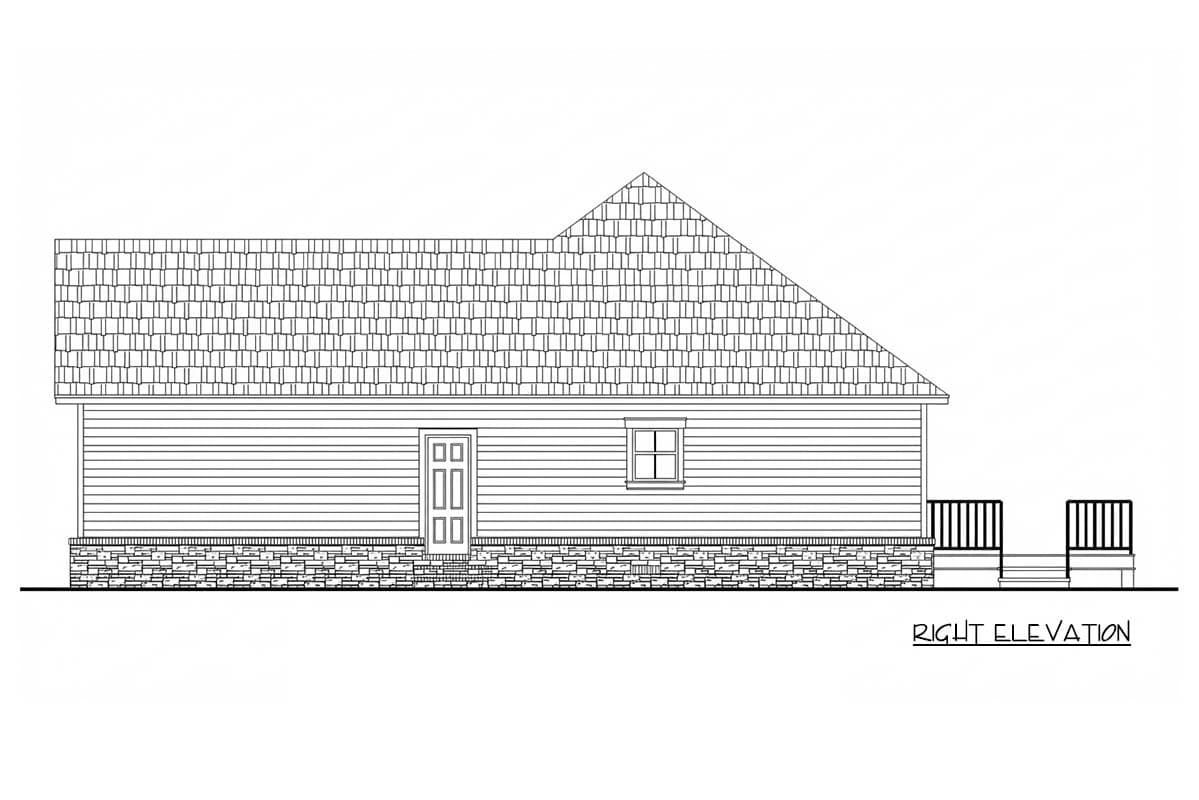

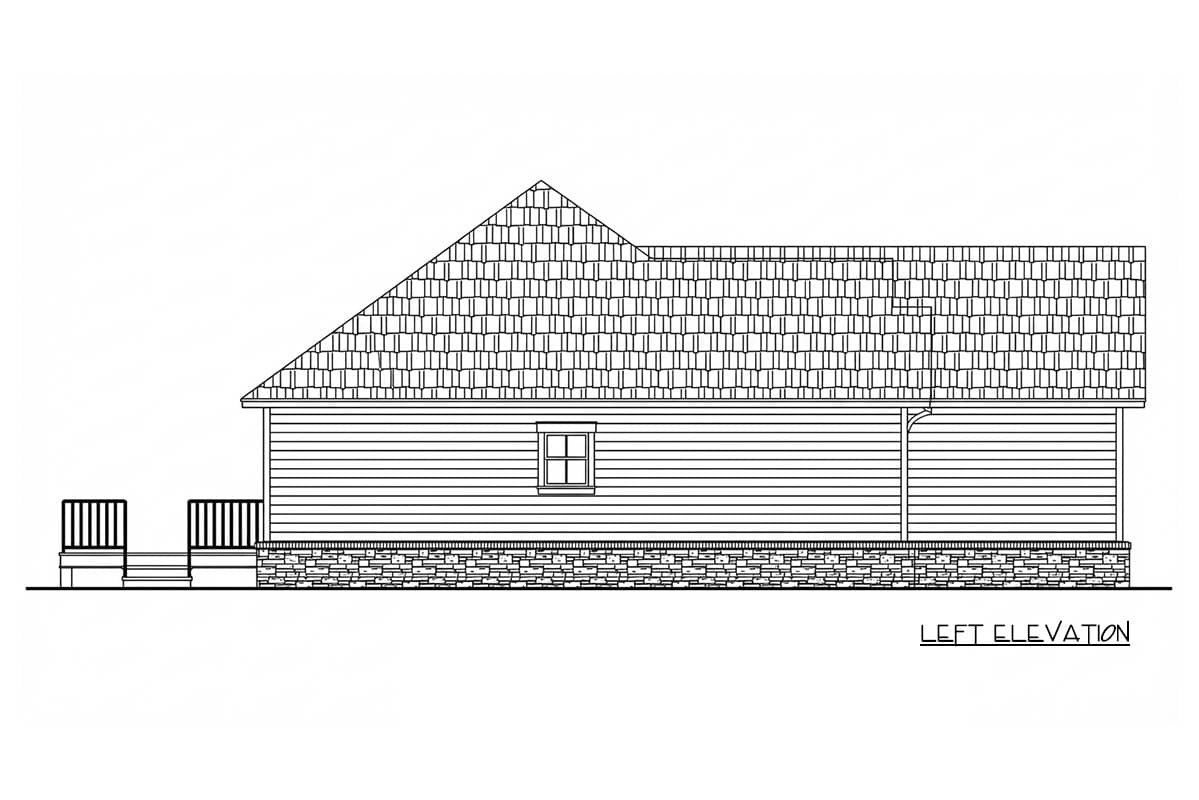

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

119 sq. ft.

Porch, Rear

103 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 0"

Depth

62' 4"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,600 sq. ft.

1st Floor

1,600 sq. ft.

Porch, Front

119 sq. ft.

Porch, Rear

103 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 0"

Depth

62' 4"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
