Plan 42702DB

3-Bed New American Ranch Plan with Home Office

Heated S.F.
2,449
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 42702DB

Main Level
Main Level
Optional
Optional

Plan 42702DB

M-F 9am-5pm EST |

1-203-761-8500

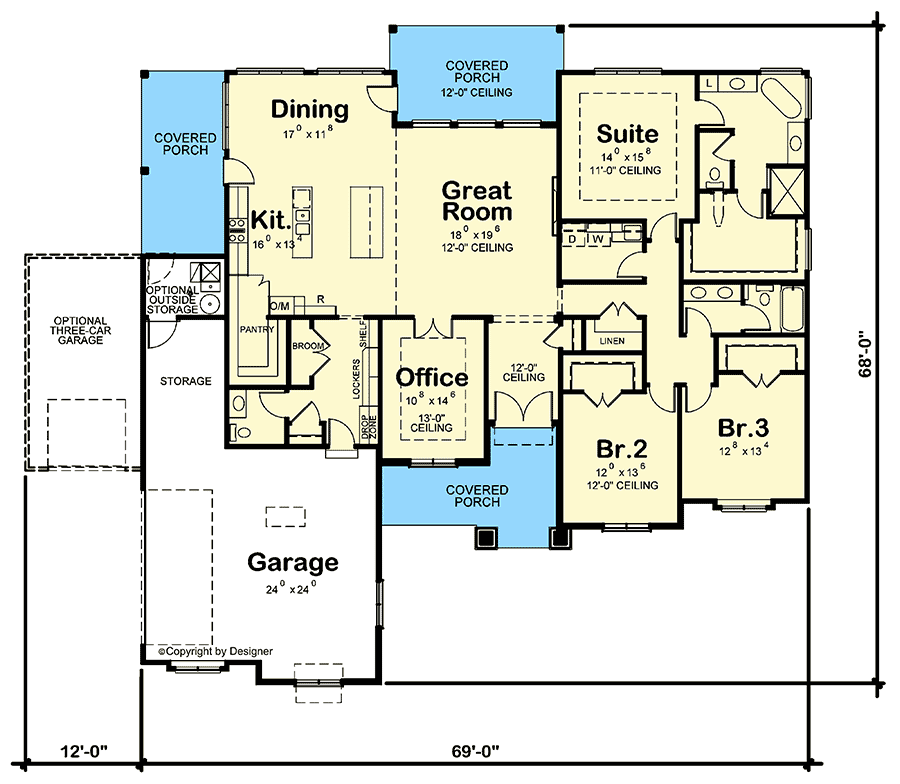

Main Level

Plan 42702DB: 3-Bed New American Ranch Plan with Home Office - Floor Plan - Main Level - New American, Ranch, Southern, Traditional

Optional

Plan 42702DB: 3-Bed New American Ranch Plan with Home Office - Floor Plan - Optional - New American, Ranch, Southern, Traditional

Plan Details

  • Stone and stucco adorn the facade of this 3-bedroom, New American Ranch plan, which features a home office and open-concept living space.
  • The 12' ceiling and free-flowing living space provides ample room for entertaining friends and family, while french doors lead to a generous home office nearby.
  • The chef in the home will appreciate the walk-in pantry and two-island kitchen, which connects with the well-lit dining room.
  • The bedrooms consume the right side of the design with the primary bedroom suite towards the rear and paired with a large closet and 5-fixture bathroom.
  • Additional amenities include a mudroom with a drop zone, coat closet, and powder bath - just inside from the double garage. An optional 3rd bay is available, as well as dedicated storage space.

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,449 sq. ft.

1st Floor

2,449 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4
