Plan 72688DA

3 Bed Northwest Ranch Home Plan

Heated S.F.
2,668
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 72688DA

Main Level
Main Level

Plan 72688DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

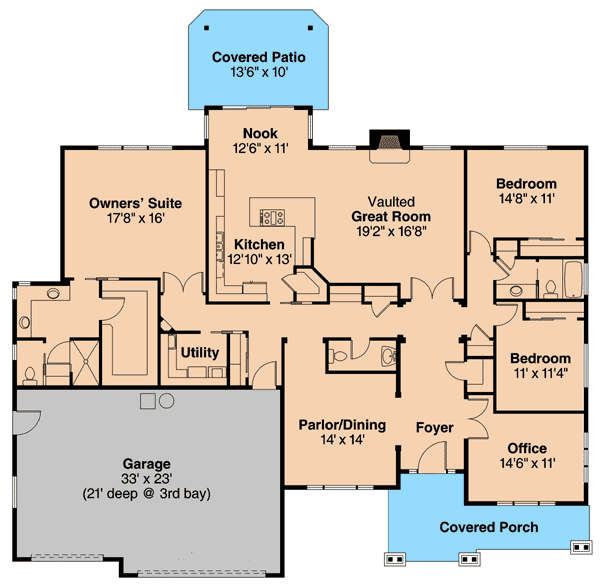

Plan 72688DA: 3 Bed Northwest Ranch Home Plan - Floor Plan - Main Level - Northwest, Ranch

Plan Details

  • Stone veneer wainscoting accents the 3-car garage and covers the bold column supports that bound this 3 bedroom house plan's wide porch. Wide multipaned windows fill much of the front facade, and a parade of gridded glass runs along the tops of both garage doors.
  • Entering, you move forward into a long, high-ceilinged foyer, naturally brightened by sidelights. The home office is through double doors on the right, while a wide opening on the left leads into what could be either a parlor or a dining room. Light washes into both of these front-facing rooms through wide multipaned windows.
  • You can reach the vaulted great room and adjoining kitchen two ways: either by continuing to the end of the foyer, or passing through an opening at the rear of the dining room/parlor. French doors into the great room offer privacy when needed. Rear windows flank a fireplace that provides warmth while creating a colorful and relaxing focal point when skies are gray or dark.
  • Nice views from the kitchen. A step-in pantry adds to the ample kitchen storage space.
  • Secondary bedrooms and the main bathroom are to the right of the family gathering space. They are linked to everything via a long hallway that ends at the double-door entrance to the owners' suite. Amenities there include a deep walk-in closet and a skylit bathroom with an oversized shower, his-and-hers vanity, and a totally private toilet.
  • The roof has a 7 on 12 pitch.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

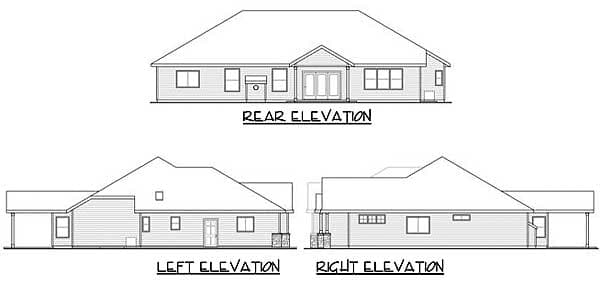

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,668 sq. ft.

1st Floor

2,668 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

69' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

766 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Architectural Style

Northwest

Ranch

Special Features

Bedrooms - Split

Home Office

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,668 sq. ft.

1st Floor

2,668 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

69' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

766 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Architectural Style

Northwest

Ranch

Special Features

Bedrooms - Split

Home Office

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Home Office
