Plan 36685TX 3-Bed One-Story Craftsman Home Plan Under 2500 Square Feet with Angled 2-Car Garage

2,494 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed One-Story Craftsman Home Plan Under 2500 Square Feet with Angled 2-Car Garage

Plan 36685TX

  • 2,494

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A 2-car garage comes off at an angle on this one-story Craftsman house plan with 3 beds, 2 baths and 2,494 square feet of heated living. Above the 654 square foot garage, there is 248 square feet of bonus expansion space available.
  • French doors open to reveal a foyer with views that extend through the family room with fireplace and a beamed 11' ceiling to the covered outdoor lounge in back.
  • To the left, a formal dining room with a 10' beamed tray ceiling and a study - a great place for work-from-home time - can be found.
  • The kitchen has a corner pantry and a large island with sink and casual seating. The breakfast nook is steps away and has access to the covered outdoor lounge.
  • Two bedrooms share a bath on the right side of the home, leaving the back-left corner dedicated to the private master suite. The suite includes a sitting area, two walk-in closets and a beautiful bath with a tub, shower, two vanities and private toilet.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

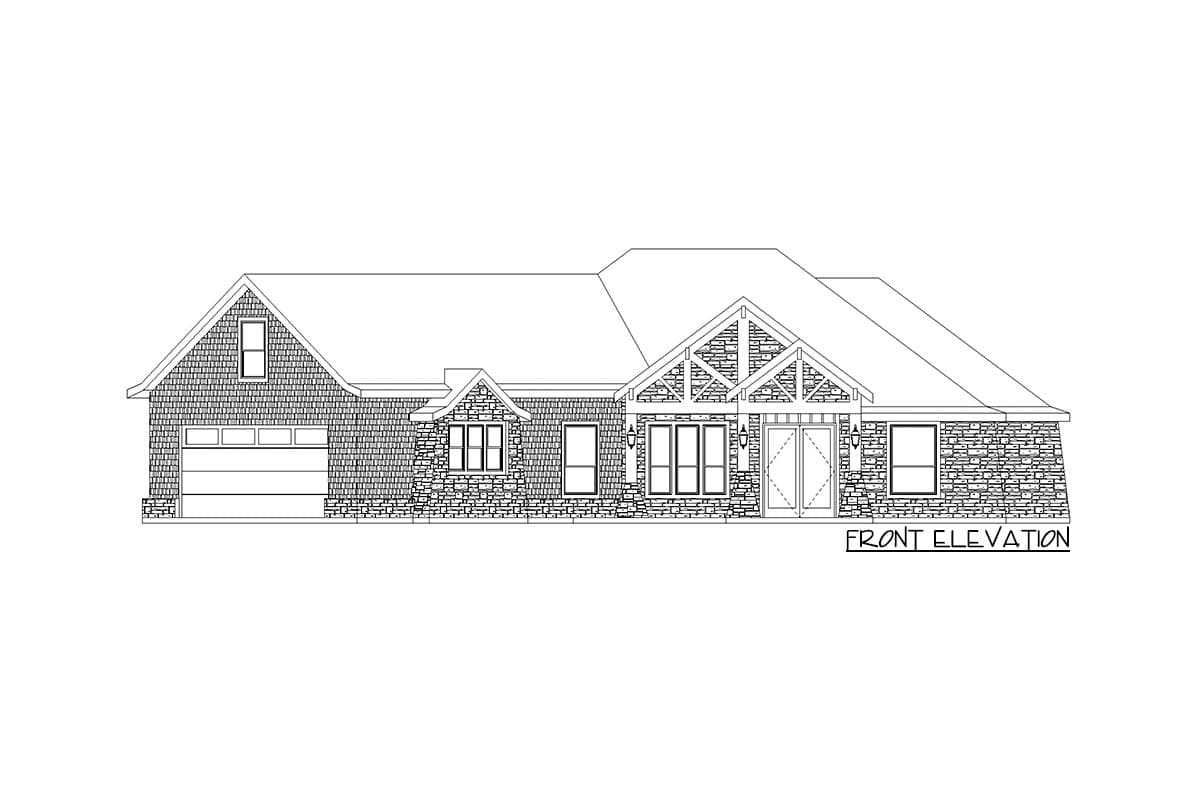

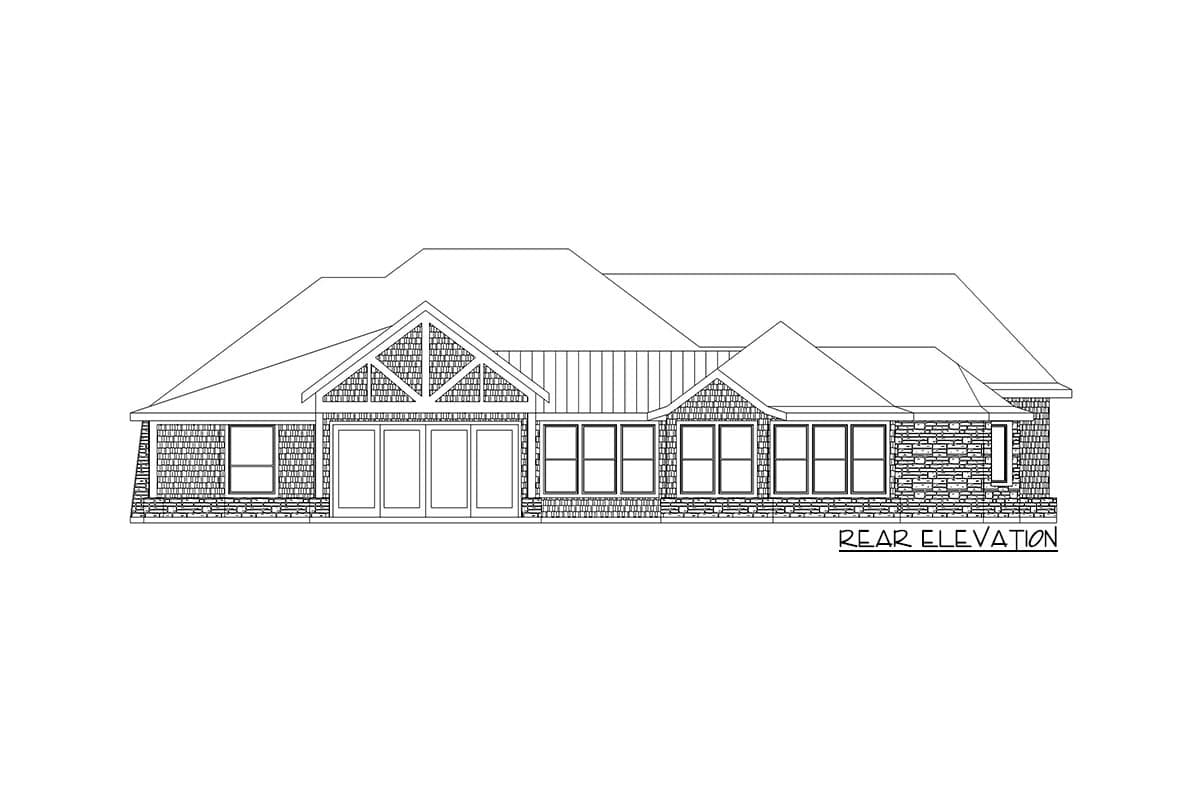

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

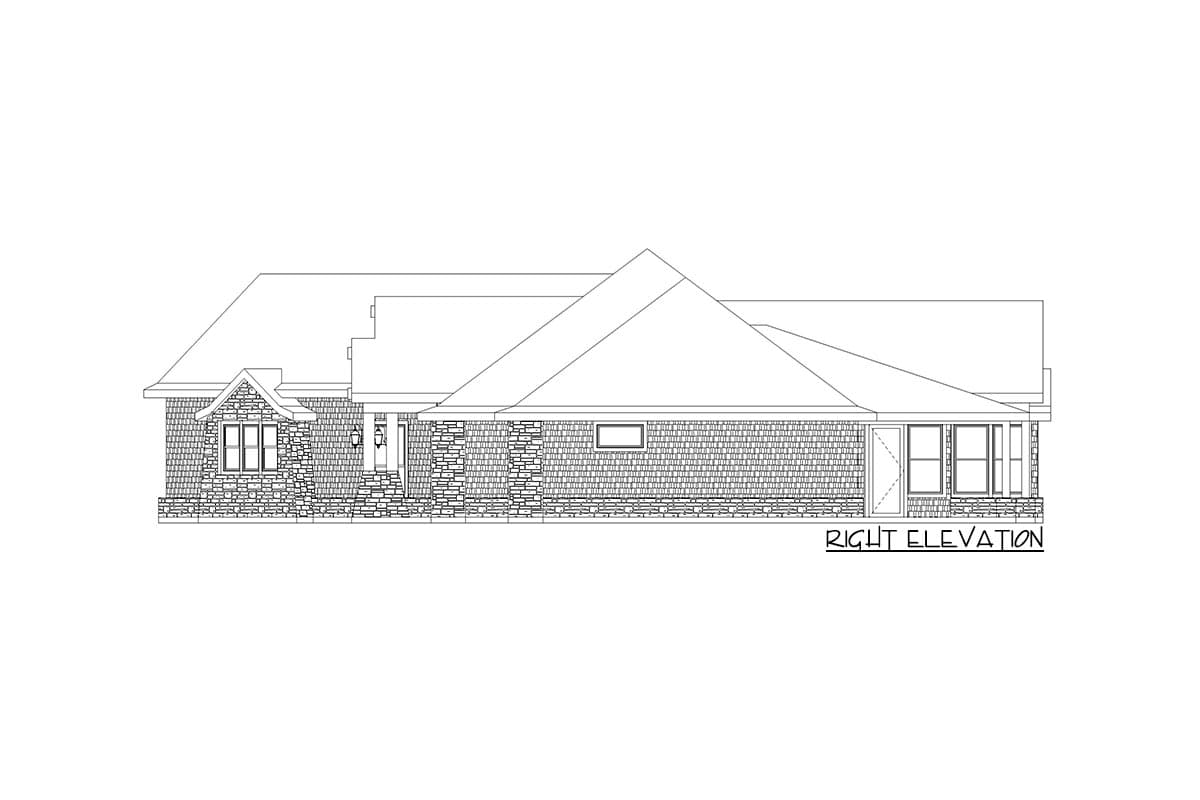

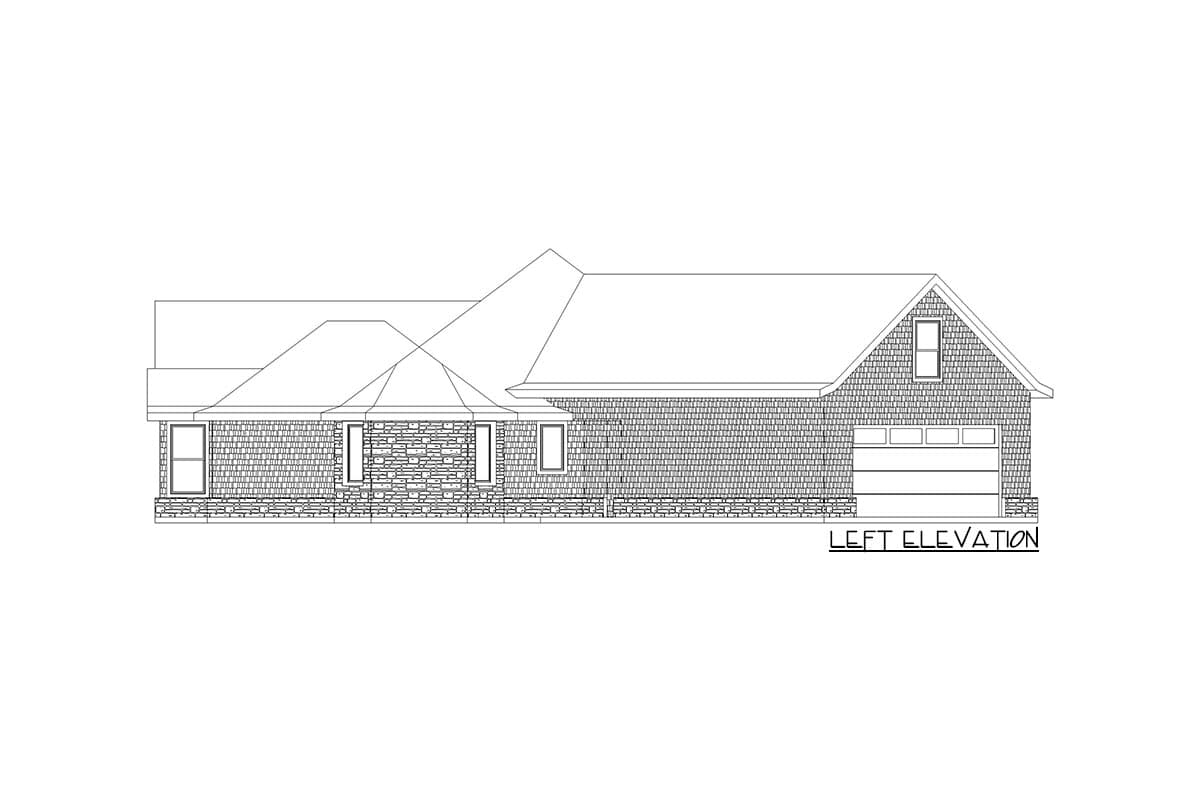

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

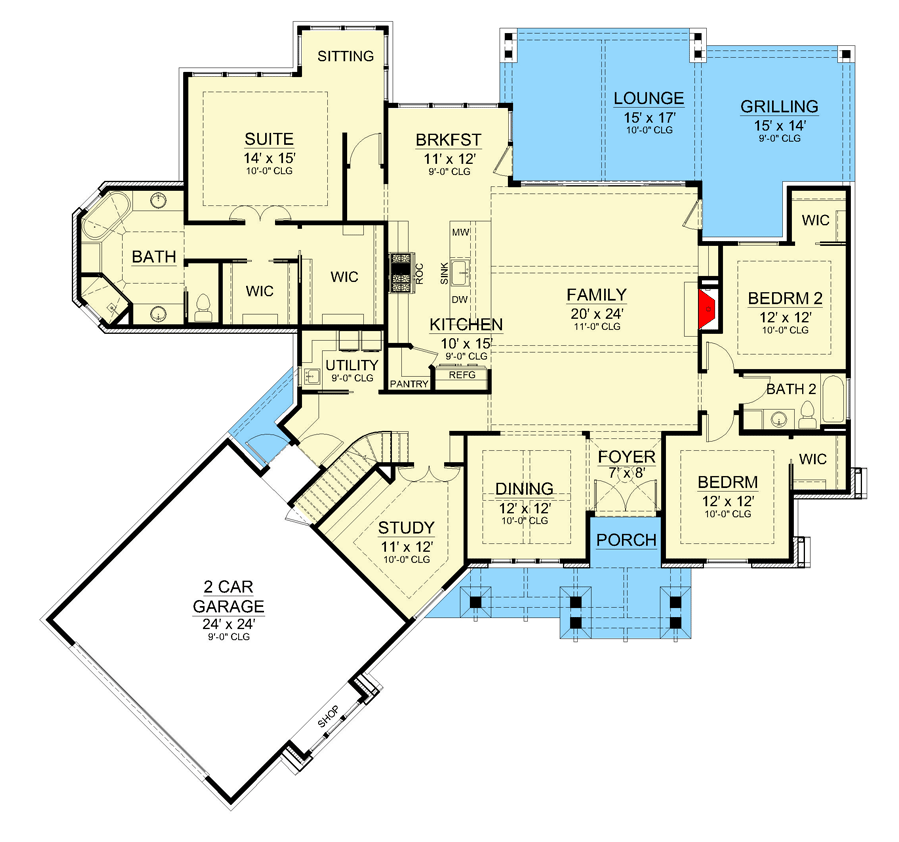

3-Bed One-Story Craftsman Home Plan Under 2500 Square Feet with Angled 2-Car Garage - 36685TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

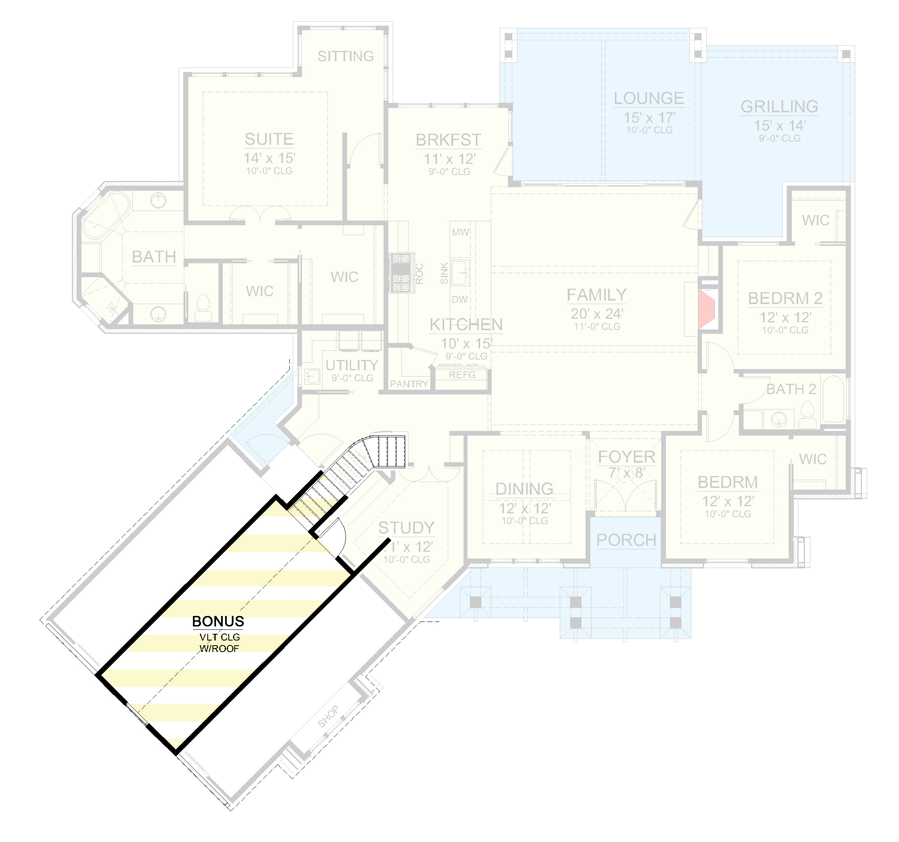

3-Bed One-Story Craftsman Home Plan Under 2500 Square Feet with Angled 2-Car Garage - 36685TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,494 sq. ft.
  • 1st Floor: 2,494 sq. ft.
  • Bonus: 248 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 76' 4"

Garage

  • Type: Attached
  • Area: 654 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Architectural Style

Special features

3-Bed One-Story Craftsman Home Plan Under 2500 Square Feet with Angled 2-Car Garage

  • 2,494

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,015
  • 5 Sets $1,215
  • CAD + PDF - Single Build $1,520
  • View all purchase option online

About This Plan

  • A 2-car garage comes off at an angle on this one-story Craftsman house plan with 3 beds, 2 baths and 2,494 square feet of heated living. Above the 654 square foot garage, there is 248 square feet of bonus expansion space available.
  • French doors open to reveal a foyer with views that extend through the family room with fireplace and a beamed 11' ceiling to the covered outdoor lounge in back.
  • To the left, a formal dining room with a 10' beamed tray ceiling and a study - a great place for work-from-home time - can be found.
  • The kitchen has a corner pantry and a large island with sink and casual seating. The breakfast nook is steps away and has access to the covered outdoor lounge.
  • Two bedrooms share a bath on the right side of the home, leaving the back-left corner dedicated to the private master suite. The suite includes a sitting area, two walk-in closets and a beautiful bath with a tub, shower, two vanities and private toilet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,494 sq. ft.
  • 1st Floor: 2,494 sq. ft.
  • Bonus: 248 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 76' 4"

Garage

  • Type: Attached
  • Area: 654 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"
