3-Bed Raised Ranch Home Plan with Cathedral Ceilings - 1333 Sq Ft

Heated S.F.
1,333
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2
Tour

Floor Plan

Plan 623388DJ

Main Level
Main Level
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623388DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

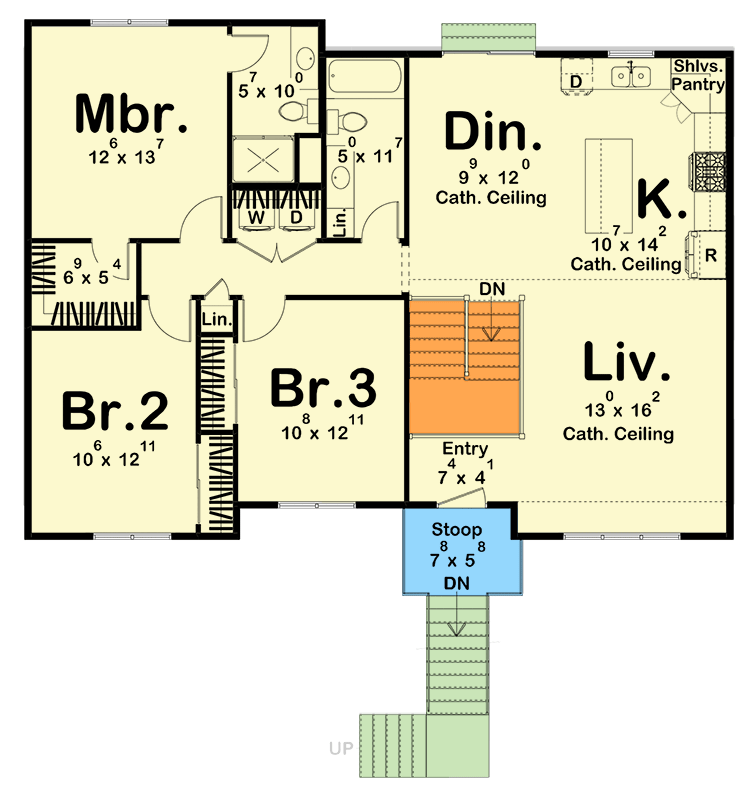

Plan 623388DJ: 3-Bed Raised Ranch Home Plan with Cathedral Ceilings - 1333 Sq Ft - Floor Plan - Main Level - New American, Ranch, Traditional

Optional Lower Level Layout ($ Paid Option)

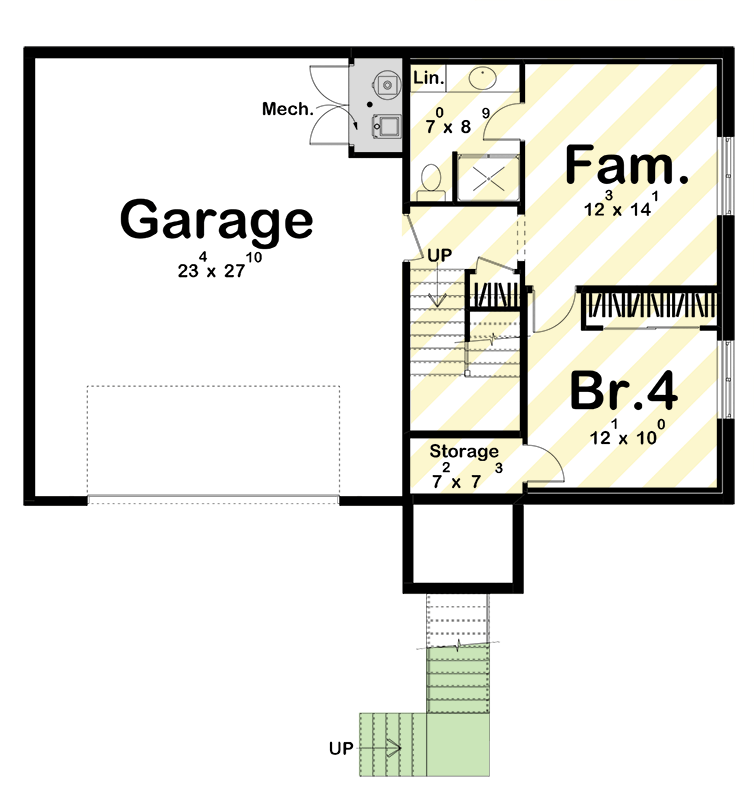

Plan 623388DJ: 3-Bed Raised Ranch Home Plan with Cathedral Ceilings - 1333 Sq Ft - Floor Plan - Optional Lower Level Layout ($ Paid Option) - New American, Ranch, Traditional

Plan Details

  • This raised ranch is perfect for families as it gives an open-concept main floor that features a living room, dining area, and kitchen ideal for gatherings.
  • The master bedroom includes an ensuite bath and a walk-in closet. Two additional bedrooms on the main floor share a bathroom.
  • The optionally finished lower level offers a family room, private bedroom, and bathroom. A 2-car garage provides ample storage.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,333 sq. ft.

1st Floor

1,333 sq. ft.

Optional Lower Level

563 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

36' 8"

Max Ridge Height

16' 10"

Garage

Type

Attached, Drive Under, Standard

Area

643 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

1,333 sq. ft.

1st Floor

1,333 sq. ft.

Optional Lower Level

563 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

36' 8"

Max Ridge Height

16' 10"

Garage

Type

Attached, Drive Under, Standard

Area

643 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Split Level
