3-Bed Ranch for Front Sloping Lot

Plan 64536SC

This plan plants 3 trees

3,071
Heated s.f.
3
Beds
2.5
Baths
1
Stories
3
Cars

This 3-bedroom Ranch plan is ideal for front sloping lots and features a rear 3-car garage with entry from the side. This design totals 3,071 square feet of living space.
Exposed beams decorate the ceiling of the living / dining space, which opens onto a wraparound deck. The island kitchen includes a large range and an office next door provides plenty of natural light.
French doors in the master bedroom grant access to the front porch, and a barn door reveals an elongated master bathroom with 5-fixtures.
A powder bath and laundry room is just off the mud hall near the garage entry.
Downstairs, you will find a generous rec room with a wet bar that opens onto a 16'-deep patio. Bedrooms 2 and 3 are located on this level and share a Jack-and-Jill bathroom.

This plan includes the following details:

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

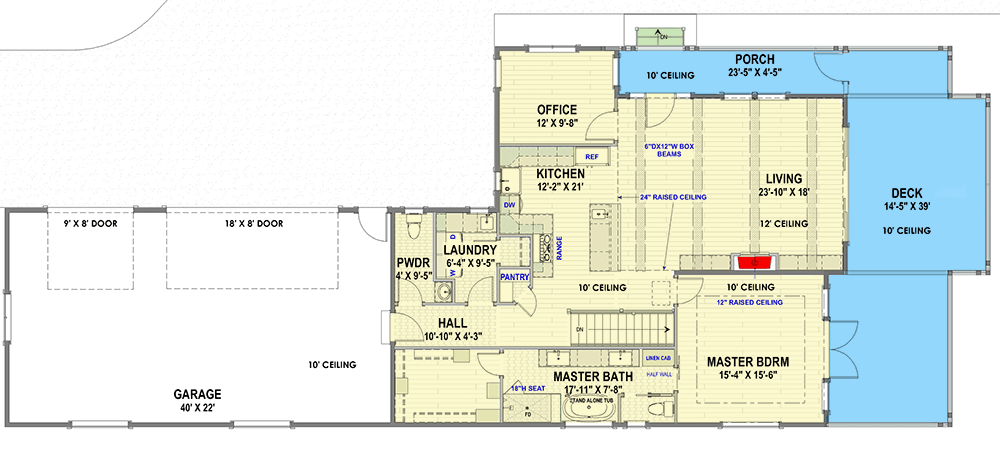

3-Bed Ranch for Front Sloping Lot - 64536SC floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

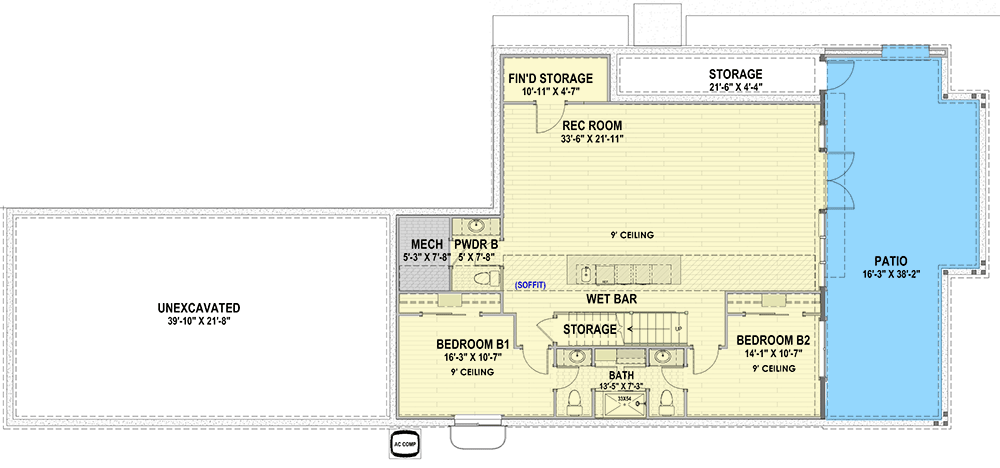

3-Bed Ranch for Front Sloping Lot - 64536SC floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,071 sq. ft.
Lower Level: 1,488 sq. ft.
1st Floor: 1,583 sq. ft.

Covered Patio: 437 sq. ft.
Deck & Porch: 437 sq. ft.
Porch, Front: 211 sq. ft.
Optional Lower Level: 1,488 sq. ft.
Basement Unfinished: 165 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 103' 6"
Depth: 40' 0"
Max ridge height: 23' 1"

Garage

Type: Attached
Area: 944 sq. ft.
Count: 3 Cars
Entry Location: Side, Front

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

Primary Pitch: 4 on 12

Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Scroll


3-Bed Ranch for Front Sloping Lot 3,071 Heated s.f. 3 Beds 2.5 Baths 1 Floors 3 Car garage Buy This Plan PDF - Single-Build $1,595 PDF - Unlimited Build $2,095 CAD + PDF - Single-Build $2,195 CAD + PDF - Unlimited Build $2,895 View all purchase option online About This Plan This 3-bedroom Ranch plan is ideal for front sloping lots and features a rear 3-car garage with entry from the side. This design totals 3,071 square feet of living space. Exposed beams decorate the ceiling of the living / dining space, which opens onto a wraparound deck. The island kitchen includes a large range and an office next door provides plenty of natural light. French doors in the master bedroom grant access to the front porch, and a barn door reveals an elongated master bathroom with 5-fixtures. A powder bath and laundry room is just off the mud hall near the garage entry. Downstairs, you will find a generous rec room with a wet bar that opens onto a 16'-deep patio. Bedrooms 2 and 3 are located on this level and share a Jack-and-Jill bathroom. Floor Plans Main Level Lower Level Plan Details Square Footage Breakdown Total Heated Area: 3,071 sq. ft. Lower Level: 1,488 sq. ft. 1st Floor: 1,583 sq. ft. Covered Patio: 437 sq. ft. Deck & Porch: 437 sq. ft. Porch, Front: 211 sq. ft. Optional Lower Level: 1,488 sq. ft. Basement Unfinished: 165 sq. ft. Beds/Baths Bedrooms: 3 Full bathrooms: 2 Half bathrooms: 1 Foundation Type Standard Foundations: Walkout Exterior Walls Standard Type(s): 2x6 Dimensions Width: 103' 6" Depth: 40' 0" Max ridge height: 23' 1" Garage Type: Attached Area: 944 sq. ft. Count: 3 Cars Entry Location: Side, Front Ceiling Heights Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Roof Primary Pitch: 4 on 12 Framing Type: Stick And Truss
