Plan 22166SL

3-Bed Ranch Home Plan with Bedrooms Clustered to One Side

Heated S.F.
1,699
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 22166SL

Main Level
Main Level

Plan 22166SL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

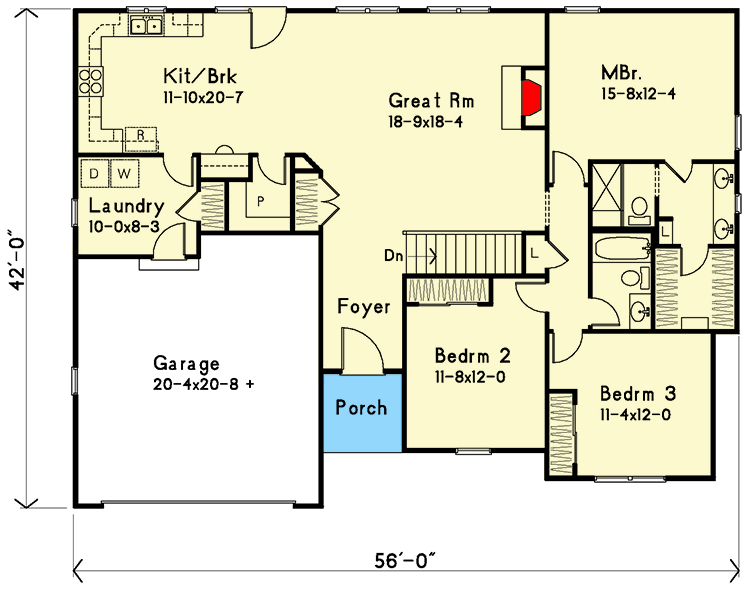

Plan 22166SL: 3-Bed Ranch Home Plan with Bedrooms Clustered to One Side - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This one-story home plan offers 3 bedrooms clustered to the right leaving the rest of the home for gathering with friends.
  • The foyer opens with views to the great room opened to the combined kitchen and breakfast room.
  • A pantry offers you storage and the laundry room is tucked out of the way by the garage entry.
  • Related Plan: Get a slightly different exterior with house plan 22165SL.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,699 sq. ft.

1st Floor

1,699 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 0"

Depth

42' 0"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

457 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,699 sq. ft.

1st Floor

1,699 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

56' 0"

Depth

42' 0"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

457 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
