Plan 20134GA

3 Bed Ranch Home Plan with Bonus and Lower Level Expansion - 1700 Sq Ft

Heated S.F.

1,700

Beds

3-4

Baths

2 - 4

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

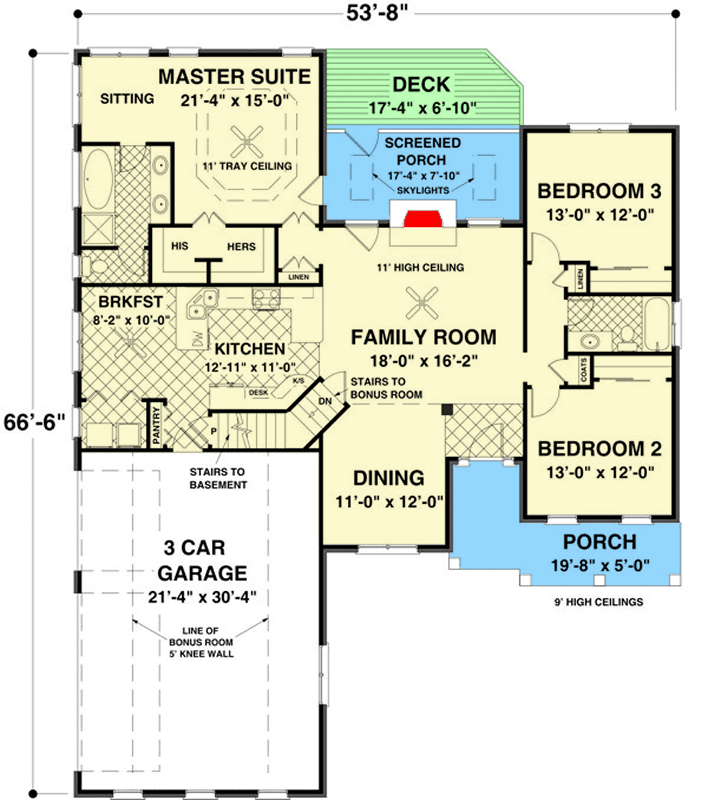

3 Bed Ranch Home Plan with Bonus and Lower Level Expansion - 1700 Sq Ft - 20134GA floor plan - Main Level

Optional Lower Level

Reverse Floor Plan

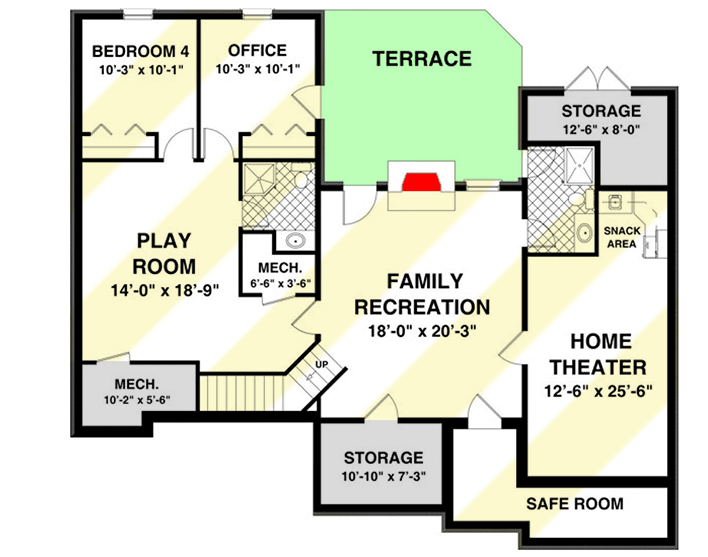

3 Bed Ranch Home Plan with Bonus and Lower Level Expansion - 1700 Sq Ft - 20134GA floor plan - Optional Lower Level

Plan Details

This striking and distinctive ranch includes all the frills. From the inviting front porch to the screen porch and deck, this home provides dramatic spaces, luxurious appointments, and spacious living areas.
Its carefully designed 1700 square feet provide the feel and features of a much larger home. The 451 sq. ft. bonus room is accessible from the family room.
NOTE: Please allow 2 to 4 weeks for delivery.
Related Plans: Get a shed dormer with house plan 20097GA (1,700 sq. ft.), an alternate version with house plans 2018GA (1,787 sq. ft.), 20103GA (3 car garage, 1,800 sq. ft.).

What's Included

Digital exterior rendering cover page
Exterior elevation page
Main floor plan page with electrical, 3-D floor plan, and window and door schedule
Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
Cross sections and interior elevation page
Roof framing plan with 3-D roof framing schematic
IRC code specifications and methodologies
General construction details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,700 sq. ft.

1st Floor:

1,700 sq. ft.

Bonus:

451 sq. ft.

Optional Lower Level:

1,820 sq. ft.

Beds/Baths

Bedrooms:

3 or 4

Full bathrooms:

2, 3, or 4

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

53' 8"

Depth:

66' 6"

Max Ridge Height:

21' 2"

Garage

Type:

Attached

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch:

7 on 12

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
