3 Bed Ranch Home Plan with Entry Porch

Plan 57340HA

Level 1 Certified
Modular Friendly

1,364
Heated s.f.
3
Beds
2
Baths
1
Stories

This 3 bed ranch house plan has a covered entry porch.
The kitchen has a snack bar adjacent to the dining area.
The living room is highlighted with several windows.
The master bedroom features a spacious walk-in closet and private bath.
Plenty of storage space throughout.

· Front Cover Sheet
· Detailed Floor Plans
· Foundation Plan
· Roof Plan
· Exterior Elevations
· Interior Elevations
· Cross Section
· Mechanical – Shows location of furnace
· Electrical – Shows location of outlets, switches and fixtures
· Plumbing – Shows location of fixtures

Floor Plan

Main Level

Pinit white

Reverse Floor Plan

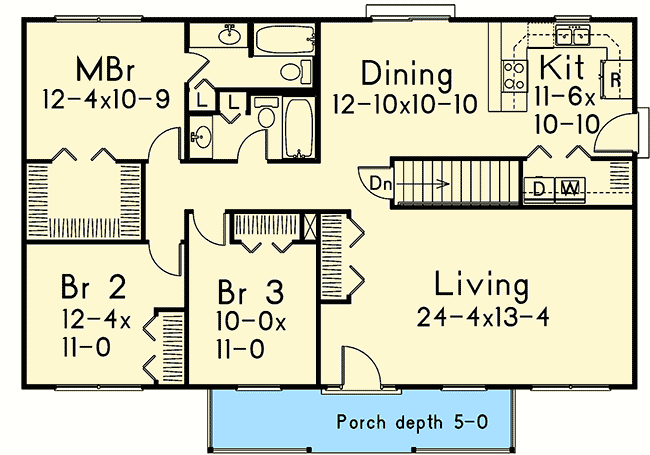

3 Bed Ranch Home Plan with Entry Porch - 57340HA floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,364 sq. ft.
1st Floor: 1,364 sq. ft.

Basement Unfinished: 1,364 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Basement, Crawl

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 48' 0"
Depth: 34' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Framing Type: Stick

Architectural Style

Special features

Scroll


3 Bed Ranch Home Plan with Entry Porch 1,364 Heated s.f. 3 Beds 2 Baths 1 Floors Buy This Plan PDF - single-use $675 5 Sets $725 Reproducible Set $725 8 Sets $800 View all purchase option online About This Plan This 3 bed ranch house plan has a covered entry porch. The kitchen has a snack bar adjacent to the dining area. The living room is highlighted with several windows. The master bedroom features a spacious walk-in closet and private bath. Plenty of storage space throughout. Floor Plans Main Level Plan Details Square Footage Breakdown Total Heated Area: 1,364 sq. ft. 1st Floor: 1,364 sq. ft. Basement Unfinished: 1,364 sq. ft. Beds/Baths Bedrooms: 3 Full bathrooms: 2 Foundation Type Standard Foundations: Basement, Crawl Exterior Walls Standard Type(s): 2x4 Dimensions Width: 48' 0" Depth: 34' 0" Ceiling Heights Floor / Height: First Floor / 9' 0" Roof Framing Type: Stick Architectural Style Ranch Traditional Special features 1st Floor Master Suite PDF
