3-Bed Ranch Home Plan with Large Game Room
Heated S.F.
3,060
Beds
3
Baths
2.5+
Stories
1
Cars
3
What's Included
Plan Details
  • Tapered columns support the front porch, flanked by stone accents, on the front elevation of this 3-bedroom, ranch home plan.
  • The foyer leads directly into the great room, which connects to the eat-in kitchen. Windows line the rear wall to allow for a light and airy living space, and an angled island houses the double-bowl sink in the spacious kitchen.
  • Entertaining is made easy with the massive game room, complete with a cathedral ceiling, pocket doors for privacy, a wet bar, half bath, and vault.
  • The bedrooms occupy the left wing of the home. The master bedroom is rear facing and includes a 5-fixture bathroom and a walk-in closet.
  • The double garage protrudes from the front of the home and is joined by a single garage bay. A half bath and laundry room with a coat closet line the entrance from the garage.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Ranch Home Plan with Large Game Room

  • 3,060

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

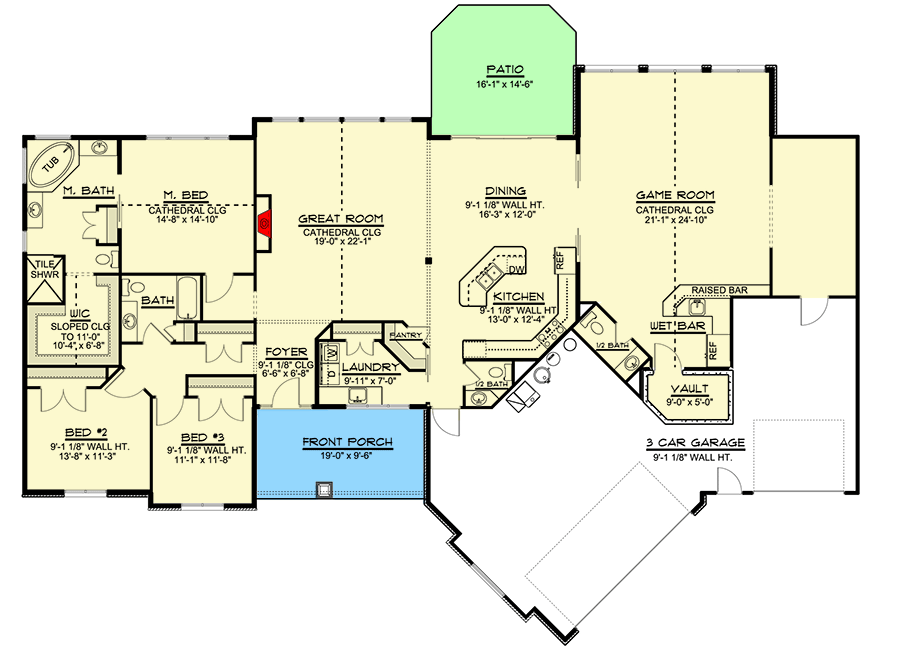

Floor Plan
