3-Bed Ranch Home Plan with Large Wrap-Around Porch

Plan 530025UKD

This plan plants 3 trees

1,630
Heated s.f.
3
Beds
2.5
Baths
1
Stories

Enjoy outdoor living, including a fireplace and summer kitchen, with the 595 square foot, wrap-around porch on this 3-bedroom, ranch home plan.
Inside, the living room opens to the kitchen where a cooktop island anchors the space, and the surrounding windows create a light and airy interior.
The washer and dryer closet is conveniently located near the kitchen to allow you to multi-task.
The master bedroom is privately situated towards the rear of the home, and includes a 4-fixture bath, while bedrooms 2 and 3 share a Jack-and-Jill bath.
Related Plans: Get 2 bed versions with house plan 530008UKD, 530009UKD and 530010UKD.

Below is a listing of sheets typically included in our plans:

1. Title Sheet - Isometric of Front Elevation

2. Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0

3. Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house. ¼” = 1’-0 scale

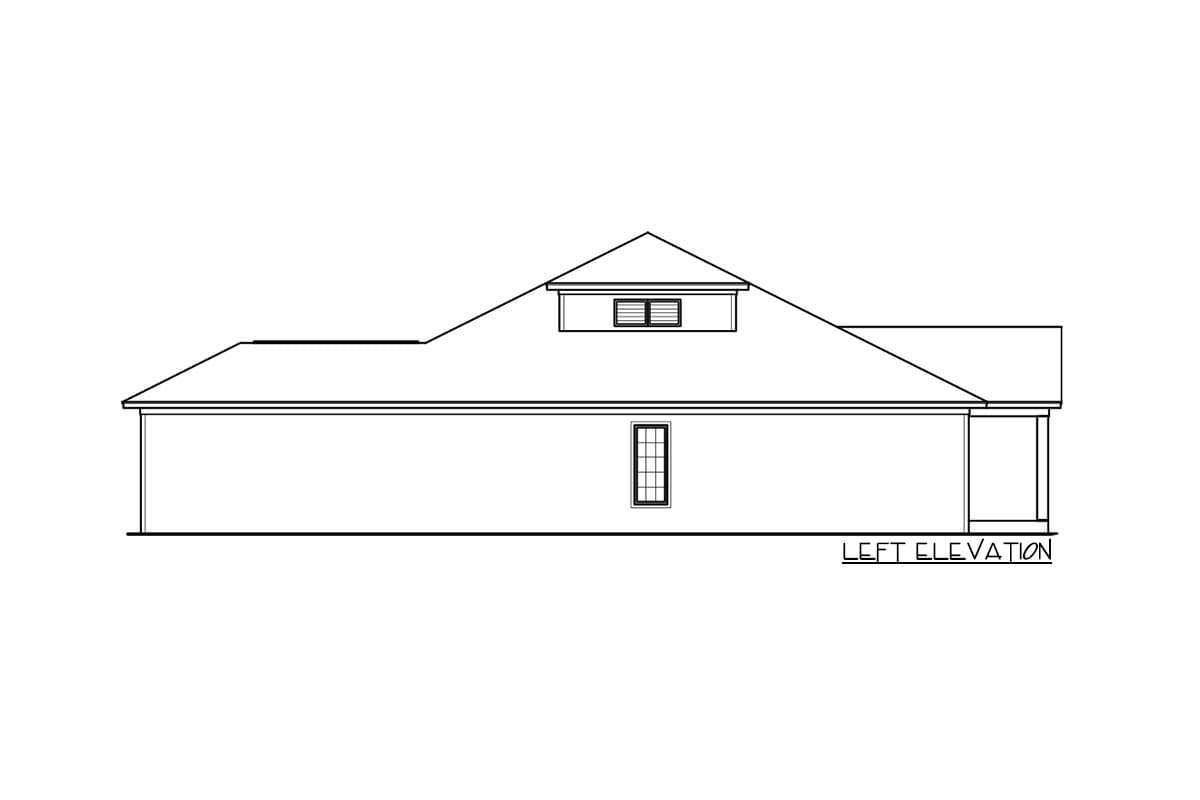

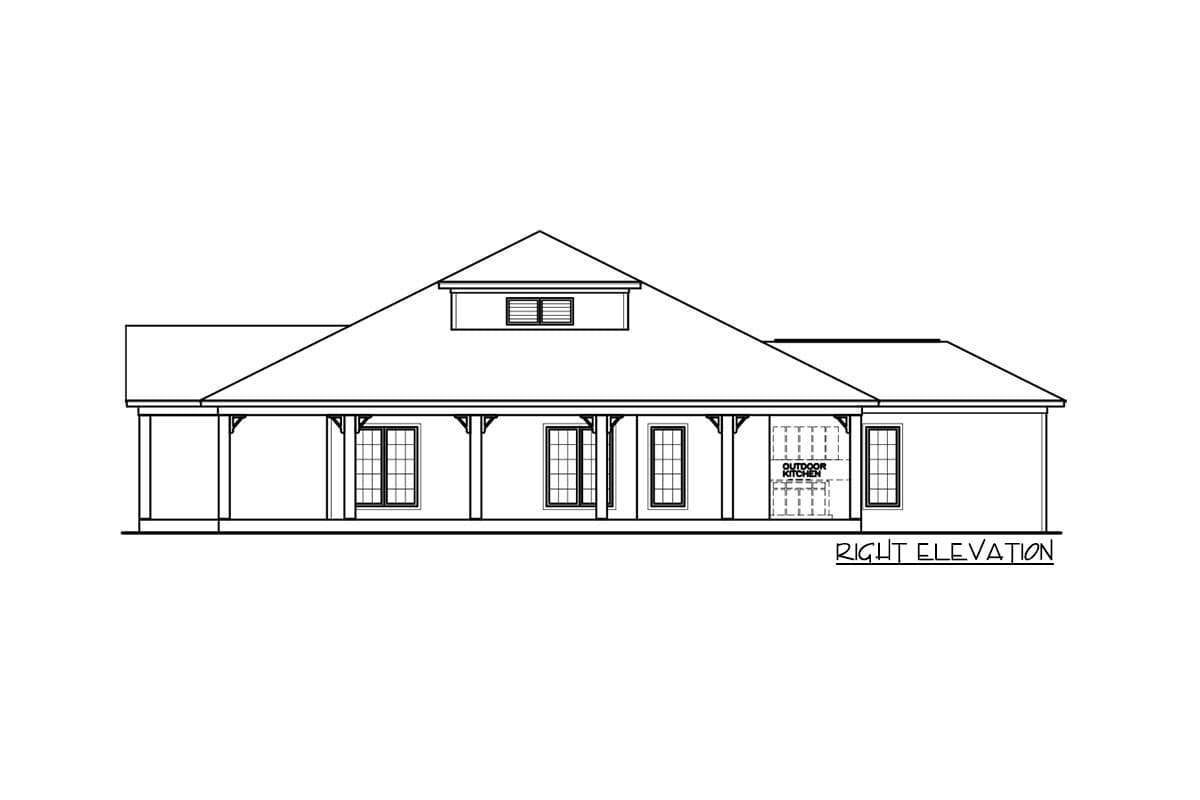

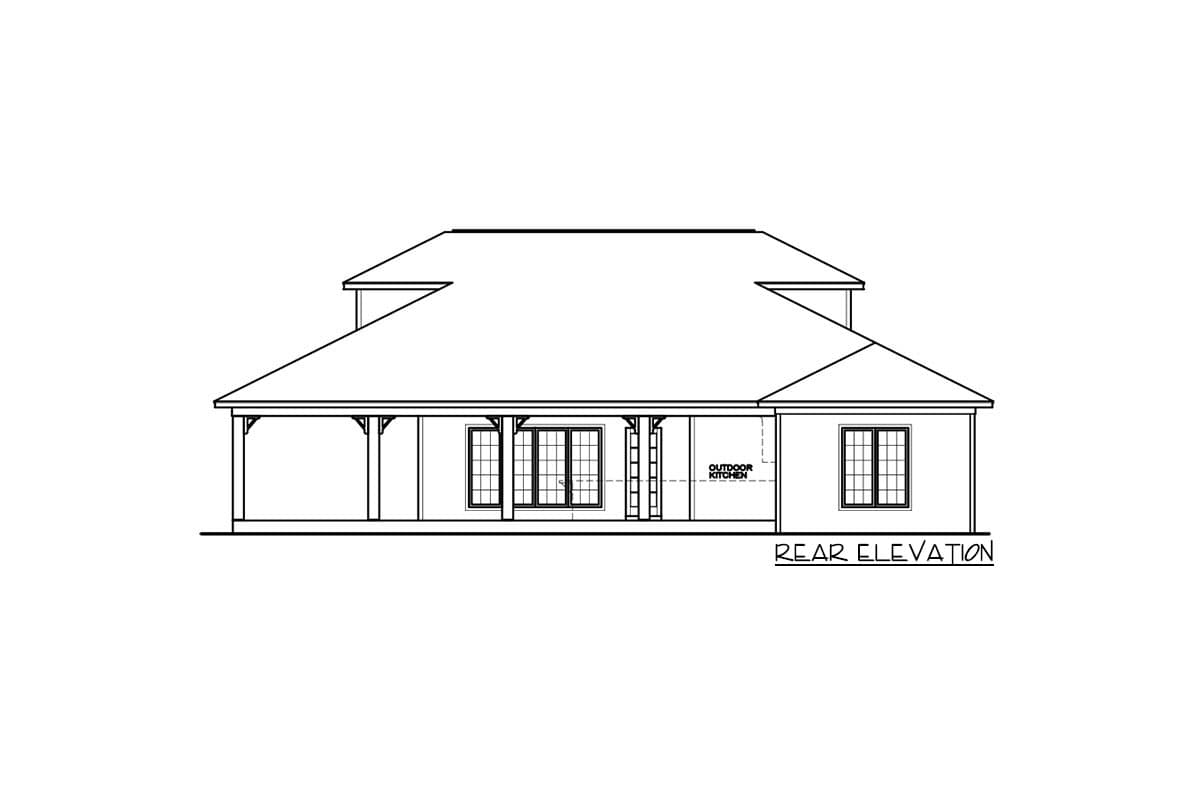

4. Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0

5. Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.

6. Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.

7. Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.

8. Roof Framing Plan - provides guideline for rafters, ridges, hip framing

9. Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.

10. Notes & Details ‐ per IRC 2015

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3-Bed Ranch Home Plan with Large Wrap-Around Porch - 530025UKD floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,630 sq. ft.
1st Floor: 1,630 sq. ft.

Porch, Combined: 1,451 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 56' 0"
Depth: 55' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 6 on 12

Architectural Style
