Plan 530008UKD
Graceful Southern Cottage
Heated S.F.
1,419
Beds
2
Baths
2.5
Stories
1
What's Included
Plan Details

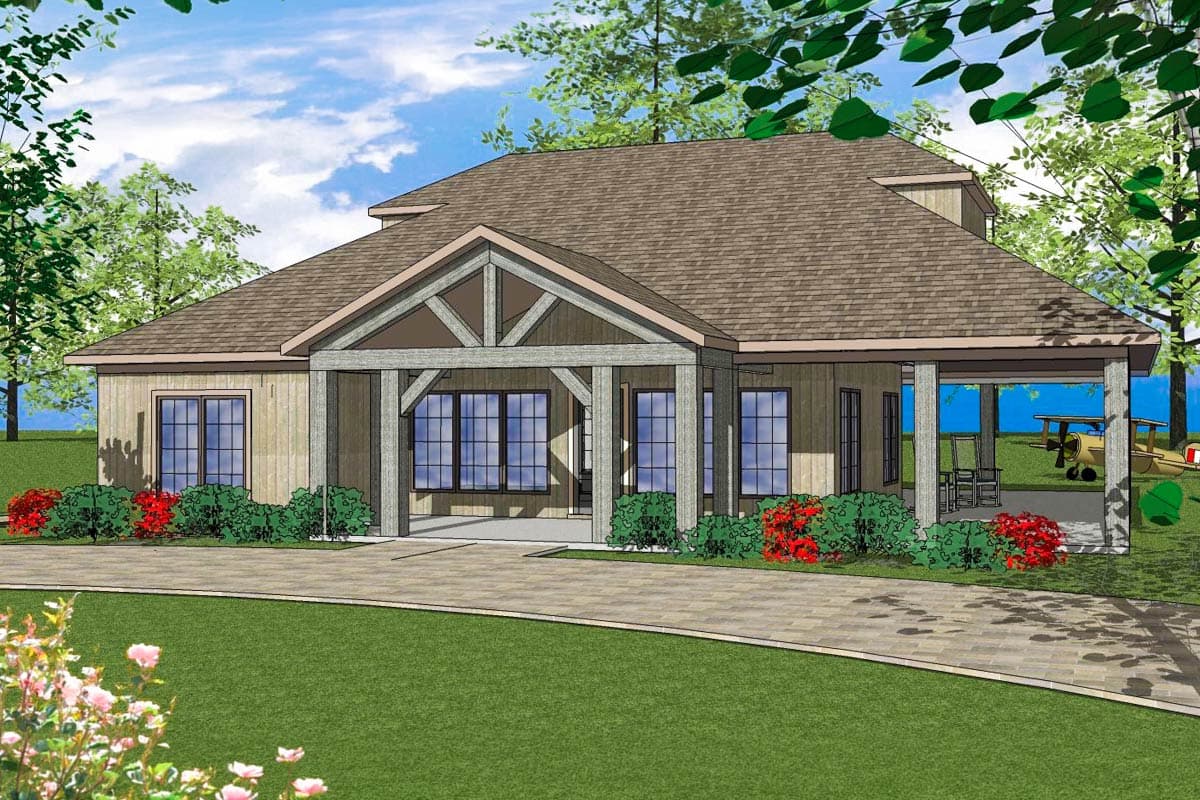

  • With a gorgeous wrap-around porch that's almost as big as the house itself, this graceful Southern Cottage will give you indoor and outdoor living.
  • The main living area inside has a huge open layout that makes the home feel bigger.
  • Windows on all sides open up with views of the covered porch.
  • The outdoor kitchen, ceiling fans and outdoor fireplace ensure you'll be spending lots of time enjoying the fresh air.
  • Each of the two bedrooms has a private bathroom and the master suite in back has a lovely tray ceiling plus a walk-in closet.
  • Related Plans: See other versions of this plan with 530007UKD, 530009UKD and 530010UKD.
What's Included

  • Title Sheet -  Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details.  ¼” = 1’-0
  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.  ¼” = 1’-0 scale
  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches.  ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.
  • Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Graceful Southern Cottage

  • 1,419

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

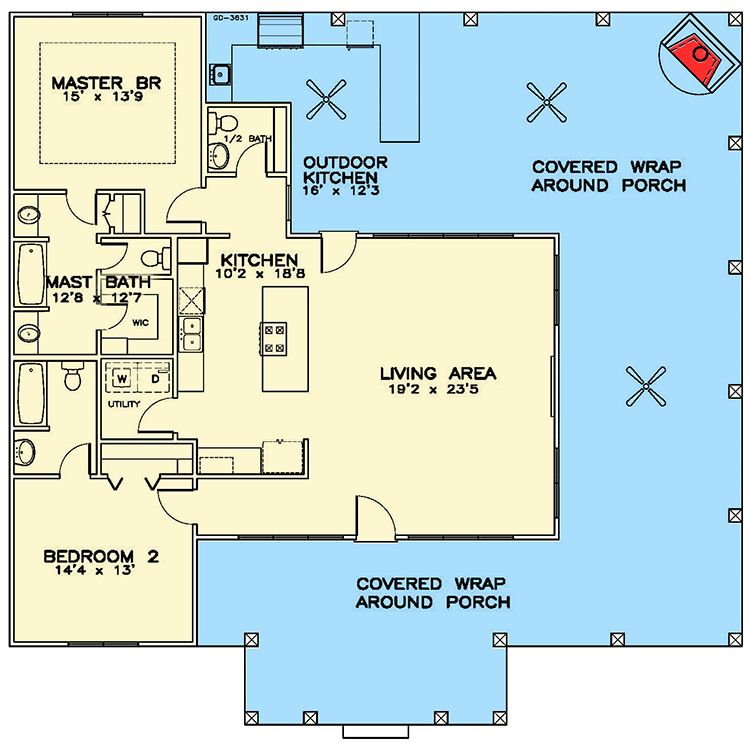

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,419 sq. ft.
  • 1st Floor: 1,419 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
