Plan 83600CRW
3-Bed Ranch Home Plan with Two Master Bath Layouts - 1410 Sq Ft
Heated S.F.
1,410
Beds
3
Baths
2
Stories
1
Floor Plan

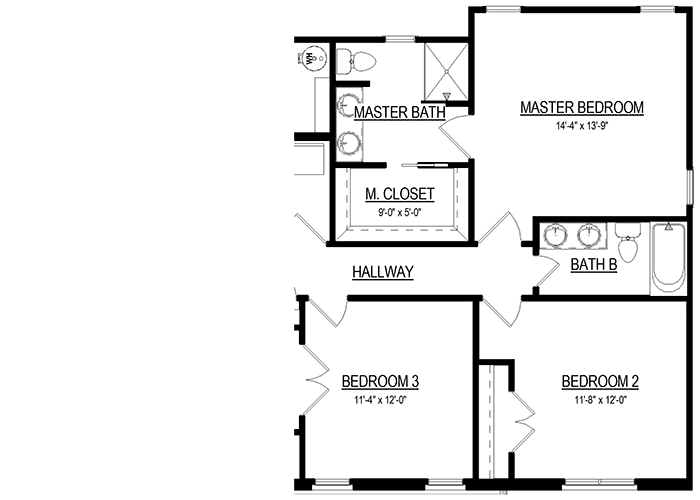

Optional Master Bath
Reverse Floor Plan
3-Bed Ranch Home Plan with Two Master Bath Layouts - 1410 Sq Ft - 83600CRW floor plan - Optional Master Bath
Plan Details
  • This thoughtfully designed 3-bedroom ranch home plan features a traditional brick exterior and a welcoming walk-up front porch.
  • A versatile family room in the front of the home gives you complete design freedom. A spacious eat-in kitchen opens to a generously sized back porch.
  • Your master suite offers backyard views and comes with two different bathroom designs.
  • Two additional bedroom share a full bath.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details

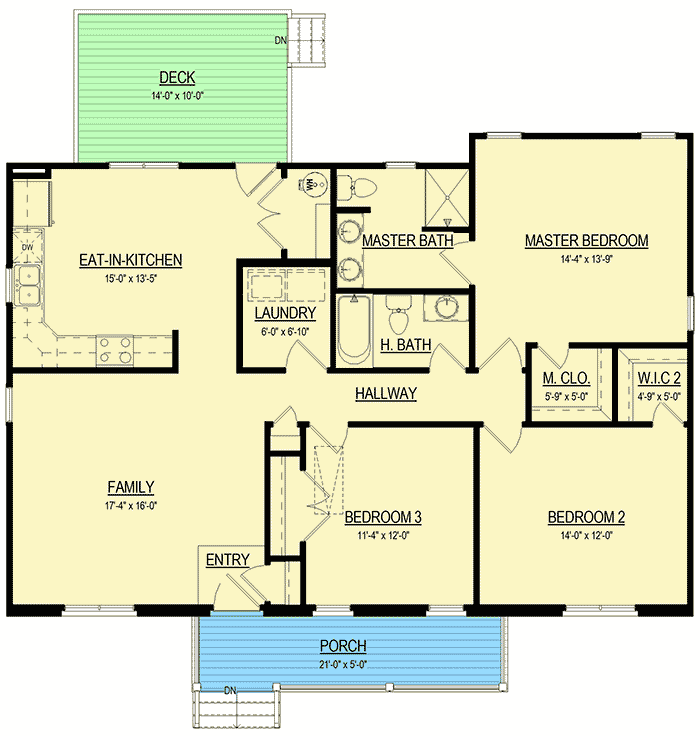

  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

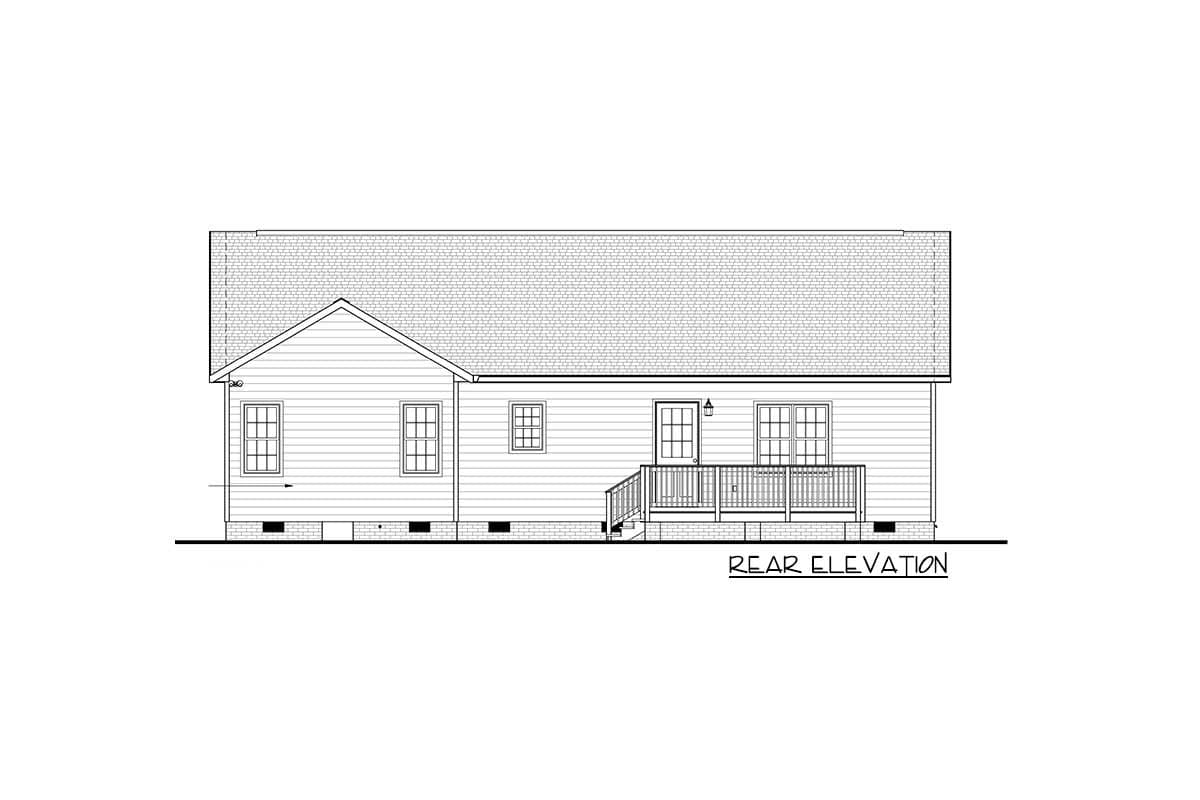

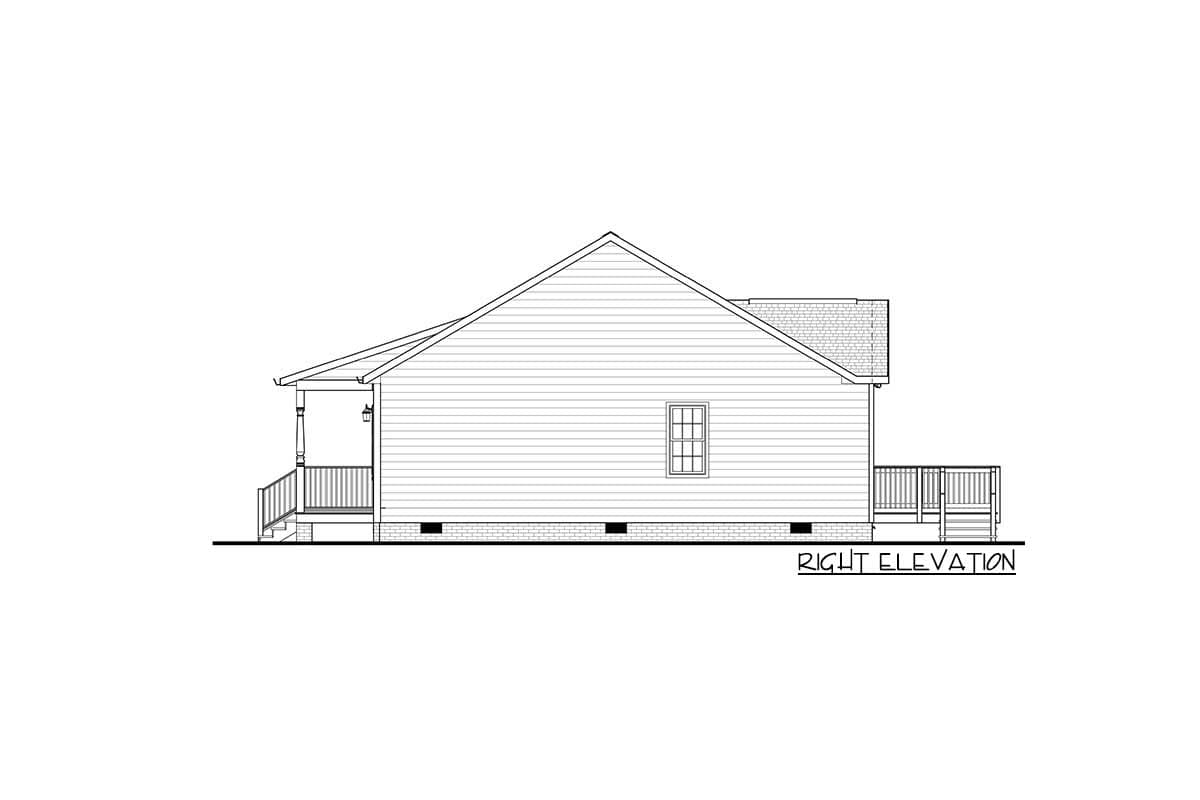

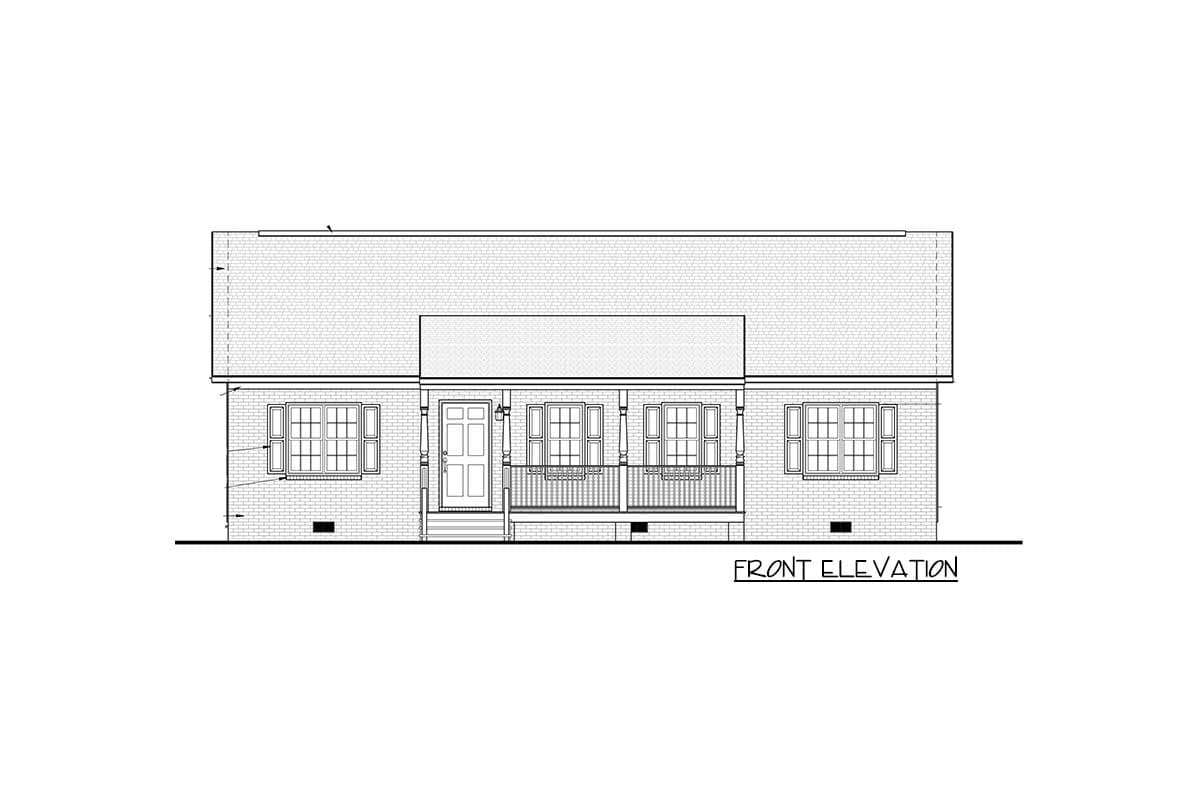

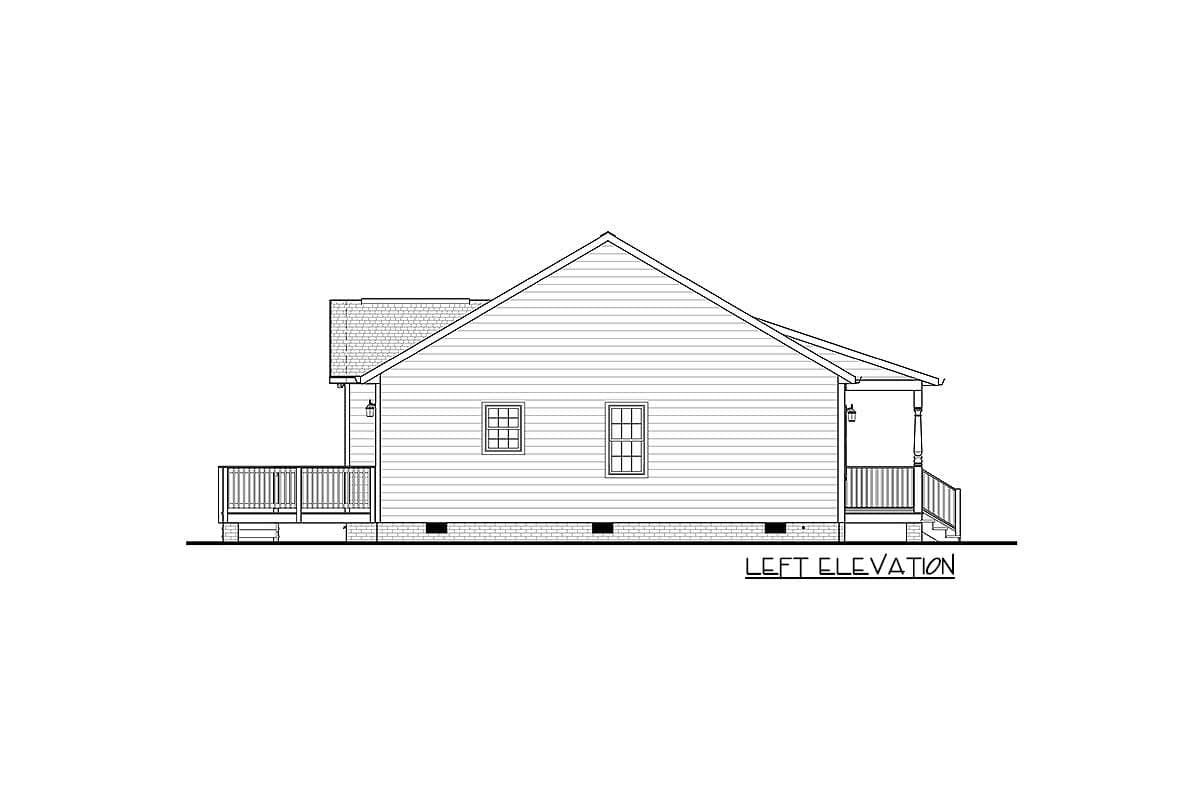

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Ranch Home Plan with Two Master Bath Layouts - 1410 Sq Ft

  • 1,410

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Optional Master Bath

Plan Details

Square Footage Breakdown

  • Total: 1,410 sq. ft.
  • 1st Floor: 1,410 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 32' 0"
  • Max ridge height: 20' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
