Plan 42654DB

3-Bed Ranch House Plan with Rear Deck

Heated S.F.
1,837
Beds
3
Baths
2
Stories
1
Cars
2

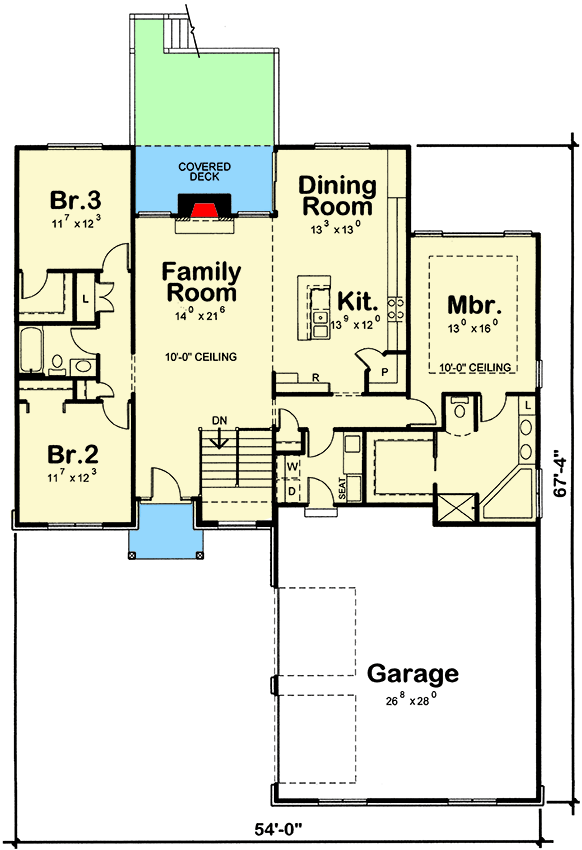

Floor Plan

Plan 42654DB

Main Level
Main Level

Plan 42654DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 42654DB: 3-Bed Ranch House Plan with Rear Deck - Floor Plan - Main Level - Country, Craftsman, Ranch, Traditional

Plan Details

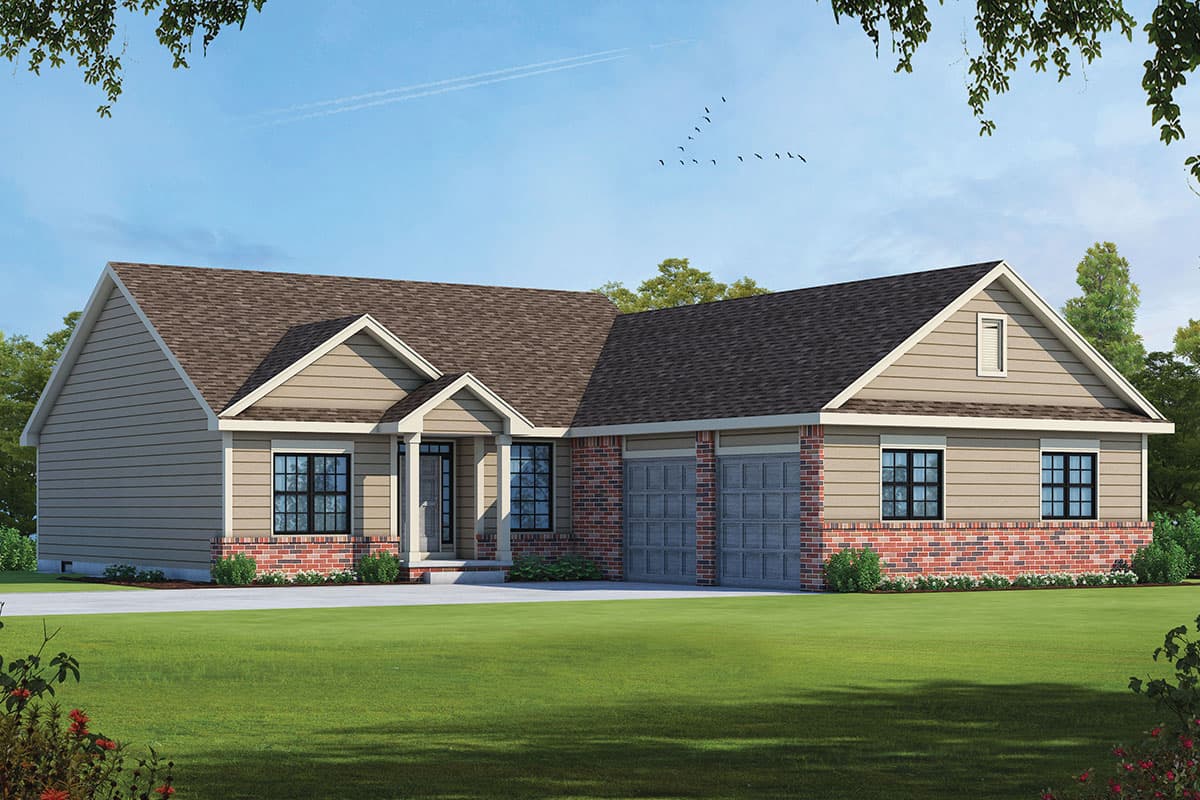

  • The protruding garage creates an L-shape to this 3-bedroom, ranch house plan, wrapped in lap siding with brick accents.
  • Once inside, the family room is warmed by a fireplace on the rear wall, and the open floor plan creates a seamless flow between the family room, kitchen, and dining area.
  • The central island in the kitchen hosts a double-bowl sink, and a corner pantry nearby increases storage space. Extended cabinets and counters line the right wall and create a built-in buffet in the dining room.
  • The master bedroom is set apart from the other bedrooms for the utmost privacy, and includes a 5-fixture bath and walk-in closet.
  • Two secondary bedrooms occupy the left side of the home, with a hall bath and linen closet in between the two rooms.

What's Included

  • General Notes

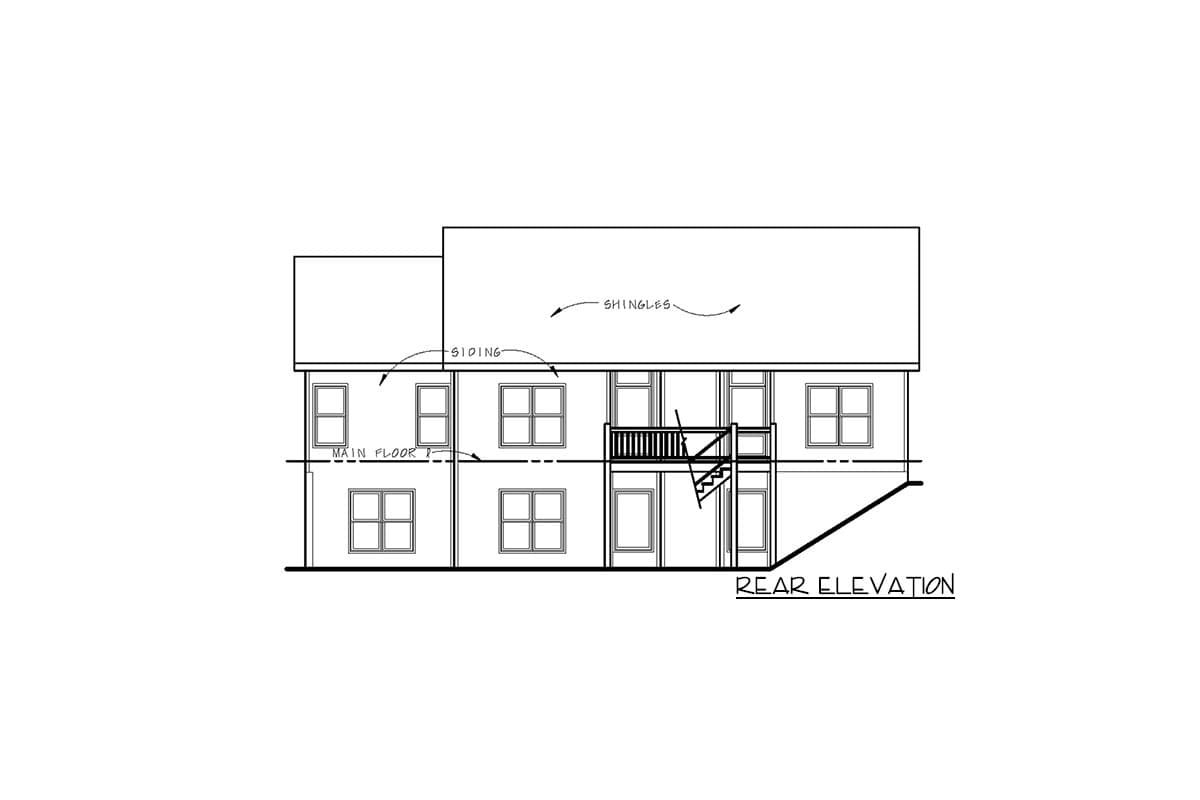

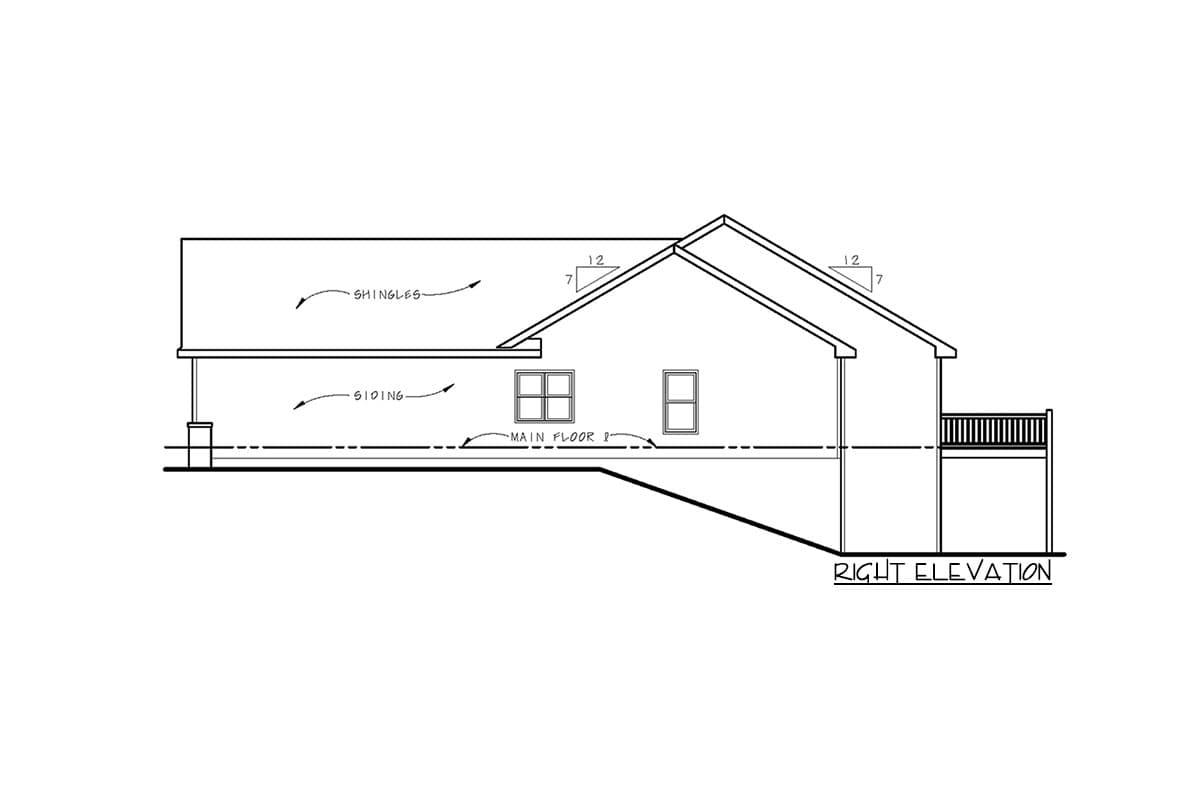

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,837 sq. ft.

1st Floor

1,837 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

67' 4"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

697 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

7 on 12

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Mudroom

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,837 sq. ft.

1st Floor

1,837 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

67' 4"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

697 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

7 on 12

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Mudroom

Plan Collections

Sloping Lot
