Plan 444314GDN 3-Bed Ranch Plan for Easy Living

2,636 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Ranch Plan for Easy Living

Plan 444314GDN

  • 2,636

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • An elegant facade, combined with a floor plan that balances openness with room definition, makes this 3-bedroom, one-level home ideal.
  • Windows usher in natural light and views, while decorative ceilings, french doors, and builtins add custom style.
  • The family / media room opens to the kitchen and features a staircase leading to the bonus room. The formal living room is warmed by a fireplace and crowned by a cathedral ceiling.
  • Twin walk-in closets in the master bedroom provide plenty of space for larger wardrobes.
  • Other notable features include the study (or 3rd bedroom) and sizable utility room that neighbors the mudroom's coat closet and a powder bath.
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

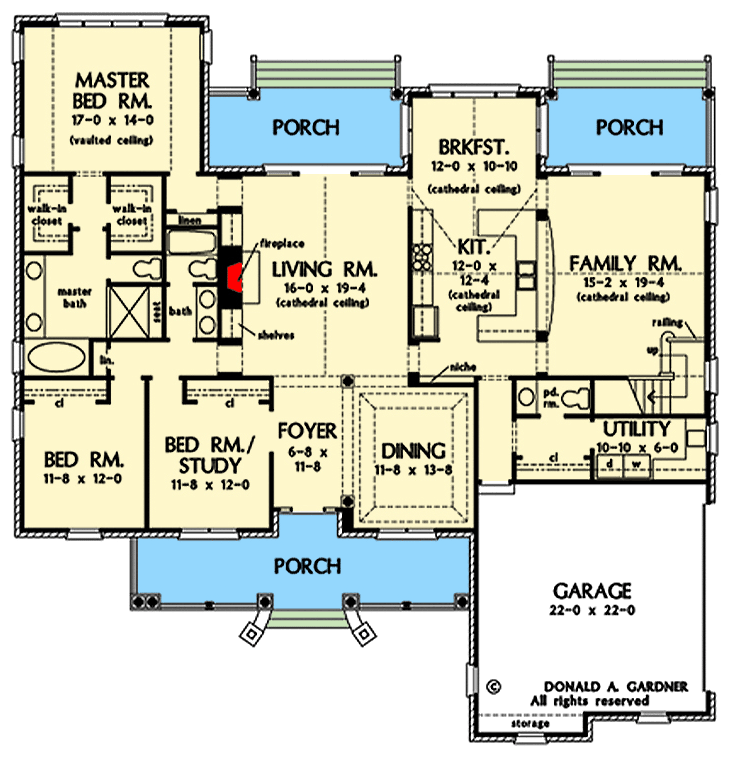

3-Bed Ranch Plan for Easy Living - 444314GDN floor plan - Main Level

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

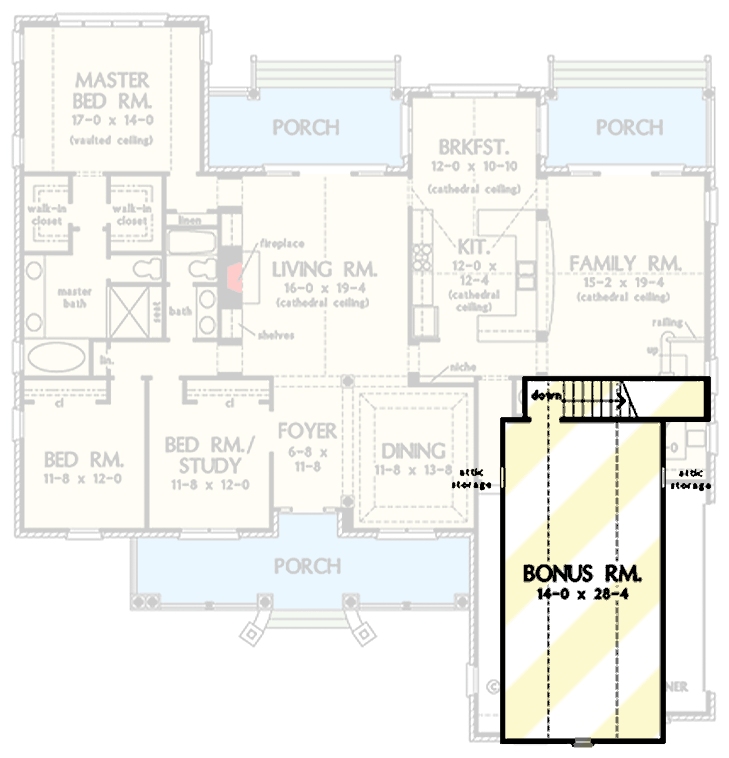

3-Bed Ranch Plan for Easy Living - 444314GDN floor plan - Bonus Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,636 sq. ft.
  • 1st Floor: 2,636 sq. ft.
  • Porch, Combined: 513 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 3"
  • Depth: 69' 9"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 557 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

3-Bed Ranch Plan for Easy Living

  • 2,636

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,350
  • PDF - Single-Build $1,550
  • CAD Unlimited + PDF $2,725
  • View all purchase option online

About This Plan

  • An elegant facade, combined with a floor plan that balances openness with room definition, makes this 3-bedroom, one-level home ideal.
  • Windows usher in natural light and views, while decorative ceilings, french doors, and builtins add custom style.
  • The family / media room opens to the kitchen and features a staircase leading to the bonus room. The formal living room is warmed by a fireplace and crowned by a cathedral ceiling.
  • Twin walk-in closets in the master bedroom provide plenty of space for larger wardrobes.
  • Other notable features include the study (or 3rd bedroom) and sizable utility room that neighbors the mudroom's coat closet and a powder bath.
  • Please allow 15 to 20 days for delivery if it includes the slab foundation option.

Floor Plans

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,636 sq. ft.
  • 1st Floor: 2,636 sq. ft.
  • Porch, Combined: 513 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 3"
  • Depth: 69' 9"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 557 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 444314GDN
View this and more for this plan by visiting www.architechtecturaldesigns.com/444314GDN
|
