3 Bed Ranch with 2 Bed Guest Cottage

Plan 72797DA

  • 2,536

    Heated s.f.

  • 1-5

    Beds

  • 1 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • A wheelchair-accessible 2-bedroom guest cottage at the rear gives this ranch-style house plan great versatility. The detached cottage could comfortably house a family member or two, young or old. Or it could be rented out as a separate unit.
  • In the main house, family living areas fill the left wing, while bedrooms are on the right. Natural light washes into the vaulted living room through a wide set of windows. On dark days and nights, the masonry fireplace offers a warm and welcoming focal point.
  • The ceiling drops and flattens where the living room flows into the kitchen/dining area. Standing at the kitchen sink, you face into the dining room across a convenient eating bar. Light washes in through a skylight and windows on two sides. One set opens onto a large patio, partially covered. Laundry appliances are nearby, in a utility room with direct patio access.
  • Another vaulted ceiling expands the owners' suite, which boasts two walk-in closets, patio access, a compact bathroom, and a roomy sitting area. A pool or spa tub could be right outside.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

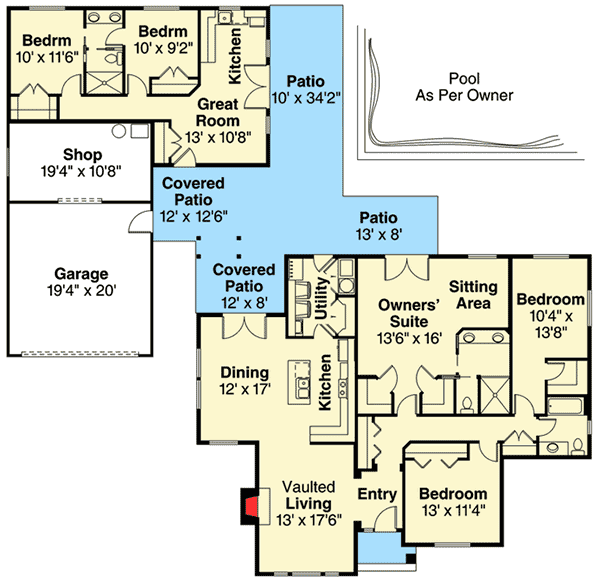

3 Bed Ranch with 2 Bed Guest Cottage - 72797DA floor plan - Main Level
