Plan 55158BR

3 Bed Ranch With Vaulted Living Room - 1243 Sq Ft

Heated S.F.
1,243
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 55158BR

Main Level
Main Level

Plan 55158BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

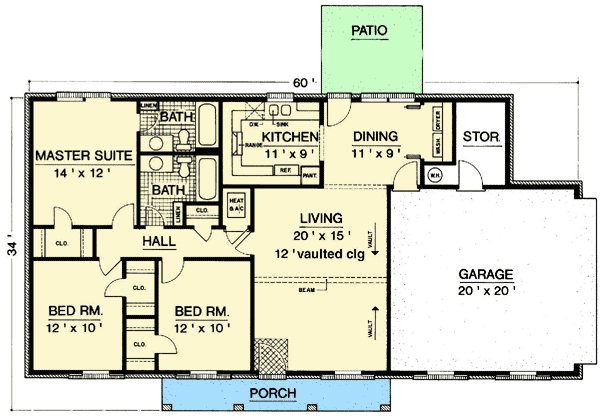

Plan 55158BR: 3 Bed Ranch With Vaulted Living Room - 1243 Sq Ft - Floor Plan - Main Level - Ranch, Southern

Plan Details

  • This 3 bedroom 2 bath house plan is very affordable and great for the first time home buyer. With an all brick exterior, it is also very inexpensive to maintain.
  • The clever layout of the footprint is designed to center the porch in the predominant roof span and it also insures that the doors and windows located at the front porch are centered between the support columns.
  • The "U" shaped kitchen is very functional and has a floor-to-ceiling pantry. The living room ceiling is vaulted to a height of 12' and supported by an exposed wood beam.
  • All bed rooms have large walk-in closets and are nicely sized.
  • The roof is stick framed with a 5:12 pitch.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,243 sq. ft.

1st Floor

1,243 sq. ft.

Porch, Front

100 sq. ft.

Storage

66 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

34' 0"

Max Ridge Height

16' 0"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
