3 Bed Rugged House Plan

Plan 80875PM

  • 1,469

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • Vertical siding with stone accents and covered entry supported by square timbers gives this 3 bed house plan a rugged look.
  • A closet in the entry gives you storage for coats and shoes.

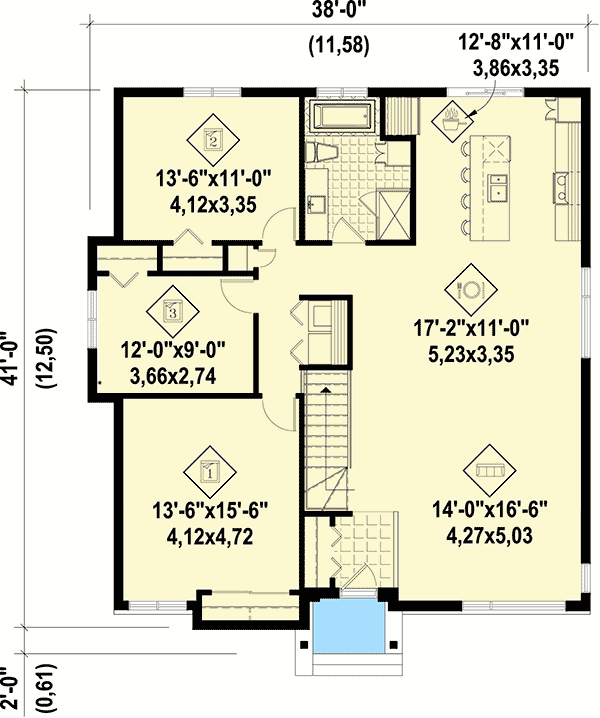

  • The right side of the home is open front to back and gives you a living room, dining area and kitchen with island seating for four. Sliding doors give you access to the rear yard.
  • The left side of the home gives you 3 bedrooms.
  • Related Plan: Get 2 bedrooms with house plan 80873PM.
  • NOTICE:  Please note that there will be a 3 week delivery delay for this plan.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Bed Rugged House Plan - 80875PM floor plan - Main Level

Architectural Style

Plan Collections

3 Bed Rugged House Plan

  • 1,469

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,469 sq. ft.
  • 1st Floor: 1,469 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 41' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
