Plan 270085AF
3-Bed Rustic Mid-Century Modern Cottage with 2-Car Garage - 1642 Sq Ft
Heated S.F.
1,642
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

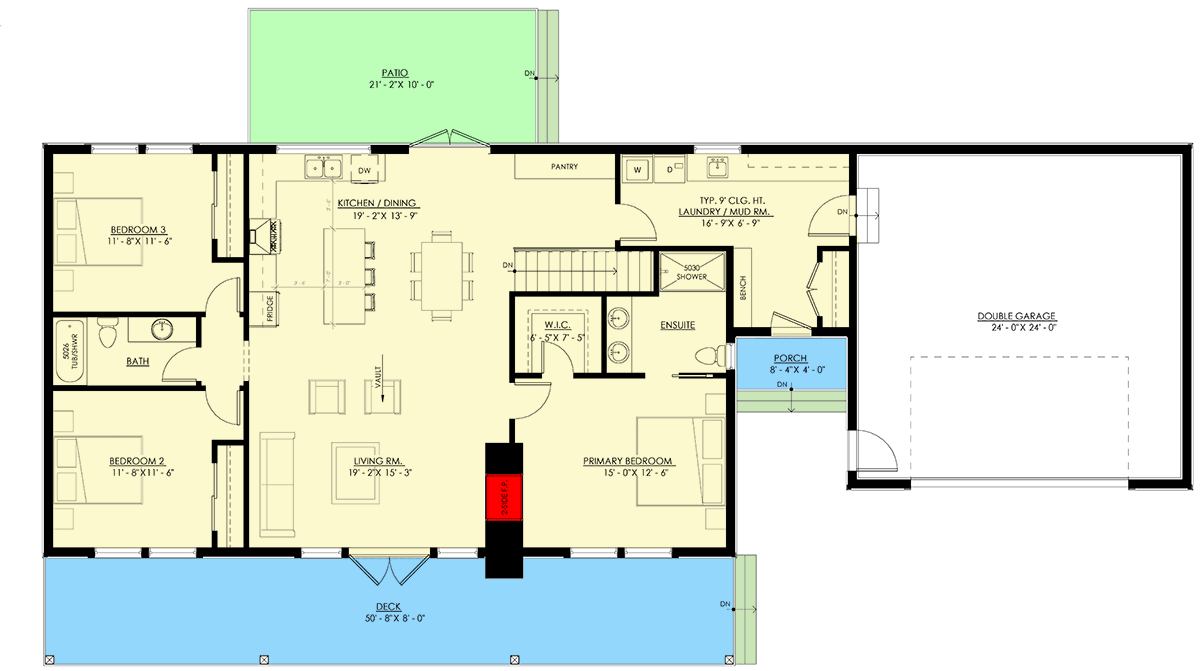

Main Level
Reverse Floor Plan
3-Bed Rustic Mid-Century Modern Cottage with 2-Car Garage - 1642 Sq Ft - 270085AF floor plan - Main Level

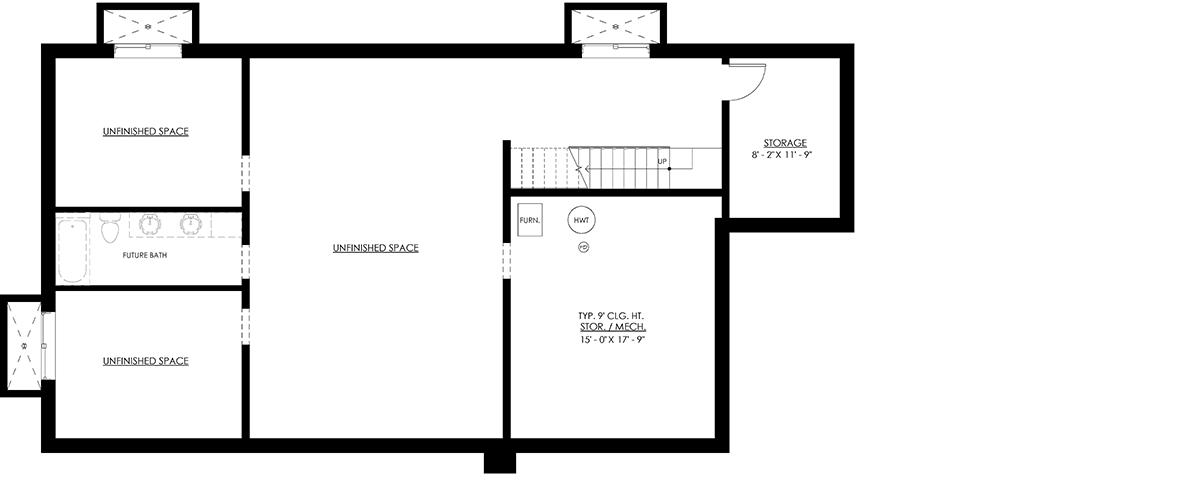

Optional Lower Level
Reverse Floor Plan
3-Bed Rustic Mid-Century Modern Cottage with 2-Car Garage - 1642 Sq Ft - 270085AF floor plan - Optional Lower Level
Plan Details

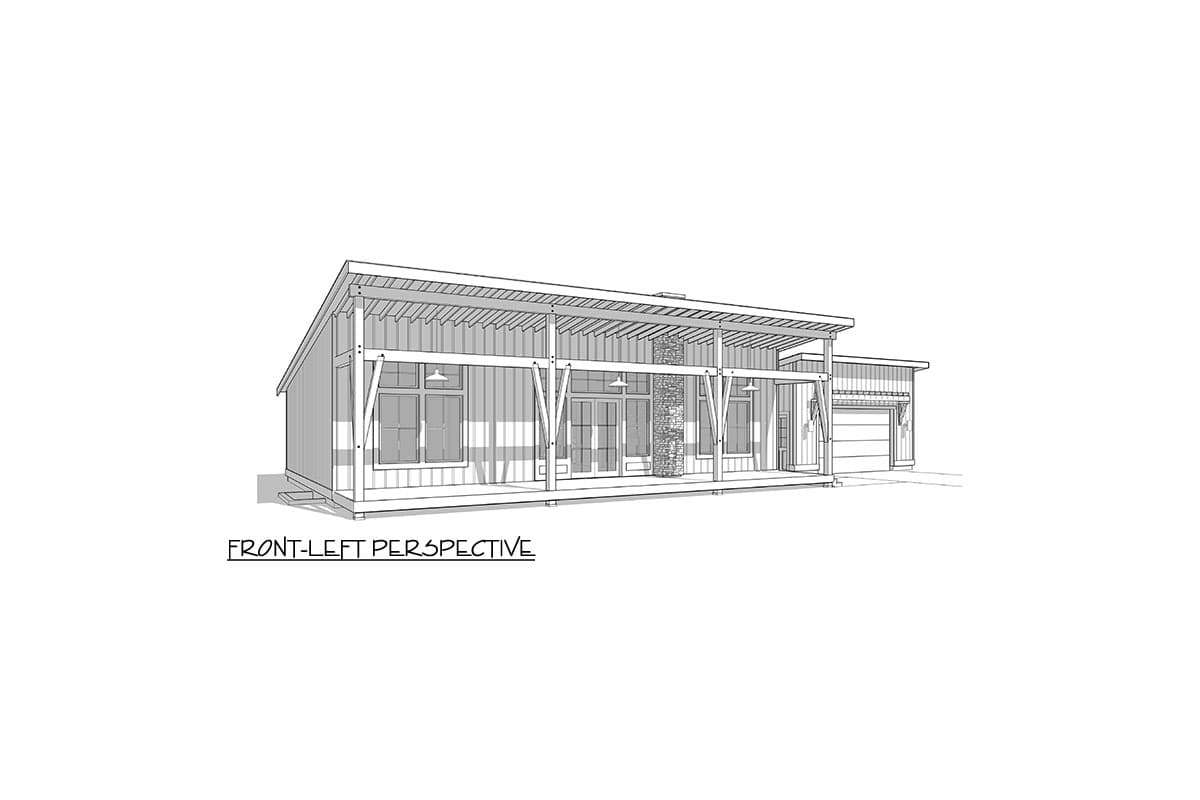

  • The front of this expanded 3-bed modern rustic cottage house plan gives you a 50'-8" wide (and 8'-deep) porch to enjoy the views of the water or the mountains.
  • The interior slopes from 8'4" along the kitchen end to 13'4" along the porch end.
  • All the rooms on the front have windows designed to capture the views.
  • A split bedrooms layout maximizes your privacy and leaves the middle of the home open concept.
  • A secondary entry into the expanded laundry mudroom provides a landing zone with coat closet and access to the 2-car front-entry garage.
  • Related Plans: Downsize and eliminate the garage with house plan 270037AF (1,380 sq. ft.) and a more modern Scandinavian-style exterior with house plan 270059AF (1,378 sq. ft.) Get an alternate layout with a modern farmhouse exterior with house plan 270042AF (1,458 sq. ft.) and plan 270092AF (1,378 sq. ft.)
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

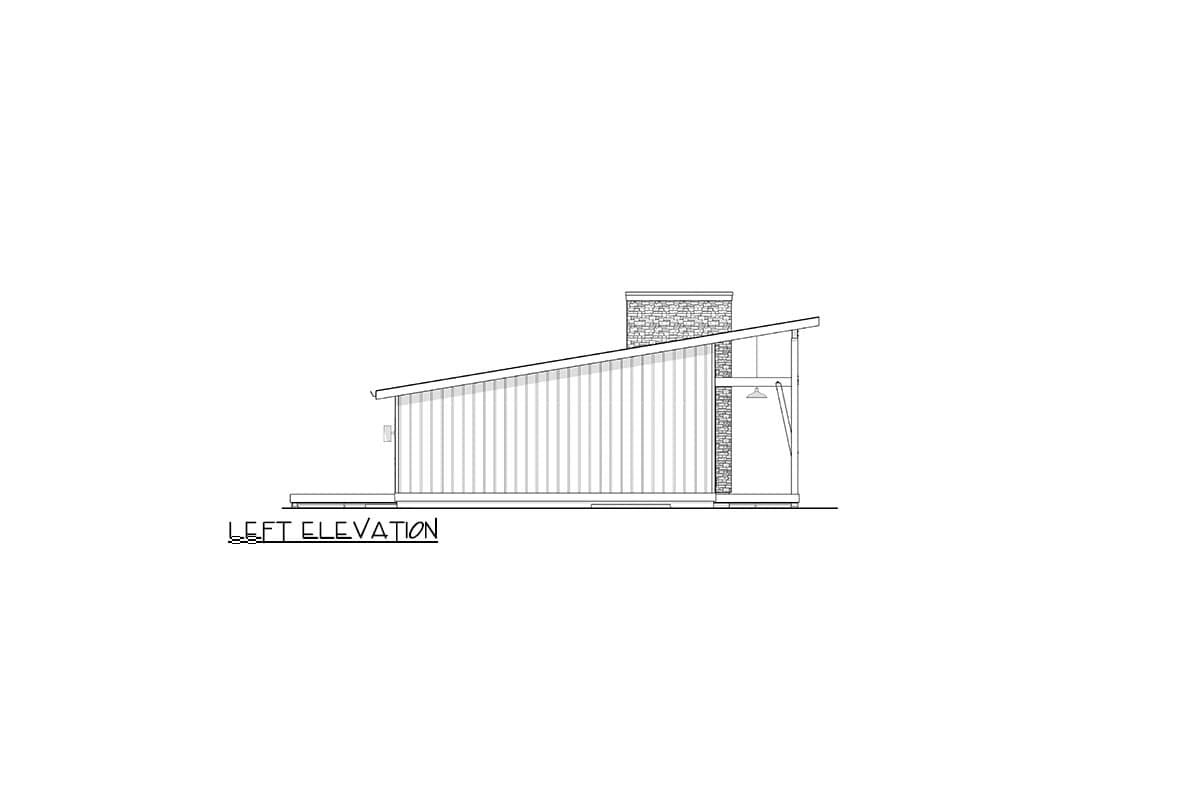

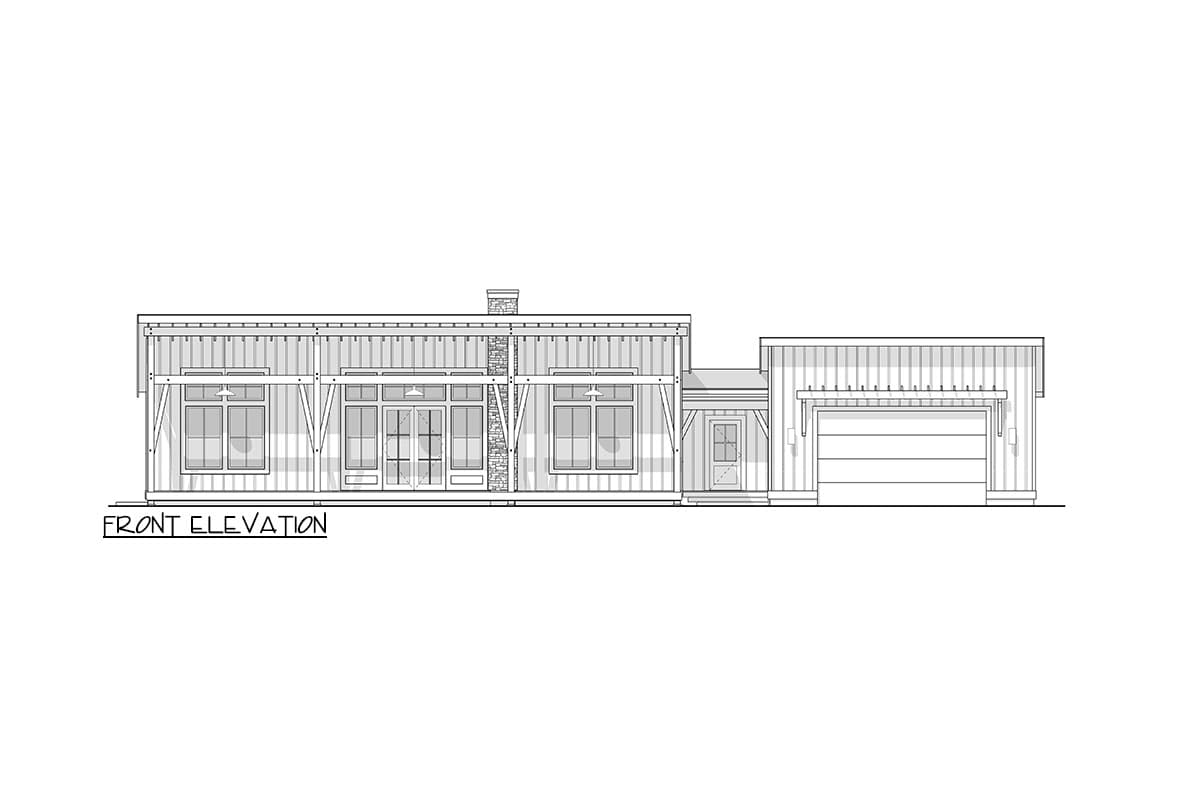

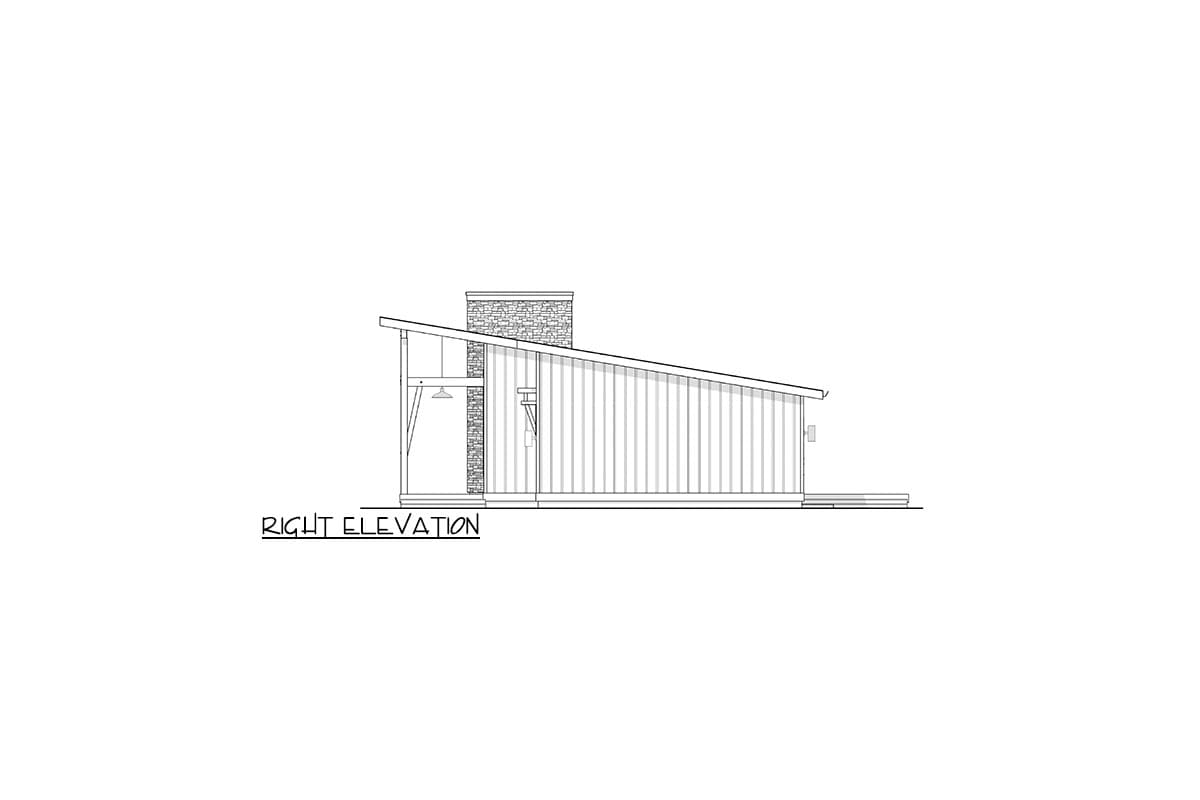

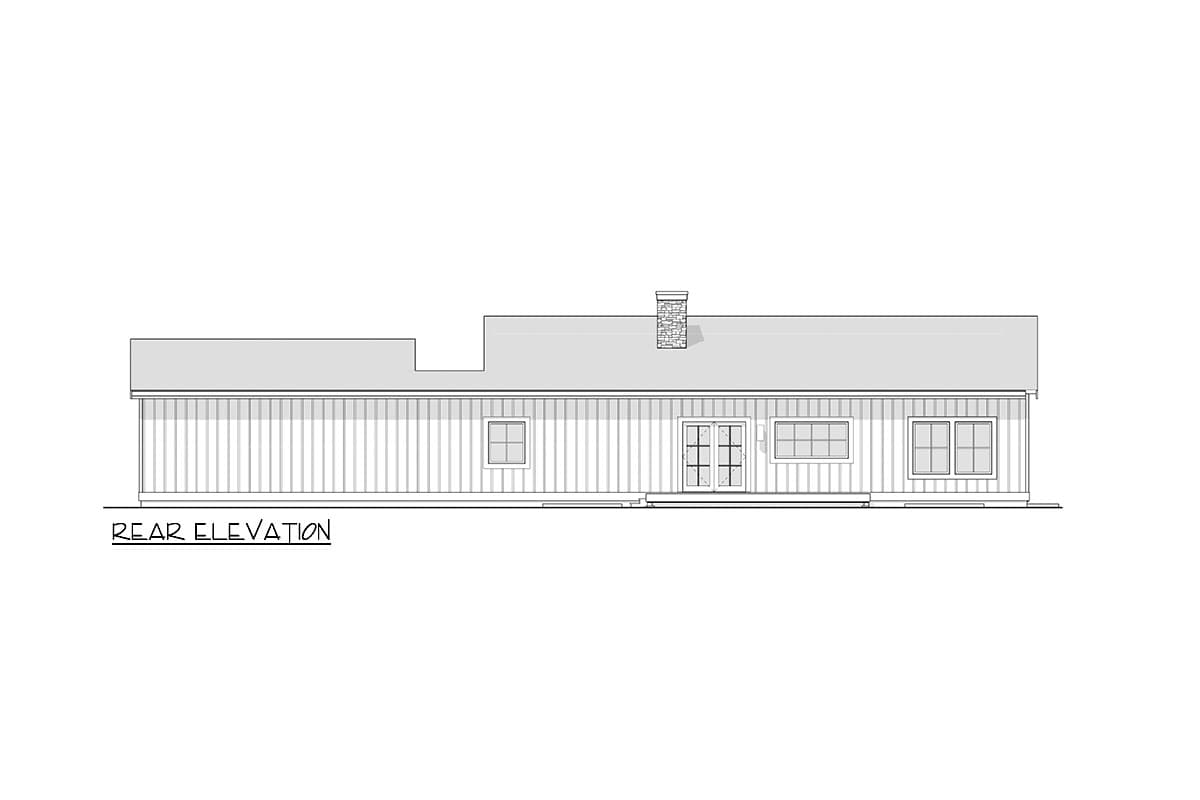

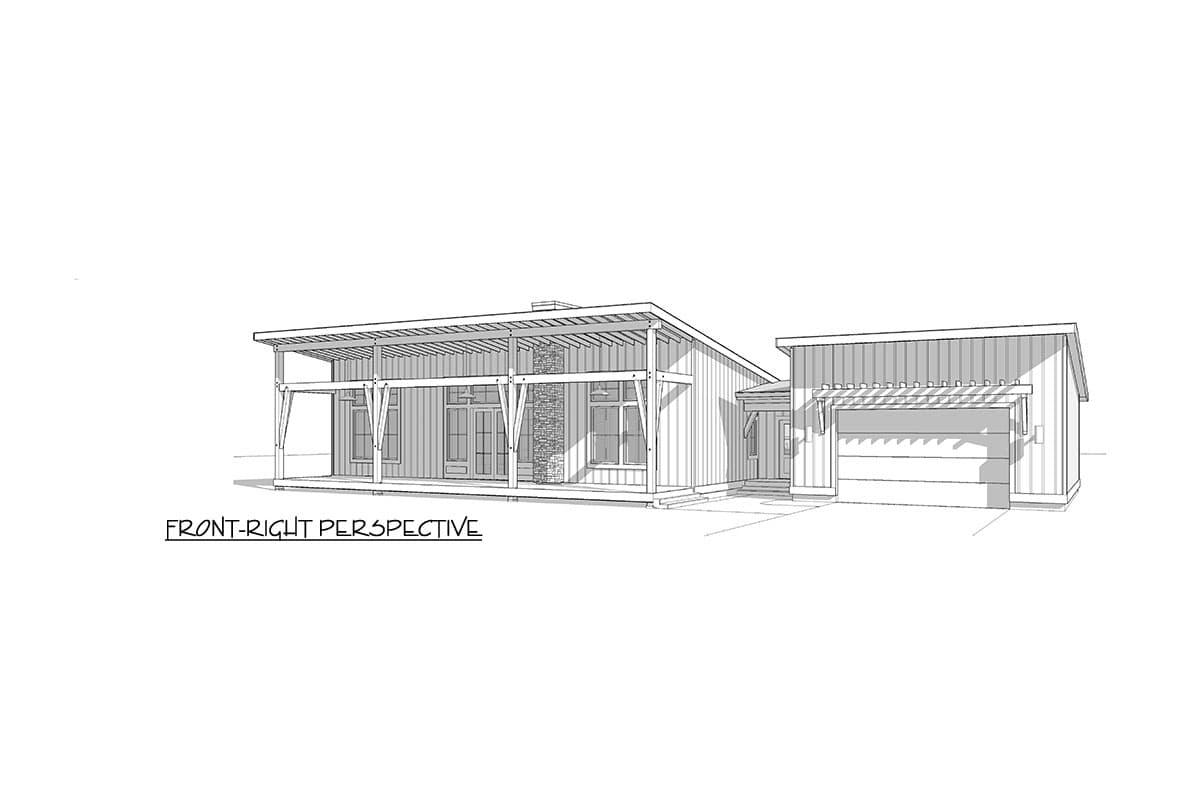

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Rustic Mid-Century Modern Cottage with 2-Car Garage - 1642 Sq Ft

  • 1,642

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,642 sq. ft.
  • 1st Floor: 1,642 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 48' 0"
  • Max ridge height: 18' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

3-Bed Rustic Mid-Century Modern Cottage with 2-Car Garage - 1642 Sq Ft

  • 1,642

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

3-Bed Rustic Mid-Century Modern Cottage with 2-Car Garage - 1642 Sq Ft

  • 1,642

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,642 sq. ft.
  • 1st Floor: 1,642 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 48' 0"
  • Max ridge height: 18' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
