Plan 340137STR

3-Bed Southern Cottage Plan with Verandah and Side-Entry Garage

Heated S.F.
2,178
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 340137STR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 340137STR

M-F 9am-5pm EST |

1-203-761-8500

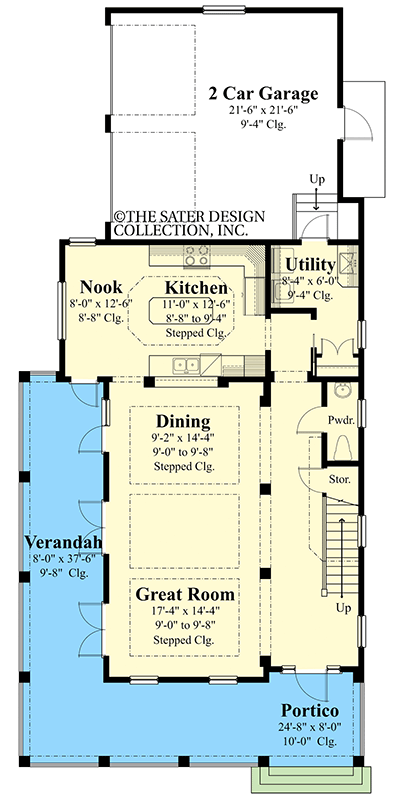

Main Level

Plan 340137STR: 3-Bed Southern Cottage Plan with Verandah and Side-Entry Garage - Floor Plan - Main Level - Cottage, Country, Farmhouse, Modern Farmhouse, Southern

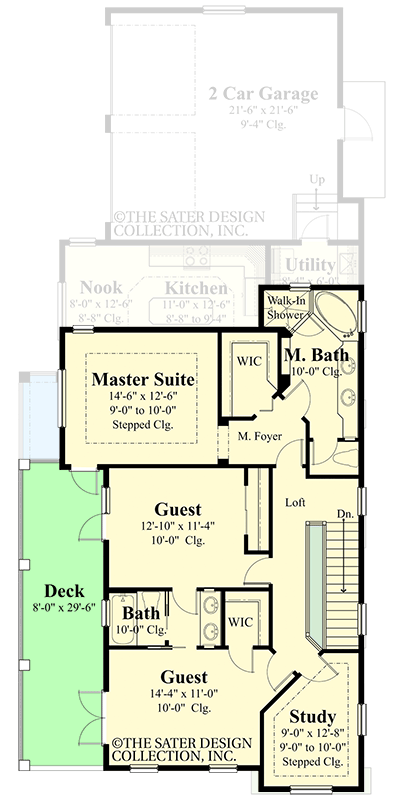

2nd Floor

Plan 340137STR: 3-Bed Southern Cottage Plan with Verandah and Side-Entry Garage - Floor Plan - 2nd Floor - Cottage, Country, Farmhouse, Modern Farmhouse, Southern

Plan Details

  • This 2,178-square-foot Southern cottage house plan features 3 bedrooms, 2.5 bathrooms, and a 503-square-foot 2-car garage with a discreet side-entry design.
  • Upon entry from the welcoming front portico, the home opens into a sophisticated, open-concept main floor where the great room and dining area blend together under elegant stepped ceilings.
  • The gourmet kitchen is positioned at the rear for privacy, offering a bright breakfast nook for casual meals and seamless access to the utility room and rear-loading garage.
  • Upstairs, the master suite serves as a private retreat with a tiered ceiling and a spa-inspired bathroom, while a dedicated study provides a quiet space for a home office or library.
  • Expansive outdoor living spaces define the exterior, including a wraparound verandah perfect for afternoon relaxation and a second-story deck accessible from the guest bedrooms.
  • For those seeking additional square footage, the plan includes an optional basement foundation that can be finished to suit your specific lifestyle needs.

What's Included

  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,178 sq. ft.

1st Floor

1,085 sq. ft.

2nd Floor

1,093 sq. ft.

Deck

232 sq. ft.

Entry

80 sq. ft.

Covered Patio

421 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 8"

Depth

72' 0"

Max Ridge Height

31' 1"

Garage

Type

Standard, Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

9 on 12

Framing Type

Architectural Style

Cottage

Country

Farmhouse

Modern Farmhouse

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Mudroom

Wraparound Porch

Square Footage Breakdown

Total Heated Area

2,178 sq. ft.

1st Floor

1,085 sq. ft.

2nd Floor

1,093 sq. ft.

Deck

232 sq. ft.

Entry

80 sq. ft.

Covered Patio

421 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 8"

Depth

72' 0"

Max Ridge Height

31' 1"

Garage

Type

Standard, Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

9 on 12

Framing Type

Architectural Style

Cottage

Country

Farmhouse

Modern Farmhouse

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - Upstairs

Mudroom

Wraparound Porch
