Plan 66324WE

3-Bed Spanish-Style House Plan with Stucco Exterior and Tile Roof - 2583 Sq Ft

Name: Plan 66324WE: 3-Bed Spanish-Style House Plan with Stucco Exterior and Tile Roof - 2583 Sq Ft
Brand: Architectural Designs
SKU: 66324WE
Price: 1200.0 USD
Availability: InStock

Heated S.F.

2,583

Beds

Baths

Stories

Cars

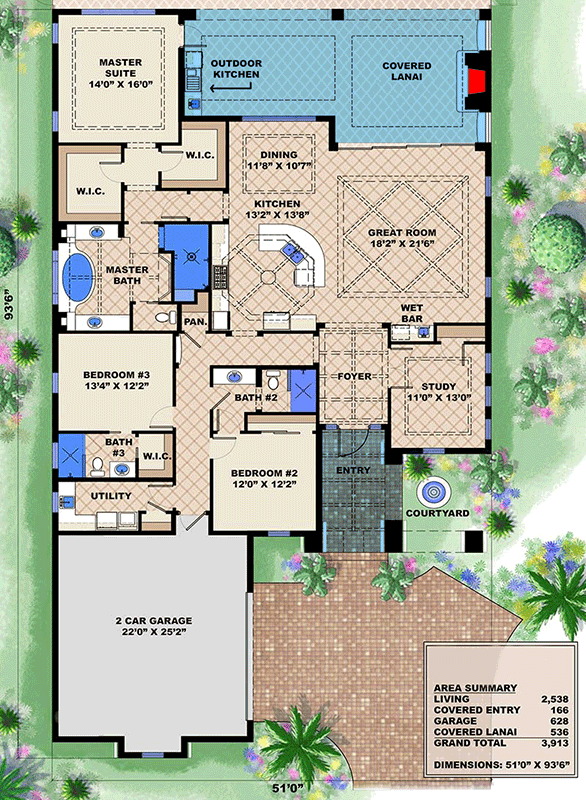

Floor Plan

Main Level

Plan Details

A beautiful stucco exterior, tile roof and strong lines allow this Spanish style home plan to fit anywhere and look great.
High-end ceiling treatments can be found in almost every room of the house, as well as other custom touches like the wet bar and outdoor kitchen.
A wall of sliding glass doors in the great room brings in tons of light and gives you easy access to the fabulous covered lanai with its outdoor fireplace.
From the kitchen you can see it all, thanks to the open floor plan.
In the master suite, a huge walk-in shower and soaking tub will leave you feeling pampered.
NOTE: This plan is not available for purchase in the state of Florida.

What's Included

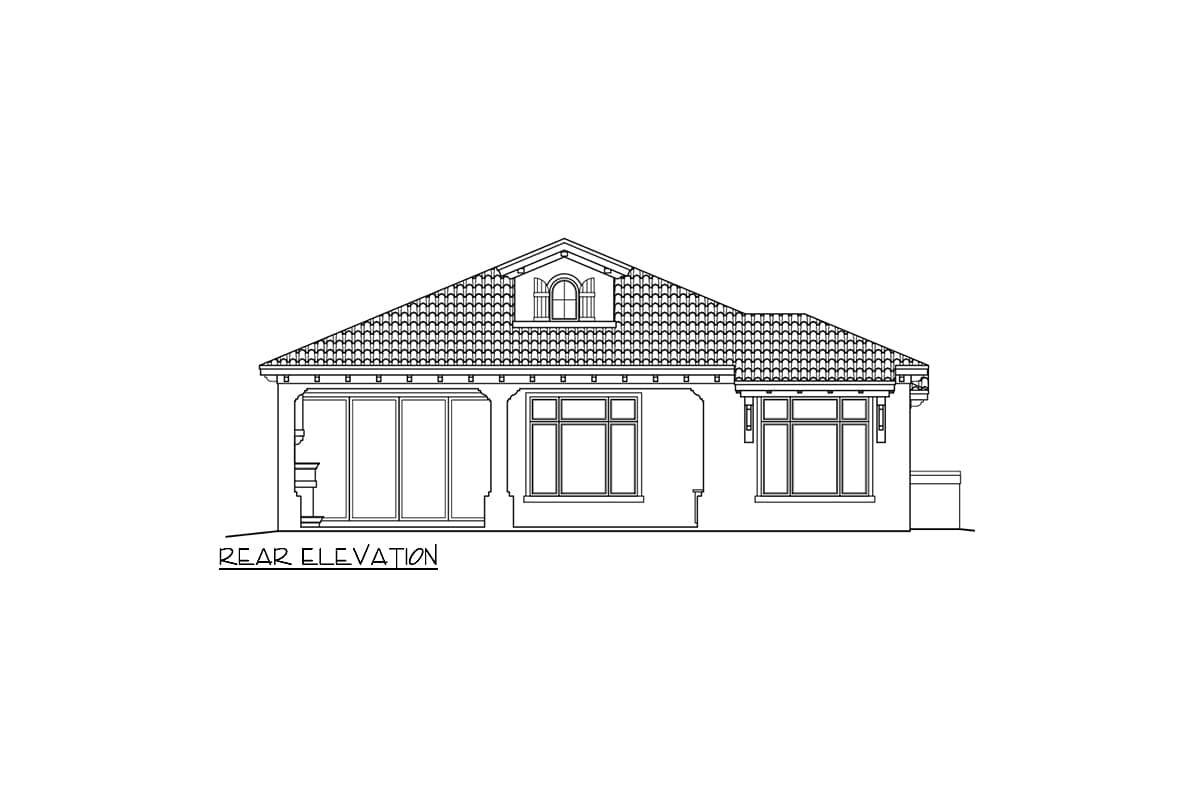

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
