3 Bed Step-Saving House Plan

Plan 55179BR

  • 1,806

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • You'll love the efficiency of this house plan with everything you need need within a few steps of each other.
  • The living room takes center stage when you enter the front door. It has 16' ceilings and a fireplace. It has direct access to the screen porch in back as well.
  • The kitchen is open to the nook and has counter seating. You can easily serve more formal meals in the dining room just steps away.
  • The master suite has a large walk-in closet and a linen closet accessible from the utility room which will save you steps when doing laundry. It has 10' tray ceilings and a luxury bath featuring a separate shower, twin lavatories and a private toilet area.The secondary bedrooms have share a jack and jill bath with walk-in closets
  • There is a large storage area built into the back of the 2 car garage.
  • The roof is stick framed with a 12:12 main pitch and a 7:12 secondary pitch.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

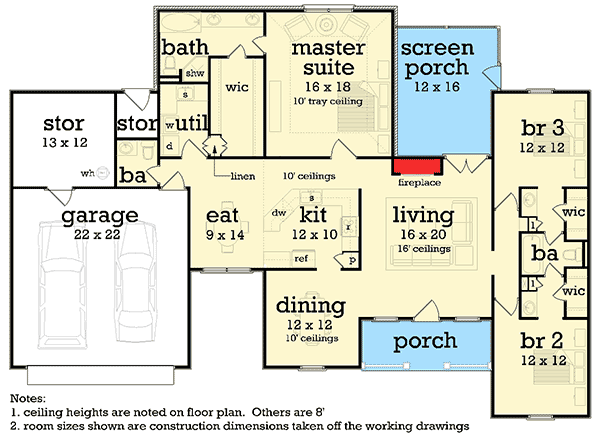

3 Bed Step-Saving House Plan - 55179BR floor plan - Main Level

3 Bed Step-Saving House Plan

  • 1,806

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,806 sq. ft.
  • 1st Floor: 1,806 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 50' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 16' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick
