3-Bed Traditional Home Plan with Open-Concept Living Space

Plan 22172SL

  • 1,819

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A cross-gable roof rests atop this 3-bedroom, traditional home plan; a total of 1,819 square feet of living space.
  • Enter the double garage from the front of the home, and discover a combined laundry / mudroom with a powder bath behind a pocket door just inside.
  • The elimination of walls in the communal areas creates a desirable open-concept living space, including a warm fireplace, sliding door to the backyard, and L-shaped cabinets surrounding a central prep island.
  • The master bedroom features a vaulted ceiling, 5-fixture bathroom, and a walk-in closet.
  • Bedrooms 2 and 3 reside across the hall and share a full bath, or convert the third bedroom into a home office for the work-at-home resident.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

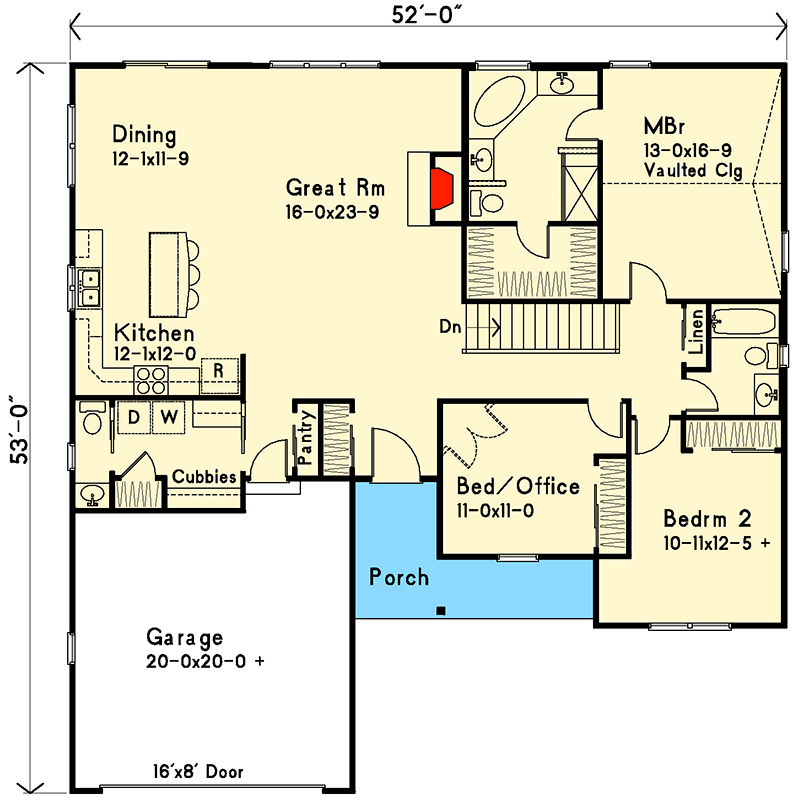

3-Bed Traditional Home Plan with Open-Concept Living Space - 22172SL floor plan - Main Level

Architectural Style

Plan Collections

3-Bed Traditional Home Plan with Open-Concept Living Space

  • 1,819

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,819 sq. ft.
  • 1st Floor: 1,819 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 53' 0"
  • Max ridge height: 21' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 427 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
