3 Bed Traditional House Plan

Plan 42374DB

  • 2,228

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Beautiful stonework accents the front of this 3 bed traditional house plan.
  • Thoughtfully designed, the home features banquette seating in the dining room to maximize seating accommodations.
  • The wet bar close by is easy to access from the dining room or the family room.
  • Keeping the family organized is a snap, with a drop zone off the garage entry that has bench seating and lockers.
  • A chill and grill area by the rear door in the kitchen is designed to make your outdoor grilling easier than ever.
  • Signature space lets you customize the home to suit your needs whether its a hobby area, safe room or a pocket office or even just another large walk-in closet.
  • The spacious second floor holds three bedrooms and a large unfinished storage area.
  • Notice that every bedroom gets a big walk-in closet.
  • NOTE: Please allow 10-20 business days for delivery.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details

Architectural Style

Plan Collections



3 Bed Traditional House Plan

  • 2,228

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,005
  • 5 Sets $1,130
  • 8 Sets $1,200
  • PDF - multi-use $1,505
  • CAD $1,759
  • CAD - multi-use $2,259
  • View all purchase option online

About This Plan

  • Beautiful stonework accents the front of this 3 bed traditional house plan.
  • Thoughtfully designed, the home features banquette seating in the dining room to maximize seating accommodations.
  • The wet bar close by is easy to access from the dining room or the family room.
  • Keeping the family organized is a snap, with a drop zone off the garage entry that has bench seating and lockers.
  • A chill and grill area by the rear door in the kitchen is designed to make your outdoor grilling easier than ever.
  • Signature space lets you customize the home to suit your needs whether its a hobby area, safe room or a pocket office or even just another large walk-in closet.
  • The spacious second floor holds three bedrooms and a large unfinished storage area.
  • Notice that every bedroom gets a big walk-in closet.
  • NOTE: Please allow 10-20 business days for delivery.

Floor Plans

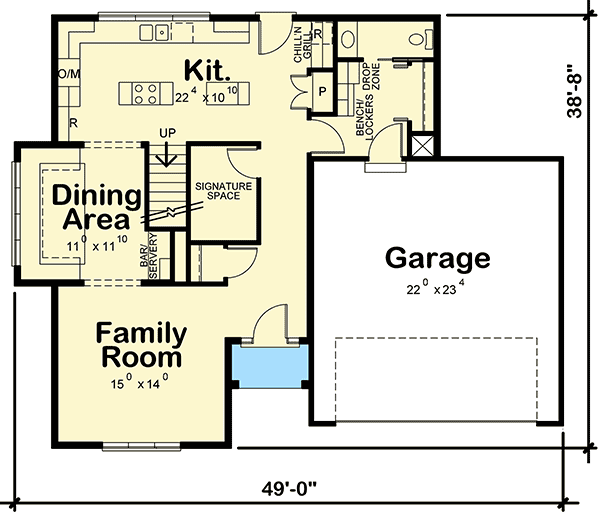

  • Main Level

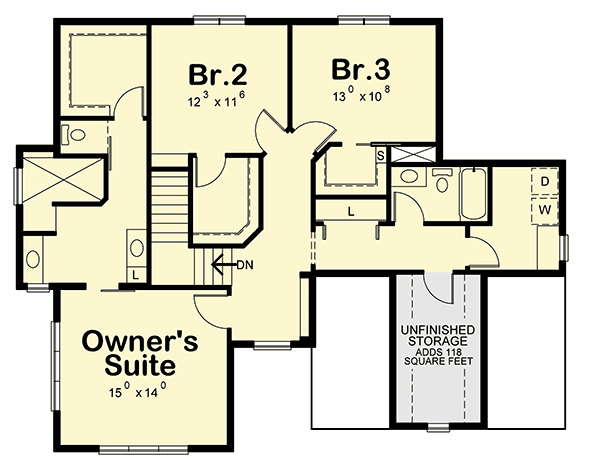

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,228 sq. ft.
  • 1st Floor: 1,024 sq. ft.
  • 2nd Floor: 1,204 sq. ft.
  • Attic: 118 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 38' 8"
  • Max ridge height: 30' 5"

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

  • Traditional

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF

Plan Collections

  • Exclusive
